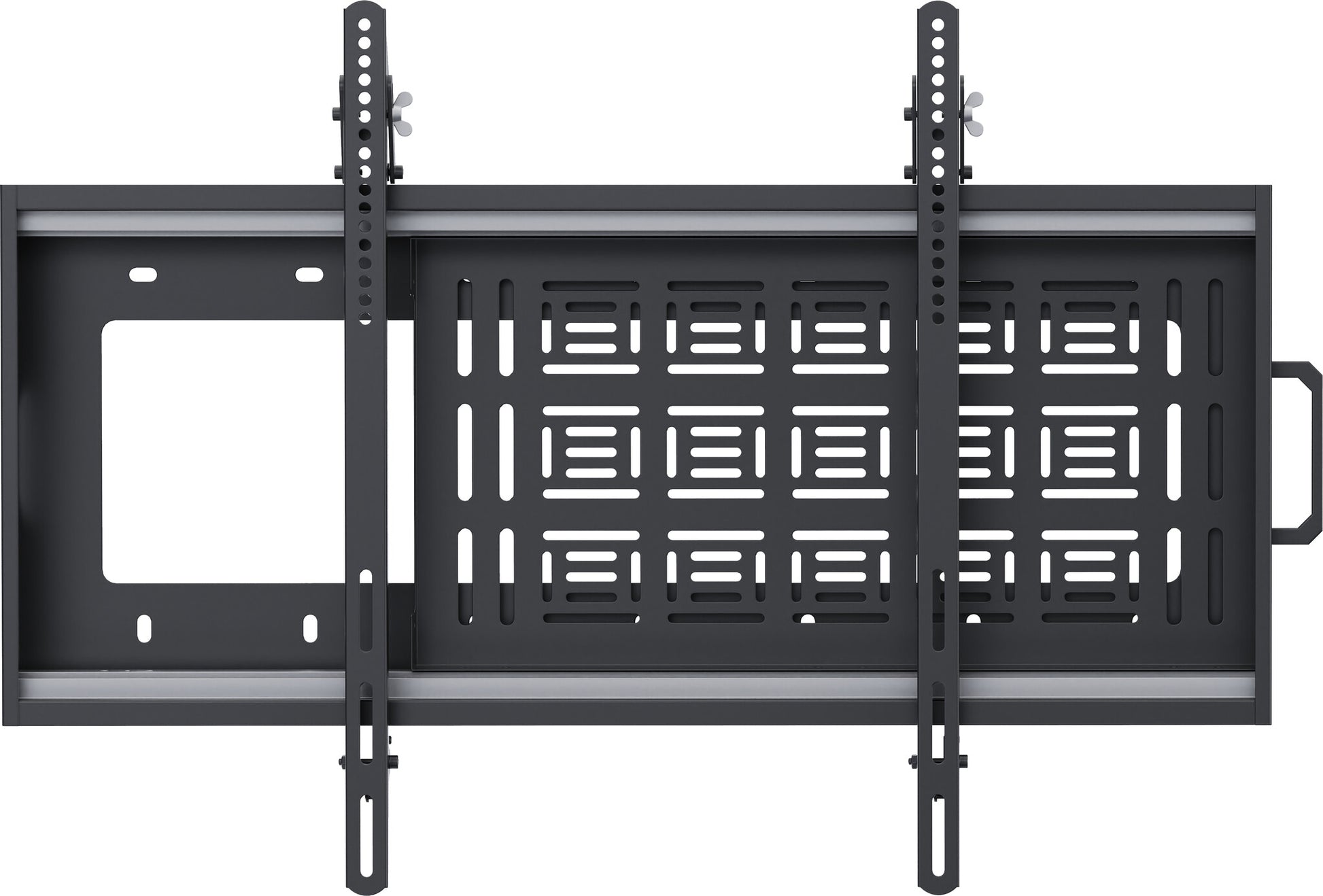

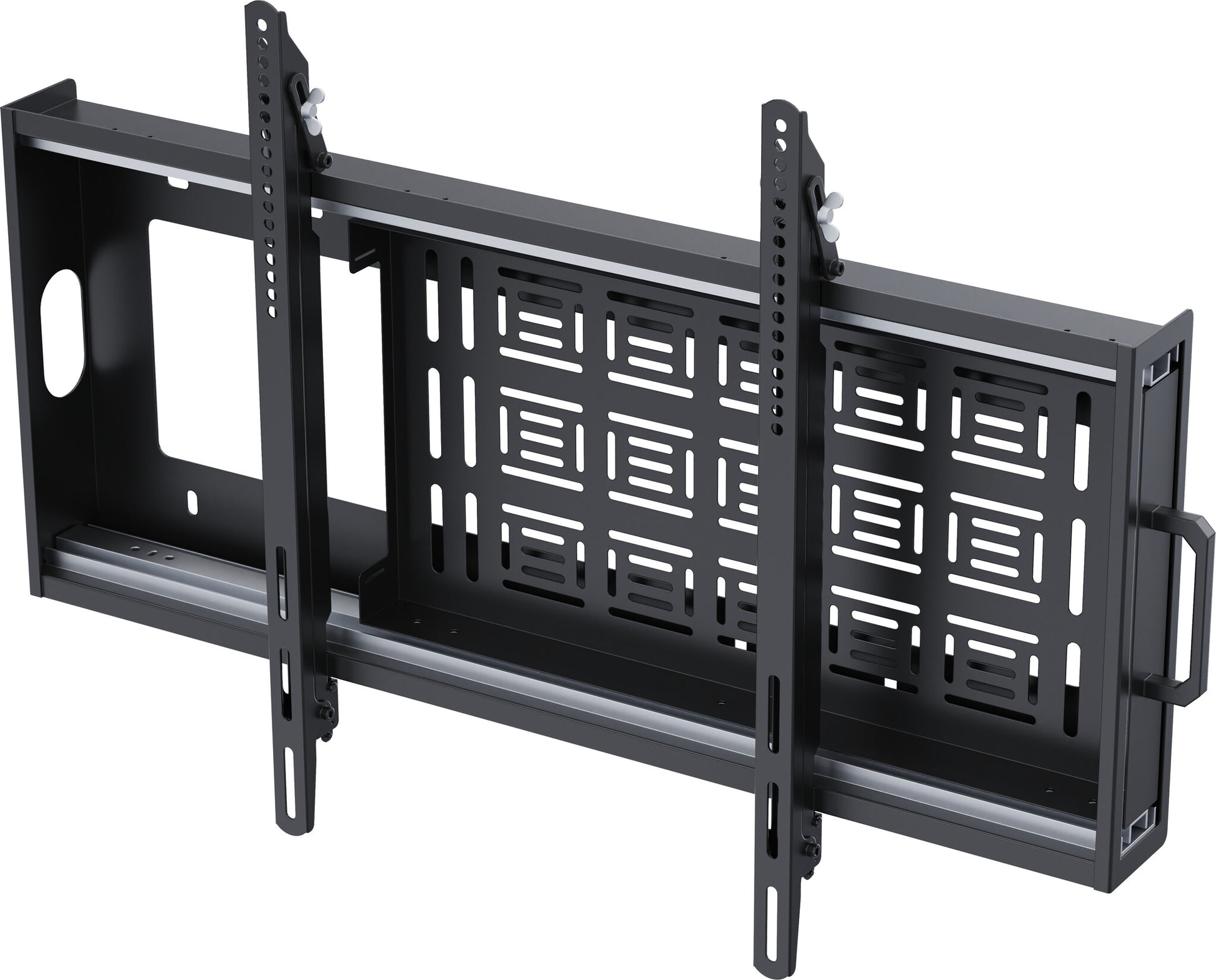

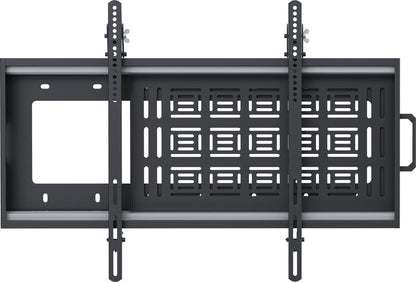

Vision VFM-W8X6S signage display mount 2.29 m (90") Black

Vision VFM-W8X6S signage display mount 2.29 m (90") Black

£228.19 GBP
£228.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

VFM-W8X6S

Low stock: 4 left

  • Tilting Wall Mount for large-format flat panels 47-90"
  • (subject to VESA pattern and weight limit)
  • Mounting points up to 800 (wide) x 600 mm (tall) apart
  • Heavy duty 90 kg / 198 lb SWL
  • Slide Out drawer hides devices behind
Flat-Panel Wall Mount 800×600 with Slide

Vision’s engineering team has designed this mount with professional AV installers in mind. It offers uncompromising strength, quick installation, and high adjustability, with all necessary components included. The VFM-W8X6S is compatible with any flat-panel LCD or LED screen that has rear mounting holes up to 800 mm wide by 600 mm tall.

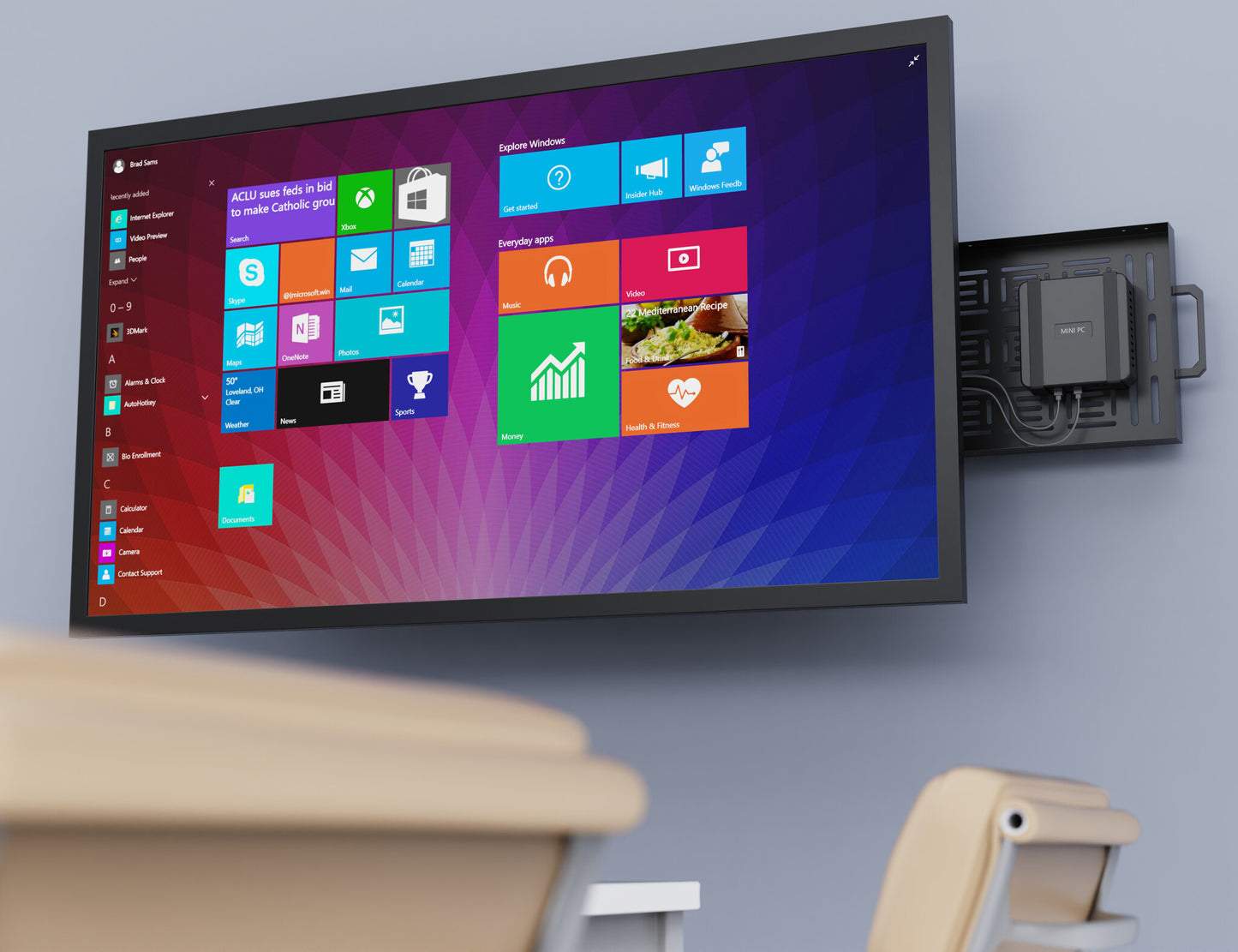

Additionally, it features an innovative slide-out stowage system for concealing power distribution boards and mini PCs behind the display.

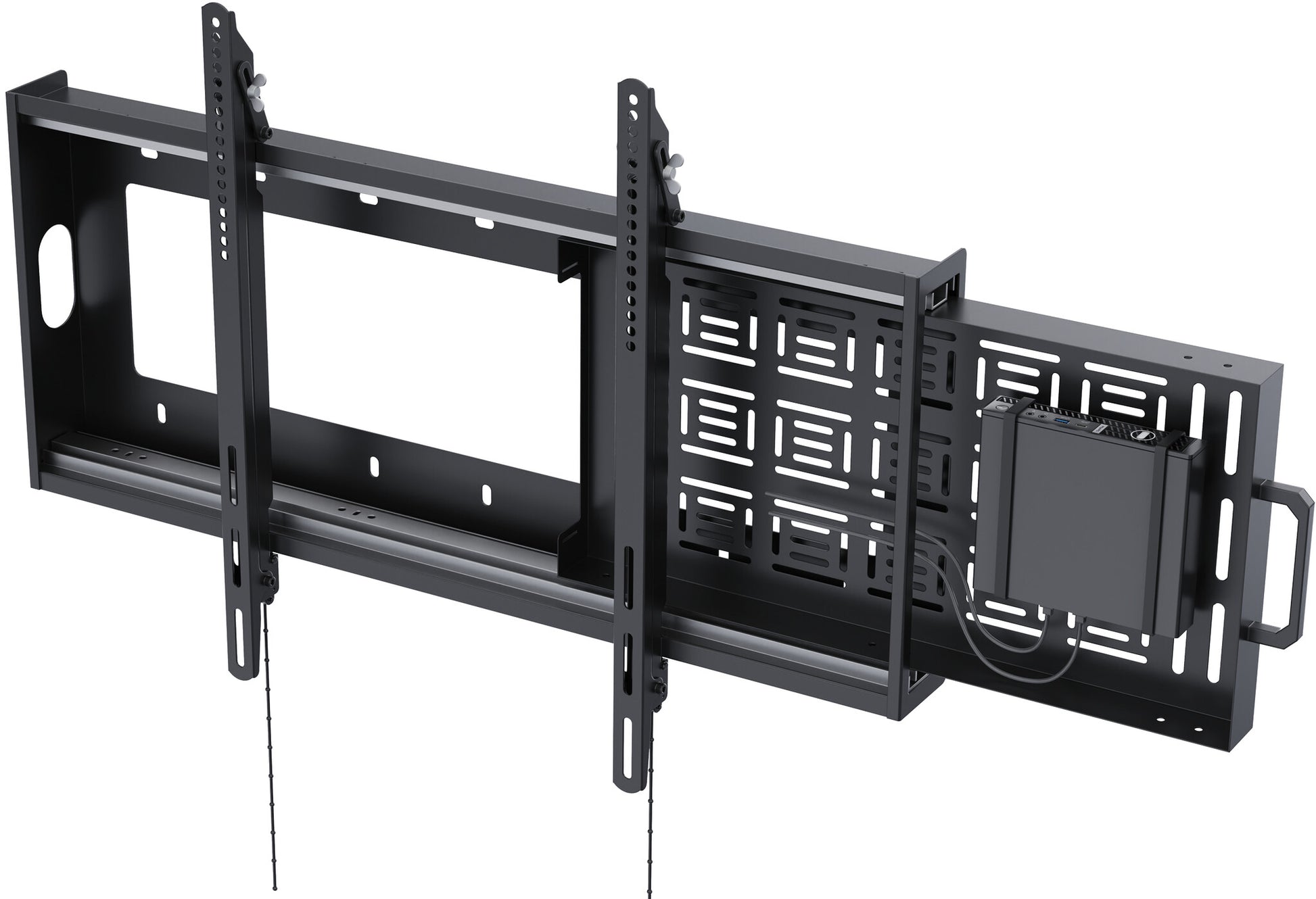

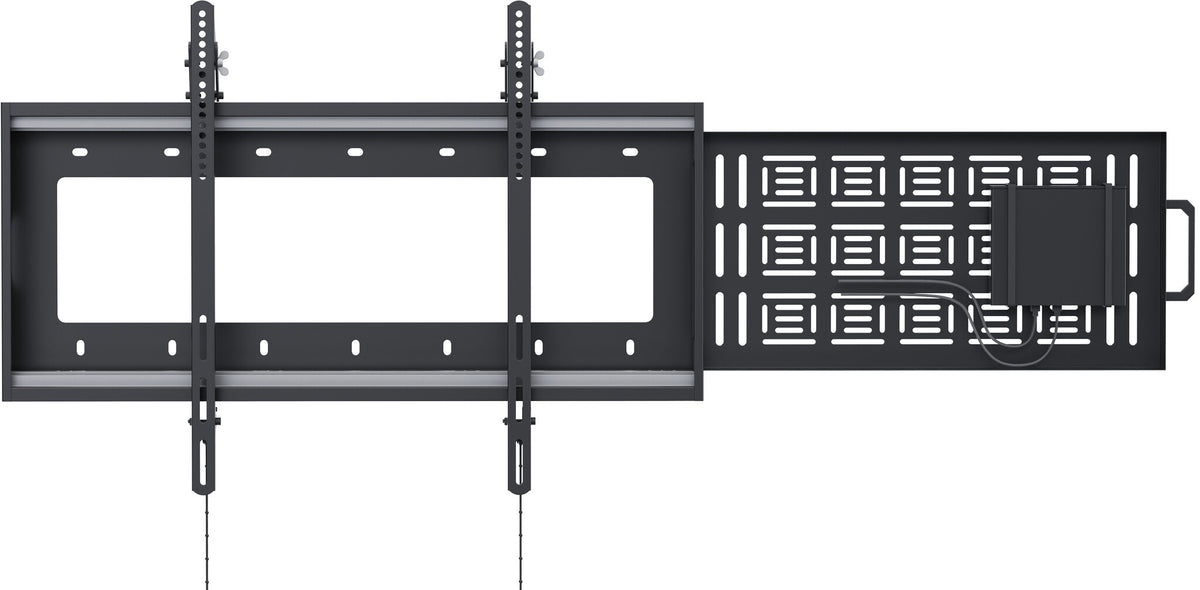

Slide-Out Storage
Fix media players, mini-PCs, and power distribution boards on the slide-out section, simplifying maintenance access.

Heavy Duty
Interactive flat panels are large and very heavy. Vision’s VFM-W8X6S uses heavy gauge sheet metal to take the weight up to SWL 90 kg / 198 lb safely.

Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

For 47-90" Displays
Fits most displays from 47-90″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.

Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.

Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.

Tilt
Ideal in applications where the display is mounted high, this mount features tilt to direct the display downward.

Mounting
Number of displays supported 1
Panel mounting interface 800 x 600,800 x 500,800 x 400,700 x 400,600 x 600,600 x 500,600 x 400,500 x 500,500 x 400,400 x 600,400 x 400,400 x 300,400 x 200,300 x 400,300 x 300
Maximum VESA mount 800 x 600 mm
Minimum VESA mount 300 x 300 mm
Mounting type Wall
Maximum screen size 2.29 m (90")
Minimum screen size 119.4 cm (47")
Maximum weight capacity (per display) 130 kg
Maximum weight capacity 130 kg
Design
Certification RoHS, ADA (Americans with Disability Act) Compliant
Housing material Steel
Product colour Black
Weight & dimensions
Weight 6.2 kg
Height 635 mm
Depth 51 mm
Width 845 mm
Packaging data
Package weight 7.5 kg
Package height 55 mm
Package depth 235 mm
Package width 880 mm
