Vision VFM-VW6X4/2 signage display mount 2.18 m (86") Black

Vision VFM-VW6X4/2 signage display mount 2.18 m (86") Black

VFM-VW6X4/2

£169.41 GBP£141.18 GBP
£0.00 GBP £169.41 GBP£141.18 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

18 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Wall Mount for displays with mounting points up to 600 x 400mm apart
  • Pop-out style for fast access and adjustment
  • Tool-free tilt, rotation, depth, and height adjustment
  • Displays 45-86″
  • Lockable
45"-86", 600 x 400, 640 x 544 x 120-325 mm

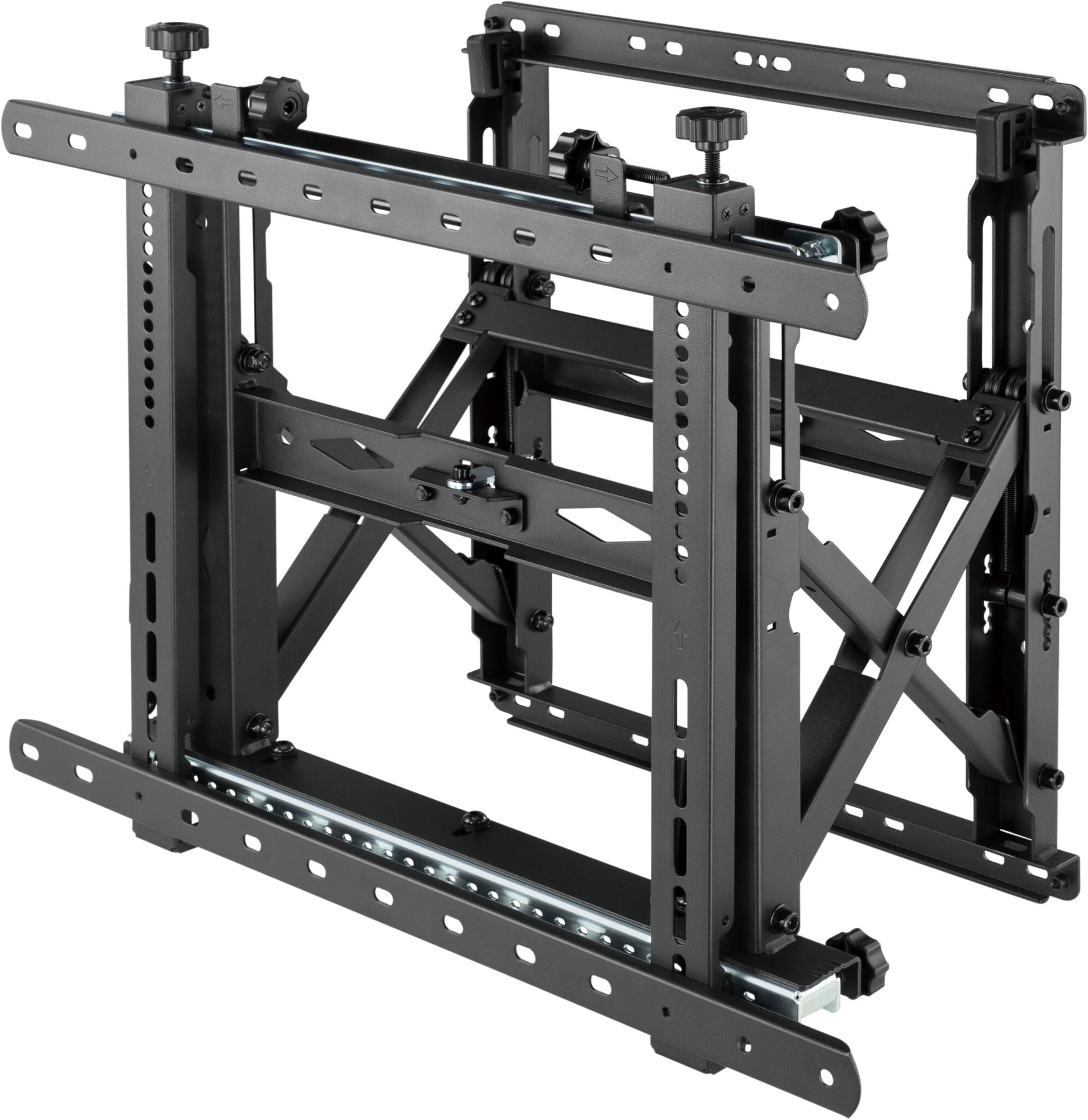

Aligning displays on a video wall is painstaking, so every detail has been thought about on this mount to ensure it is as fast as possible to install, and as easy as possible to adjust with precision.
This is a full service video wall mount with tool-free micro adjustment and easy access to the rear of the display for serviceability.

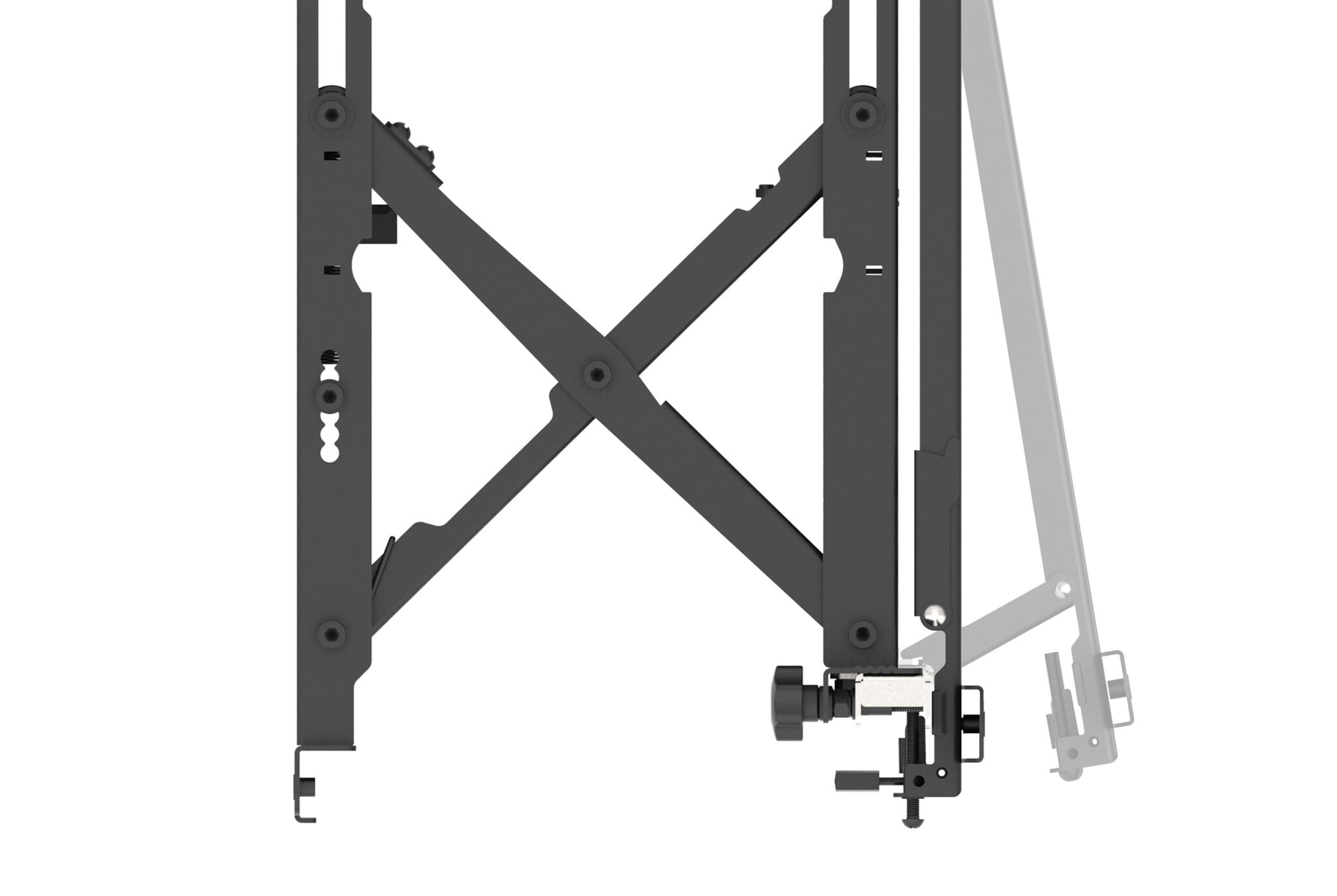

Kickstand
With the display popped out, you can then pull the bottom of the display out to make access to cable ports even easier. A kickstand holds it at 10° while you work on it.

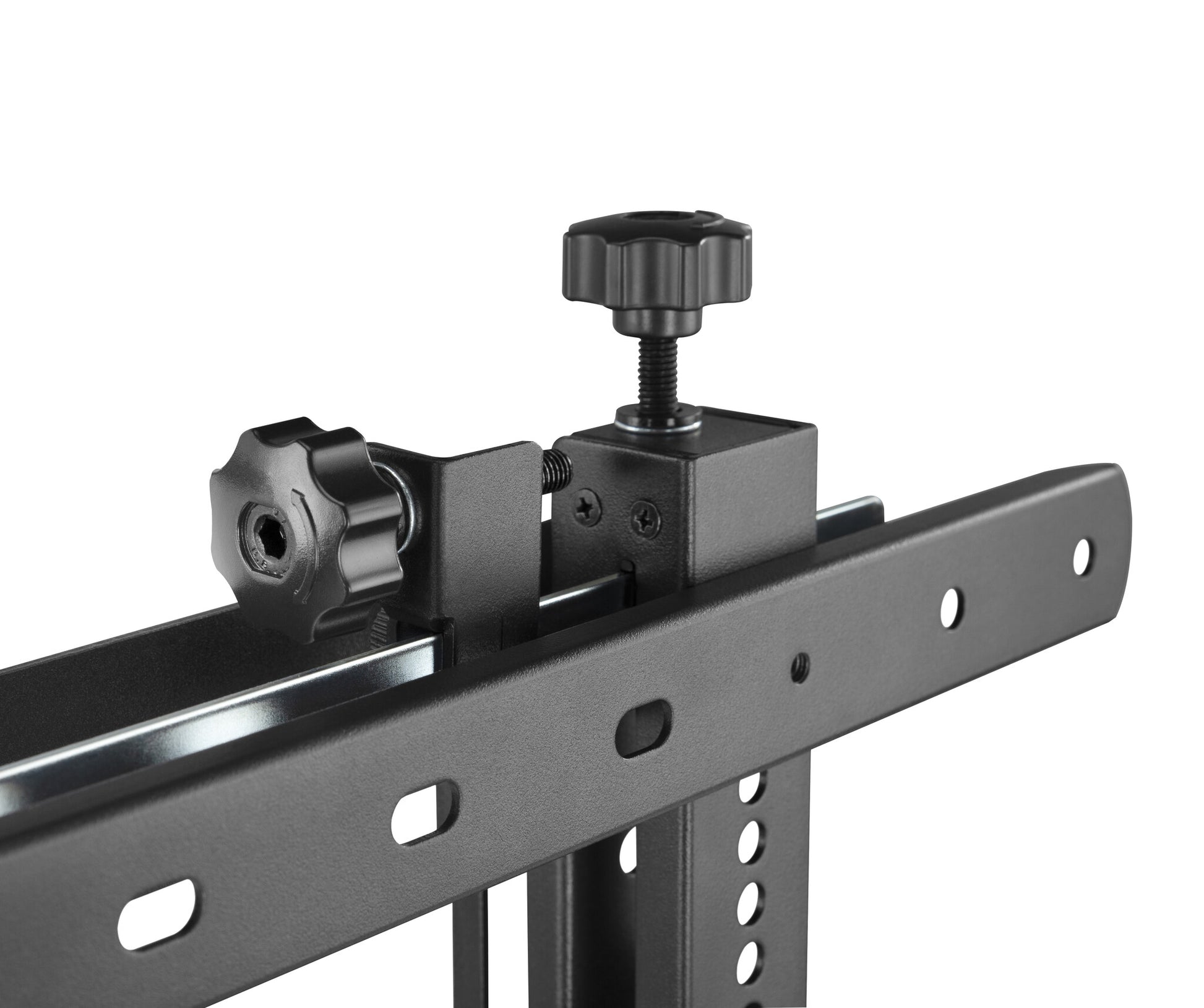

Minimal Tools
Wherever possible Vision uses thumbscrews which dramatically speed up installation and help with faster adjustment. The adjustment dials on this product can be turned easily by hand.

Pop-out Quick-Release
A light push on the display releases the scissor pop-out mechanism, pushing the display out towards you. Plastic tongues are included which are put into place once you are done to avoid accidental pop-outs.

Landscape or Portrait
This mount supports displays in either portrait or landscape. In portrait format the display must be more than 650 mm wide and must be VESA 400 x 400 mm or less.

Adjustment Planes
Using the easy hand-adjustable plastic dials you can adjust tilt (-3° to 2°), rotation, height, and depth. For speed you can also use a hex bit in a power drill to turn these.

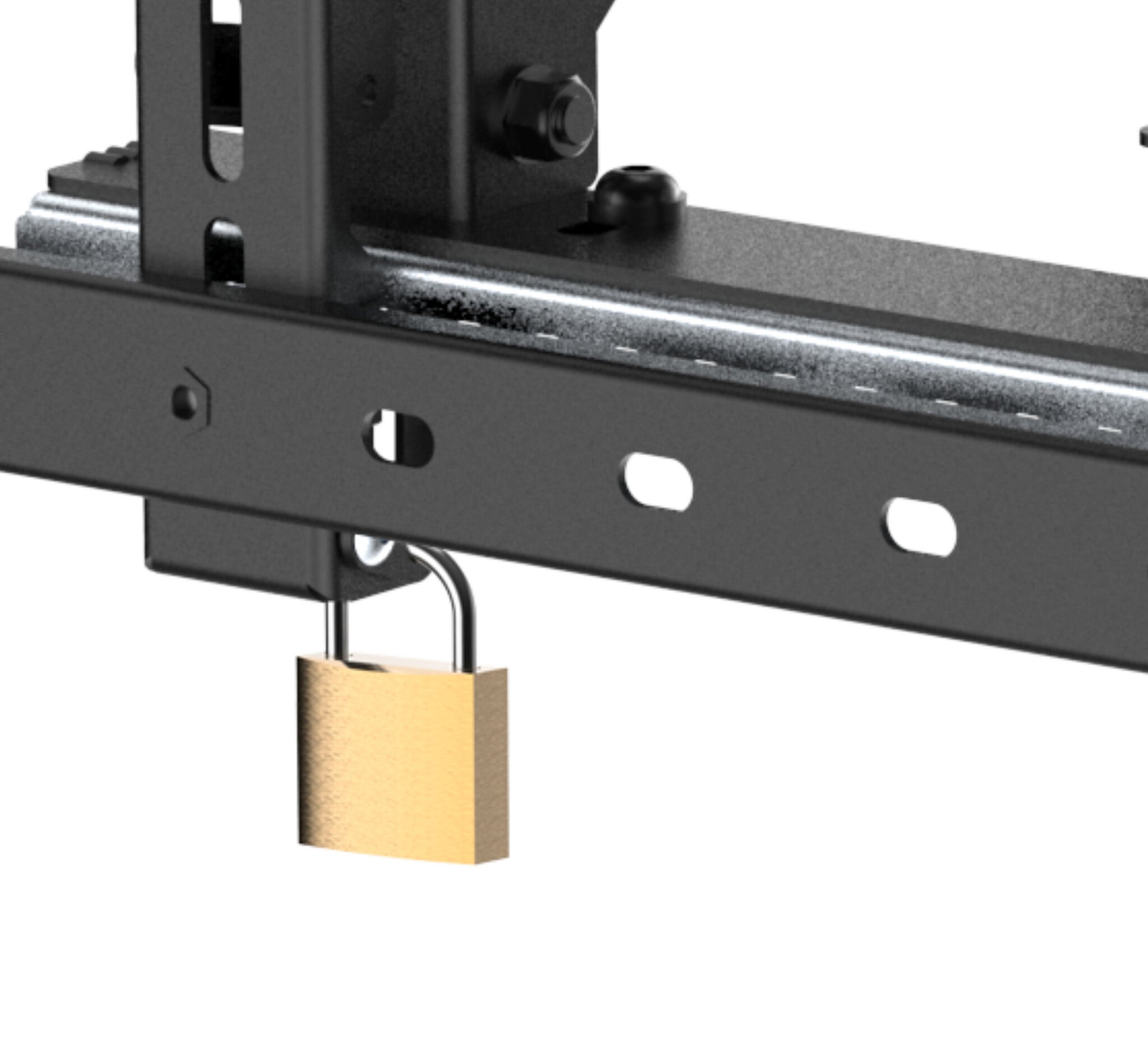

Lockable
It latches into place and can be locked with a padlock (not included) for further security.

45-86″ displays
Fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 wide x 400mm tall apart.

Depth
The minimum depth in place is 120 mm, and when it pops out it comes out 325 mm.

Display Fixing Screws
Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.

Mounting
Panel mounting interface 200 x 200,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,500 x 400
Maximum VESA mount 600 x 400 mm
Minimum VESA mount 200 x 200 mm
Mounting type Wall
Maximum screen size 2.18 m (86")
Minimum screen size 114.3 cm (45")
Maximum weight capacity 70 kg
Ergonomics
Tilt angle range -2 - 3°
Height adjustment Yes
Design
Housing material Steel
Product colour Black
Power
On/off switch No
Weight & dimensions
Weight 13.2 kg
Height 640 mm
Depth 120 mm
Width 544 mm
Packaging data
Quantity per pack 1 pc(s)
Package weight 15.1 kg
Package height 585 mm
Package depth 135 mm
Package width 566 mm
Technical details
Compliance certificates REACH, RoHS
Orientation Landscape/Portrait
