1 5

Vision

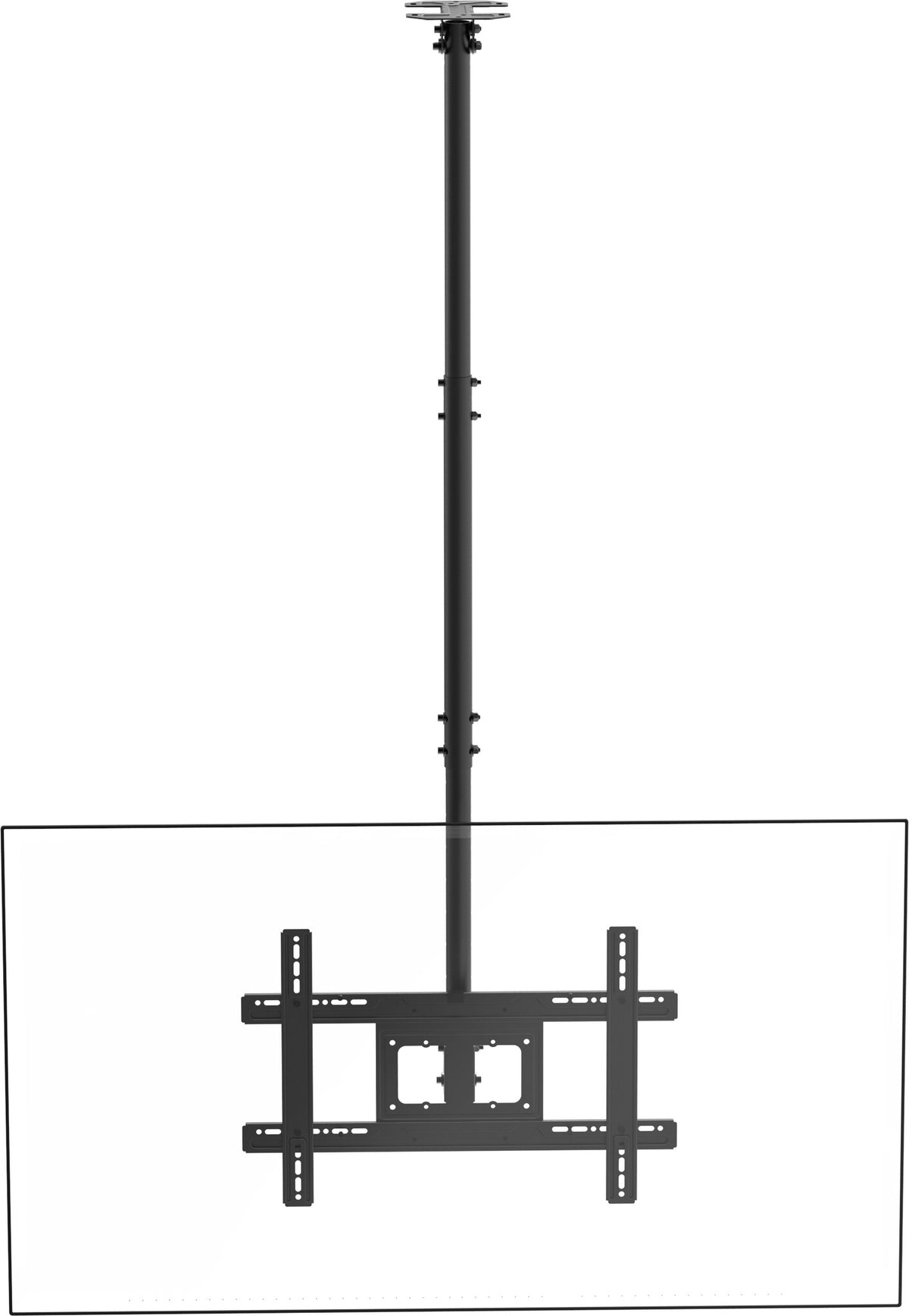

Vision VFM-C6X4/V2 signage display mount 190.5 cm (75") Black

Vision VFM-C6X4/V2 signage display mount 190.5 cm (75") Black

VFM-C6X4/V2

£69.35 GBP£57.79 GBP
£0.00 GBP £69.35 GBP£57.79 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

26 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Maximum weight capacity: 50 kg Black
  • Maximum screen size: 190.5 cm (75")
  • Mounting type: Ceiling
  • Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
  • Height adjustment Cable management
  • Housing material: Steel
20-75", 650x185x1792mm, 7.3kg, Black

Flat-Panel Ceiling Mount 600×400

Vision’s VFM-C (Vision Flat-Panel Mount – Ceiling) is functional and flexible. This mount fits any flat-panel display which has rear mounting holes up to 600 wide x 400 mm tall apart. This is a true one-size-fits-all ceiling mount.

VESA

This mount is designed for flat panels which have holes up to 600 wide x 400 mm apart – known as VESA 600×400.

MASSIVE range of drop

This distance from the ceiling to the centre of the display ranges from 707-1577 mm / 27.8-62.1″.

Detachable VESA

Vision agonise over making the installation process as easy as possible. The universal VESA bracket attaches to the display on the ground, then the assemble hangs in place.

Cable Management

The 38 mm / 1.5″ drop pole easily allows cables to drop down inside.

3-Part Pole

The pole can be assembled with either 2 or 3 sections which gives it an incredible range of telescopic adjustment. Installers can turn up to site and get the job down, no matter what they encounter onsite.

MASSIVE VESA range

Fits small monitors from 20″ all the way up to 75″. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

Tilt

The tilt adjustment allows the display to be directed at the audience to avoid glare and optimise the viewing angle. It can tilt 5 degrees up, or 25 degrees down.

Swivel with display in place

60 degrees of swivel range makes it really easy to install. Loosening the swivel adjustment bolts will not drop the display.

Retail Applications

Ideal for doctors waiting rooms, dentist’s ceilings, or to deliver digital signage in any retail environment.

Cathedral Ceiling

The ceiling fixture tilts to accommodate sloping ceilings. It can tilt to 90 degrees to fix to the side of a ceiling joist.

Mounting
Maximum weight capacity 50 kg
Minimum screen size 50.8 cm (20")
Maximum screen size 190.5 cm (75")
Mounting type Ceiling
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 600 x 400 mm
Panel mounting interface 100 x 100,100 x 200,200 x 100,200 x 200,300 x 400,300 x 300,400 x 400,400 x 300,500 x 400,600 x 400
Number of displays supported 1
Ergonomics
Height adjustment Yes
Height adjustment range 0 - 870 mm
Tilt angle range -25 - 5°
Swivel angle 60°
Swivel angle range -30 - 30°
Ceiling mounting tube length (max) 157.7 cm
Ceiling mounting tube length (min) 70.7 cm
Cable management Yes
Design
Product colour Black
Housing material Steel
Certification REACH
Weight & dimensions
Width 650 mm
Depth 185 mm
Height 1792 mm
Weight 7.3 kg
Packaging data
Package width 780 mm
Package depth 180 mm
Package height 245 mm
Package weight 9.1 kg
Logistics data
Harmonized System (HS) code 85299097
