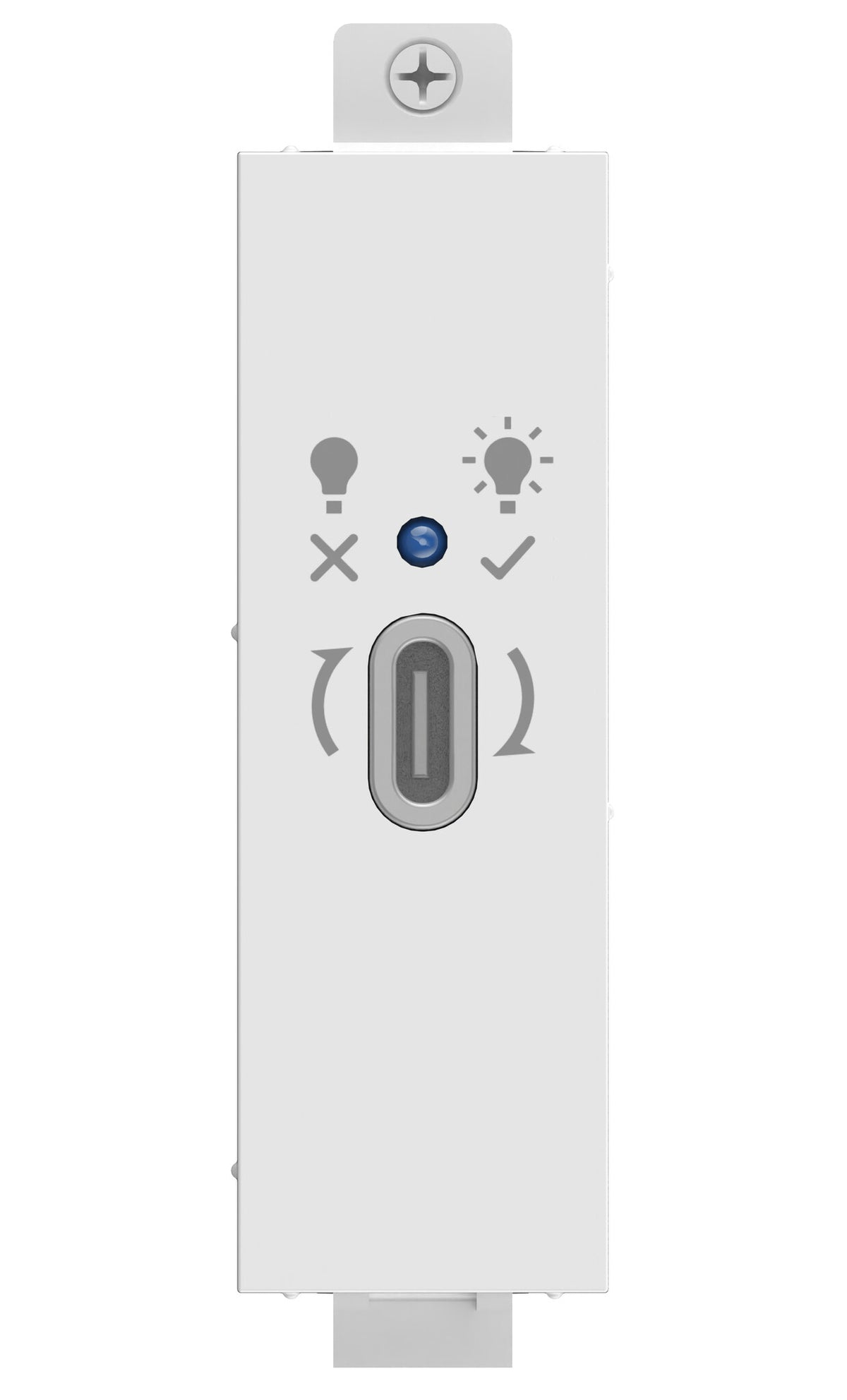

Techconnect USB-C module, 4K 30 Hz, PD100 W, 120 x 200 mm, White
This module is part of Vision's Techconnect connectivity faceplate family. It allows technology users to use just one USB-C cable to connect their laptop to the AV faceplate.
This module supports 4K video, USB, and charging. Use this module with Vision's USB-C cables for best results.
USB 3.2 The USB 3.2 interface on the rear is designed and tested to work with all interactive displays and projectors.

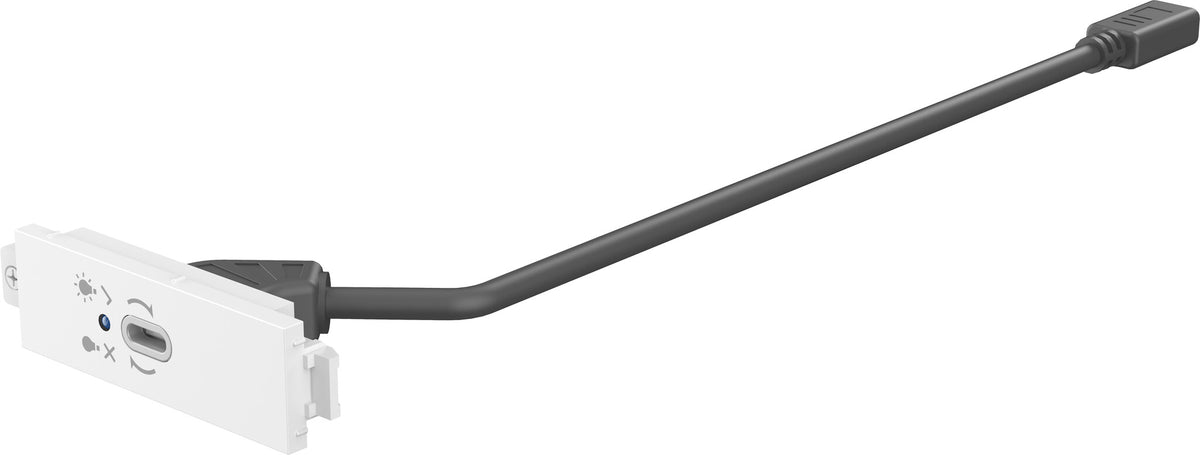

Test LED The cable that connects to the front of the module is designed to fit in only one direction—it's not reversible. To ensure you've plugged it in correctly, a light indicator is provided.

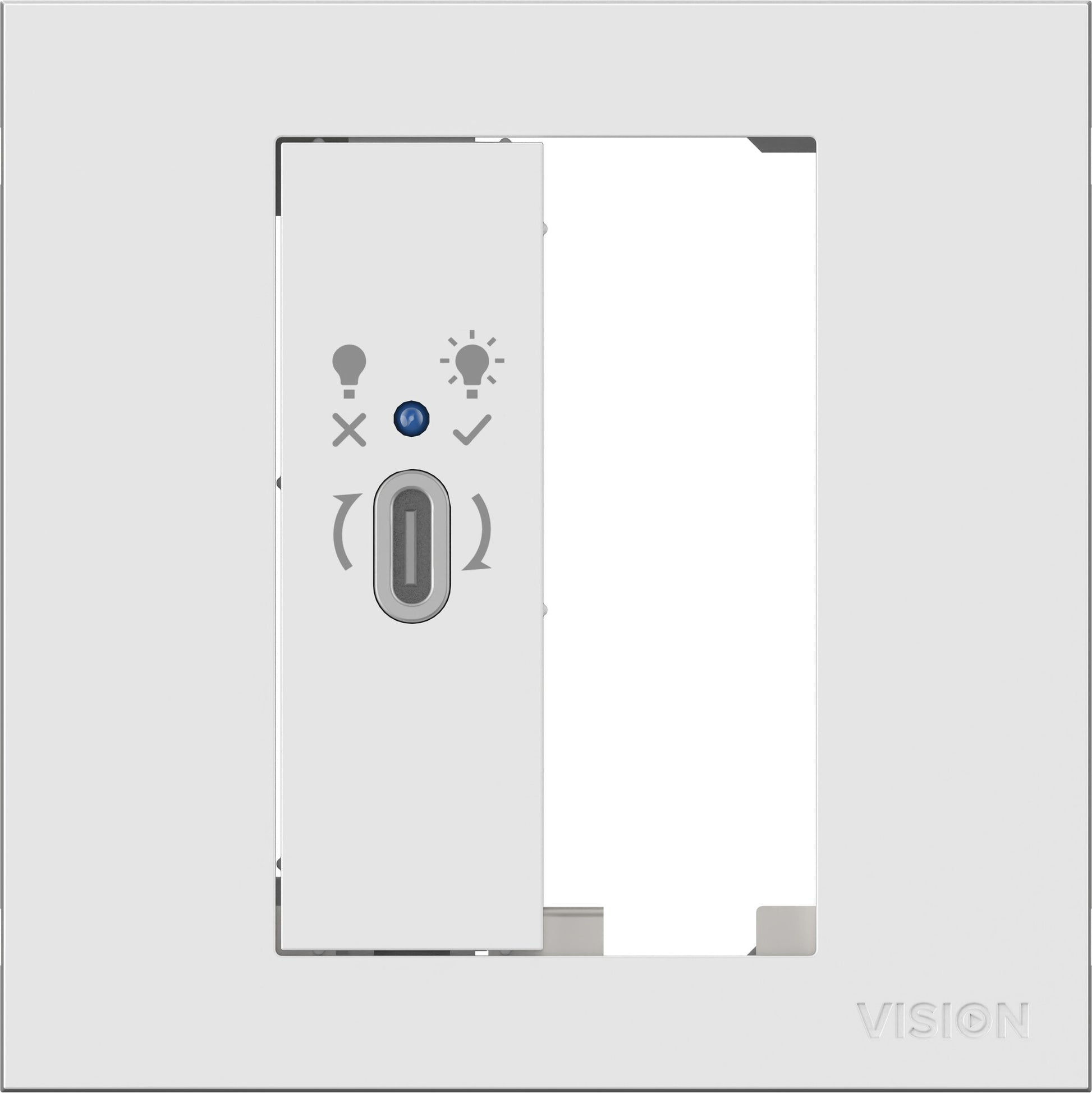

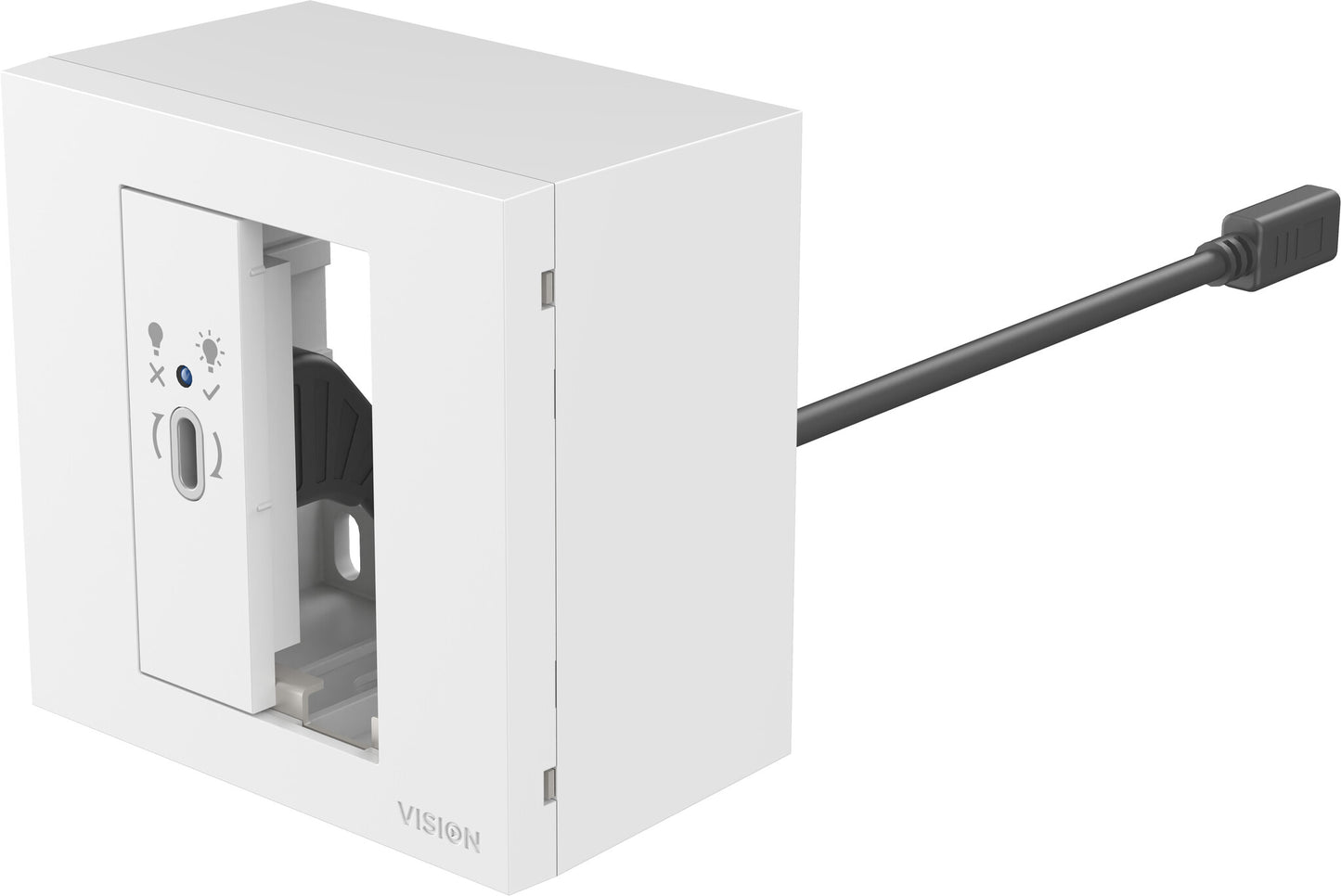

Fixes to Surround Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
Future-proof If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
Flexible Get to site and the client changes what they want on their AV faceplate? No problem.
4K 30 Hz Future-proof the installation by using high resolution components. It supports 4K at 30Hz with input and output cables dependent on quality of cables.
Proven For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
Features
Socket type
USB C
Sockets quantity
1
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Installation type
Screws
Design
Product colour
White
Housing material
Polycarbonate (PC)
LED indicators
Power
Cable length
0.2 m
Power
USB output power
100 W
USB Power Delivery
Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
