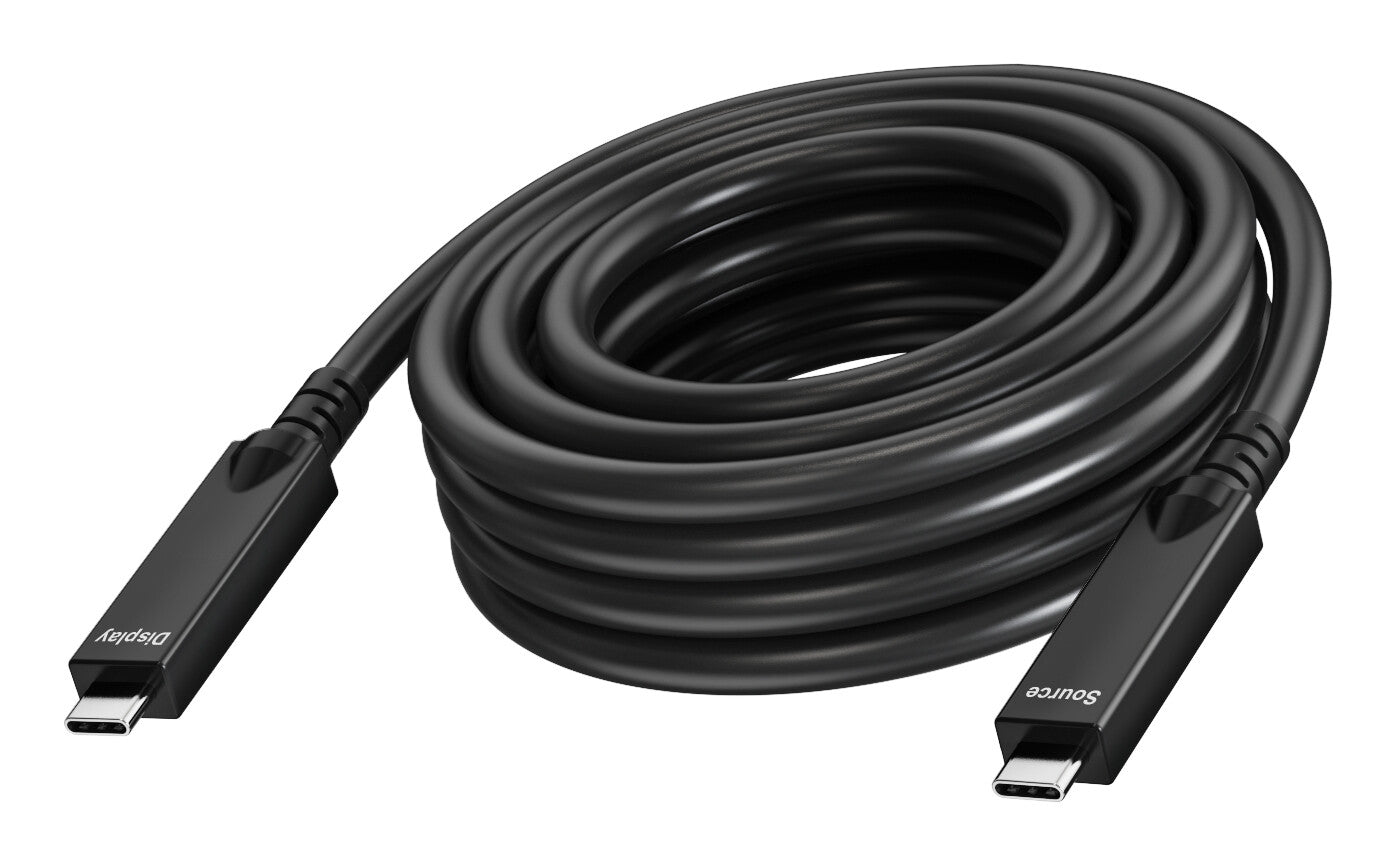

Vision TC 10MUSBC/BL USB cable USB 3.2 Gen 1 (3.1 Gen 1) 10 m USB C Black

Vision TC 10MUSBC/BL USB cable USB 3.2 Gen 1 (3.1 Gen 1) 10 m USB C Black

£241.28 GBP
£241.28 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TC 10MUSBC/BL

Low stock: 9 left

  • 10 m
  • USB C Straight Male
  • USB C Straight Male
  • USB 3.2 Gen 1 (3.1 Gen 1) Fast charging
  • Black
  • 1 pc(s)
10 m, USB-C to USB-C, 3.2 Gen 1, DP 1.4/2.1, 4K @ 60 Hz, 3 A (60 watts), 6.5 mm (0.3"), PVC, black

USB-C is the latest USB connector. It has a smaller reversible plug which supports USB 3.2 Gen 1 signal.

This cable is compatible with both 2-lane and 4-lane configurations. For a 4-lane connection, both connected devices must support 4 lanes.

Very Tough
This cable, reinforced with a Kevlar core, is designed to resist stretching forces. It can withstand a continuous force of up to 200 newtons or a momentary peak force of up to 400 newtons.

Tight Bends
Fiber cables boast a significantly tighter bend radius compared to copper cables. This particular cable features a dynamic bend radius of 20 mm and a static bend radius of 10 mm.

Directional
This cable contains a chip integrated into each connector, so the end marked 'display' must be connected to the display. The ends are not interchangeable.

Features
Power consumption 1.2 W
Reinforced charging cable Yes
Maximum resolution 3840 x 2160 pixels
DisplayPort version 2.1
Maximum refresh rate 60 Hz
USB Type-C DisplayPort Alternate Mode Yes
Fast charging Yes
Plug and Play Yes
Cable type Round cable
Product colour Black
Maximum data transfer rate 10 Gbit/s
Cable jacket material Nylon/Polyvinyl Chloride (PVC)
Connector contacts plating Nickel
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 USB C
Connector 1 USB C
Cable length 10 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Power
Input voltage 5 V
Input current (max) 3 A
Weight & dimensions
Connector 1 dimensions (WxDxH) 44 x 13 x 8 mm
Cable diameter 6.5 mm
Bend radius (min) 1 cm
Packaging data
Package weight 850 g
Package height 50 mm
Package depth 150 mm
Package width 175 mm
Quantity per pack 1 pc(s)
Technical details
Compliance certificates CE, RoHS
