Viewsonic

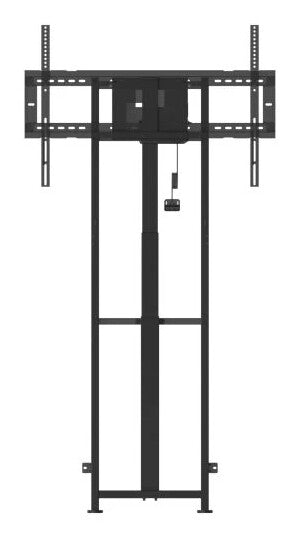

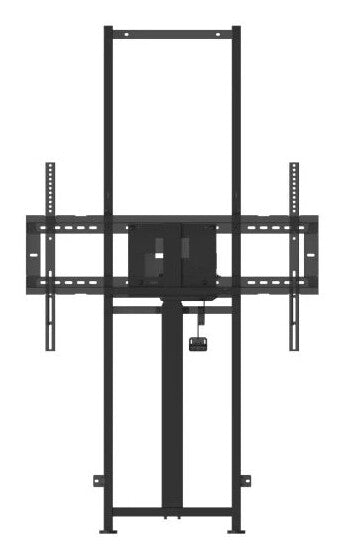

Viewsonic VB-STND-104 signage display mount 2.18 m (86") Black

Viewsonic VB-STND-104 signage display mount 2.18 m (86") Black

£514.43 GBP
£514.43 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

VB-STND-104

Low stock: 1 left

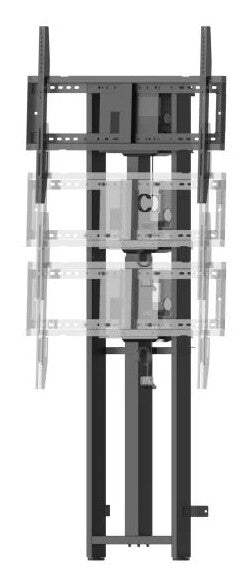

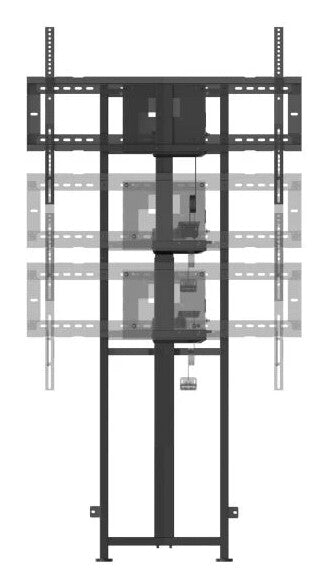

  • Motorised 650mm height adjustment
  • Simple control pad for easy operation
  • Compatible with 55”–86” ViewBoard® displays (≤75 kg)
  • Optional mobile kit (VE-MT-001) for added mobility
Motorised Wall Mount Stand (Optional Trolley Conversion)

The ViewSonic® VB-STND-104 is a motorised wall mount stand that enables smooth and quiet height adjustment with up to 650mm of vertical travel. Designed to support ViewSonic 55”, 65”, 75”, and 86” ViewBoard® interactive flat panel displays—or any display up to 75 kg—it offers a simple and practical solution for fixed installations. A user-friendly control pad allows one-touch adjustment for improved accessibility and convenience.
*With the optional VE-MT-001 mobile kit, the VB-STND-104 can be converted into a mobile trolley for added flexibility.

Mounting
Number of displays supported 1
Panel mounting interface 800 x 600 mm
Maximum VESA mount 800 x 600 mm
Mounting type Wall
Maximum screen size 2.18 m (86")
Minimum screen size 139.7 cm (55")
Maximum weight capacity (per display) 75 kg
Maximum weight capacity 75 kg
Ergonomics
Lifting speed 22 mm/sec
Height adjustment type Electric
Height adjustment 65 cm
Design
Housing material SPCC
Product colour Black
Power
Power consumption (typical) 150 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Motorized Yes
Weight & dimensions
Weight 27.3 kg
Height 1667 mm
Depth 172 mm
Width 960 mm
Packaging data
Package weight 31.3 kg
Package height 172 mm
Package depth 711 mm
Package width 1166 mm
Packaging content
Packaging content Power CordWall MountMounting BracketFixed Frame BracketVertical BeamTop BeamLocking Wall BracketScrew KitControl PadUser Guide
Cables included AC
Manual Yes
Mounting kit Yes
Features
Brand compatibility Viewsonic
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Technical details
Compliance certificates CB, CE, REACH, RoHS, WEEE
Logistics data
Products per master (outer) case 1 pc(s)
Pallet gross length 72.3 cm
Pallet gross width 117.6 cm
Pallet gross height 2.36 m
Harmonized System (HS) code 9403208000
