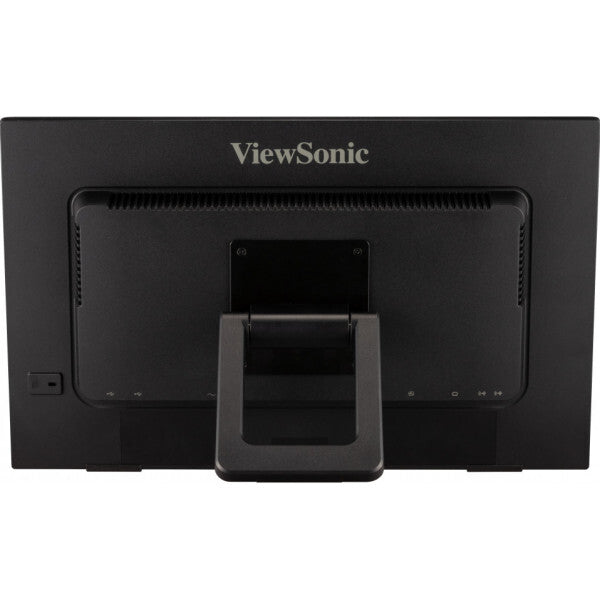

Viewsonic TD2223 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Viewsonic TD2223 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Couldn't load pickup availability
SKU:TD2223
52 in stock
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
| Display | |
|---|---|
| Display brightness | 250 cd/m² |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 24 - 82 kHz |
| Pixel pitch | 0.248 x 0.248 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 20000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 5 ms |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| Touchscreen type | Multi-user |
| Panel type | TN |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Glass thickness | 2 mm |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone out | Yes |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt angle range | 22 - 38° |
| Tilt adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| Power | |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (max) | 14 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 12.5 W |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 3.9 kg |
| Height (without stand) | 318 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 521 mm |
| Weight (with stand) | 4.5 kg |
| Height (with stand) | 334 mm |
| Depth (with stand) | 101 mm |
| Width (with stand) | 521 mm |
| Packaging data | |
|---|---|
| Package weight | 6 kg |
| Package height | 405 mm |
| Package depth | 164 mm |
| Package width | 580 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 368718 |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | REACH, RoHS |
