- Business Standard throw projector Grey, White
- DLP 3600 ANSI lumens
- Lamp 4500 h
- SVGA (800x600) 4:3
- Screen size compatibility: 762 - 7620 mm (30 - 300") Number of colours: 1.073 billion colours
- Focus: Manual Zoom capability
- Built-in speaker(s) 2 W
- AC 260 W
800 x 600, DLP, 3600 ANSI lum, 30-300", 190 W, 4:3, Mini USB B, RS-232, RCA, 3.5mm, HDMI 1.4, VGA, 2x RGB, 2 W RMS, 294x218x110 mm

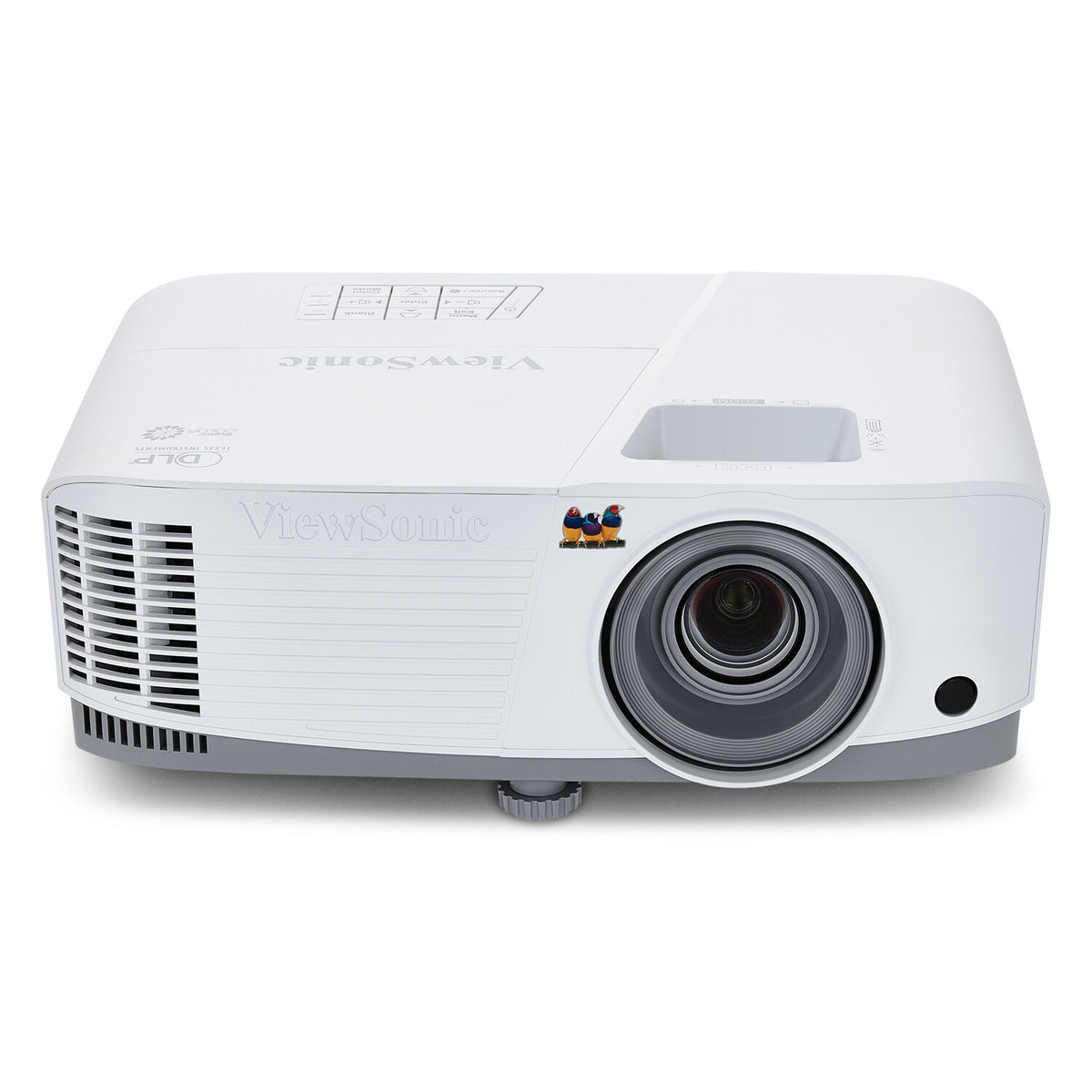

The ViewSonic PA503S price-performance projector features 3,600 lumens, native SVGA 800 x 600 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503S also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503S is ideal for use in education and small business environments.
3D Blu-ray Ready
HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Quick Power Off
With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
Industry-leading Warranty
ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.
| Projector |
|---|
| Projector brightness |
3600 ANSI lumens |
| Projection technology |
DLP |
| Projector native resolution |
SVGA (800x600) |
| Native aspect ratio |
4:3 |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Projection distance |
1.1 - 13 m |
| Number of colours |
1.073 billion colours |
| Vertical scan range |
23 - 120 Hz |
| Horizontal scan range |
15 - 102 kHz |
| Matrix type |
DMD |
| Matrix size |
1.4 cm (0.55") |
| Keystone correction, vertical |
-40 - 40° |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
4500 h |
| Service life of light source (economic mode) |
15000 h |
| Lamp power |
190 W |
| Lamps quantity |
1 lamp(s) |
| Lens system |
|---|
| Focus |
Manual |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Optical zoom |
1.1x |
| Throw ratio |
1.96 - 2.15:1 |
| Video |
|---|
| Analog signal format system |
NTSC, PAL, PAL 60, SECAM |
| 3D Ready |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA) |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
1 |
| HDMI connector type |
Full-size |
| HDMI version |
1.4 |
| Composite video in |
1 |
| DVI port |
No |
| Serial interface type |
RS-232 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| AC (power) in |
Yes |
| Network |
|---|
| Ethernet LAN |
No |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Certification |
FCC (ICES-003), cTUVus |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
2 W |
| Design |
|---|
| Product type |
Standard throw projector |
| Market positioning |
Business |
| Product colour |
Grey, White |
| Placement |
Desktop |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
260 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 1499 m |
| Weight & dimensions |
|---|
| Weight |
2.22 kg |
| Width |
294 mm |
| Depth |
218 mm |
| Height |
110 mm |
| Package width |
365 mm |
| Package depth |
300 mm |
| Package height |
188 mm |
| Package weight |
3.24 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, VGA |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Pallet gross height |
2.21 m |
| Pallet gross width |
90 cm |
| Pallet gross length |
74 cm |
| Harmonized System (HS) code |
8528620000 |
| Other features |
|---|
| RS-232 ports |
1 |
