Veracity VAD-PP network card Ethernet 100 Mbit/s

Veracity VAD-PP network card Ethernet 100 Mbit/s

VAD-PP

£60.48 GBP£50.40 GBP
£0.00 GBP £60.48 GBP£50.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

11 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Wired
  • RJ-45 Ethernet
  • 100 Mbit/s 10/100BaseT(X)

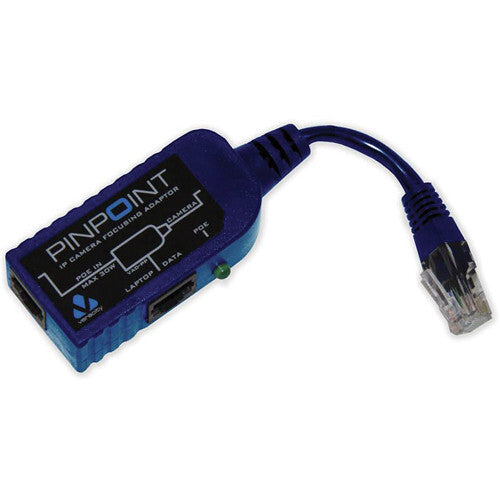

PINPOINT Setup/focus adaptor for POE-powered IP cameras

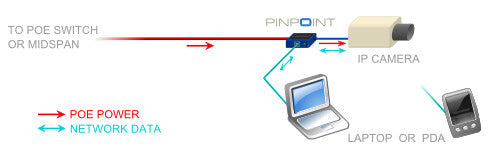

The Veracity Pinpoint IP Camera Setup Adaptor is an IP video installation tool for viewing and configuration of IP PoE cameras using a laptop or other portable device, without removing the camera from the network and losing PoE power. Compared to the trial-and-error process where an installer works with a partner in the control room communicating via phone or radio, the adaptor can be installed by a single installer in less time enabling precise camera configuration for the best image possible.

Universally compatible, the Pinpoint IP Camera Setup Adaptor supports IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet. The compact adaptor (65 x 32 x 20 mm) also features an LED that indicates PoE.

- IP video installation tool for viewing and configuration of an IP PoE camera using a laptop or other portable device
- Installation without removing camera from the network and losing PoE power
- Time-saving method for accurately focusing IP PoE cameras with a standard Cat5E patch cable
- IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet
- Compact adaptor (65 x 32 x 20 mm)
- LED indicator for PoE

Ports & interfaces
Ethernet LAN (RJ-45) ports 3
Interface Ethernet
Host interface RJ-45
Connectivity technology Wired
Network
Cabling technology 10/100BaseT(X)
Ethernet LAN Yes
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Maximum data transfer rate 100 Mbit/s
Design
Certification CE, FCC
LED indicators Yes
Internal No
Operational conditions
Operating temperature (T-T) -10 - 70 °C
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Weight 58 g
Height 20 mm
Depth 32 mm
Width 65 mm
Technical details
Compliance certificates RoHS
Other features
Link/Act LED Yes
Power LED Yes
Connector(s) 2 x PoE RJ-45, 1 x RJ-45
