Veracity

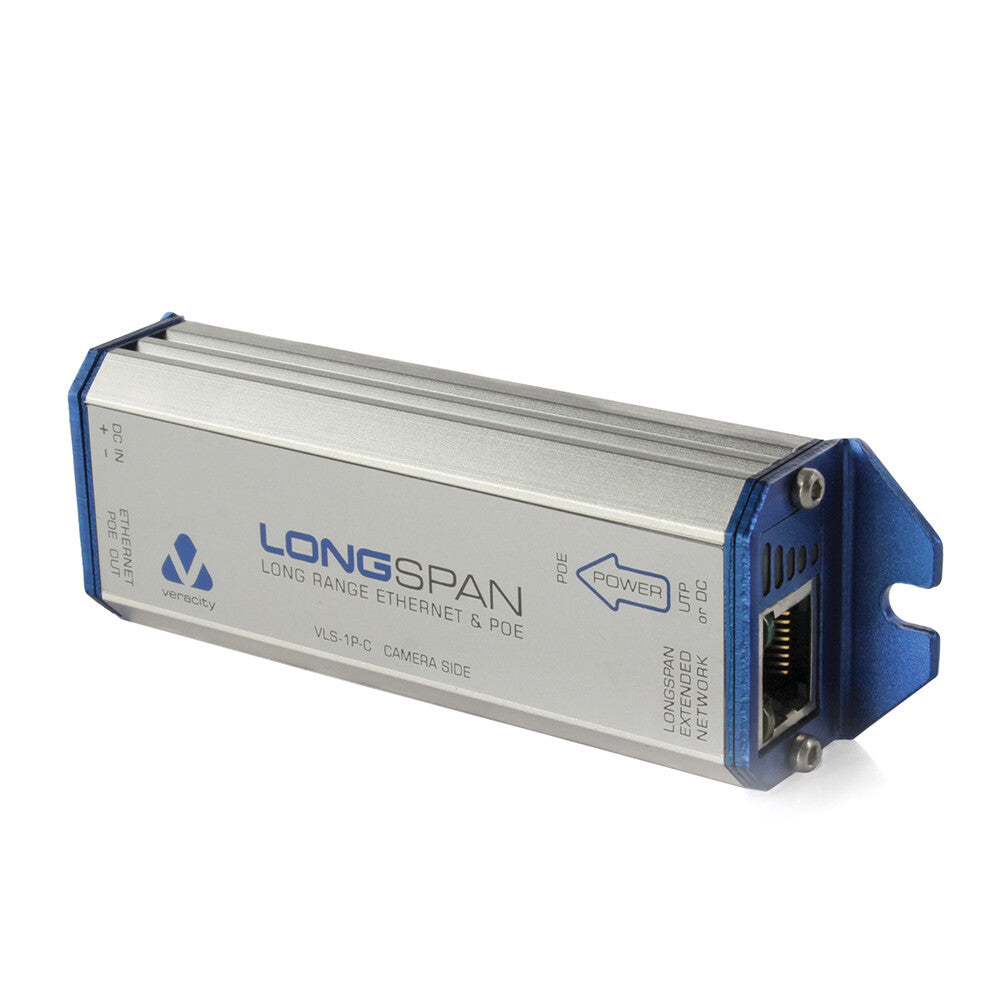

Veracity LONGSPAN Camera Network transmitter Blue, Metallic

Veracity LONGSPAN Camera Network transmitter Blue, Metallic

VLS-1P-C

£316.80 GBP£264.00 GBP
£0.00 GBP £316.80 GBP£264.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

17 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Network transmitter 1000 m 200 Mbit/s
  • 10/100Base-T(X)
  • Power over Ethernet (PoE)
  • Blue, Metallic
Single POE LONGSPAN converter with POE out, extended POE in, and SafeView display

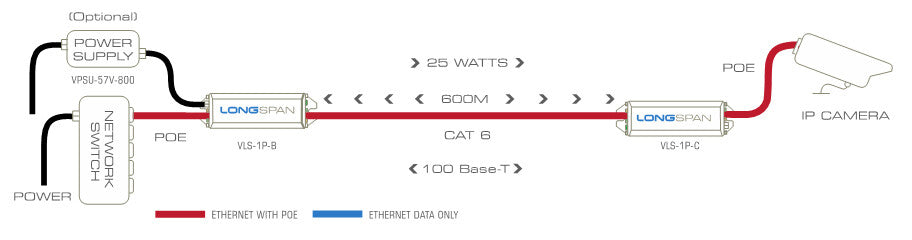

LONGSPAN Camera Unit: long-range POE (powered from Base unit). Working together, LONGSPAN’s Base and Camera units deliver unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices. IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-T Ethernet at up to 840 metres Cat 6 (or 690 metres Cat 5e).

- As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
- For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.

Performance
Type Network transmitter
Maximum transfer distance 1000 m
Data transfer rate 200 Mbit/s
Cable types supported Cat5e, Cat6, Fiber
Duplex system Full
Auto-negotiation Yes
Network
Cabling technology 10/100Base-T(X)
Networking standards IEEE 802.3af, IEEE 802.3at
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power over Ethernet (PoE) ports quantity 2
Design
Product colour Blue, Metallic
LED indicators Yes
Certification FCC, CE, RoHS
Power
Power consumption (typical) 1 W
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 0 - 85%
Weight & dimensions
Width 35 mm
Depth 93 mm
Height 21 mm
Weight 80 g
Technical details
Compliance certificates RoHS
Sustainability certificates RoHS
Packaging content
Manual Yes
Quick start guide Yes
Packaging data
Package width 60 mm
Package depth 137 mm
Package height 31 mm
Package weight 100 g
