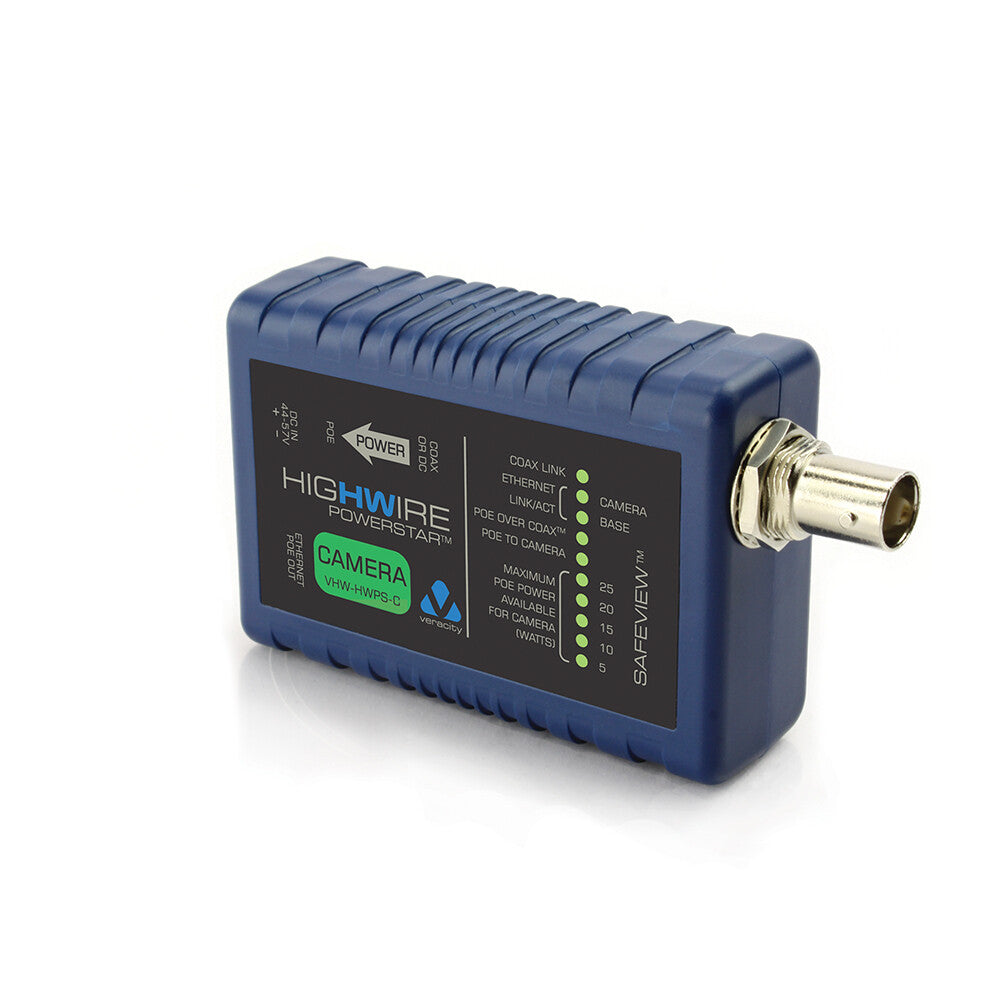

Veracity HIGHWIRE Powerstar Camera network media converter Internal 100 Mbit/s Blue

Veracity HIGHWIRE Powerstar Camera network media converter Internal 100 Mbit/s Blue

£218.78 GBP
£218.78 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

VHW-HWPS-C

Low stock: 9 left

  • Wired
  • 100 Mbit/s 500 m
  • Ethernet LAN (RJ-45) ports: 1
  • Internal
  • Blue

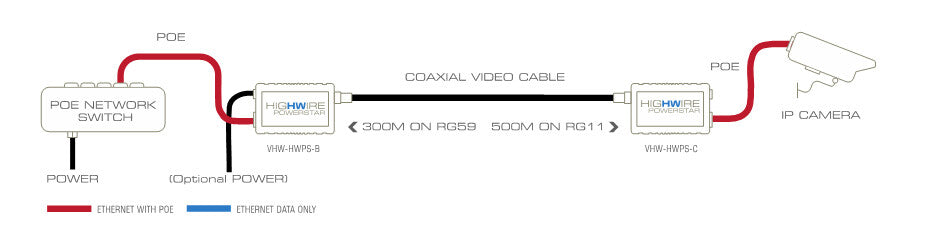

Fast Ethernet and POE over coax converter

HIGHWIRE Powerstar Ethernet & PoE Over Coax Camera Unit. HIGHWIRE PowerStar lets you install IP cameras easily, quickly, and reliably, without the disruption and expense of installing new cable. Support for your camera is assured, thanks to HIGHWIRE's unique full-rate Ethernet over Coax technology.

- Veracity's unique SafeView ™ display provides an instant and easy-to-understand confirmation of network and power status.
- HIGHWIRE Powerstar lets you install IP cameras easily, quickly & reliably with no disruption and new cable costs, with up to 25W POE power over coax to the camera without using local power supplies.
- Veracity's unique SafeView display provides instant, easy-to-understand confirmation of network and power status right across the cable, with no need to access remote equipment to check connections.

Network
Maximum data transfer rate 100 Mbit/s
Converter input interface 100Base-T
Networking standards IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 100 Mbit/s
Auto-negotiation Yes
Duplex system Full
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
BNC ports quantity 1
Performance
Maximum transfer distance 500 m
Design
Internal Yes
Product colour Blue
LED indicators Yes
Certification FCC, CE, RoHS
Power
Power consumption (typical) 1.5 W
Power consumption (max) 25 W
Power over Ethernet (PoE) Yes
Weight & dimensions
Width 54 mm
Depth 103 mm
Height 25 mm
Weight 50 g
Operational conditions
Operating temperature (T-T) -10 - 50 °C
Storage relative humidity (H-H) 0 - 85%
Packaging data
Package width 75 mm
Package depth 130 mm
Package height 32 mm
Package weight 70 g
Packaging content
Quick installation guide Yes
Manual Yes
Technical details
Compliance certificates RoHS
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
View full details
