Ventev M6060060MO1D33620 network antenna MIMO directional antenna RP-SMA 6 dBi

Ventev M6060060MO1D33620 network antenna MIMO directional antenna RP-SMA 6 dBi

M6060060MO1D33620

£242.50 GBP£202.08 GBP
£0.00 GBP £242.50 GBP£202.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • MIMO directional antenna RP-SMA White
  • 6 dBi
  • 2.4 - 5 GHz
  • 50 Ω
  • Vertical polarization
  • Wall/Pole
MIMO, 802.11n/ac, 2.4/5 GHz, 6 dBi, RPSMA

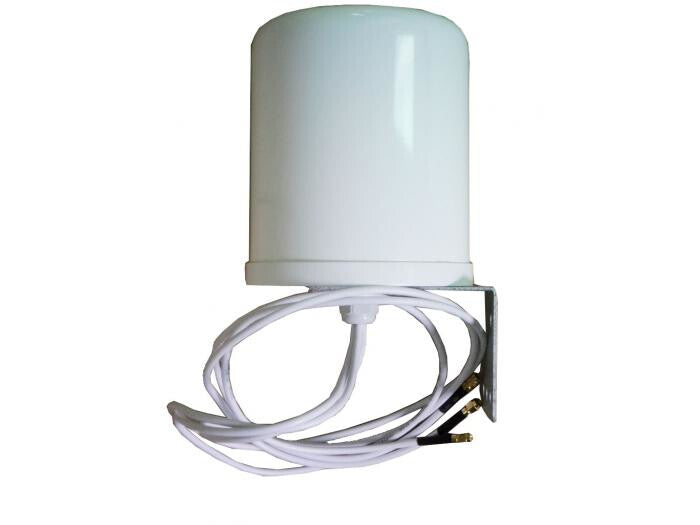

Ventev's TerraWave 6 dBi outdoor multiple-input and multiple-output (MIMO) omnidirectional Wi-Fi antenna is designed to operate enterprise class 802.11n and 802.11ac MIMO access points. With dual-band leads, each cable supports both 2.4 and 5 GHz, making it an ideal and aesthetically pleasing antenna to support demanding outdoor Wi-Fi applications in 802.11n and the newest 802.11ac wireless communication systems. The rugged enclosure makes this antenna perfectly suited for use in a warehouse or manufacturing environment where it must withstand exposure to moisture and dust. Includes an L-Bracket for mast and or wall mounting. Industrial beam clamps are available as an additional option. This antenna is also RoHS compliant.

Performance
Horizontal beam width 360°
Vertical beam width 40°
Impedance 50 Ω
Bandwidth note 700 MHz
Gain 6 dBi
Networking standards IEEE 802.11ac, IEEE 802.11n
Frequency band 2.4 - 5 GHz
Antenna gain level (max) 6 dBi
Features
Product colour White
Mounting Wall/Pole
Purpose Indoor & outdoor
Power handling 10 W
Polarization Vertical polarization
Antenna connector type RP-SMA
Antenna type MIMO directional antenna
Technical details
Compliance certificates RoHS
Weight & dimensions
Weight 1.66 kg
