Ventev

Ventev M6040060O2D1802R network antenna Omni-directional antenna RP-TNC 6 dBi

Ventev M6040060O2D1802R network antenna Omni-directional antenna RP-TNC 6 dBi

£193.34 GBP
£193.34 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

M6040060O2D1802R

14 in stock

  • Omni-directional antenna RP-TNC White
  • 6 dBi
  • 2.4 - 5.85 GHz
  • 50 Ω
  • Vertical polarization Male
  • Ceiling
2.4 - 5.85 Ghz, 6 dBi, 700 Mhz, 137x25x74mm, 300g, White

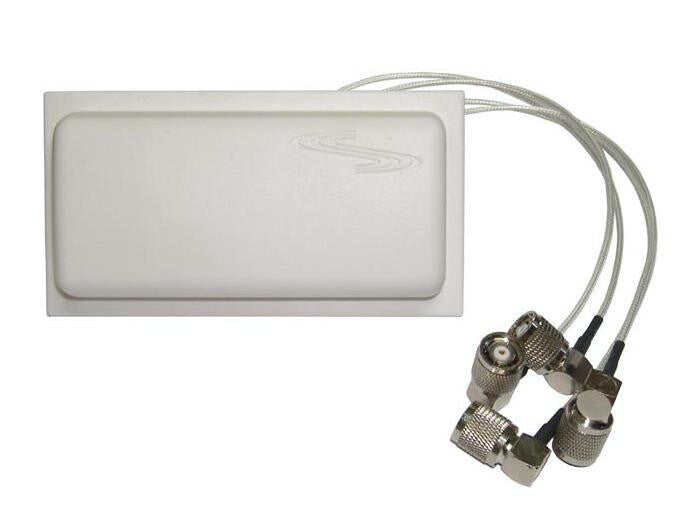

2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna with Four RA RPTNC Plugs and 18” Pigtails

Ventev’s TerraWave 2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna is designed to work with 4-Lead MIMO radios functioning in the 802.11n wireless protocol band. It features four dual band antennas in a single unit. This solution allows engineers to simplifyWi-Fi deployments by using only one antenna for dual band access points.

Performance
Impedance 50 Ω
Bandwidth note 700 MHz
Gain 4 / 6 dBi
Networking standards IEEE 802.11n
Frequency band 2.4 - 5.85 GHz
Antenna gain level (max) 6 dBi
Features
Product colour White
Mounting Ceiling
Purpose Indoor
Cable length 0.45 m
Voltage Standing Wave Ratio (VSWR) 2.5
Polarization Vertical polarization
Antenna connector type RP-TNC
Connector gender Male
Antenna type Omni-directional antenna
Technical details
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 300 g
Height 74 mm
Depth 25 mm
Width 137 mm
