Ubiquiti Networks

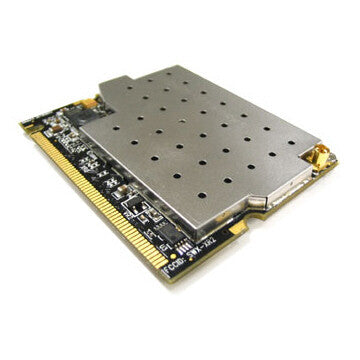

Ubiquiti XTREME Range 2 Internal WLAN 54 Mbit/s
Ubiquiti XTREME Range 2 Internal WLAN 54 Mbit/s
Regular price
£83.22 GBP
Regular price
Sale price
£83.22 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:XR2
70 in stock
- Wireless
- Mini PCI Express WLAN
- 54 Mbit/s
- Internal Chipset: AR5414
2.4GHz, 600mw, 802.11b/g, AR5414, 32-bit mini-PCI Type IIIA, 3.3VDC, 54Mbps
The XtremeRange series of radio modules by Ubiquiti leverages our strong knowledge and experience gained from customer interactions, field performance evaluations, and lab research; and improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards. The XtremeRange2 is a carrier-class 802.1 1b/g based 2.4GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the high levels of performance and reliability
| Ports & interfaces | |
|---|---|
| Interface | WLAN |
| Host interface | Mini PCI Express |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2 |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Maximum data transfer rate | 54 Mbit/s |
| Design | |
|---|---|
| Chipset | AR5414 |
| Antenna connector type | MMCX |
| Antenna | Yes |
| Internal | Yes |
| Power | |
|---|---|
| Output voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -45 - 90 °C |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Channel bandwidth | 40 MHz |
