Ubiquiti Networks

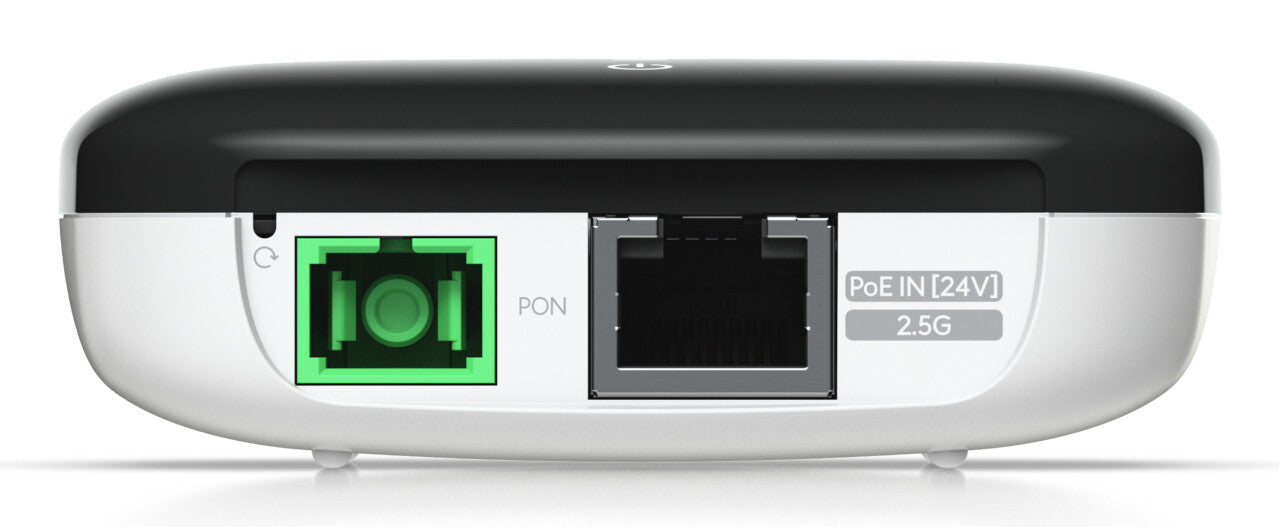

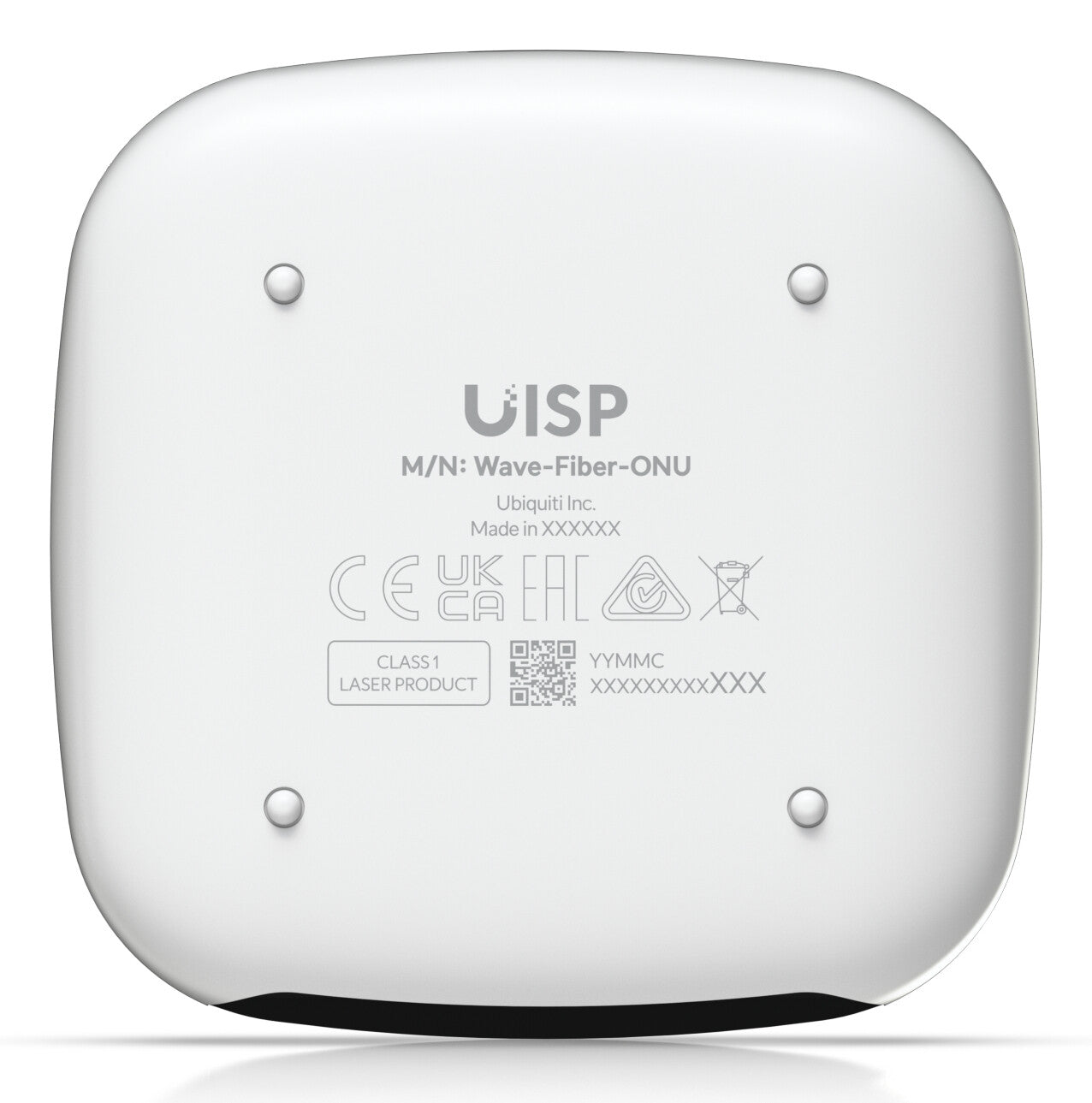

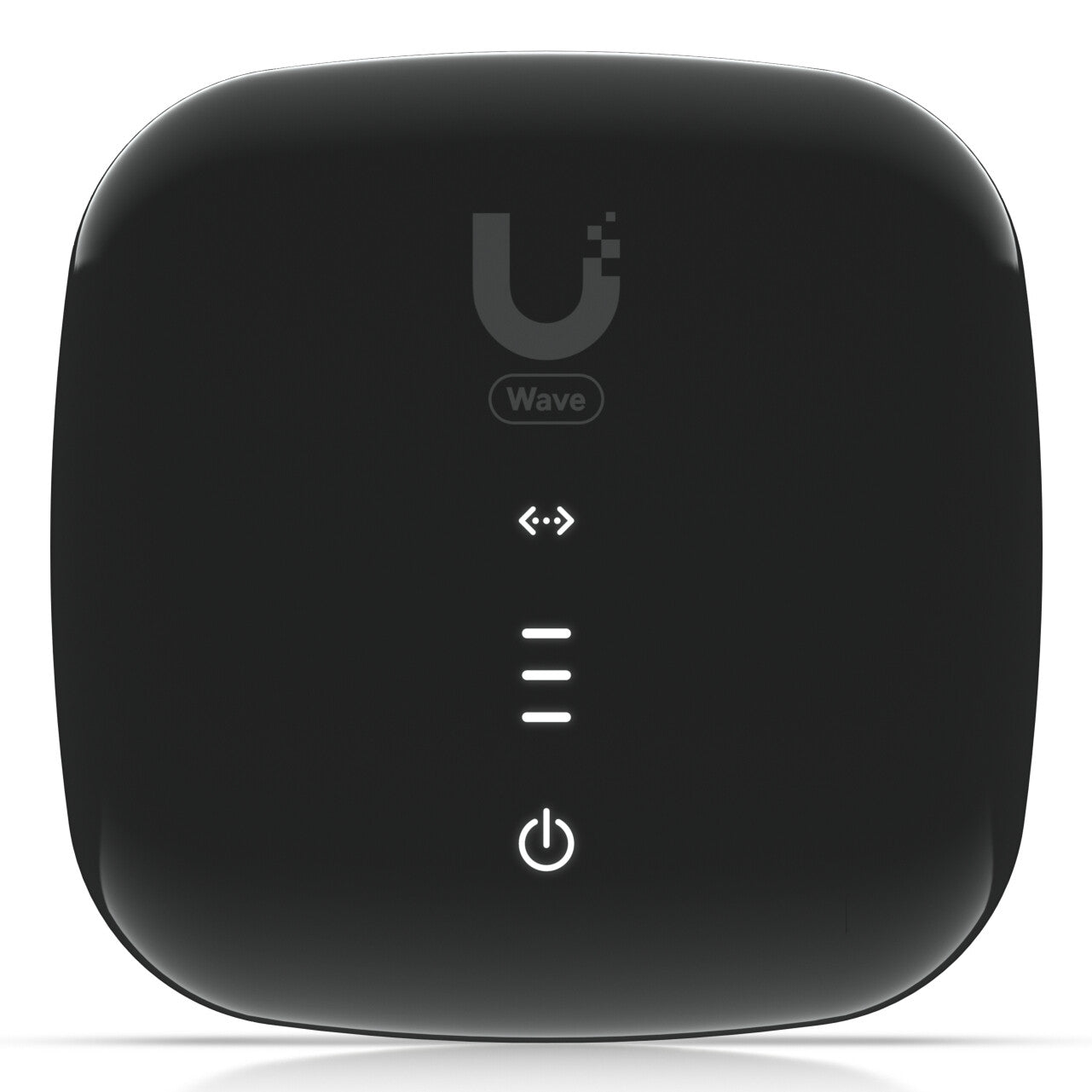

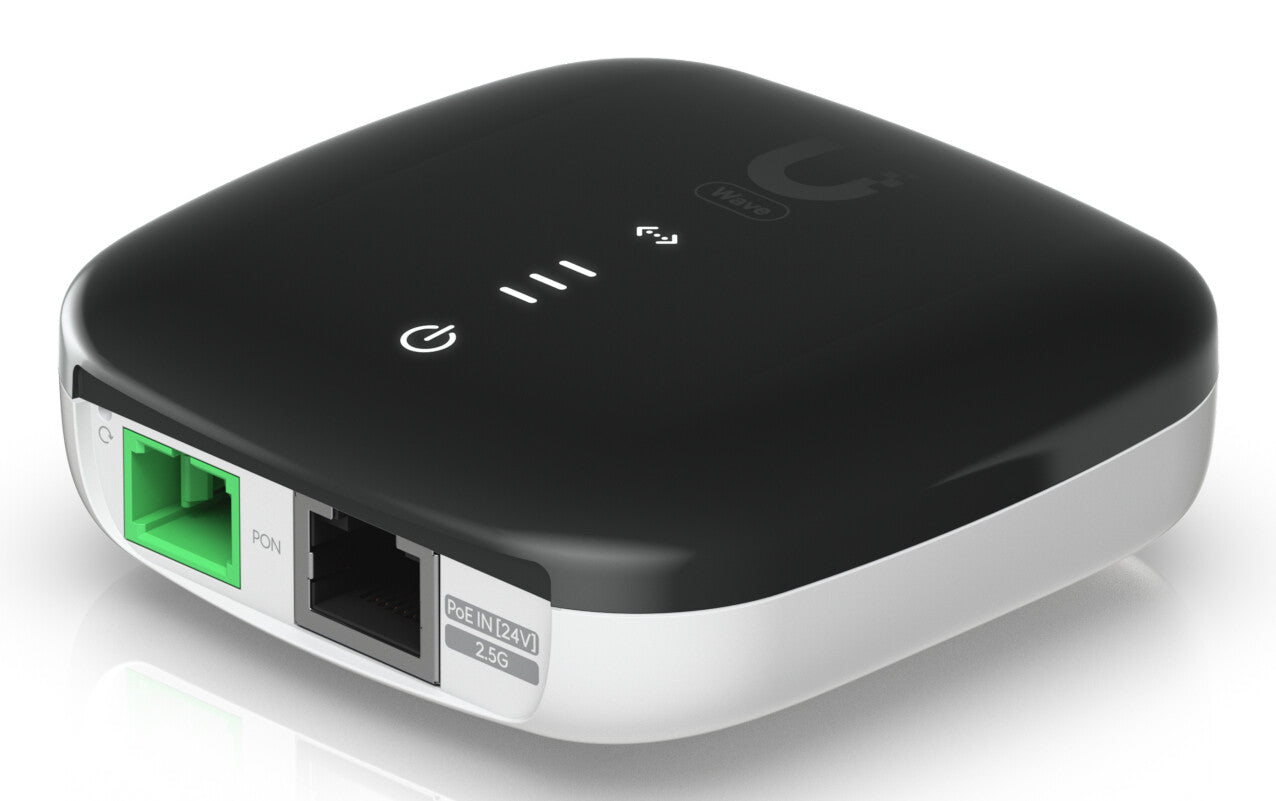

Ubiquiti WaveFiber ONU network media converter 2488 Mbit/s 1490 nm Black, White

Ubiquiti WaveFiber ONU network media converter 2488 Mbit/s 1490 nm Black, White

£165.65 GBP
£165.65 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

WAVE-FIBER-ONU-5

Low stock: 1 left

  • Wired
  • 2488 Mbit/s 20000 m 1490 nm
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1 SC/APC
  • Black, White
5-Pack, SC/APC, ITU-G.984 GPON WAN, 1/2.5 GbE RJ45, 1.2 Gbps uplink / 2.5 Gbps downlink, up to 20 km, PoE, 5W, 76.5 x 76.5 x 26.4 mm

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

Network
VLAN support Yes
Ethernet LAN data rates 1000,2500 Mbit/s
Maximum data transfer rate 2488 Mbit/s
Ports & interfaces
Power over Ethernet (PoE) ports quantity 1
Fiber optic connector SC/APC
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Performance
Rx power (max) -28 dBmW
Rx power (min) -8 dBmW
Tx power (max) 5 dBmW
Tx power (min) 1.5 dBmW
Wavelength 1490 nm
Maximum transfer distance 20000 m
Design
Housing material Polycarbonate (PC)
LED indicators LAN, Power, Status
Product colour Black, White
Internal No
Power
Power over Ethernet (PoE) Yes
Power consumption (max) 5 W
Input voltage 24 V
Management features
Reset button Yes
Weight & dimensions
Weight 78 g
Height 26.4 mm
Depth 76.5 mm
Width 76.5 mm
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -15 - 45 °C
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Logistics data
Quantity per pack 5 pc(s)
