Ubiquiti Networks

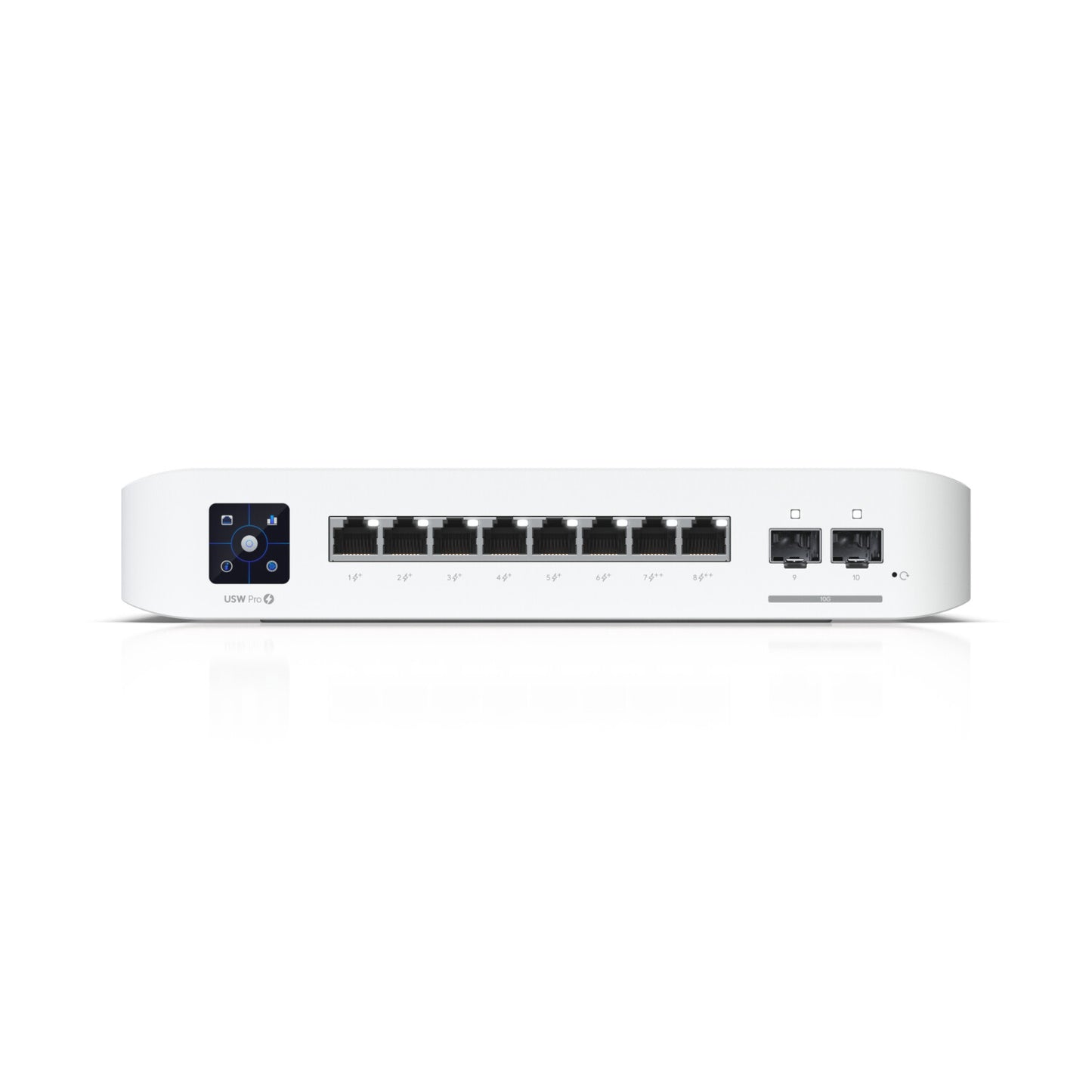

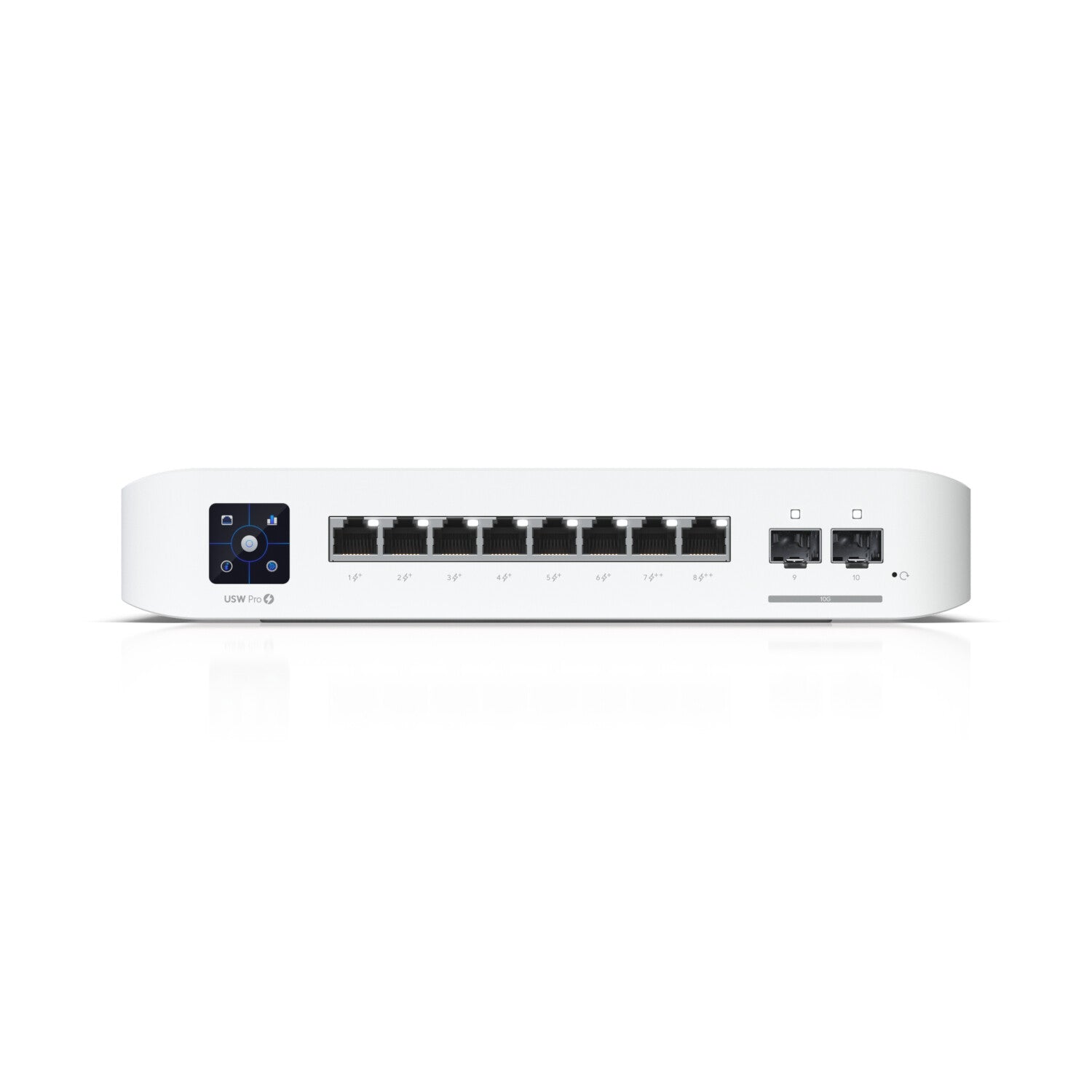

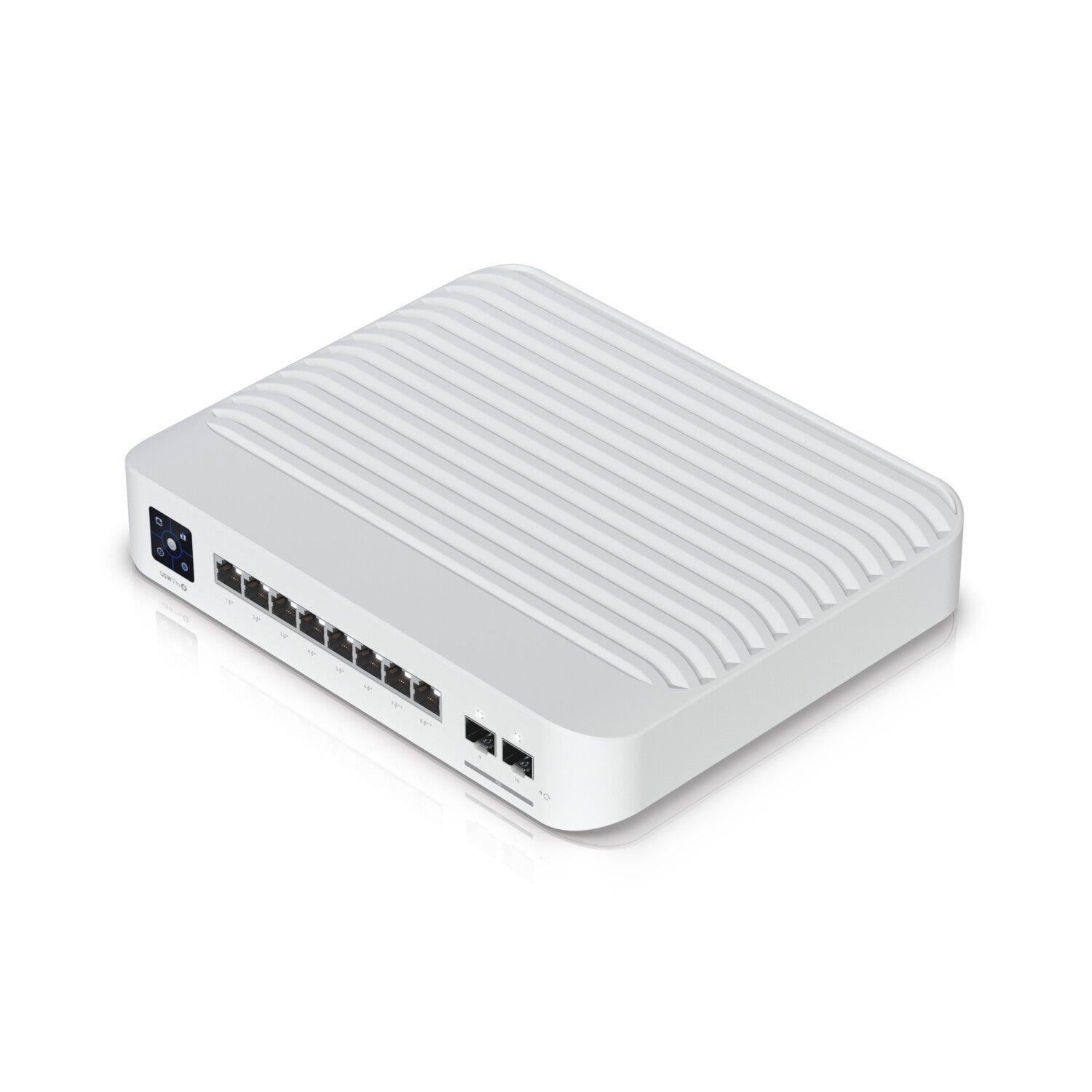

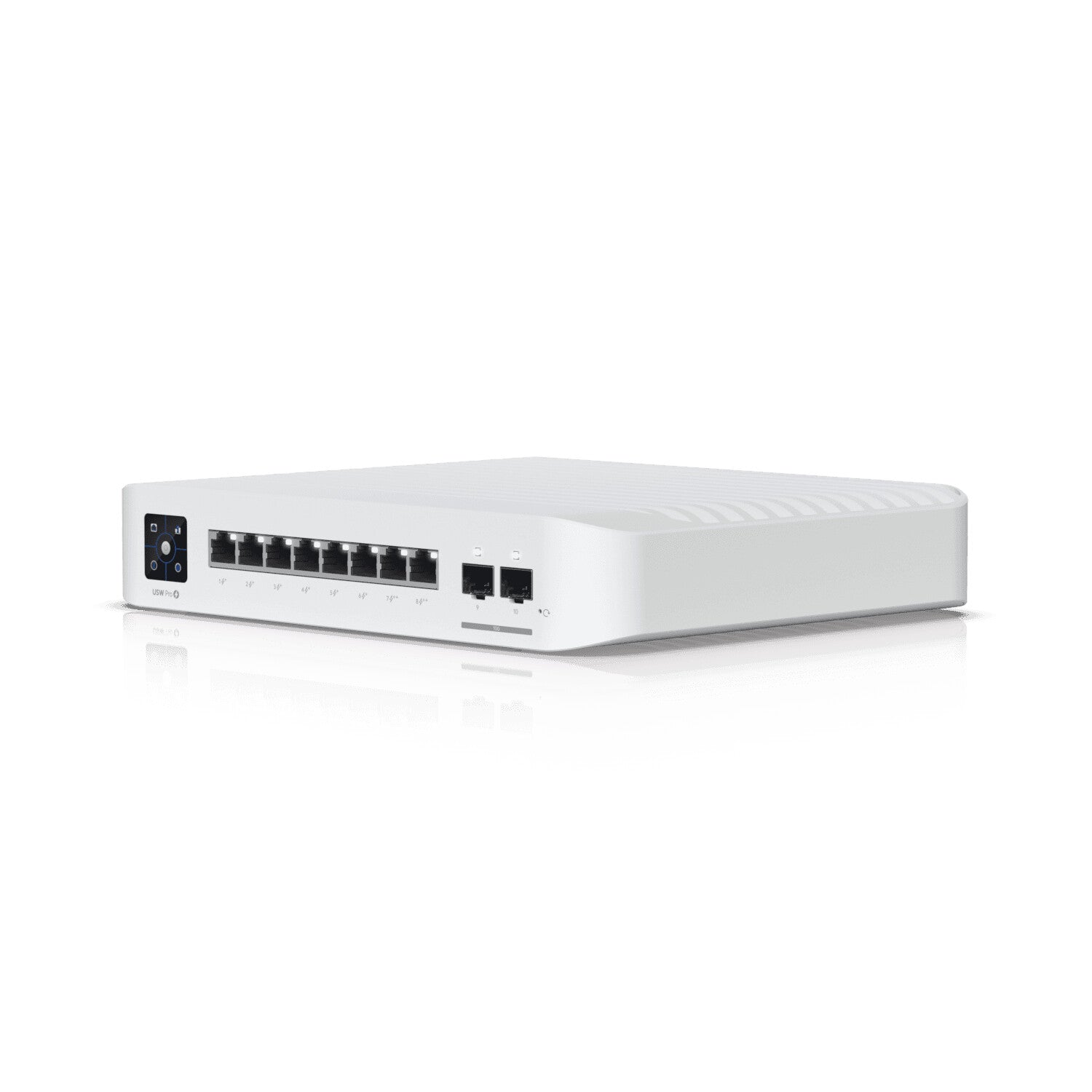

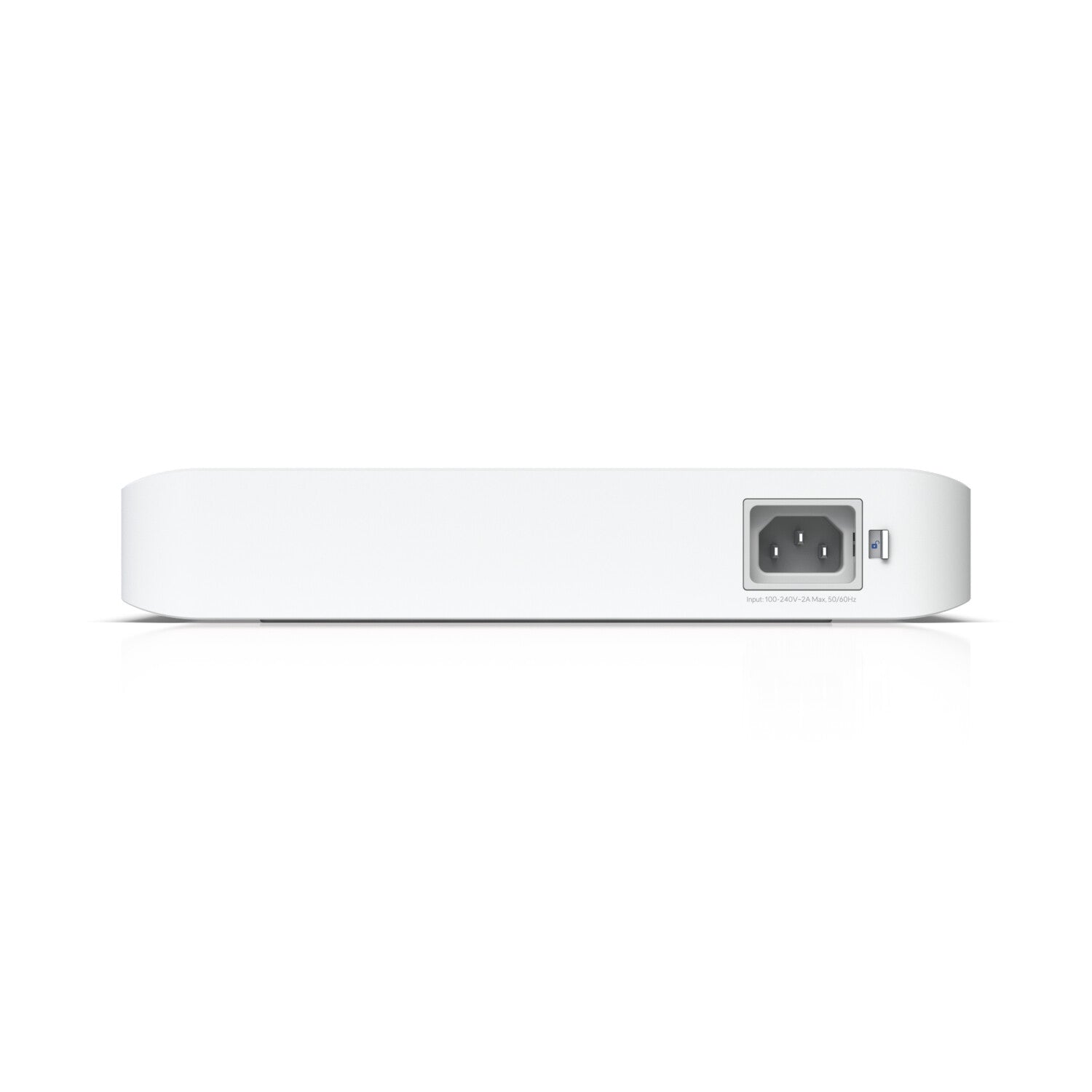

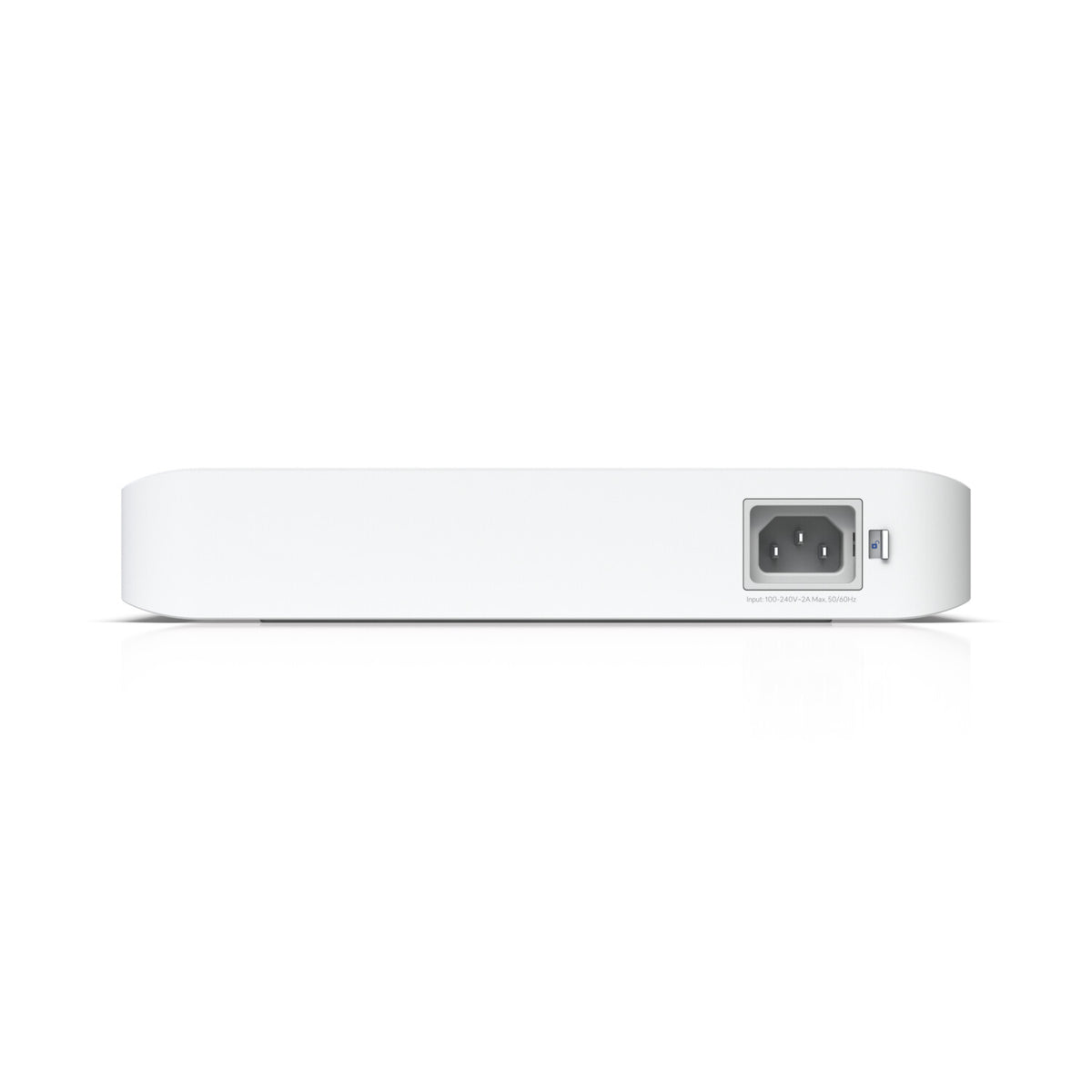

Ubiquiti UniFi USW-PRO-8-POE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Ubiquiti UniFi USW-PRO-8-POE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

£275.20 GBP
£275.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-PRO-8-POE

433 in stock

  • (6) GbE PoE+ ports
  • (2) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 120W total PoE availability
GbE RJ-45 ports, 56 Gbps, 100-240 V, 30 W, 120 W PoE

An 8-port, Layer 3 switch with PoE+ and PoE++ output.

Management features
Switch layer L2/L3
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
VLAN support Yes
Auto-sensing Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Link aggregation Yes
Spanning tree protocol Yes
Half duplex Yes
Full duplex Yes
Port mirroring Yes
Copper ethernet cabling technology 10BASE-T, 10BASE-TX, 100BASE-FX, 100BASE-TX
10G support Yes
Networking standards IEEE 802.3af, IEEE 802.3at
Data transmission
Jumbo frames support Yes
Static route Yes
Throughput 28 Gbit/s
Switching capacity 56 Gbit/s
Security
Authentication Port-based authentication
Authentication type IEEE 802.1x, RADIUS
DHCP features DHCP server
Design
Certification CE, FCC, IC
LED indicators Activity, Link, PoE, Speed, System
Housing material Metal, Plastic
Product colour White
Form factor 1U
general_information_attribute_container_name
attribute_product_family_name UniFi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC)
Power
Input current 2 A
AC input voltage 100 - 240 V
Number of power supply units 1
Power supply included Yes
Power source AC/DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 120 W
Power over Ethernet (PoE) power per port 60 W
Power over Ethernet 4PPoE (PoE++) ports quantity 2
Power over Ethernet plus (PoE+) ports quantity 6
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 45 °C
Weight & dimensions
Weight 2.1 kg
Height 44 mm
Depth 248 mm
Width 200 mm
Sustainability
Sustainability compliance Yes
Sustainability certificates CE, Federal Communications Commission (FCC)
Packaging data
Manual Yes
