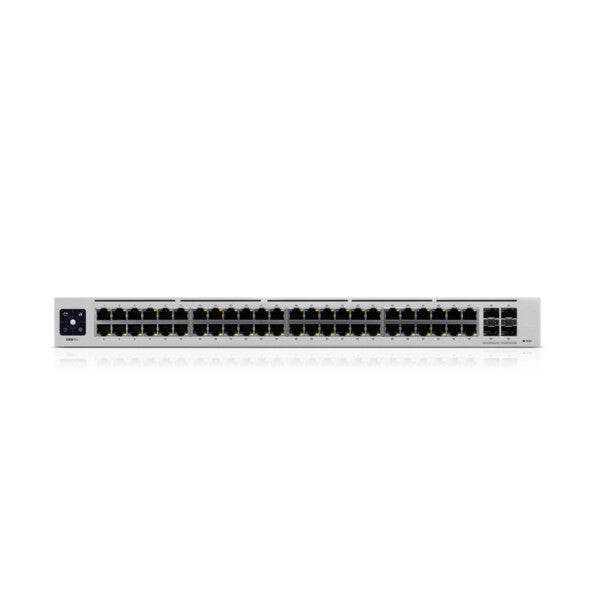

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver

£544.37 GBP
£544.37 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-PRO-48

233 in stock

  • (48) Gigabit RJ45 ports
  • (4) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • UniFi SmartPower RPS DC input
  • Near-silent cooling
  • 1.3" touchscreen display
  • Managed by UniFi Network Controller
48x Gigabit Ethernet, 4x 10G SFP+, L2/L3, 1.3" Touch, 176Gbps, 60W

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Management features
Switch layer L2/L3
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
VLAN support Yes
Flow control support Yes
Broadcast storm control Yes
Link aggregation Yes
Spanning tree protocol Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1x
Data transmission
Forwarding rate 130.944 Mpps
Switching capacity 176 Gbit/s
Security
Authentication type IEEE 802.1x, RADIUS
Design
Certification CE, FCC, ICETSI300-019-1.4
Backlight display Yes
LED indicators Activity, Link, Speed
Product colour Silver
Form factor 1U
Rack mounting Yes
general_information_attribute_container_name
attribute_product_family_name UniFi
Power
Power consumption (max) 60 W
Input current 5.22 A
DC input voltage 11.5 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 45 °C
Weight & dimensions
Weight 4 kg
Height 43.7 mm
Depth 285.4 mm
Width 442.4 mm
Packaging data
User guide Yes
Logistics data
Harmonized System (HS) code 85176990
