Ubiquiti UniFi USW Flex Mini, EU
Ubiquiti UniFi USW Flex Mini, EU
SKU:USW-FLEX-MINI
1650 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

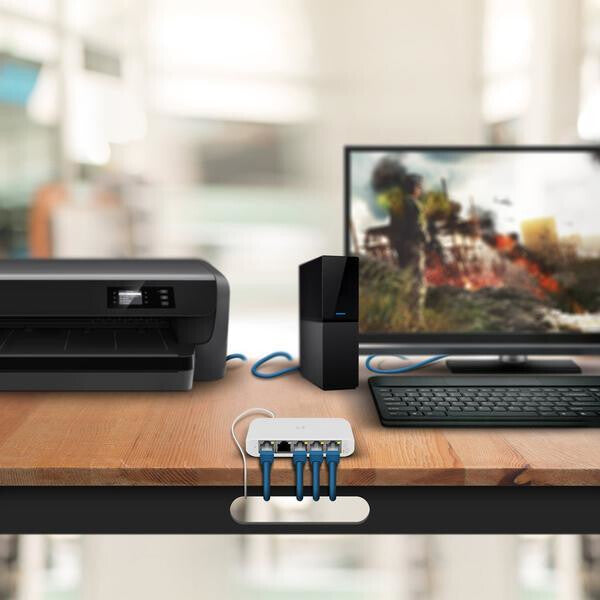

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Forwarding rate | 7.44 Mpps |
| Switching capacity | 10 Gbit/s |
| Design | |
|---|---|
| Certification | CE, FCC, IC |
| LED indicators | Activity, Link, Speed, Status |
| Product colour | White |
| Stackable | No |
| Rack mounting | No |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | UniFi |
| Power | |
|---|---|
| Power consumption (max) | 2.5 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 150 g |
| Height | 21.2 mm |
| Depth | 70.2 mm |
| Width | 107.2 mm |
| Packaging data | |
|---|---|
| Cables included | USB Type-C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
