Ubiquiti Networks

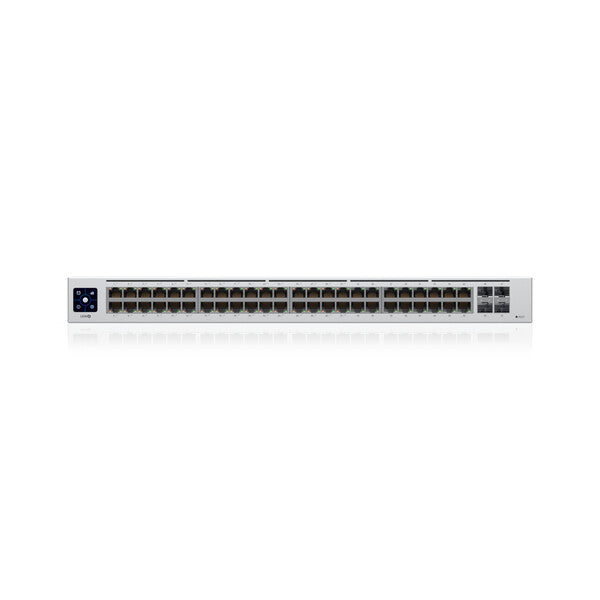

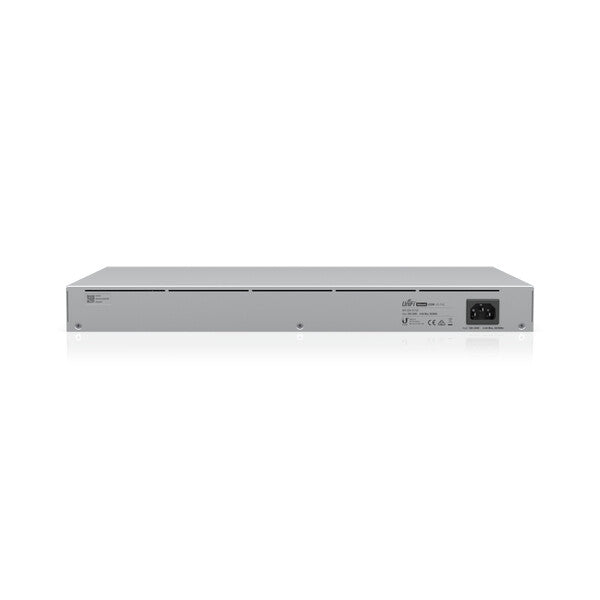

Ubiquiti UniFi USW-48-POE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel
Ubiquiti UniFi USW-48-POE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel
SKU:USW-48-POE
Regular price
£609.36 GBP£507.80 GBP
Regular price
£0.00 GBP
Sale price
£609.36 GBP£507.80 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
200 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- (32) GbE, PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
48 RJ-45 ports, L2, PoE+, 4x SFP ports, 104 Gbps switching capacity
A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Port mirroring | Yes |
| Auto-sensing | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| Switching capacity | 104 Gbit/s |
| Throughput | 52 Gbit/s |
| Forwarding rate | 77.38 Mpps |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| Authentication type | RADIUS |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Stainless steel |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | UniFi |
| Performance | |
|---|---|
| Fanless | Yes |
| Power | |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 45 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) power per port | 32 W |
| Total Power over Ethernet (PoE) budget | 195 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 4.52 kg |
| Packaging data | |
|---|---|
| Manual | Yes |
