Ubiquiti Networks

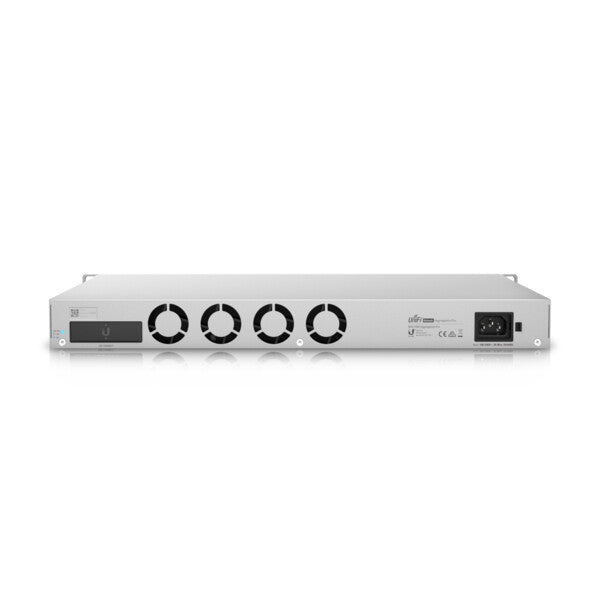

Ubiquiti UniFi Switch Pro Aggregation Managed L3 Grey

Ubiquiti UniFi Switch Pro Aggregation Managed L3 Grey

£848.80 GBP
£848.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-PRO-AGGREGATION

132 in stock

  • (28) 10Gbps SFP+
  • (4) 25Gbps SFP28
  • 760 Gbps switching capacity
  • (1) 1.3” Touchscreen with AR switch management
  • (1) Backup 12V DC input connector, SmartPower RPS
Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports

Featuring a 1.3” touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.

Management features
Switch type Managed
Switch layer L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports type No
SFP+ module slots quantity 28
SFP28 ports quantity 4
Power connector DC-in jack
Network
10G support Yes
Port mirroring Yes
Link aggregation Yes
VLAN support Yes
Data transmission
Switching capacity 760 Gbit/s
Throughput 380 Mpps
Forwarding rate 565.44 Mpps
Static route Yes
Security
DHCP features DHCP server
Design
Product colour Grey
Housing material Steel
LED indicators Yes
Number of fans 4 fan(s)
general_information_attribute_container_name
attribute_product_family_name UniFi
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
DC input voltage 11.5 V
Input current 2 A
Power consumption (max) 100 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442 mm
Depth 325 mm
Height 44 mm
Weight 4.6 kg
Logistics data
Harmonized System (HS) code 85176990
