Ubiquiti Networks
Regular price
£479.18 GBP
Regular price
Sale price
£479.18 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:USW-PRO-XG-8-POE (155W)
286 in stock
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10G support
- MAC address table: 32000 entries Switching capacity: 200 Gbit/s
- AC/DC Power supply included Power over Ethernet (PoE)
155W, 8 x 10GbE RJ45, 2 x 10G SFP+, 200 Gbps, SGCC steel, 210.4 x 173.8 x 43.7 mm

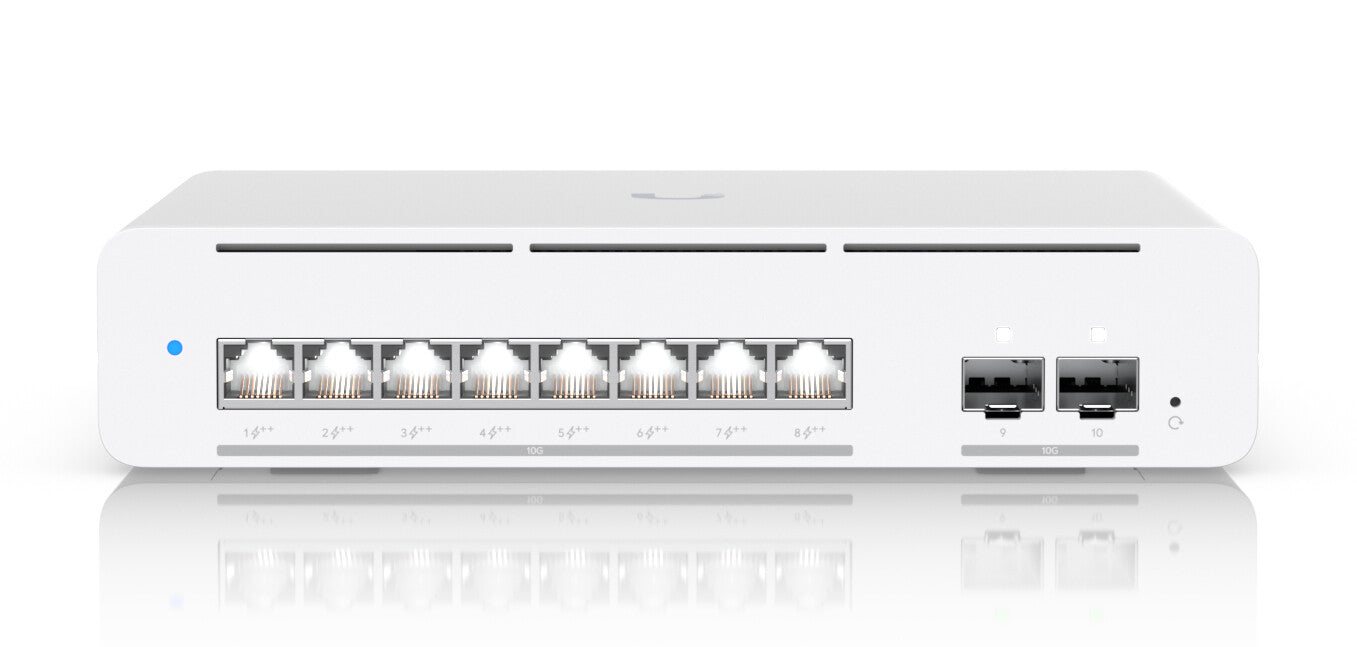

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity |
8 |
| SFP+ module slots quantity |
2 |
| Power connector |
DC-in jack |
| Network |
|---|
| 10G support |
Yes |
| Port mirroring |
Yes |
| IPv4 routes |
12000 |
| Rate limiting |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Interface-based VLAN, Voice VLAN |
| Number of VLANs |
1000 |
| Data transmission |
|---|
| MAC address table |
32000 entries |
| Switching capacity |
200 Gbit/s |
| Throughput |
100 Gbit/s |
| Forwarding rate |
149 Mpps |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
2 MB |
| Security |
|---|
| DHCP features |
DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Grey |
| Housing material |
SGCC |
| Reset button |
Yes |
| LED indicators |
System |
| Wall mountable |
Yes |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UniFi |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| Power consumption (max) |
220 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Total Power over Ethernet (PoE) budget |
155 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
210.4 mm |
| Depth |
173.8 mm |
| Height |
43.7 mm |
| Weight |
1.6 kg |
| Packaging data |
|---|
| Cables included |
Power |
| Manual |
Yes |
