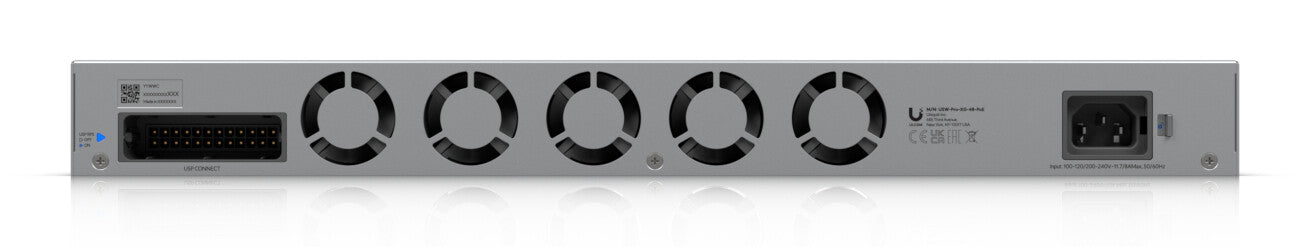

Ubiquiti Networks
Regular price
£2,117.57 GBP
Regular price
Sale price
£2,117.57 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:USW-PRO-XG-48-POE
15 in stock
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 128000 entries Switching capacity: 920 Gbit/s
- 1U Rack mounting Stackable
- AC/DC Power supply included Power over Ethernet (PoE)
1080W, 16 x 2.5 GbE RJ45, 32 x 10GbE RJ45, 4 x 25G SFP28, 920 Gbps, 1.3" touchscreen, Rack mount (1U), SGCC steel, 442 x 480 x 44 mm

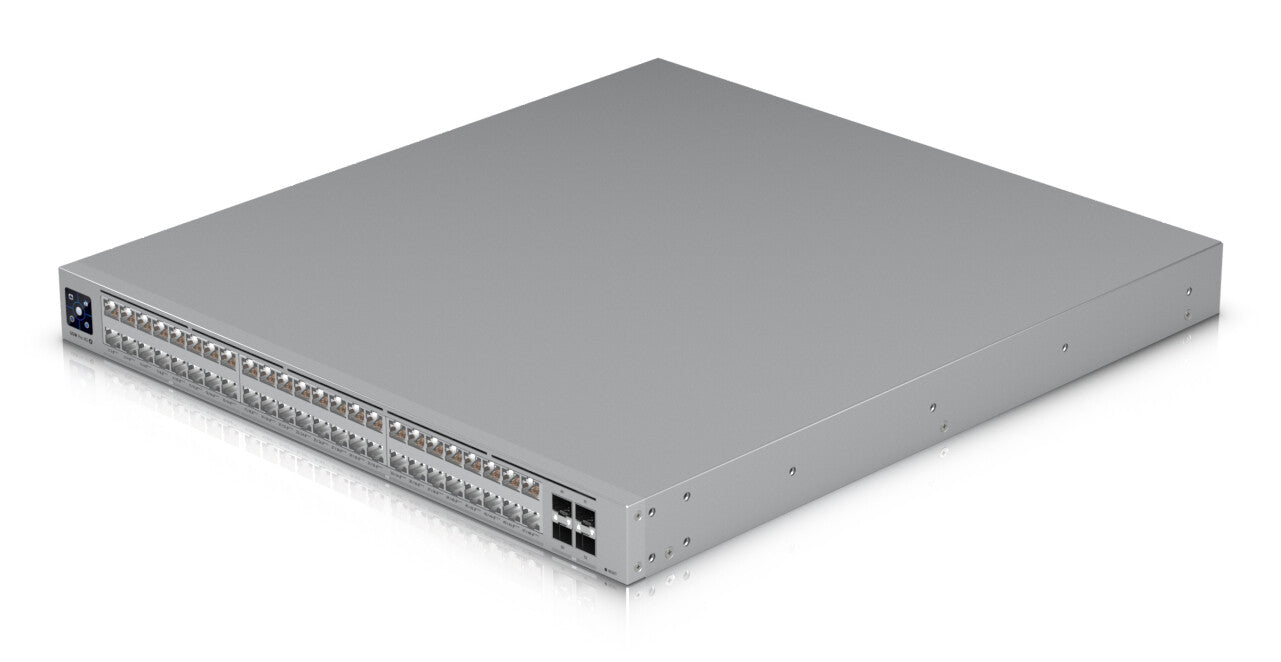

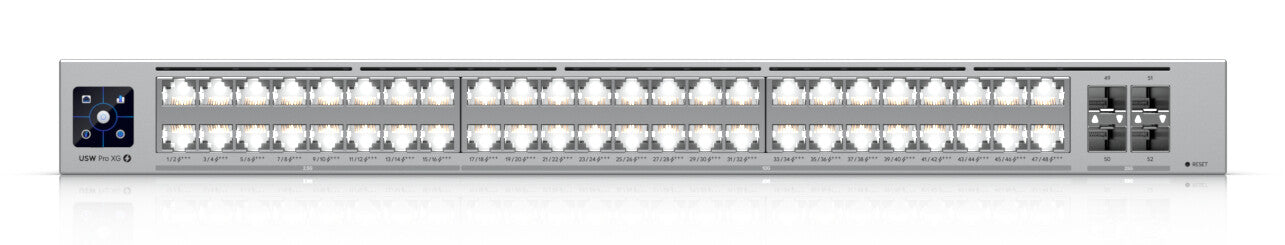

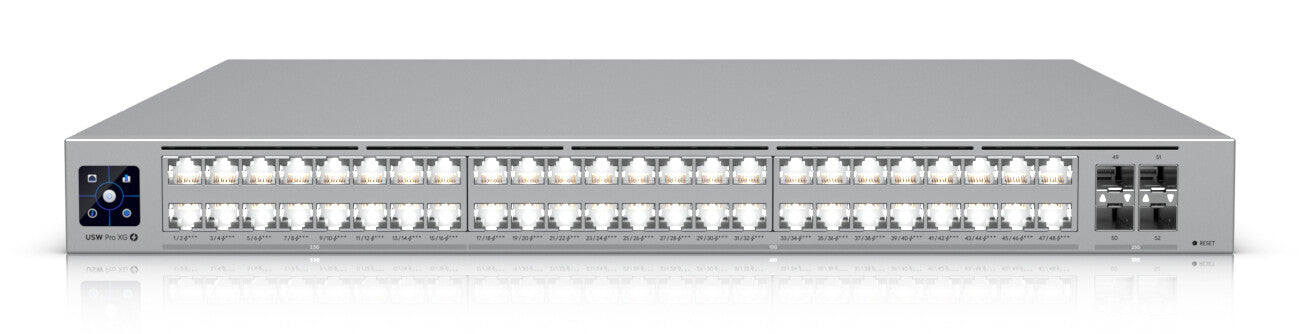

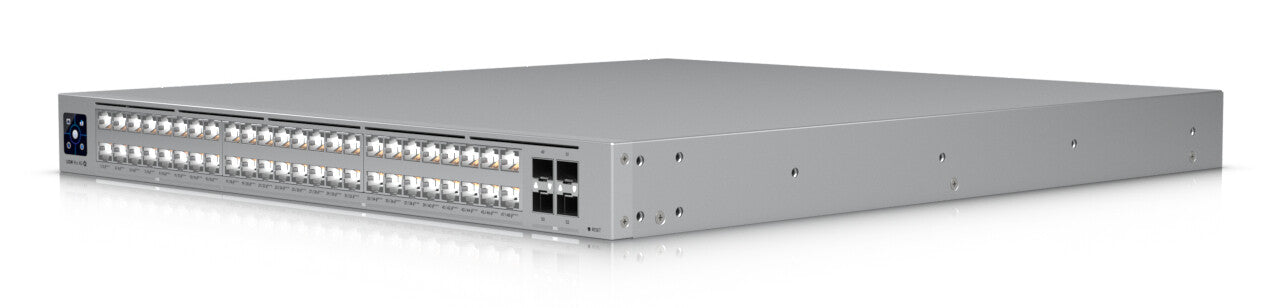

Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Power connector |
AC/DC |
| SFP28 ports quantity |
4 |
| 10G Ethernet (copper) ports quantity |
32 |
| 2.5G Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| Number of VLANs |
1000 |
| Virtual LAN features |
Interface-based VLAN, Voice VLAN |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| IPv4 routes |
256000 |
| Broadcast storm control |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Data transmission |
|---|
| Packet buffer memory |
8 MB |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
684 Mpps |
| Throughput |
460 Gbit/s |
| Switching capacity |
920 Gbit/s |
| MAC address table |
128000 entries |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) IPv4 entries |
256 |
| DHCP features |
DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Backlight display |
Yes |
| Display type |
LCM |
| Reset button |
Yes |
| Housing material |
SGCC |
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UniFi |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Power |
|---|
| Power consumption (max) |
1280 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
1080 W |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Power over Ethernet (PoE) type supported |
PoE+++ |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
8.7 kg |
| Height |
44 mm |
| Depth |
480 mm |
| Width |
442 mm |
| Packaging data |
|---|

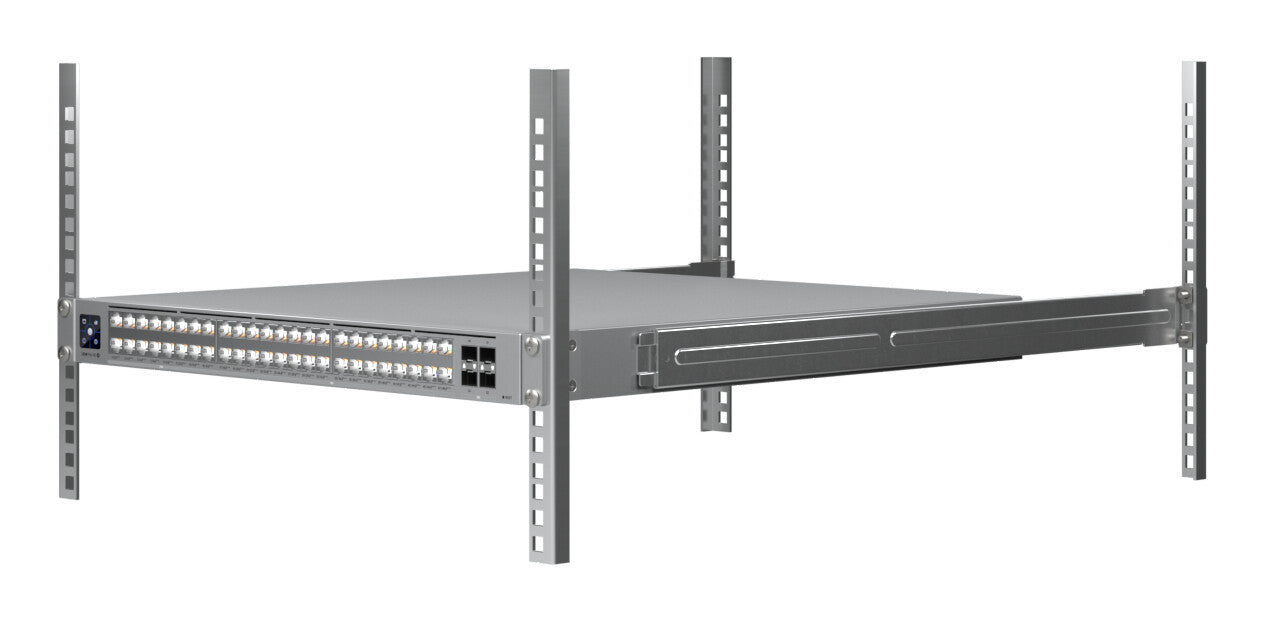

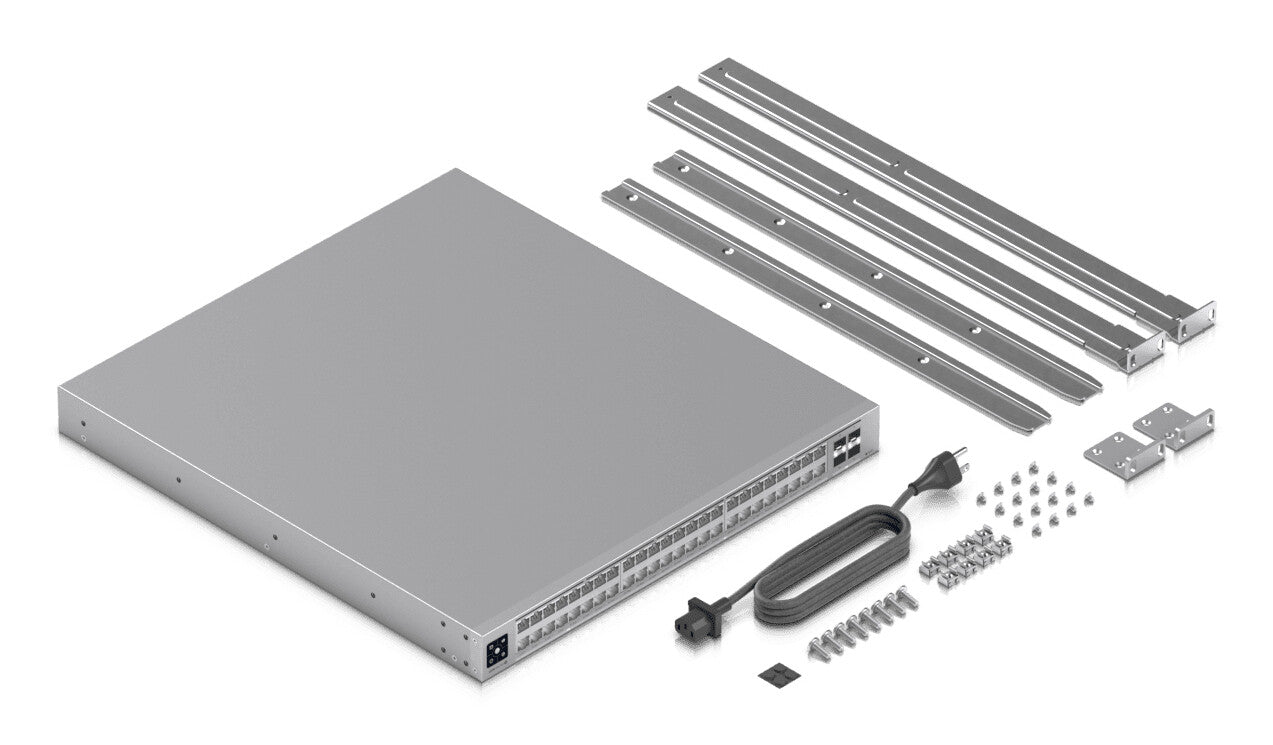

| Rack mount kit |
Yes |
| Cables included |
Power |
