Ubiquiti Networks

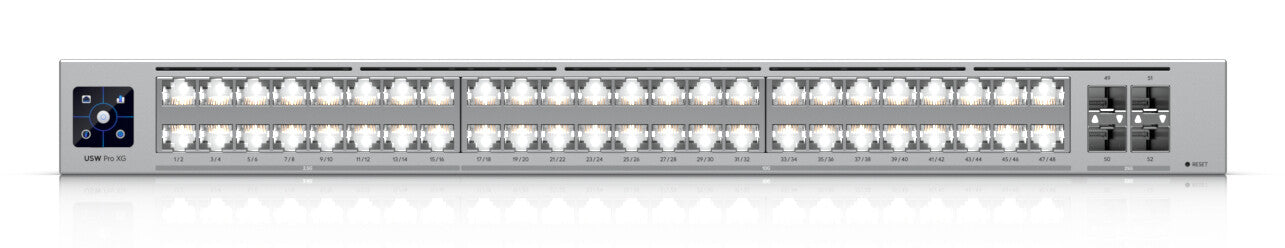

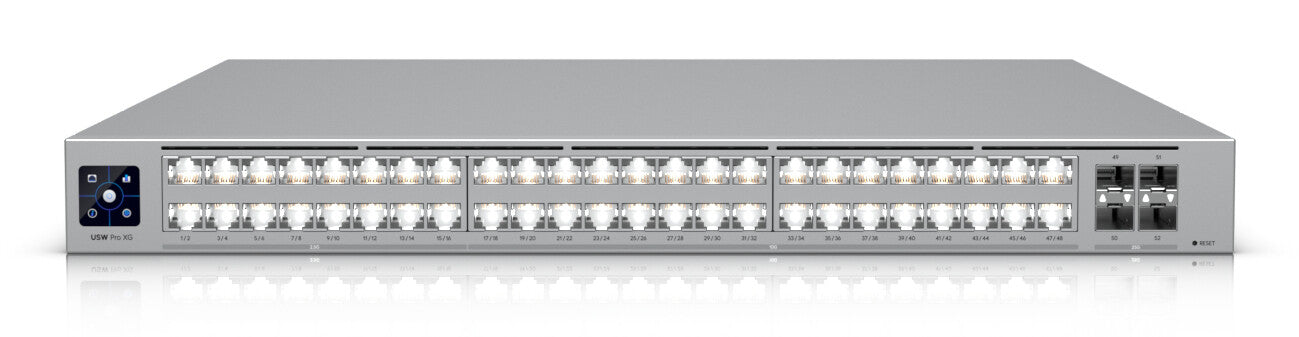

Ubiquiti UniFi Pro XG 48 Managed L2/L3 10G Ethernet (100/1000/10000) 1U Grey

Ubiquiti UniFi Pro XG 48 Managed L2/L3 10G Ethernet (100/1000/10000) 1U Grey

£1,816.88 GBP
£1,816.88 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-PRO-XG-48

Low stock: 1 left

  • Managed L2/L3
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • 10G support
  • MAC address table: 128000 entries Switching capacity: 920 Gbit/s
  • 1U Rack mounting Stackable
  • AC/DC Power supply included
16 x 2.5 GbE RJ45, 32 x 10GbE RJ45, 4 x 25G SFP28, 920 Gbps, 1.3" touchscreen, Rack mount (1U), SGCC steel, 442 x 480 x 44 mm

Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
2.5G Ethernet (copper) ports quantity 16
10G Ethernet (copper) ports quantity 32
SFP28 ports quantity 4
Power connector AC/DC
Network
10G support Yes
Port mirroring Yes
IPv4 routes 256000
Rate limiting Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Interface-based VLAN, Voice VLAN
Number of VLANs 1000
Data transmission
MAC address table 128000 entries
Switching capacity 920 Gbit/s
Throughput 460 Gbit/s
Forwarding rate 684 Mpps
Static route Yes
Jumbo frames support Yes
Packet buffer memory 8 MB
Security
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Access Control List (ACL) IPv4 entries 256
IGMP snooping Yes
Loop protection Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
Housing material SGCC
Reset button Yes
Backlight display Yes
Display type LCM
general_information_attribute_container_name
attribute_product_family_name UniFi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Power
Power source AC/DC
Power supply included Yes
Redundant power supply (RPS) support Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 250 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442 mm
Depth 480 mm
Height 44 mm
Weight 7.5 kg
Packaging data
Cables included Power
Rack mount kit Yes
