Ubiquiti Networks

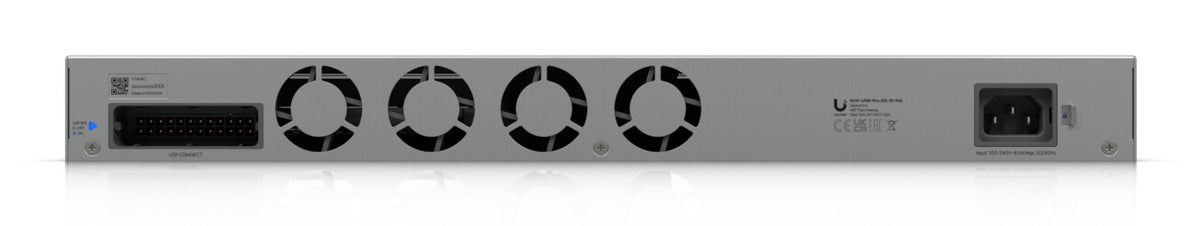

Ubiquiti UniFi Pro XG 10 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Ubiquiti UniFi Pro XG 10 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

£673.66 GBP
£673.66 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-PRO-XG-10-POE (400W)

76 in stock

  • Managed L2/L3
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • 10G support
  • MAC address table: 32000 entries Switching capacity: 240 Gbit/s
  • 1U Rack mounting Stackable
  • AC/DC Power supply included Power over Ethernet (PoE)
400W, 10 x 10GbE RJ45 (10G/5G/2.5G/1G/100M), 2 x 10G SFP+, 240 Gbps, 1.3" touchscreen, SGCC steel, 442.4 x 285 x 44 mm

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity 10
SFP+ module slots quantity 2
Power connector AC/DC
Network
10G support Yes
Port mirroring Yes
IPv4 routes 12000
Rate limiting Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Interface-based VLAN, Voice VLAN
Number of VLANs 1000
Data transmission
MAC address table 32000 entries
Switching capacity 240 Gbit/s
Throughput 120 Gbit/s
Forwarding rate 179 Mpps
Static route Yes
Jumbo frames support Yes
Packet buffer memory 2 MB
Security
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
IGMP snooping Yes
Loop protection Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
Housing material SGCC
Reset button Yes
LED indicators System
Backlight display Yes
Display type LCM
general_information_attribute_container_name
attribute_product_family_name UniFi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Power
Power source AC/DC
Power supply included Yes
Redundant power supply (RPS) support Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 520 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity 10
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 400 W
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442.4 mm
Depth 285 mm
Height 44 mm
Weight 4.6 kg
Packaging data
Cables included Power
Manual Yes
Rack mount kit Yes
