Ubiquiti Networks
Regular price
£953.09 GBP
Regular price
Sale price
£953.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:USW-PRO-48-POE-UK
Low stock: 2 left
- (40) GbE PoE+, (8) GbE PoE++ ports
- (4) 10G SFP+ ports
- 600W total PoE availability
- DC Power backup ready
- Layer 3 switching
- Near-silent cooling
USW-Pro-48-POE (600W), UK, 176 Gbps, AC/DC, internal, 660W, 48x GbE RJ45, 4x 1/10G SFP+, 40x PoE/PoE+ (Pins 1, 2+; 3, 6-), 8x 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-), 1.3" touchscreen, SGCC steel

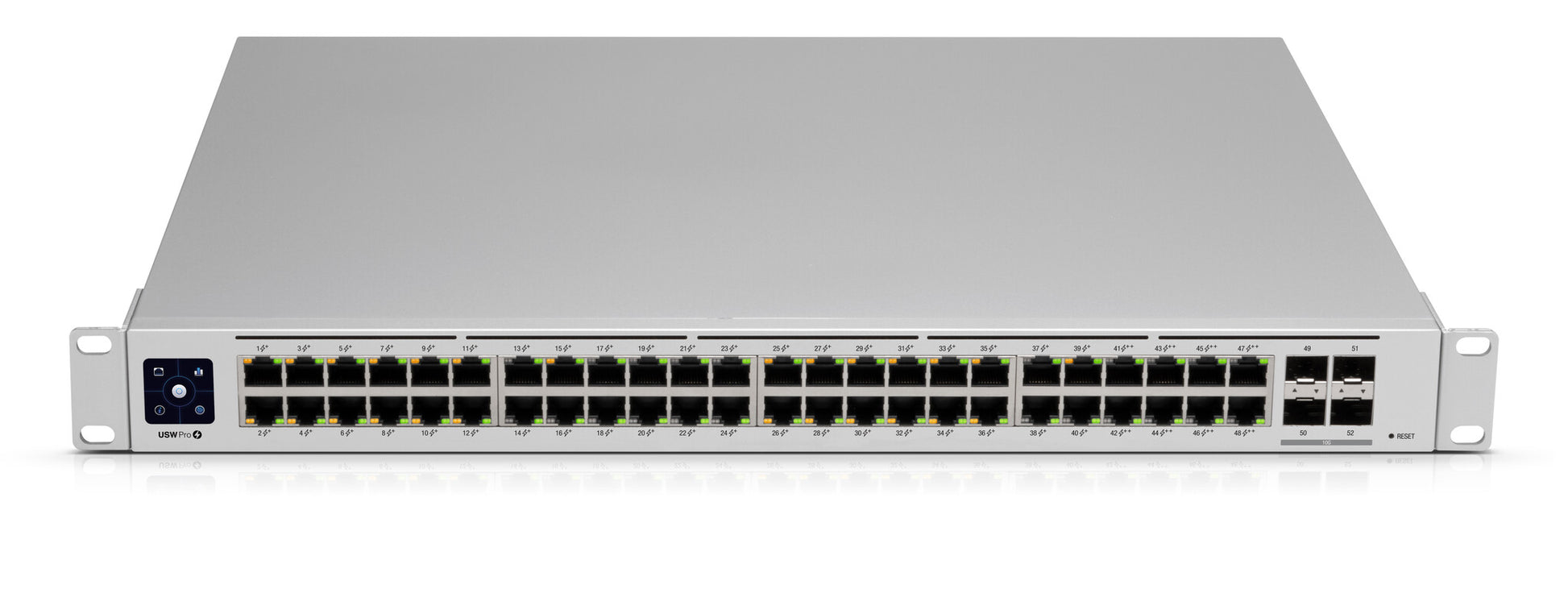

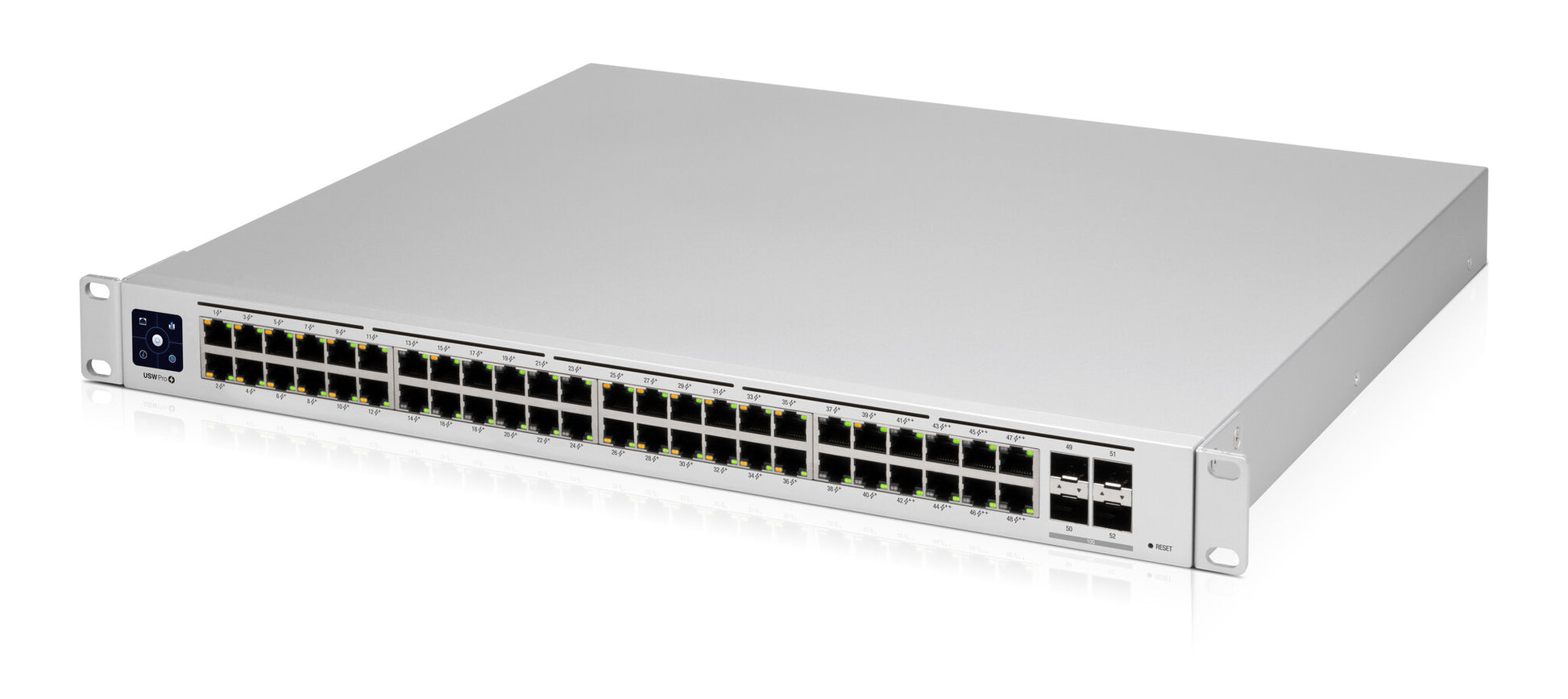

A 48-port, Layer 3 switch capable of high-power PoE++ output.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity |
4 |
| Power connector |
AC/DC |
| Network |
|---|
| Networking standards |
IEEE 802.1x |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Rate limiting |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Voice VLAN |
| Data transmission |
|---|
| Switching capacity |
176 Gbit/s |
| Throughput |
88000 Mpps |
| Forwarding rate |
130.944 Mpps |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Security |
|---|
| DHCP features |
DHCP relay, DHCP snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Silver |
| Housing material |
SGCC |
| Reset button |
Yes |
| LED indicators |
Activity, Link, PoE, Speed, Status, System |
| Display type |
LCM |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UniFi |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| DC input voltage |
11.5 - 52 V |
| Input current |
11.54 A |
| Power plug type |
Type G |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
40 |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Power over Ethernet (PoE) voltage |
57 V |
| Power over Ethernet (PoE) power per port |
64 W |
| Total Power over Ethernet (PoE) budget |
600 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
442.4 mm |
| Depth |
400 mm |
| Height |
44 mm |
| Weight |
6.2 kg |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Cables included |
AC |
| Screws included |
Yes |
| Mounting brackets included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
View full details
