Ubiquiti Networks

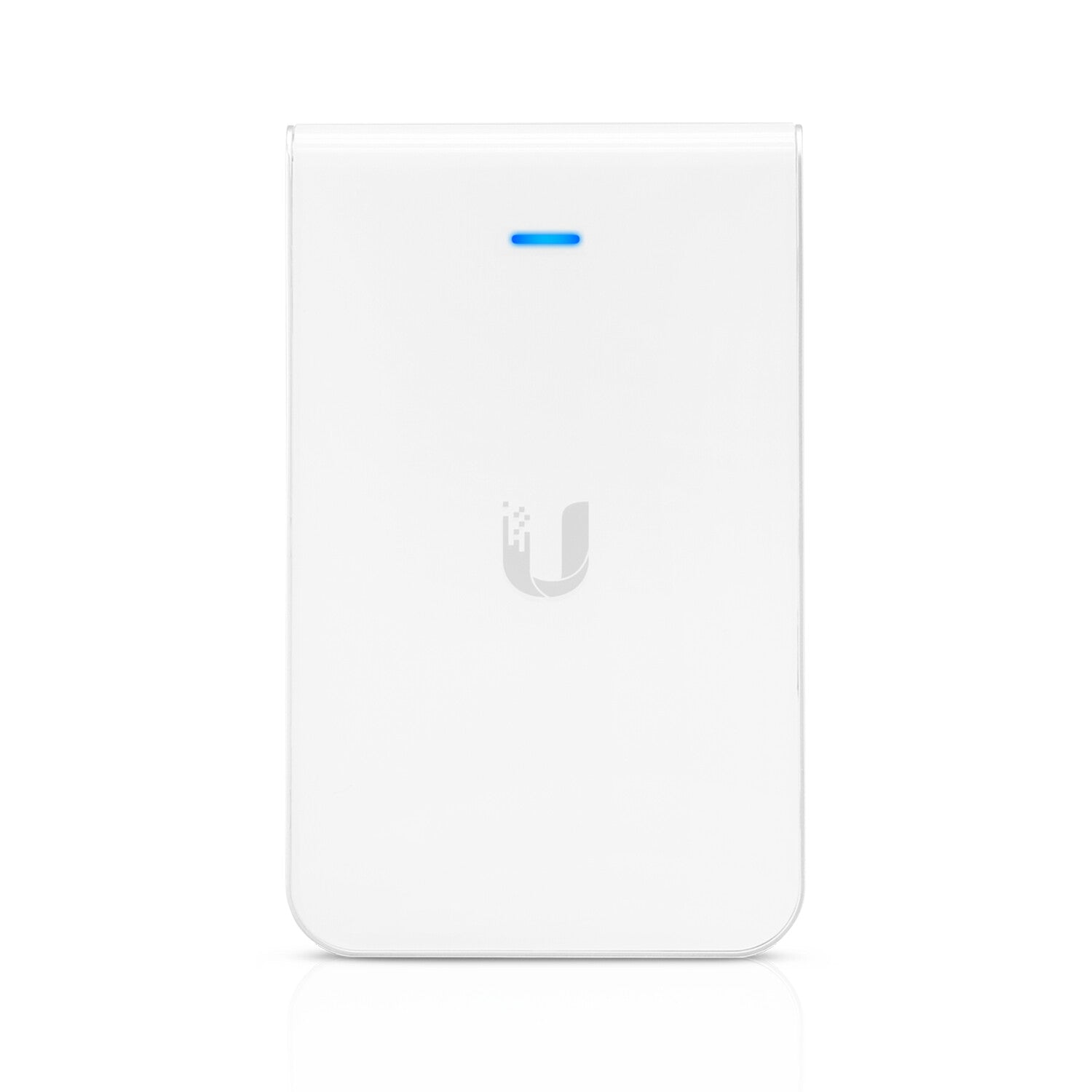

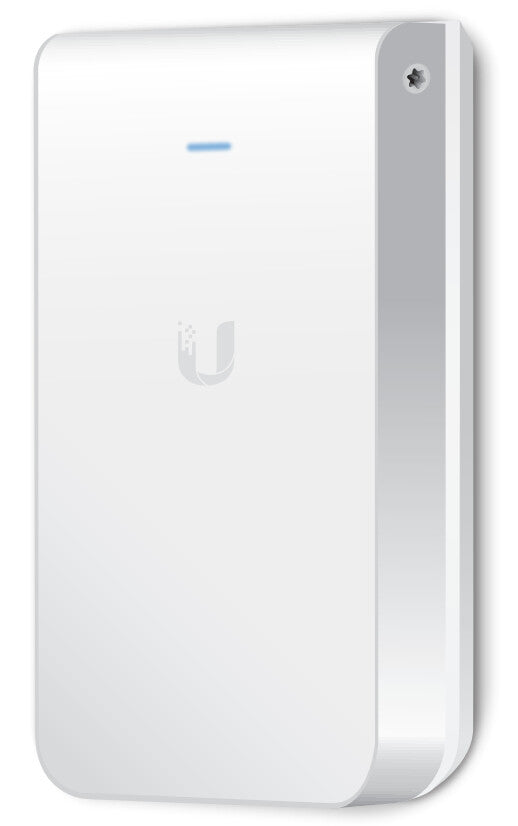

Ubiquiti UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE)

Ubiquiti UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE)

£153.61 GBP
£153.61 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UAP-IW-HD

16 in stock

  • Simultaneous Dual-Band 4x4 Multi-User MIMO
  • Four-Stream 802.11ac Wave 2 Technology
  • 802.3af/802.3at PoE Compatibility
  • Customizable with various Skins
2.4GHz/5GHz, 802.11a/b/g/n/ac/ac-wave2, 5x 10/100/1000 Ethernet Ports, 802.3af PoE/802.3at PoE+, 210g

Integrated Gigabit Switch
Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.

Superior Processing Power
The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE) Standard
The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.

Quick and Simple Installation

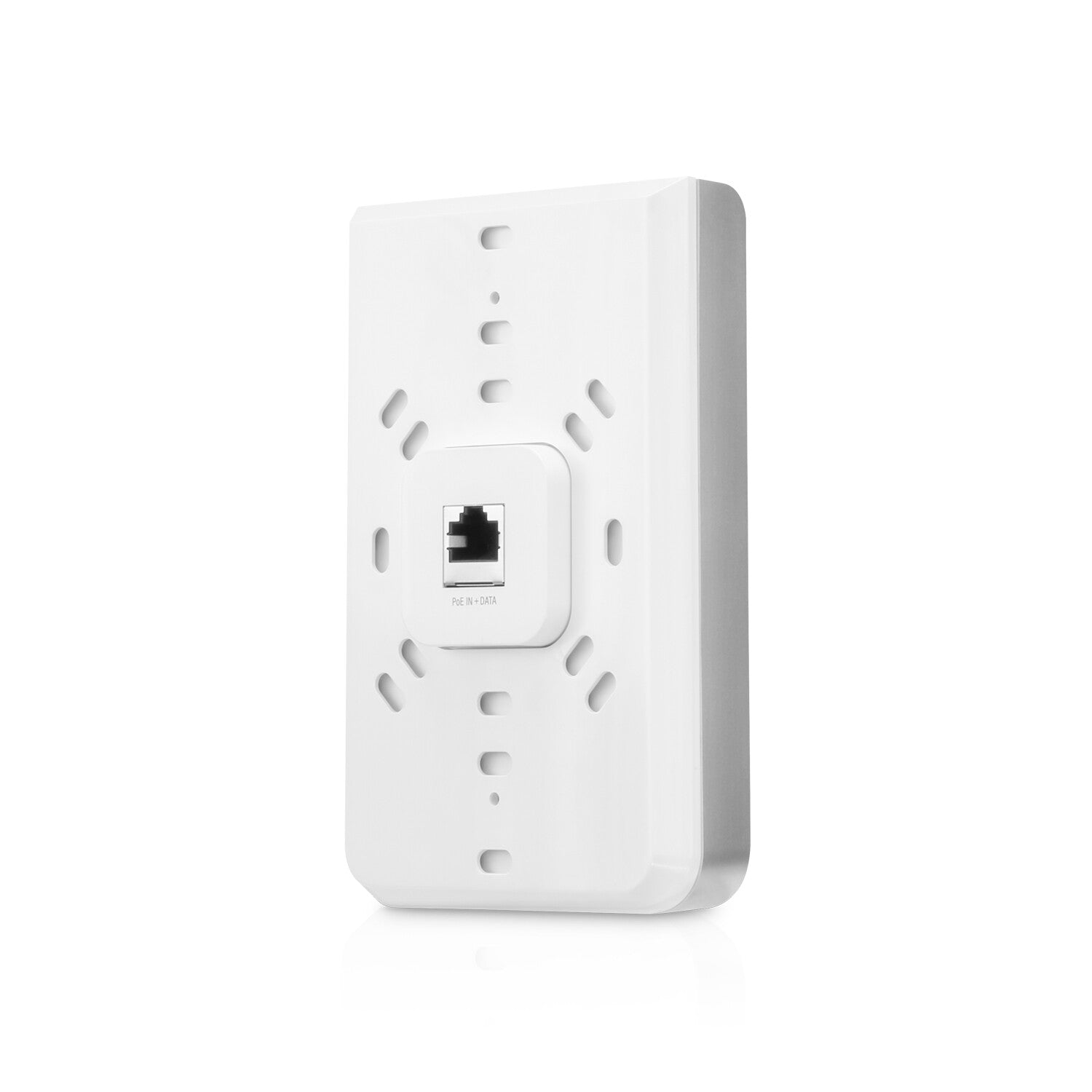

The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.

Customizable with Various Skins
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.

UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

Features
2.4 GHz Yes
5 GHz Yes
Maximum data transfer rate 1733 Mbit/s
Wi-Fi data rate (max) 1733 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Throughput data rate 940 Mbit/s
Frequency band 2.4/5 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Number of users 200 user(s)
MIMO Yes
MIMO type Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME) Yes
VLAN support Yes
Virtual LAN features Tagged VLAN
Rate limiting Yes
Wireless isolation Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Dynamic Frequency Selection (DFS) Yes
Quality of Service (QoS) support Yes
Transmitting power 26 dBmW
Security
Security algorithms WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-EAP, WPA2-TKIP
Protocols
Management protocols 802.1Q, QoS, WMM
Management features
Web-based management Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 5
Internal RJ-45 ports quantity 1
WAN connection Ethernet (RJ-45)
Power
Power over Ethernet (PoE) Yes
AC input voltage 44 - 57 V
Power consumption (max) 23 W
Design
Placement Wall
Product colour White
Reset button Yes
LED indicators Yes
Certification CE, FCC, IC
Internal No
Antenna
Antenna features Integrated antenna
Antennas quantity 4
Antenna gain level (max) 6 dBi
Weight & dimensions
Width 86.7 mm
Depth 25.8 mm
Height 139.7 mm
Weight 210 g
Packaging content
Mounting kit Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -10 - 60 °C
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
