SKU:USW-16-POE
85 in stock
- Managed L2/L3
- Basic switching RJ-45 Ethernet ports quantity: 16
- Switching capacity: 36 Gbit/s
- 1U Rack mounting
- Power supply included Power over Ethernet (PoE)

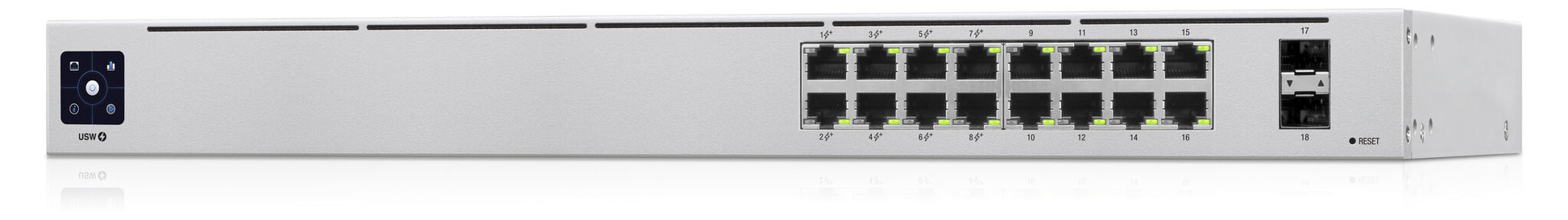

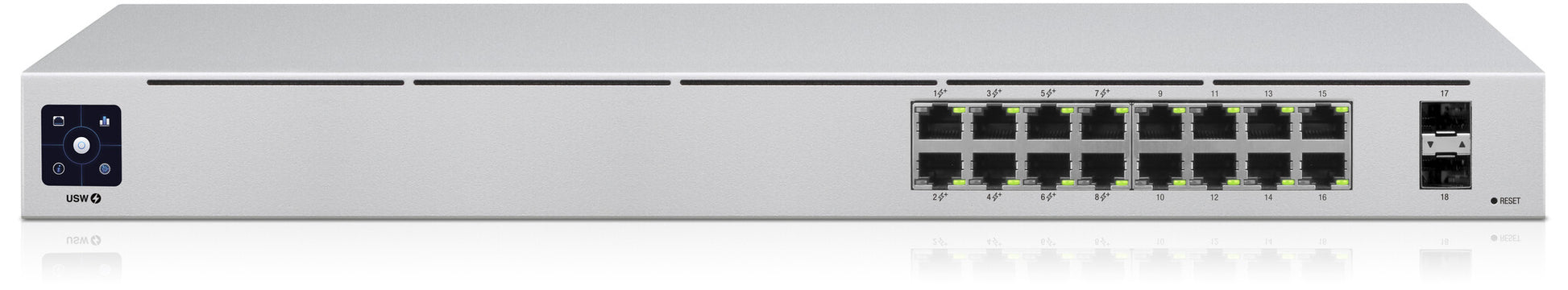

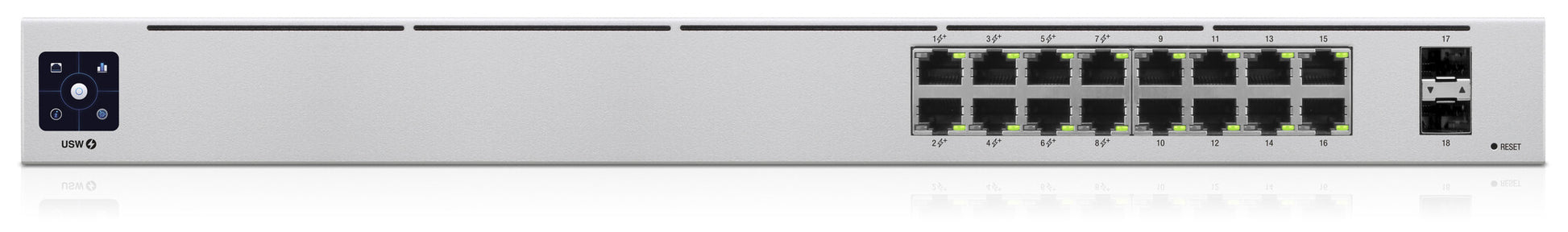

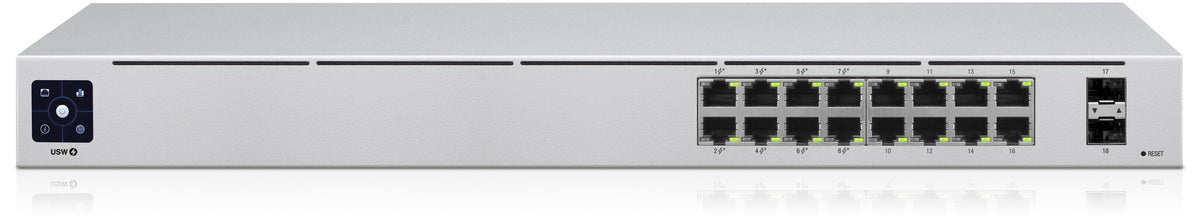

USW-16-POE Gen 2, AC/DC, Internal, 60W, (16) 10/100/1000 RJ45 Ports, (2) 1G SFP, 442.4 x 200 x 43.7 mm
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
| Management features |
|---|
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
|---|
| VLAN support |
Yes |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
26.78 Mpps |
| Throughput |
18000 Mpps |
| Switching capacity |
36 Gbit/s |
| Security |
|---|
| Authentication type |
IEEE 802.1x, RADIUS |
| Design |
|---|
| Certification |
CE, FCC, IC |
| LED indicators |
Activity, Link, PoE, Speed, System |
| Product colour |
Silver |
| Form factor |
1U |
| Rack mounting |
Yes |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UniFi |
| Power |
|---|
| DC input voltage |
44 - 57 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
48 W |
| Power over Ethernet (PoE) power per port |
32 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
2.8 kg |
| Height |
43.7 mm |
| Depth |
200 mm |
| Width |
442.4 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
