SKU:UMR-ULTRA
21 in stock
- Site-to-site VPN and VPN client routing
- (2) FE RJ45 ports
- Automatic failover among LTE, wired WAN and WiFi
- Powered using USB Type-C or 4-pin DC power socket
- Wall and DIN rail mount options
- Optional Mobility Cloud Subscription
- WiFi 4 single chain 2.4 GHz radio

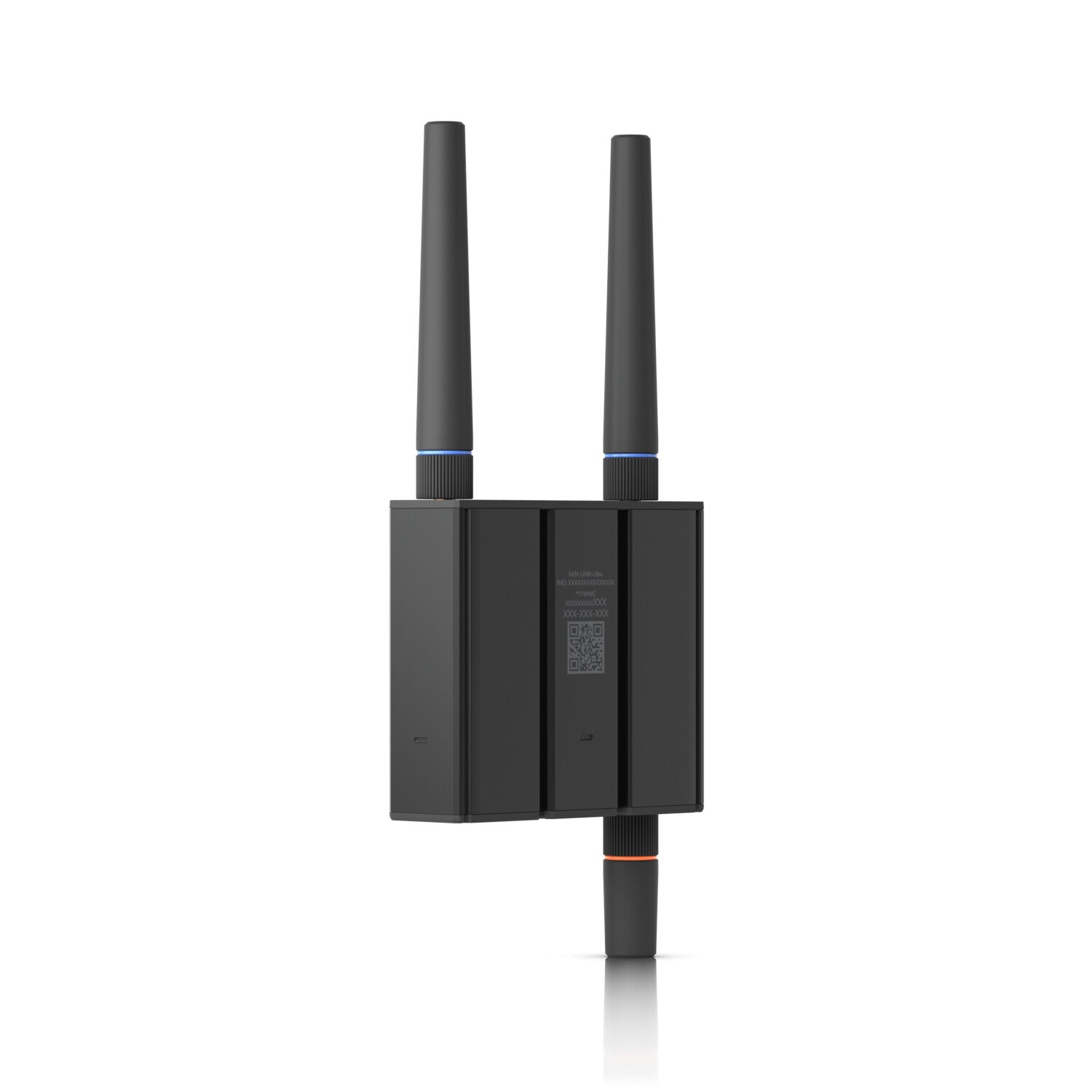

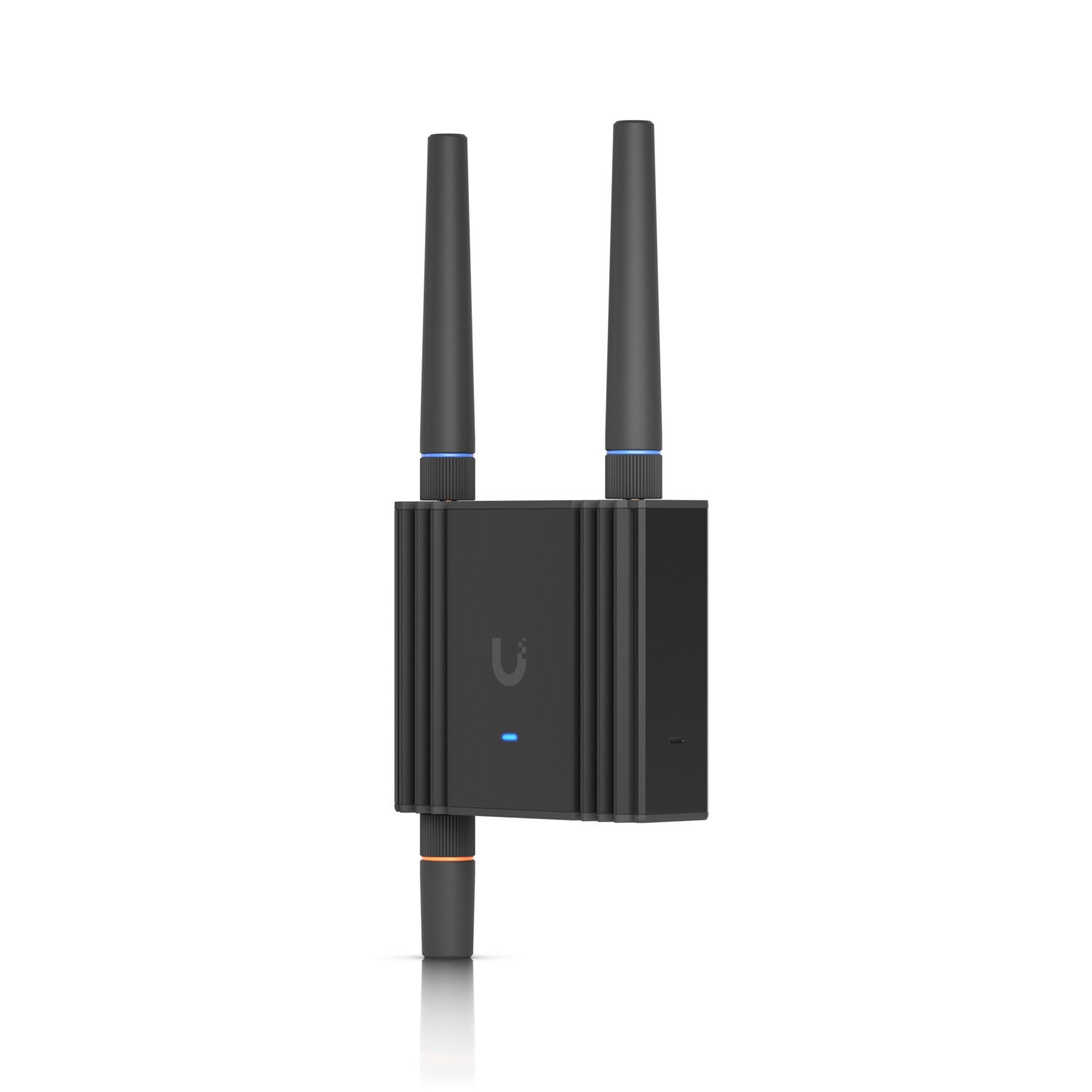

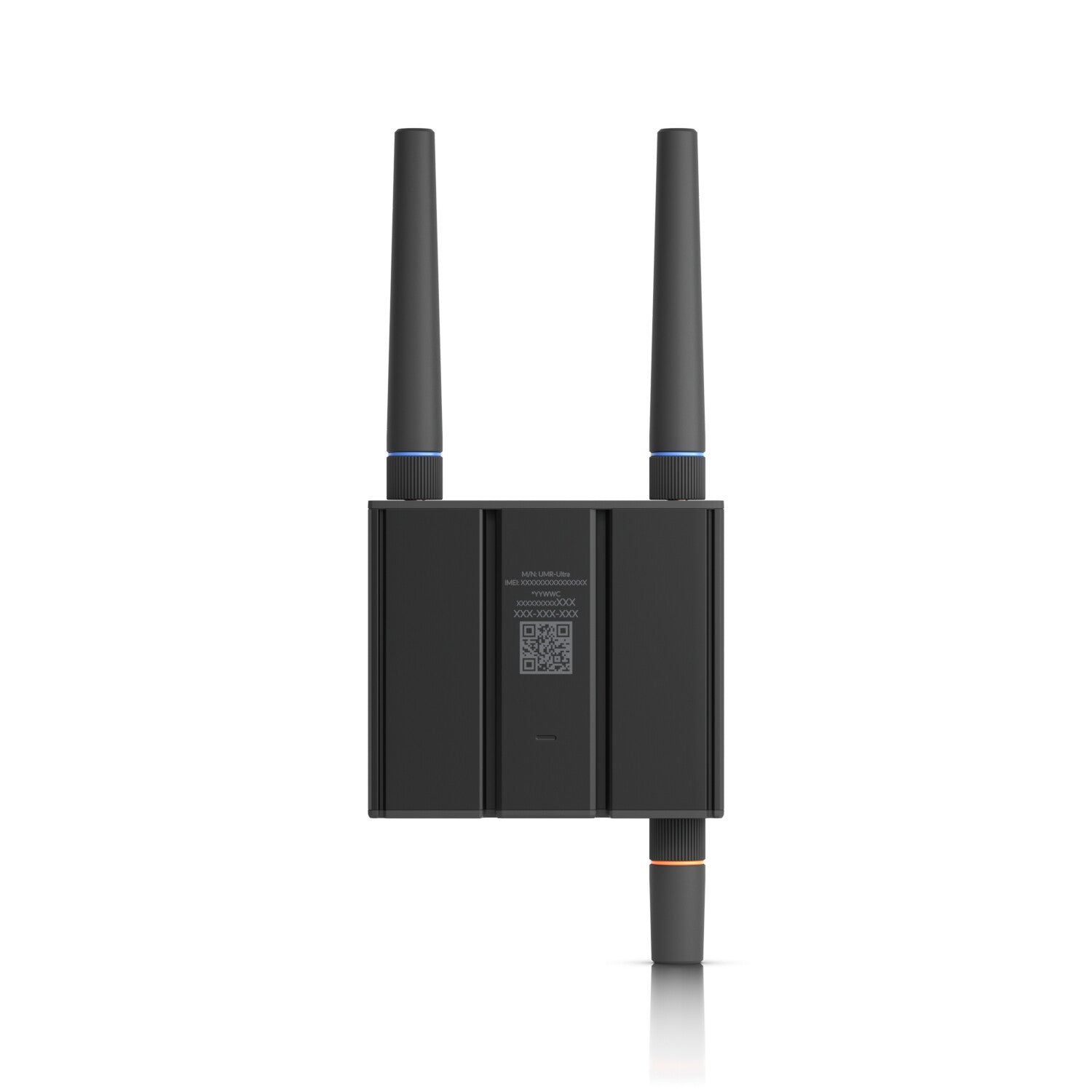

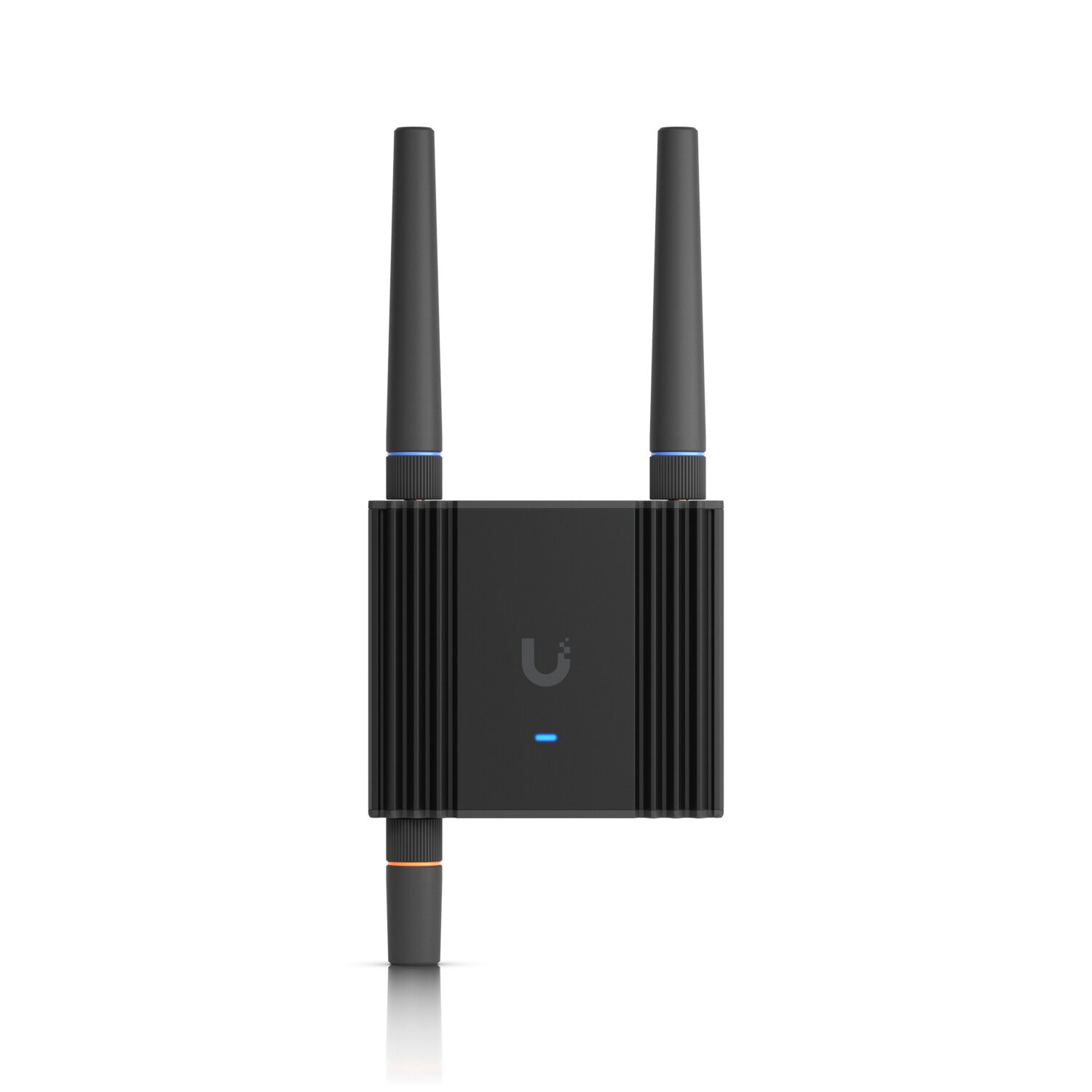

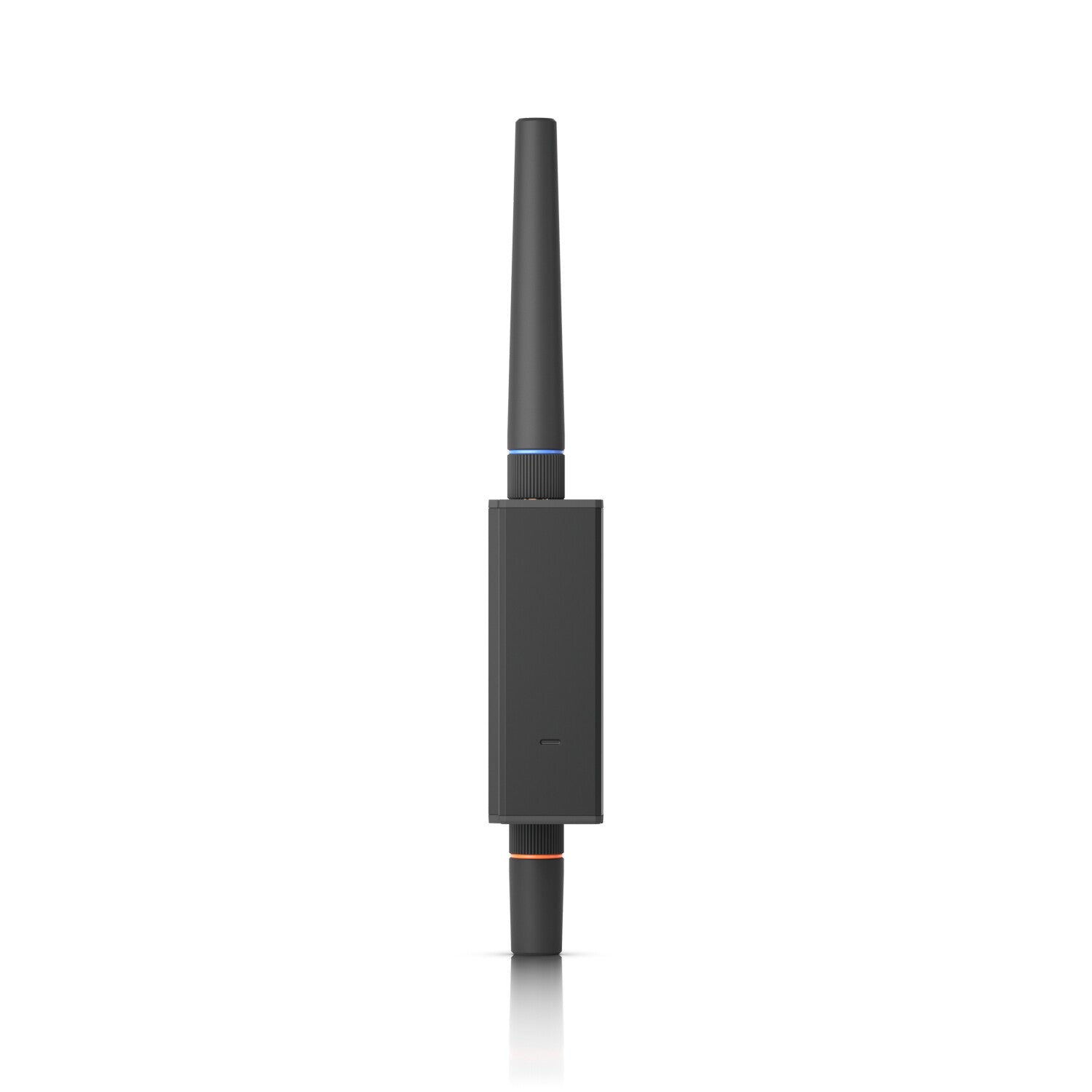

Mobile Router Ultra, LTE, wired WAN, WiFi, nano-SIM, 2x FE RJ45, polycarbonate, aluminum
Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
| Design |
|---|
| Device type |
Cellular network router |
| Product colour |
Black |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Mounting |
DIN-rail/Wall mounting |
| Reset button |
Yes |
| LED indicators |
Status |
| Ethernet LAN features |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported |
1,2,5.5,6,9,11,12,18,24,36,48,54,150,6.5 Mbit/s |
| Wi-Fi frequency |
2.4 GHz |
| Mobile network |
|---|
| Data network |
4G |
| 4G standard |
LTE |
| Number of SIM cards |
1 |
| SIM card type |
NanoSIM |
| Data transfer rate (LTE) (upload) |
50 Mbit/s |
| Data transfer rate (LTE) (download) |
150 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| USB port type |
USB Type-C |
| USB port |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), PTCRB, GCF |
| Antenna |
|---|
| Antenna type |
External |
| Antenna connector type |
SMA/RP-SMA |
| Antennas quantity |
3 |
| Detachable antenna(s) |
Yes |
| Power |
|---|
| Power source type |
DC, USB |
| Power consumption (typical) |
5.7 W |
| Input voltage |
5 - 30 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Weight & dimensions |
|---|
| Width |
82 mm |
| Depth |
26 mm |
| Height |
193.5 mm |
| Weight |
200 g |
| Packaging data |
|---|
| User guide |
Yes |
