Ubiquiti Networks

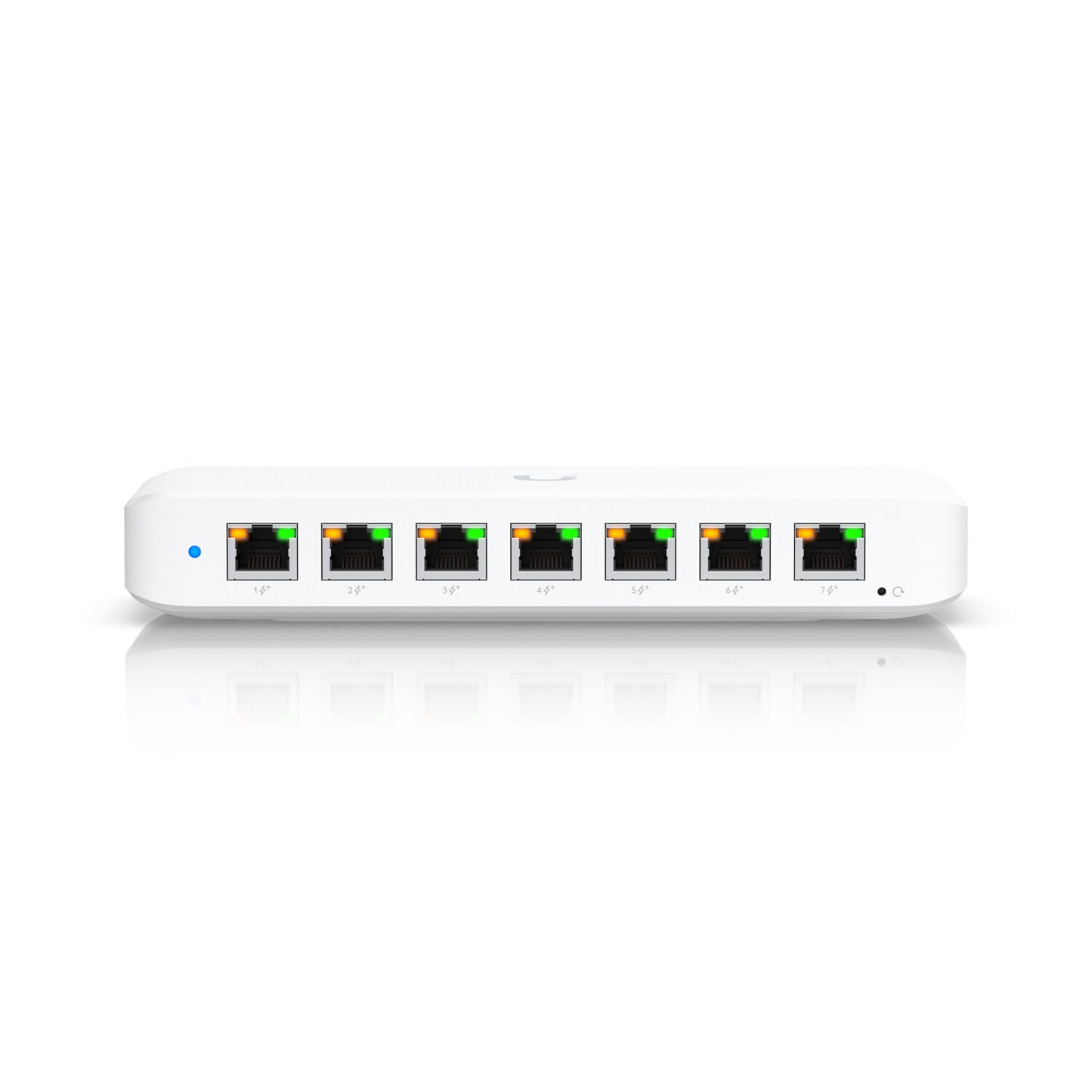

Ubiquiti Ultra 60W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Ubiquiti Ultra 60W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

£128.09 GBP
£128.09 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-ULTRA-60W

96 in stock

  • (7) GbE PoE+ output ports
  • (1) GbE port with optional PoE++ input*
  • 52W PoE availability with the included AC power adapter
L2, 8x RJ-45, 16 Gbps Switching capacity, PoE, 52 W

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

Management features
Switch layer L2
Switch type Managed
Ports & interfaces
Power connector DC-in jack
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Rate limiting Yes
Flow control support Yes
Broadcast storm control Yes
Port mirroring Yes
10G support No
Data transmission
Jumbo frames support Yes
Throughput 8 Gbit/s
Switching capacity 16 Gbit/s
Multicast features
Multicast support Yes
Design
Wall mountable Yes
LED indicators Activity, Link, PoE, Status
Reset button Yes
Housing material Polycarbonate (PC)
Product colour White
Rack mounting No
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Power
Power consumption (max) 9 W
Input current 1.1 A
DC input voltage 44 - 57 V
Number of power supply units 1
Power supply included Yes
Power source DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 42 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet 4PPoE (PoE++) ports quantity 1
Power over Ethernet plus (PoE+) ports quantity 7
Power over Ethernet (PoE) ports quantity 7
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -20 - 45 °C
Weight & dimensions
Weight 320 g
Height 33 mm
Depth 76 mm
Width 203 mm
Packaging data
Manual Yes
Cables included Power
