Ubiquiti Networks
Regular price
£169.72 GBP
Regular price
Sale price
£169.72 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:WAVE-PICO
74 in stock
- Max. link range: Wave AP: 1.3 km / Wave AP Micro: 0.9 km
- Max. throughput: 2 Gbps (1 Gbps duplex)
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
- (1) GbE RJ45 port
- Integrated Bluetooth
Dual-core ARM Cortex-A53 at 1 GHz, 512 MB DDR3L, GbE RJ45, 10W, IPX6, UV stabilized polycarbonate, white

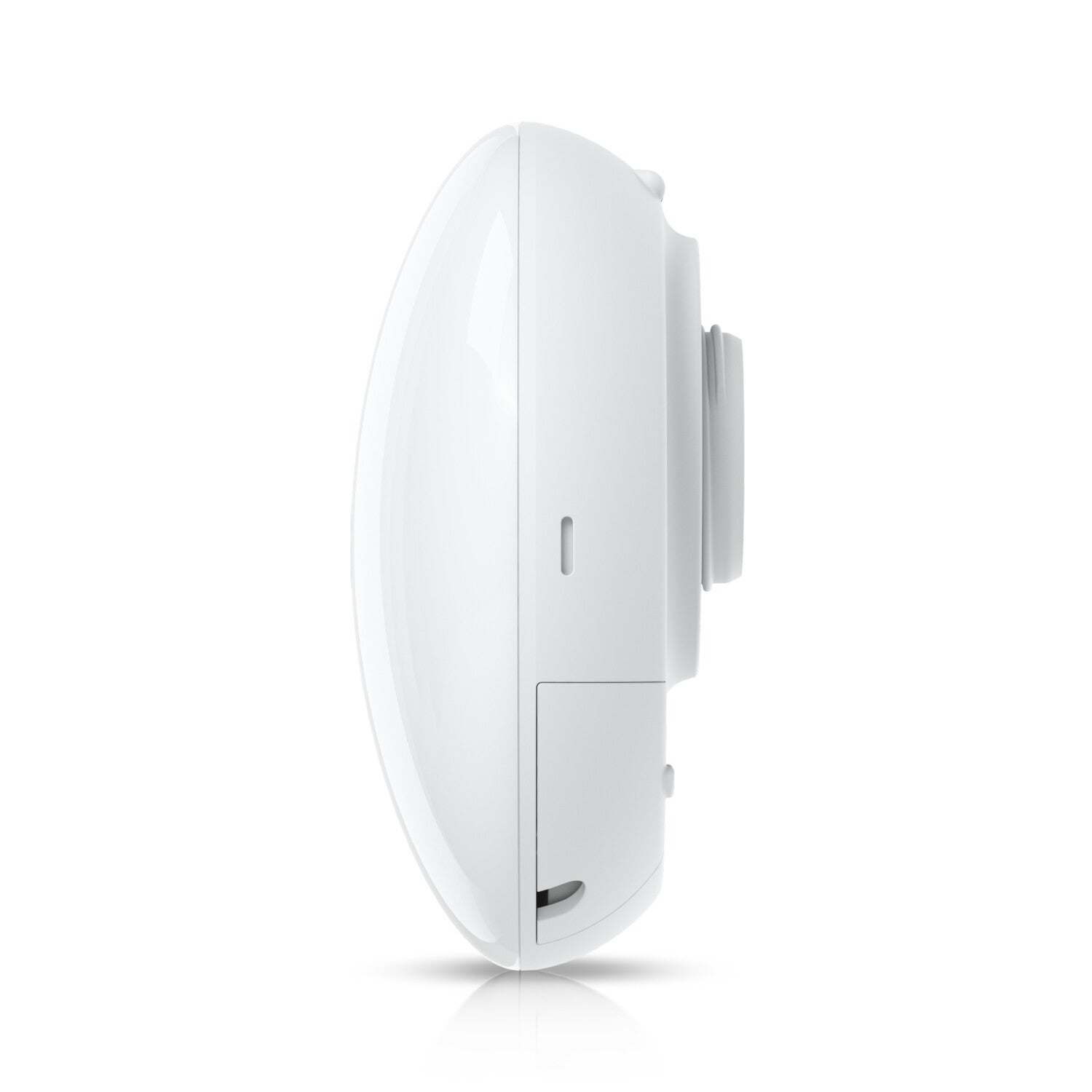

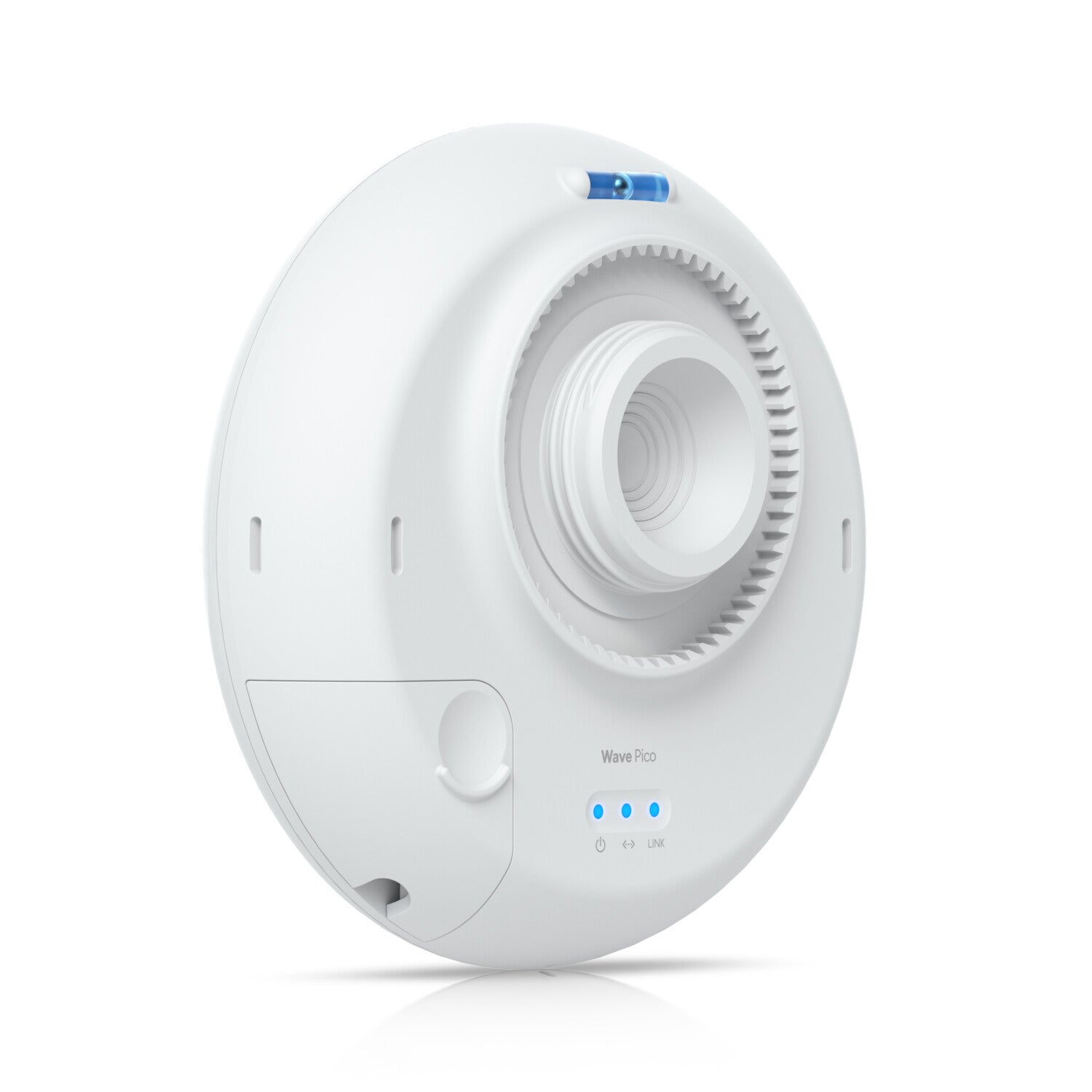

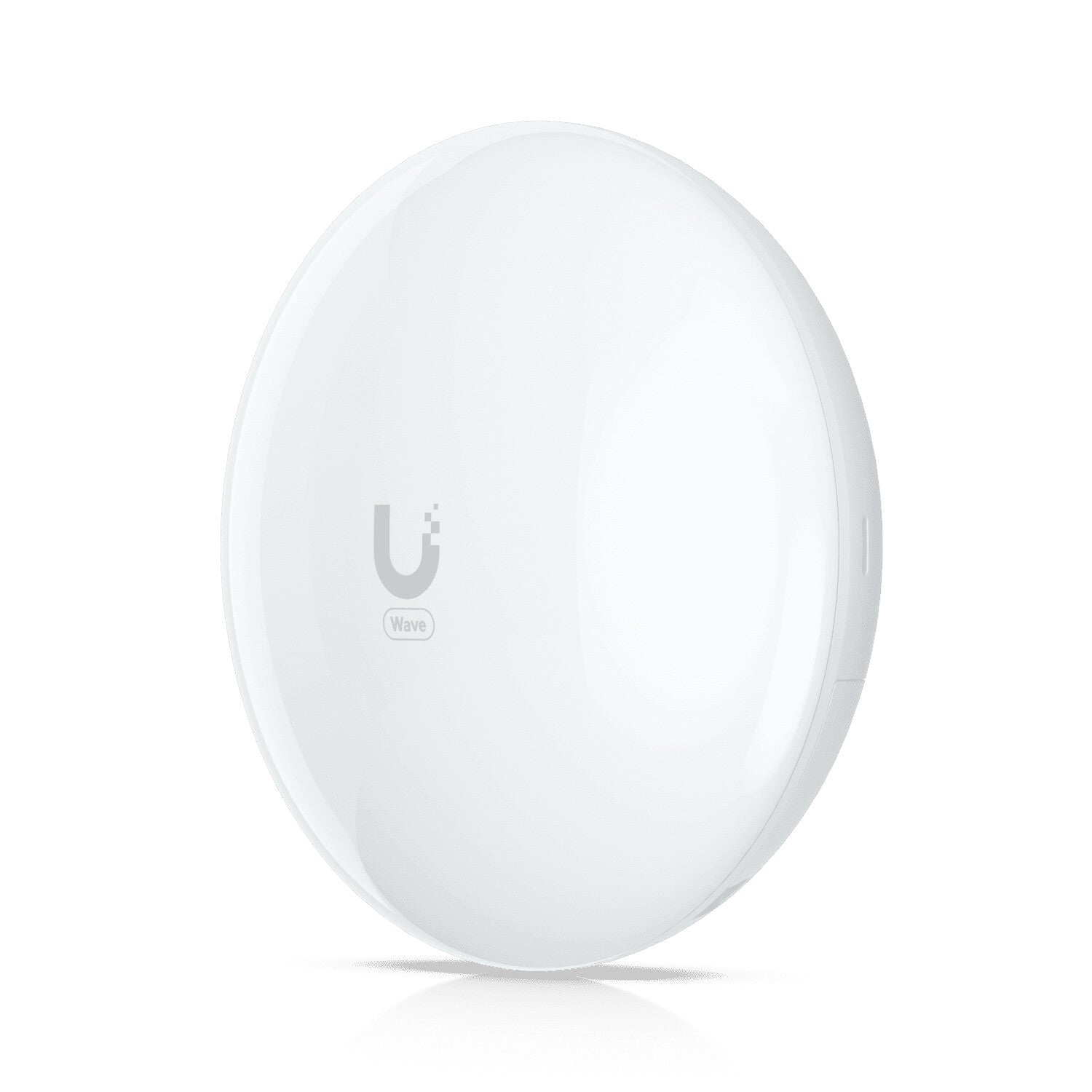

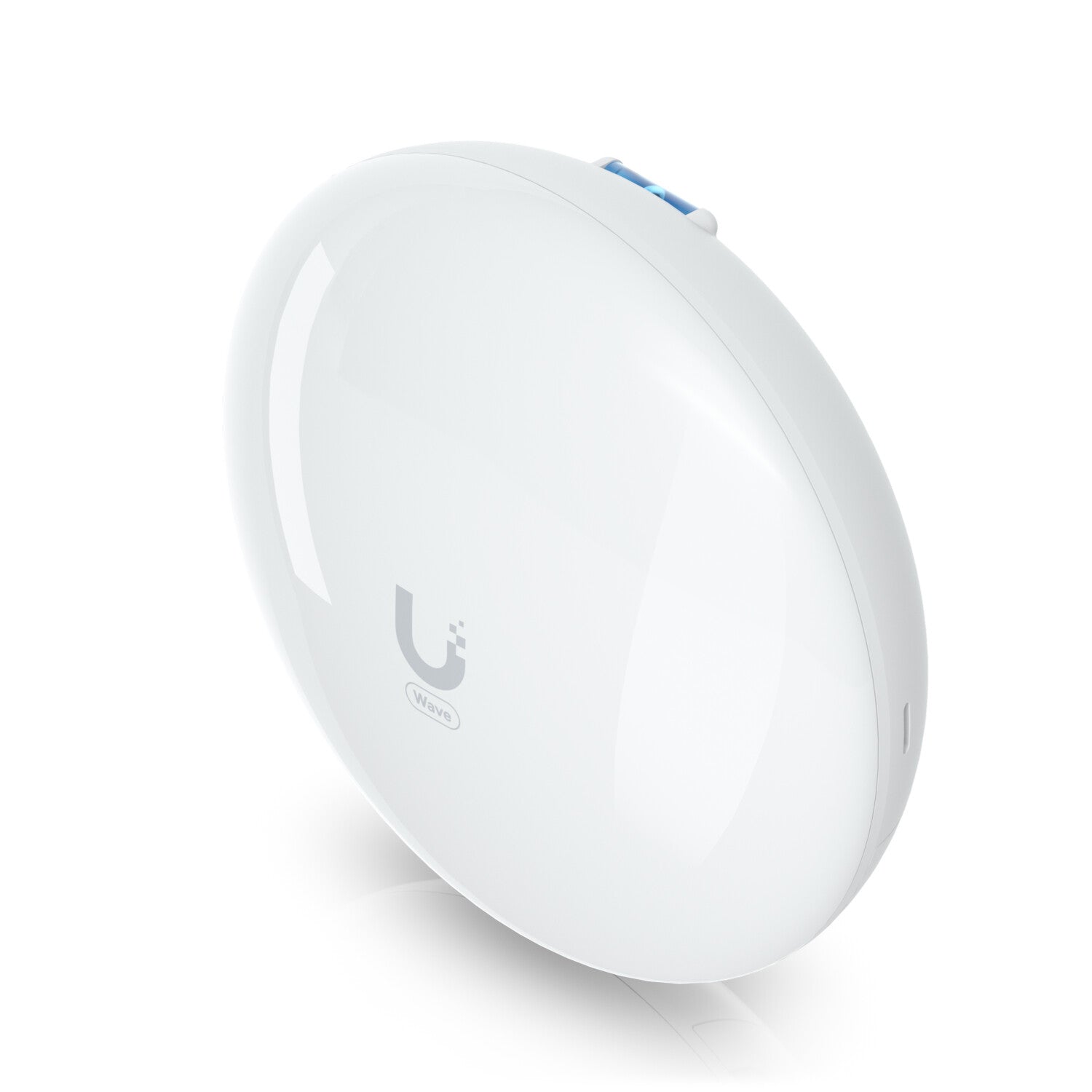

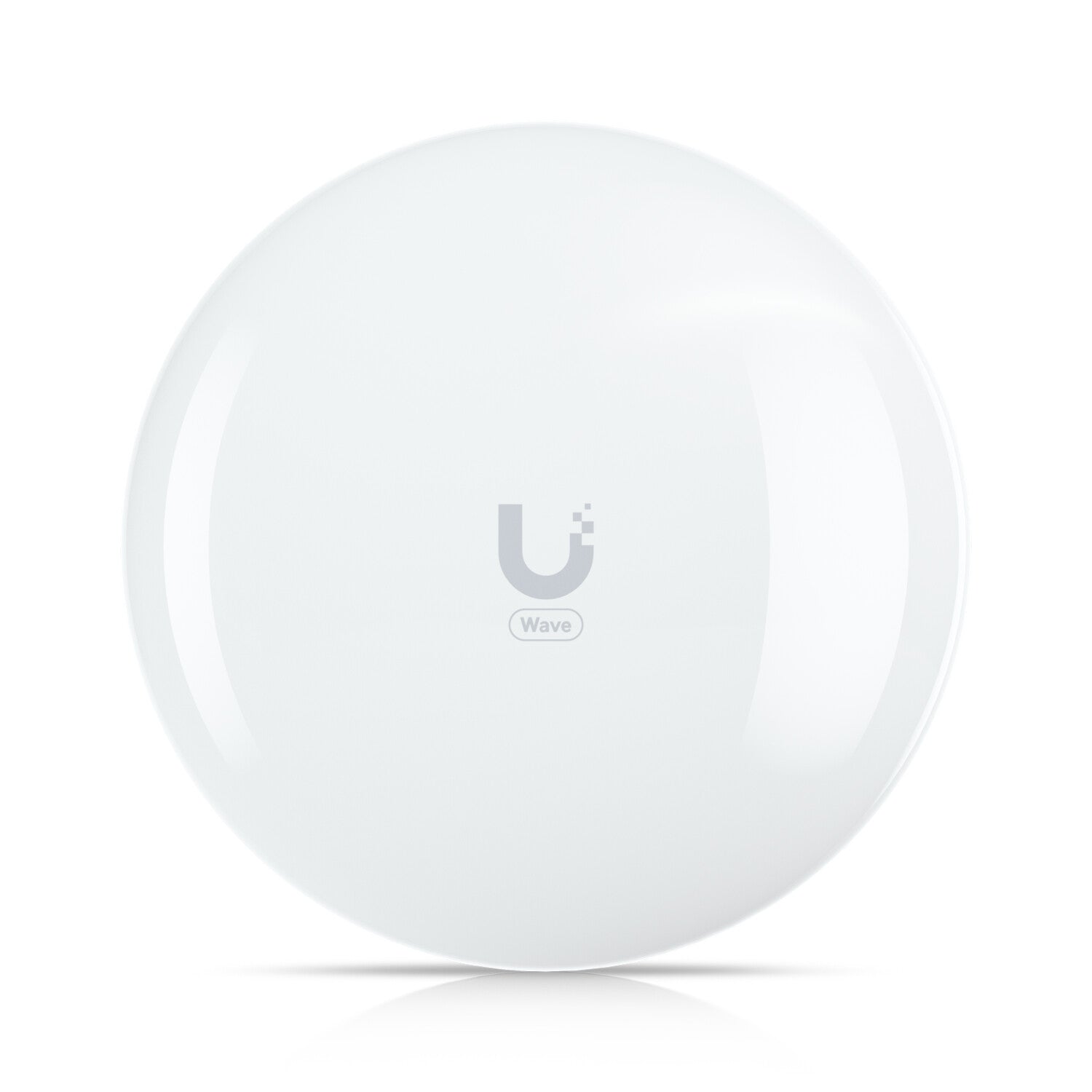

Lightweight, compact 60 GHz PtMP station powered by Wave Technology.
| Data transmission |
|---|
| Maximum data transfer rate |
800 Mbit/s |
| Maximum transfer distance |
1300 m |
| Antenna |
|---|
| Antenna design |
Internal |
| Antenna gain level (max) |
27.7 dBi |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Frequency band |
5.18 - 5.875 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Outdoor range |
0.9 - 1.3 km |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Multi-Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2000 Mbit/s |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Security algorithms |
SNMP, WPA2-PSK |
| Features |
|---|
| Product type |
Network bridge |
| Material |
Polycarbonate (PC) |
| Mounting type |
Pole |
| Product colour |
White |
| LED indicators |
LAN, Link, Power, Status |
| Power LED |
Yes |
| Network Time Protocol (NTP) client |
Yes |
| International Protection (IP) code |
IPX6 |
| Reset button |
Yes |
| Internal memory |
512 MB |
| Power |
|---|
| Power source type |
PoE |
| DC input voltage |
44 - 54 V |
| Power consumption (max) |
10 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UISP |
| Weight & dimensions |
|---|
| Width |
152.1 mm |
| Depth |
55.8 mm |
| Height |
152.1 mm |
| Weight |
347 g |
| Processor |
|---|
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Processor model |
Cortex-A53 |
| Processor frequency |
1000 MHz |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
