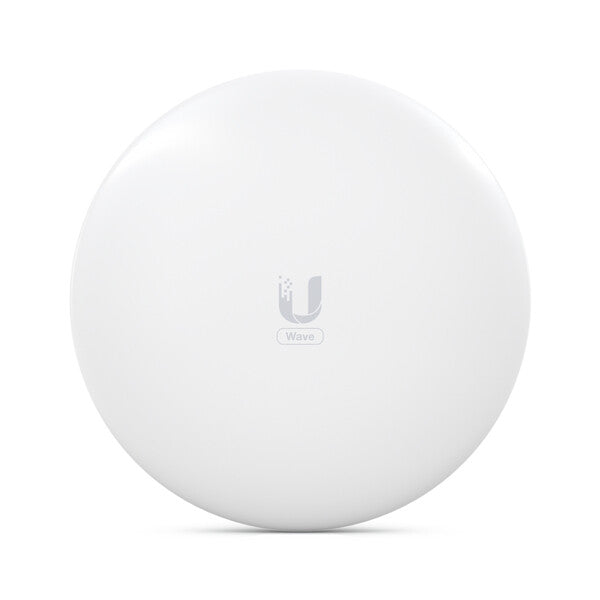

Ubiquiti UISP Wave Nano White

Ubiquiti UISP Wave Nano White

£296.40 GBP
£296.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

WAVE-NANO

88 in stock

  • 5 GHz backup radio
  • Link range: up to 5 km
  • Router mode support
  • Integrated GPS antenna
60 GHz PtMP station, 5km max

60 GHz PtMP station powered by Wave Technology.

Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Data transmission
Maximum transfer distance 5000 m
Antenna
Antenna gain level (max) 41 dBi
Wireless LAN features
Modulation 8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK
Wi-Fi band Single-band (60 GHz)
Wi-Fi Yes
Network
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Security algorithms AES, WPA2-PSK
Management features
Web-based management Yes
Features
Internal memory 512 MB
International Protection (IP) code IPX6
Reset button Yes
LED indicators Yes
Product colour White

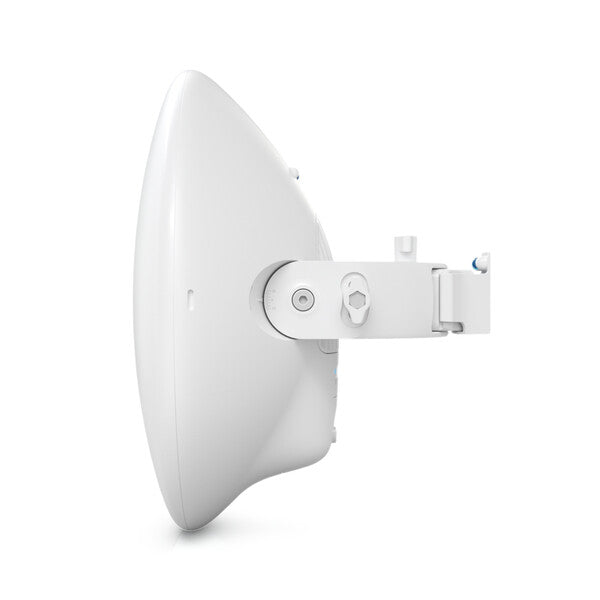

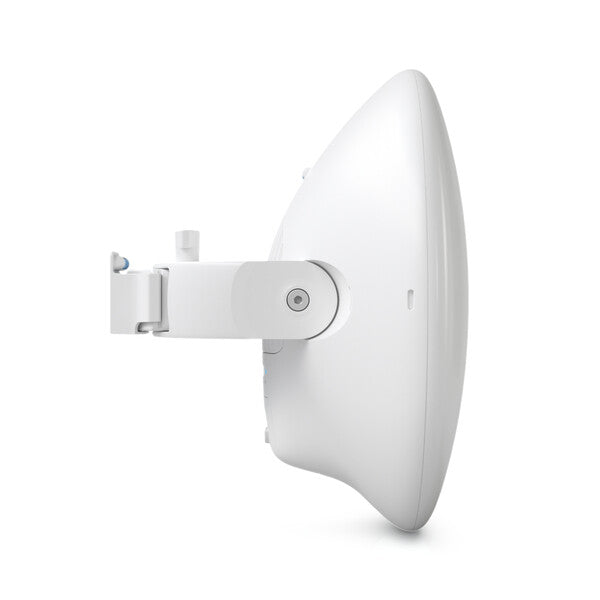

Mounting type Pole
Rack mounting No
Power
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 60 °C
Certificates
Certification FCC, IC,
Weight & dimensions
Weight 932 g
Height 256.5 mm
Depth 113.5 mm
Width 256.5 mm
Technical details
Sustainability compliance Yes
Compliance certificates CE
Packaging data
Quantity per pack 1 pc(s)
