Ubiquiti Networks

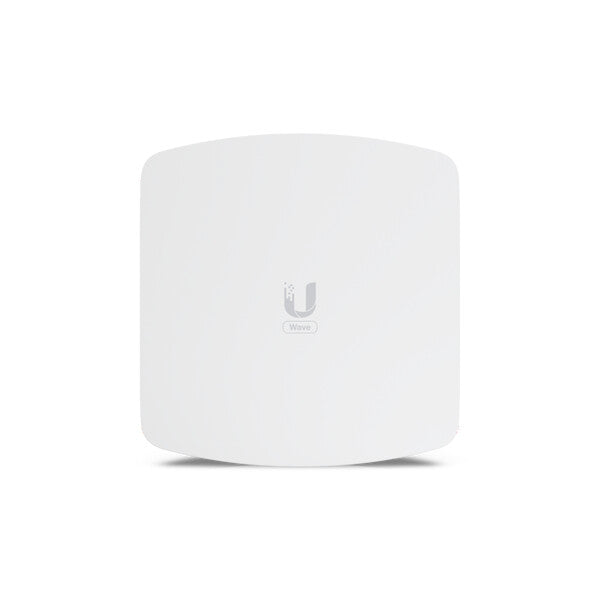

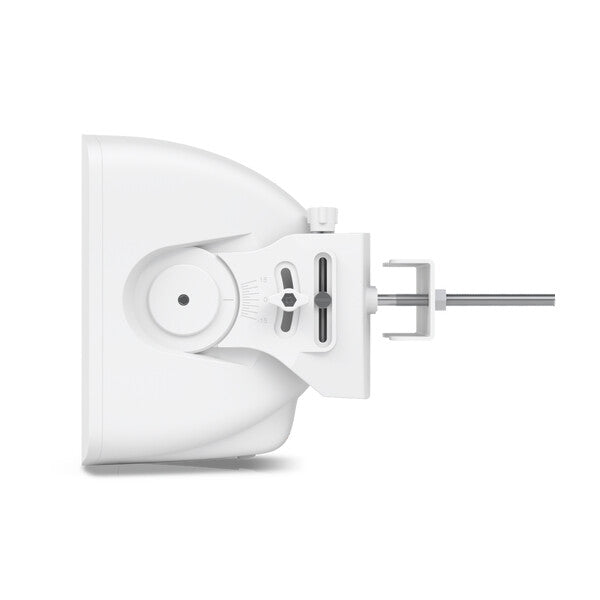

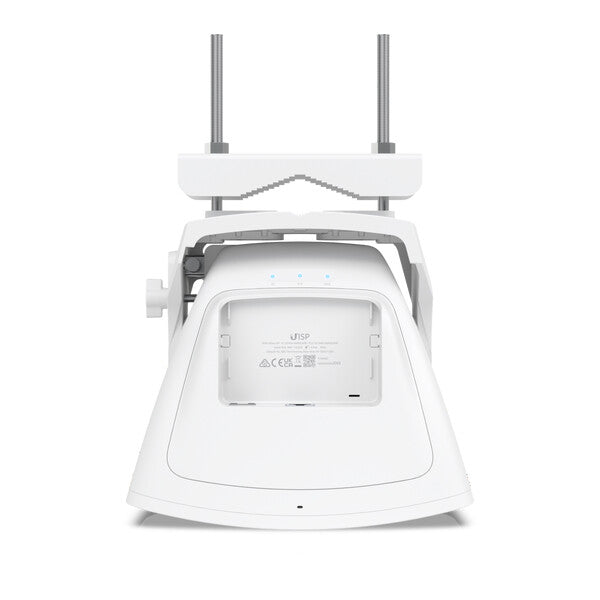

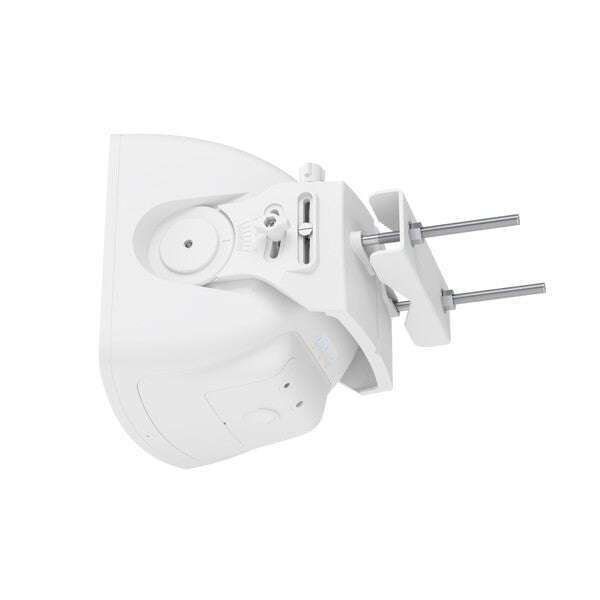

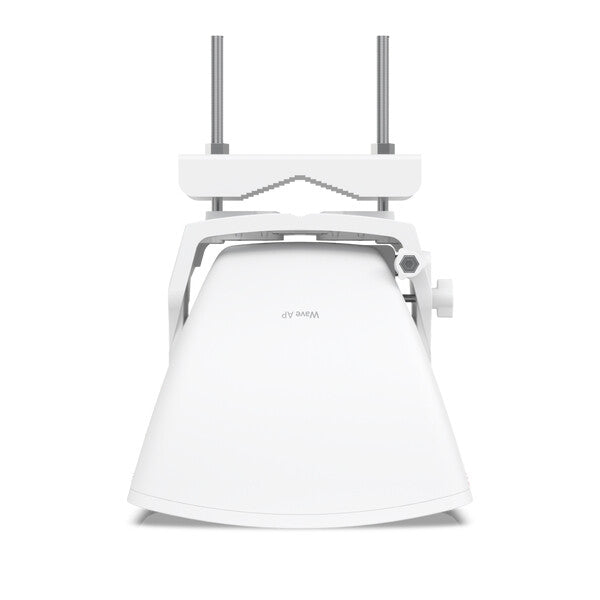

Ubiquiti UISP Wave Access Point 5400 Mbit/s White
Ubiquiti UISP Wave Access Point 5400 Mbit/s White
SKU:WAVE-AP
14 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 5 GHz backup radio
- Supported stations and distances:
- – Wave Long-Range: up to 8 km
- – Wave Nano: up to 5 km
- WAN Ports: (1) 10G SFP+, (1) 2.5GbE
- Integrated GPS antenna
60 GHz PtMP access point powered by Wave Technology.
The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
| Data transmission | |
|---|---|
| Maximum data transfer rate | 5400 Mbit/s |
| Antenna | |
|---|---|
| Antenna gain level (max) | 24 dBi |
| Antenna type | Internal |
| Wireless LAN features | |
|---|---|
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Frequency band | 57 - 71 GHz |
| Network | |
|---|---|
| Full duplex | Yes |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Security algorithms | AES, WPA2-PSK |
| Management features | |
|---|---|
| Web-based management | Yes |
| Management protocols | SNMP |
| Features | |
|---|---|
| Internal memory | 512 MB |
| International Protection (IP) code | IPX6 |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 24 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Certificates | |
|---|---|
| Certification | FCC, IC |
| Weight & dimensions | |
|---|---|
| Weight | 2.3 kg |
| Height | 205 mm |
| Depth | 187 mm |
| Width | 212 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Processor | |
|---|---|
| Processor frequency | 1400 MHz |
