Ubiquiti Networks
Regular price
£351.20 GBP
Regular price
Sale price
£351.20 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:UISP-S-PLUS
26 in stock
- (4) 2.5 GbE RJ45 ports with 27V passive PoE output
- (4) 10G SFP+ ports
- 160W (27V) total PoE availability, 20W/port (2-pair) / 40W/port (4-pair)
- Port isolation, speed limiting, and DHCP snooping functionality
- (1) Power TransPort™ input for DC redundancy
- Desk, wall, 1U rack, and outdoor mounting
- Standalone management through local web interface and UISP Application integration
4 x RJ-45, 4 x SFP+, Bluetooth, 100 Gbps, PoE, 210.4 x 170.2 x 43.7 mm, 1750 g

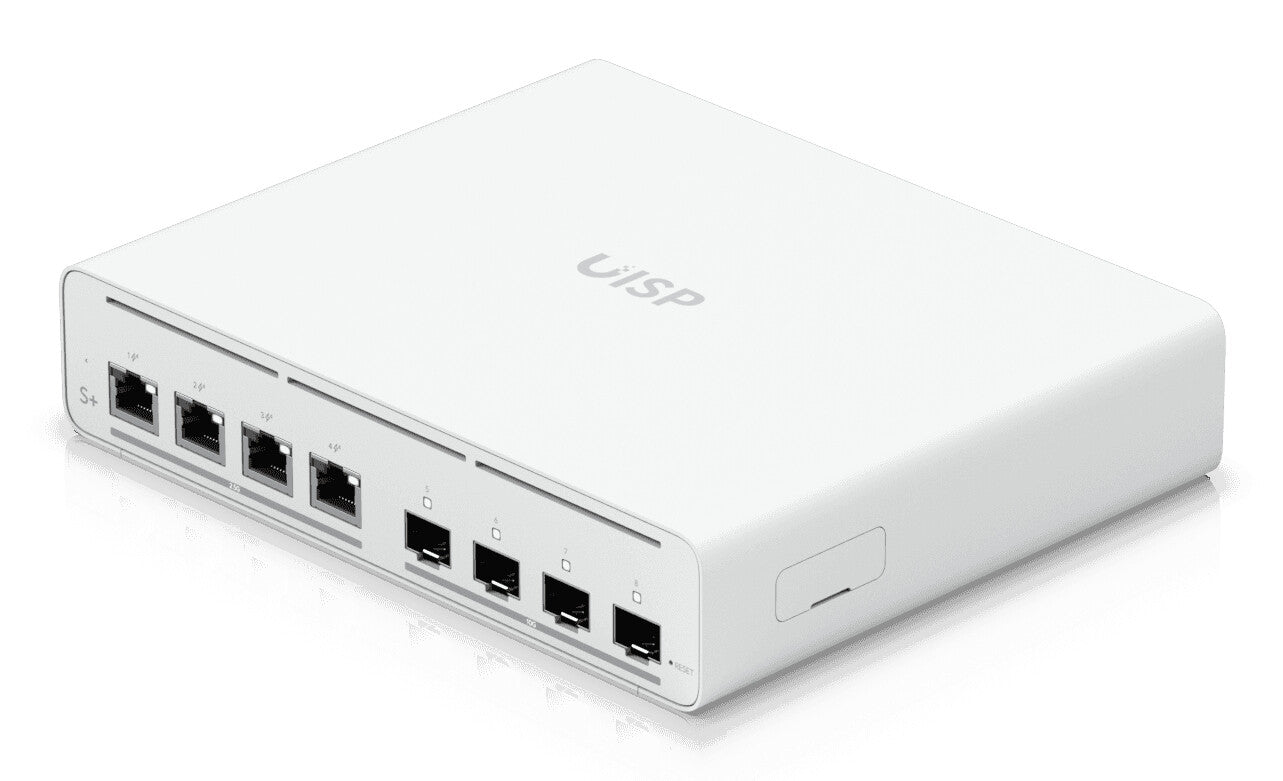

2.5 GbE PoE switch for ISP applications.
| Management features |
|---|
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity |
4 |
| SFP+ module slots quantity |
4 |
| Power connector |
AC/DC |
| Data transmission |
|---|
| Switching capacity |
100 Gbit/s |
| Throughput |
50 Gbit/s |
| Forwarding rate |
74.4 Mpps |
| Security |
|---|
| DHCP features |
DHCP snooping |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
White |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Steel |
| LED indicators |
LAN, System |
| Wall mountable |
Yes |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UISP |
| Performance |
|---|
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A55 |
| Processor frequency |
1400 MHz |
| Memory type |
DDR4-SDRAM |
| Internal memory |
1024 MB |
| Flash memory |
256 MB |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| DC input voltage |
24 - 28 V |
| Input current |
7.04 A |
| Power consumption (max) |
25 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) voltage |
27 V |
| Total Power over Ethernet (PoE) budget |
160 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
210.4 mm |
| Depth |
170.2 mm |
| Height |
43.7 mm |
| Weight |
1.75 kg |
| Packaging data |
|---|
| Manual |
Yes |
View full details
