Ubiquiti Networks
Regular price
£351.01 GBP
Regular price
Sale price
£351.01 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:UISP-S-PRO
Low stock: 5 left
- (24) GbE RJ45 ports, including (16) with 27V passive PoE output
- (4) 10G SFP+ ports
- 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
- 1.3" LCM color touchscreen
- Easy Bluetooth setup with the UISP Mobile app

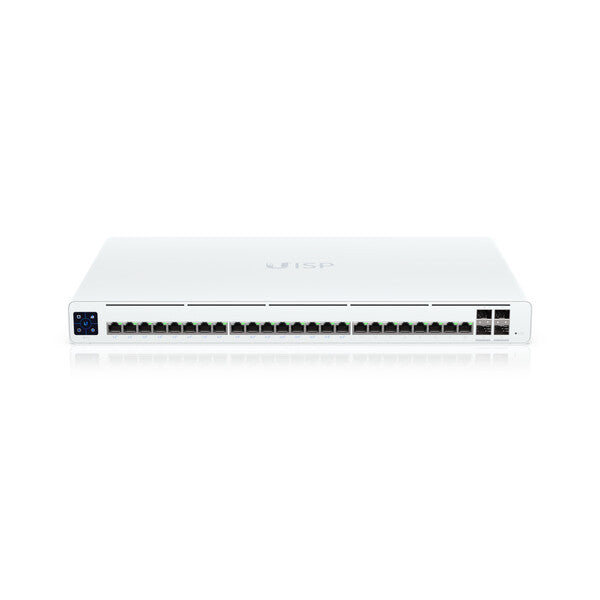

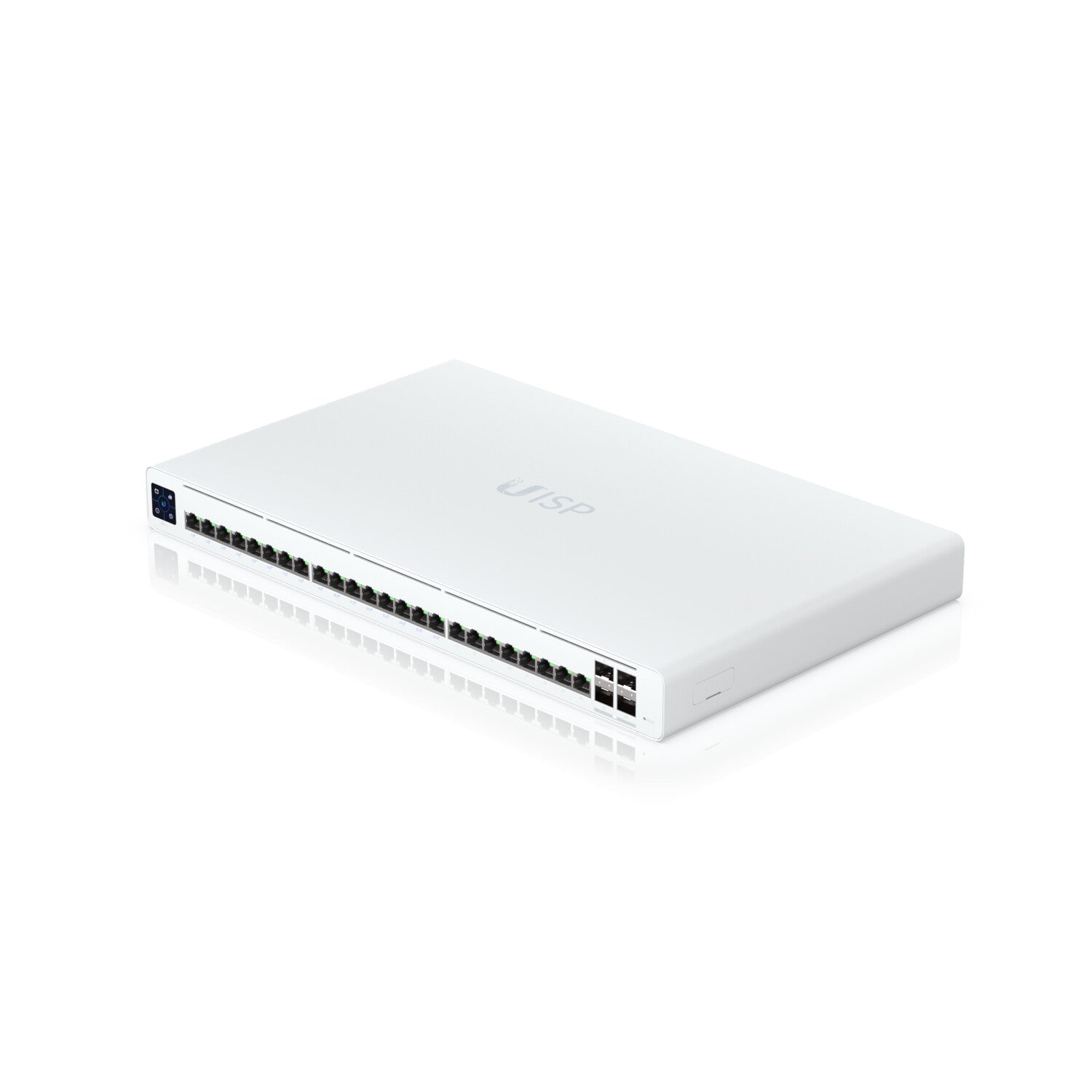

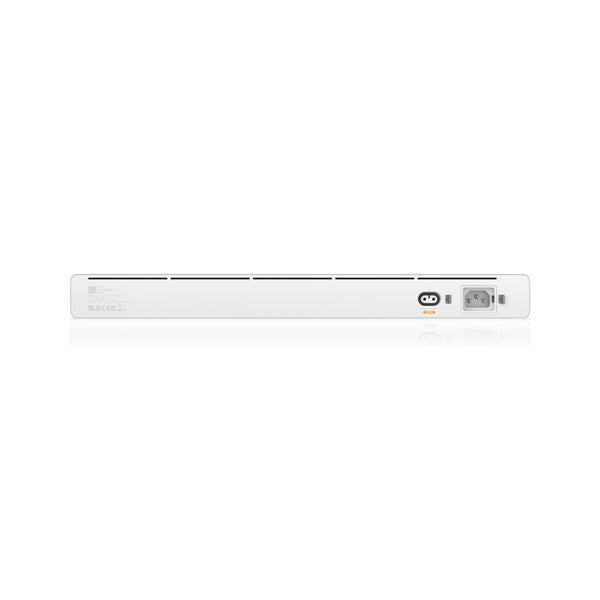

UISP Switch Pro, 1.3" LCM, 24x GbE RJ45, 4x 10G SFP+
A 24-port, Layer 2 PoE switch designed for ISP networks.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity |
4 |
| Network |
|---|
| Over-the-air bluetooth access |
Yes |
| Data transmission |
|---|
| Switching capacity |
128 Gbit/s |
| Throughput |
64 Gbit/s |
| Forwarding rate |
95.23 Mpps |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
No |
| Product colour |
White |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Steel |
| LED indicators |
Activity, Link, PoE, Speed |
| Display type |
LCM |
| Certification |
IC |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UISP |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
18 - 27 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) voltage |
27 V |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
220 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
442.4 mm |
| Depth |
267.5 mm |
| Height |
43.7 mm |
| Weight |
4 kg |
| Sustainability |
|---|
| Sustainability certificates |
CE, Federal Communications Commission (FCC) |
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Manual |
Yes |
