Ubiquiti Networks

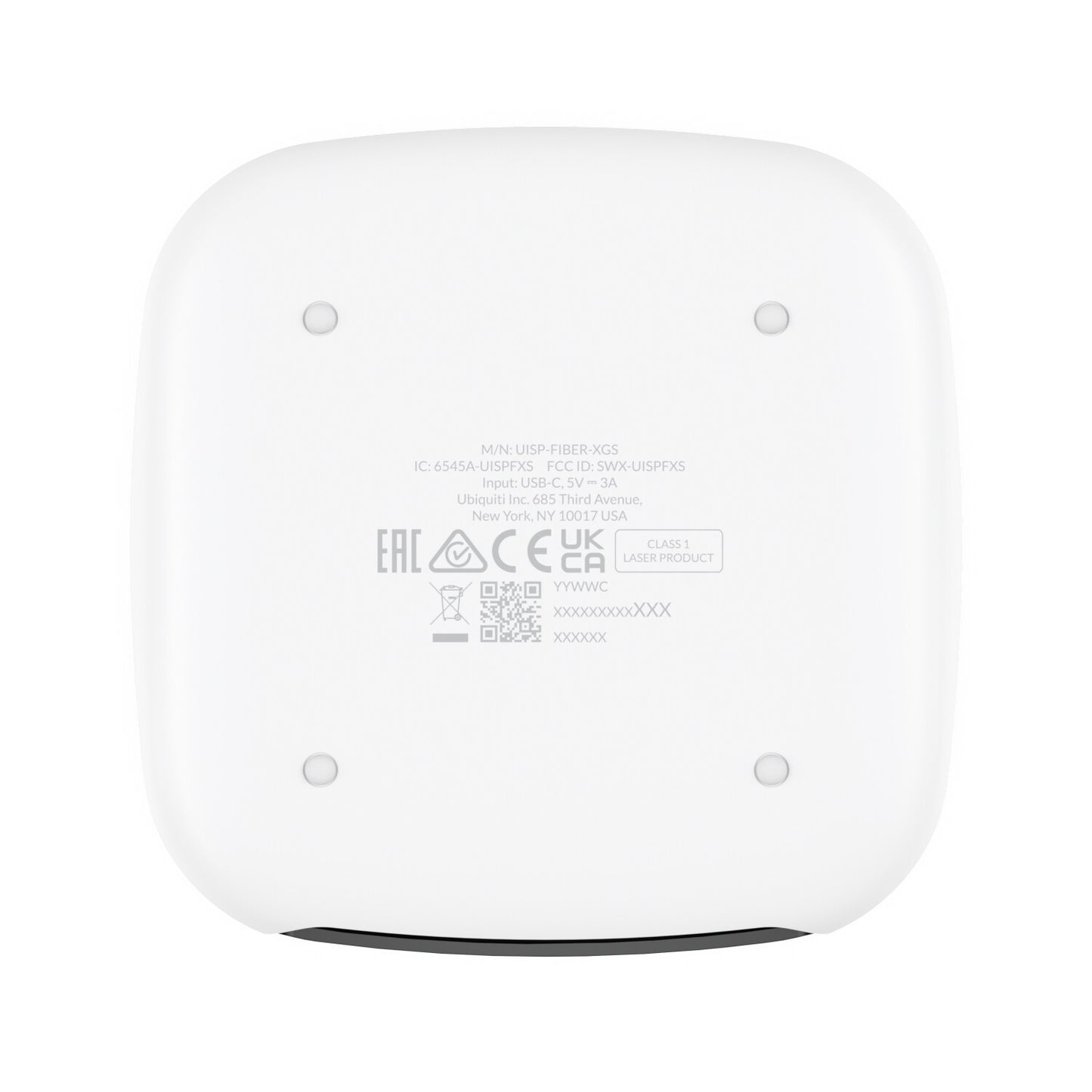

Ubiquiti UISP -FIBER-XGS network media converter 10000 Mbit/s Black, White

Ubiquiti UISP -FIBER-XGS network media converter 10000 Mbit/s Black, White

Regular price £171.29 GBP
Regular price Sale price £171.29 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:UISP-FIBER-XGS

39 in stock

  • (1) XGS-PON port
  • (1) 10GbE RJ45 LAN port
10 Gbps uplink/downlink, up to 20 km, 1x XGS-PON port, 1x 10GbE RJ45 LAN port, UV-stabilized polycarbonate, 256 MB DDR, 32 MB NOR, 8W, black/white

An optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

Network
Ethernet LAN data rates 100,1000,2500,5000,10000 Mbit/s
Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate 10000 Mbit/s
Ports & interfaces
Fiber optic connector SC/APC
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Performance
Rx power (max) -26 dBmW
Rx power (min) -9 dBmW
Tx power (max) 9 dBmW
Tx power (min) 4 dBmW
Maximum transfer distance 20000 m
Design
Housing material Polycarbonate (PC)
LED indicators Yes
Product colour Black, White
Internal No
Power
Power consumption (max) 8 W
Input current 3 A
Management features
Reset button Yes
general_information_attribute_container_name
attribute_product_family_name UISP
Weight & dimensions
Weight 220 g
Height 27 mm
Depth 100 mm
Width 100 mm
Operational conditions
Operating relative humidity (H-H) 10 - 95%
Operating temperature (T-T) -15 - 45 °C
Technical details
Sustainability compliance Yes
Sustainability certificates CE, Federal Communications Commission (FCC), UKCA
