Ubiquiti Networks

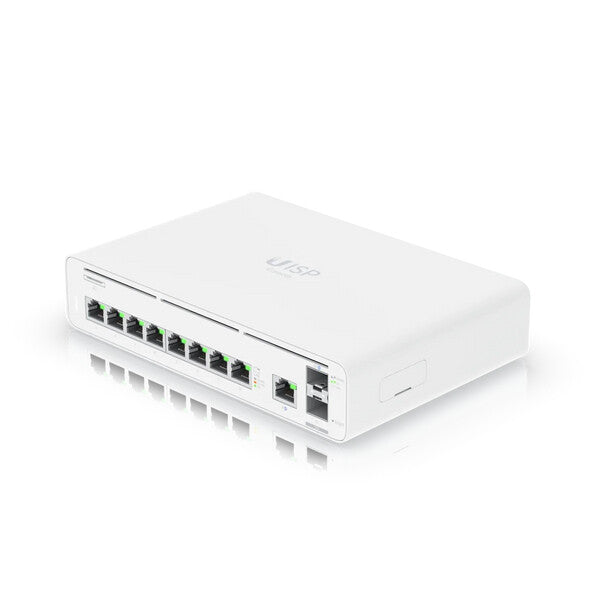

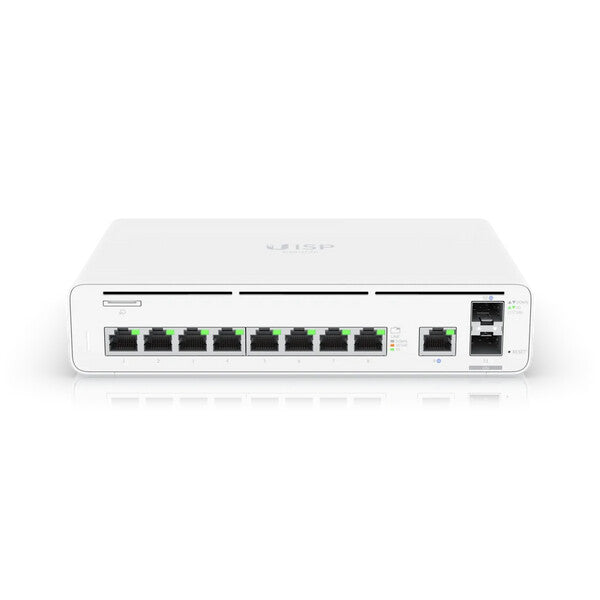

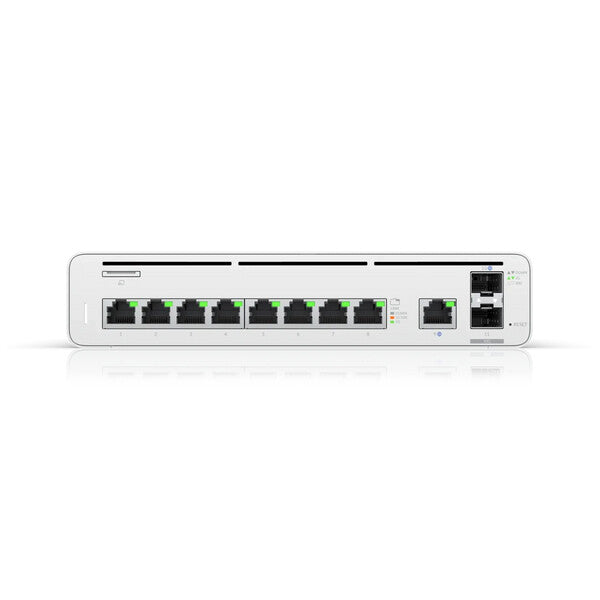

Ubiquiti UISP Console gateway/controller 10, 100, 1000 Mbit/s

Ubiquiti UISP Console gateway/controller 10, 100, 1000 Mbit/s

£242.60 GBP
£242.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UISP-CONSOLE

Low stock: 3 left

  • (2) 10G SFP+ ports
  • (9) GbE RJ45 ports
  • Powered by an external AC/DC adapter (included)
  • Compact, durable metal casing
  • 1U rack or wall-mountable (kits included)
  • Easy, Bluetooth-powered setup via the UISP Mobile app
  • Pre-installed UISP application
(2) 10G SFP+ ports, (9) GbE RJ45 ports, 1U, 210.4 x 140.2 x 43.7 mm

The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.

Design
Product colour White
Rack capacity 1U
Enclosure material Metal
LED indicators Yes
Certification CE, FCC, IC
Performance
Control display unit No
Processor family ARM Cortex
Processor model Cortex-A57
Built-in processor Yes
Processor frequency 1700 MHz
Number of processors installed 1
Internal memory type DDR4
SSD capacity 128 GB
Internal memory 4 MB
Flash memory 16000 MB
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Ports & interfaces
WAN connection Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports 8
Power
Power consumption (max) 30 W
Input voltage 24 - 28 V
Weight & dimensions
Height 43.7 mm
Depth 140.2 mm
Width 210.4 mm
Weight 1.45 kg
Operational conditions
Operating temperature (T-T) -10 - 50 °C
Operating relative humidity (H-H) 5 - 95%
View full details
