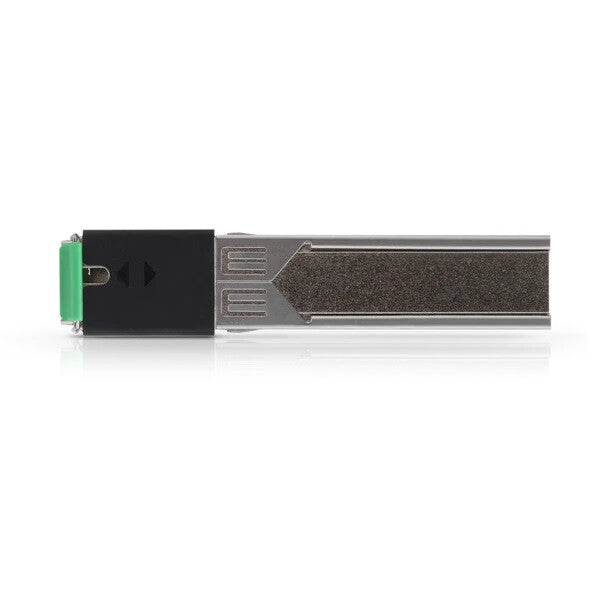

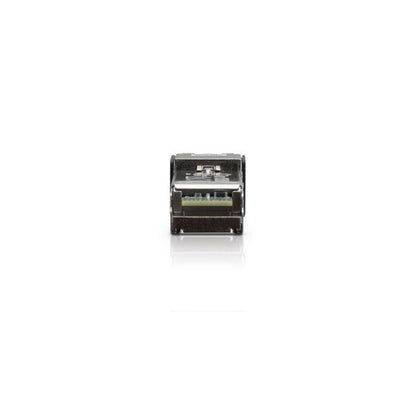

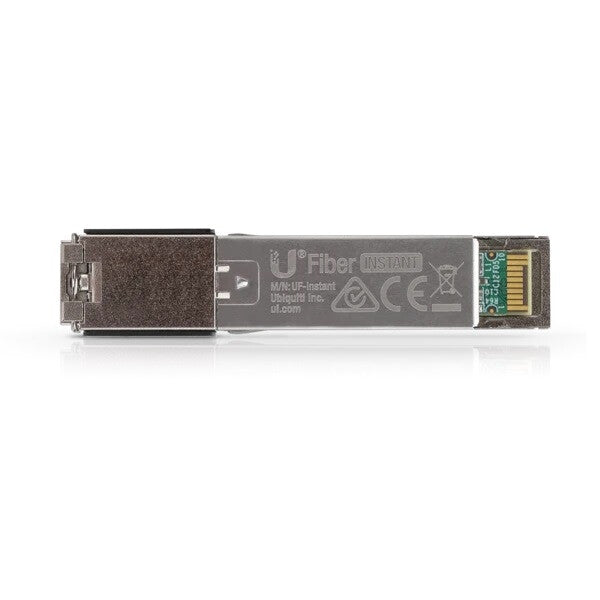

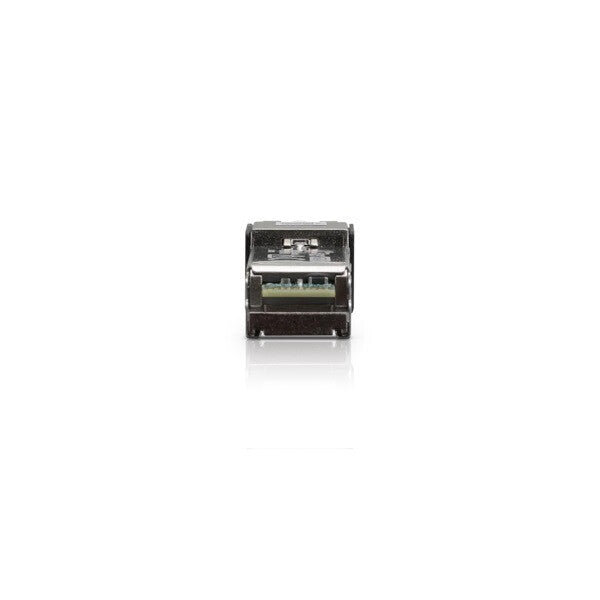

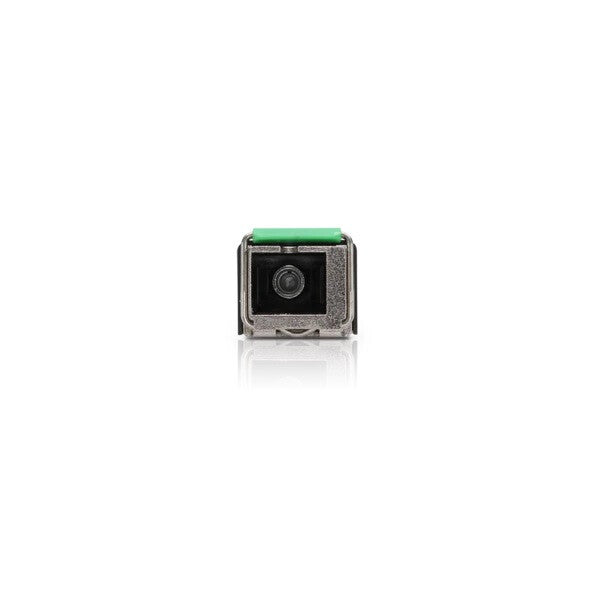

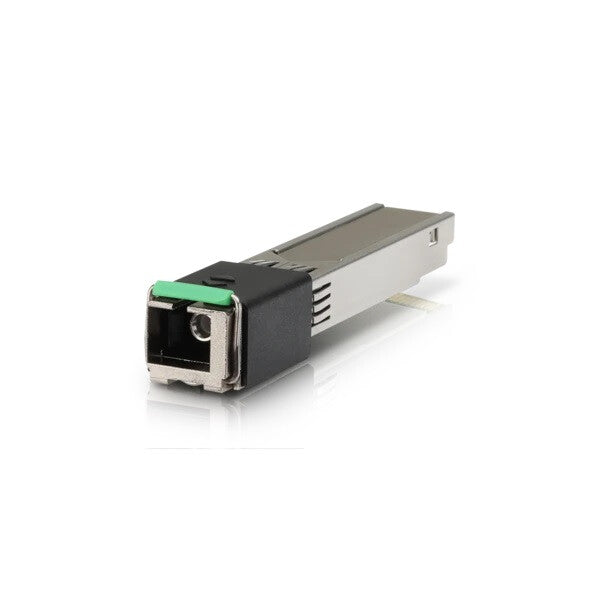

Ubiquiti UF-Instant network transceiver module Fiber optic 2.488 Mbit/s SFP

Ubiquiti UF-Instant network transceiver module Fiber optic 2.488 Mbit/s SFP

£39.59 GBP
£39.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UF-INSTANT

39 in stock

  • High-Performance GPON CPE
  • Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
  • Supports up to 20 km GPON Links
  • Powerful Layer 2/3 Management Features
  • (1) GPON WAN Port, SC/APC
  • (1) 1Gbps SFP interface
UFiber Instant Optical Transceiver, SFP, 20 km, 2 W, 69.46 x 13.70 x 11.30 mm, 30 g

The U Fiber Instant is a high‑performance GPON CPE in the form factor of an SFP module. It features an SGMII Ethernet LAN port and is powered by SFP.

Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 2.488 Mbit/s
Interface type SFP
Maximum transfer distance 20000 m
Tx power (min) 1.5 dBmW
Tx power (max) 5 dBmW
Rx power (min) -28 dBmW
Rx power (max) 8 dBmW
Features
Product colour Black, Metallic
Certification CE, FCC, IC
Power
Input voltage 3.3 V
Power consumption (typical) 2 W
Operational conditions
Operating temperature (T-T) -10 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 69.5 mm
Depth 13.7 mm
Height 11.3 mm
Weight 30 g
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85369010
