Ubiquiti Networks
Regular price
£184.54 GBP
Regular price
Sale price
£184.54 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:UDB-PRO
Low stock: 10 left
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*
- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit

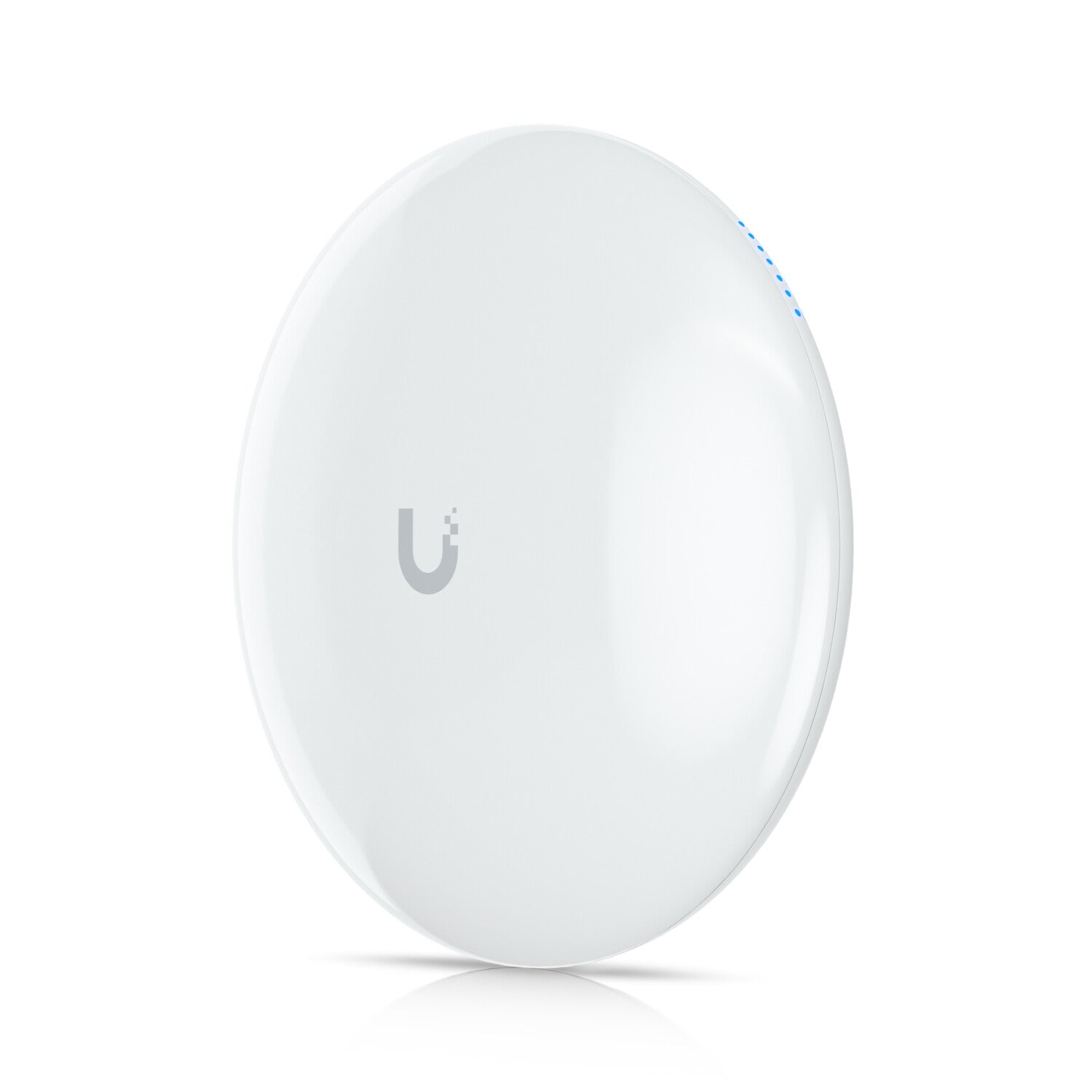

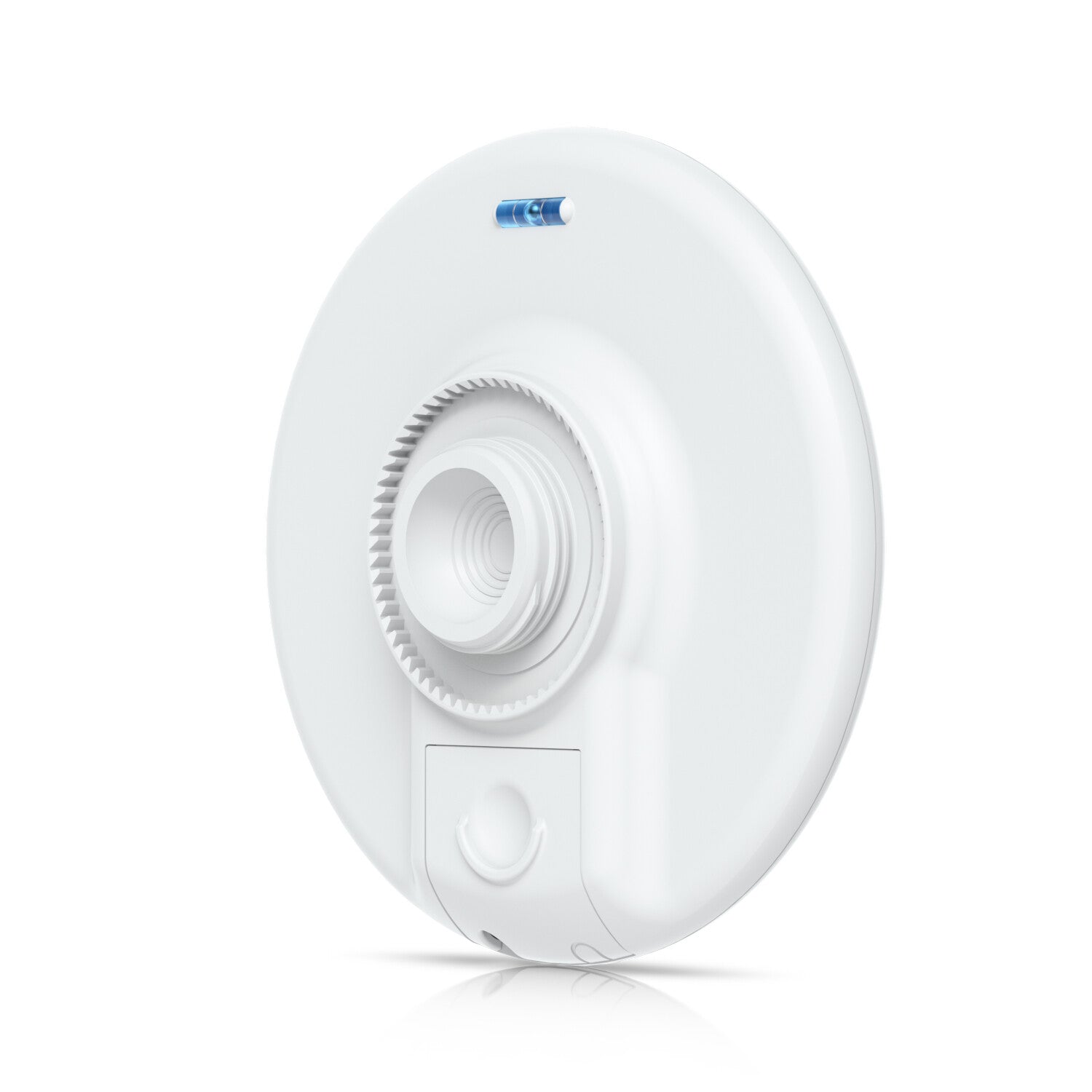

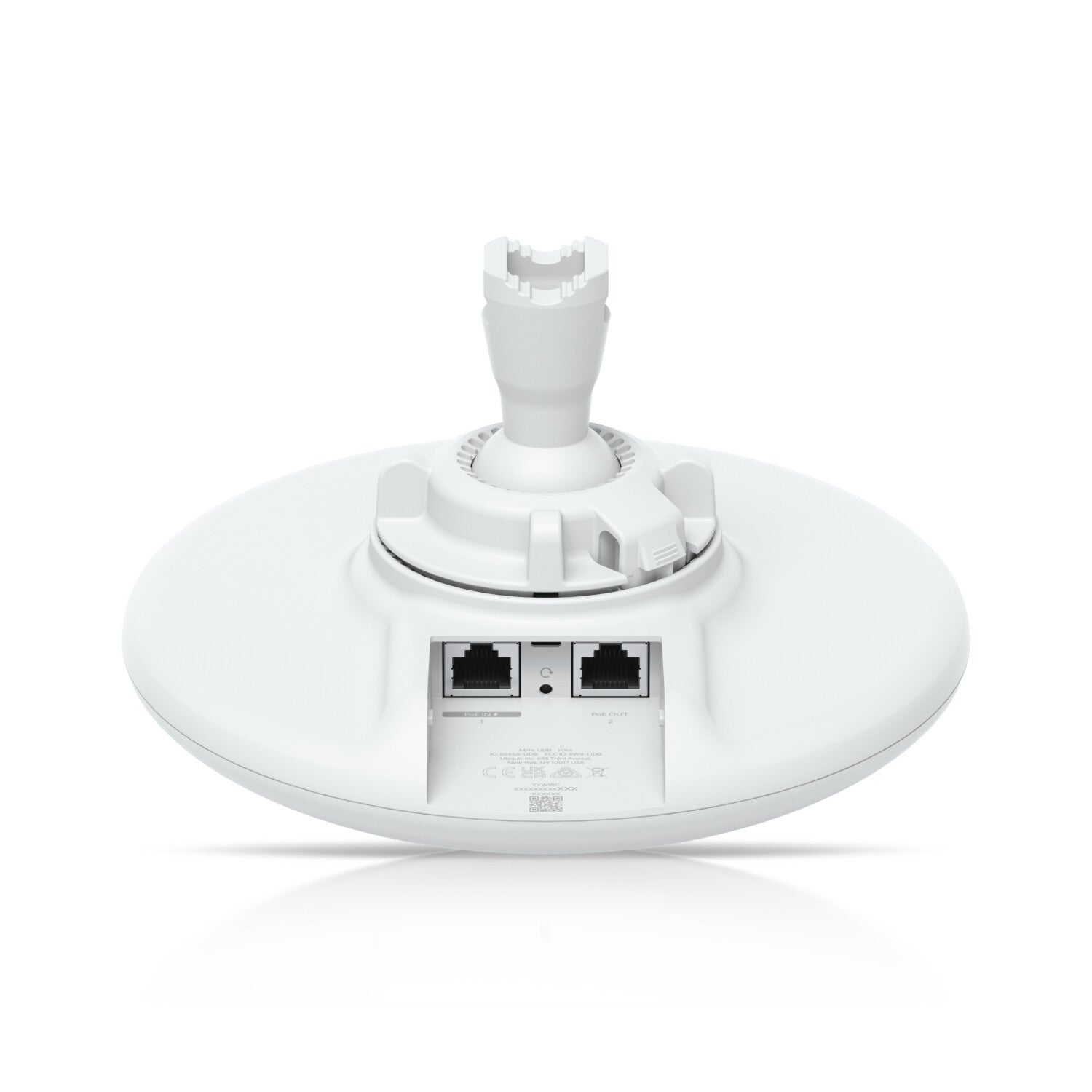

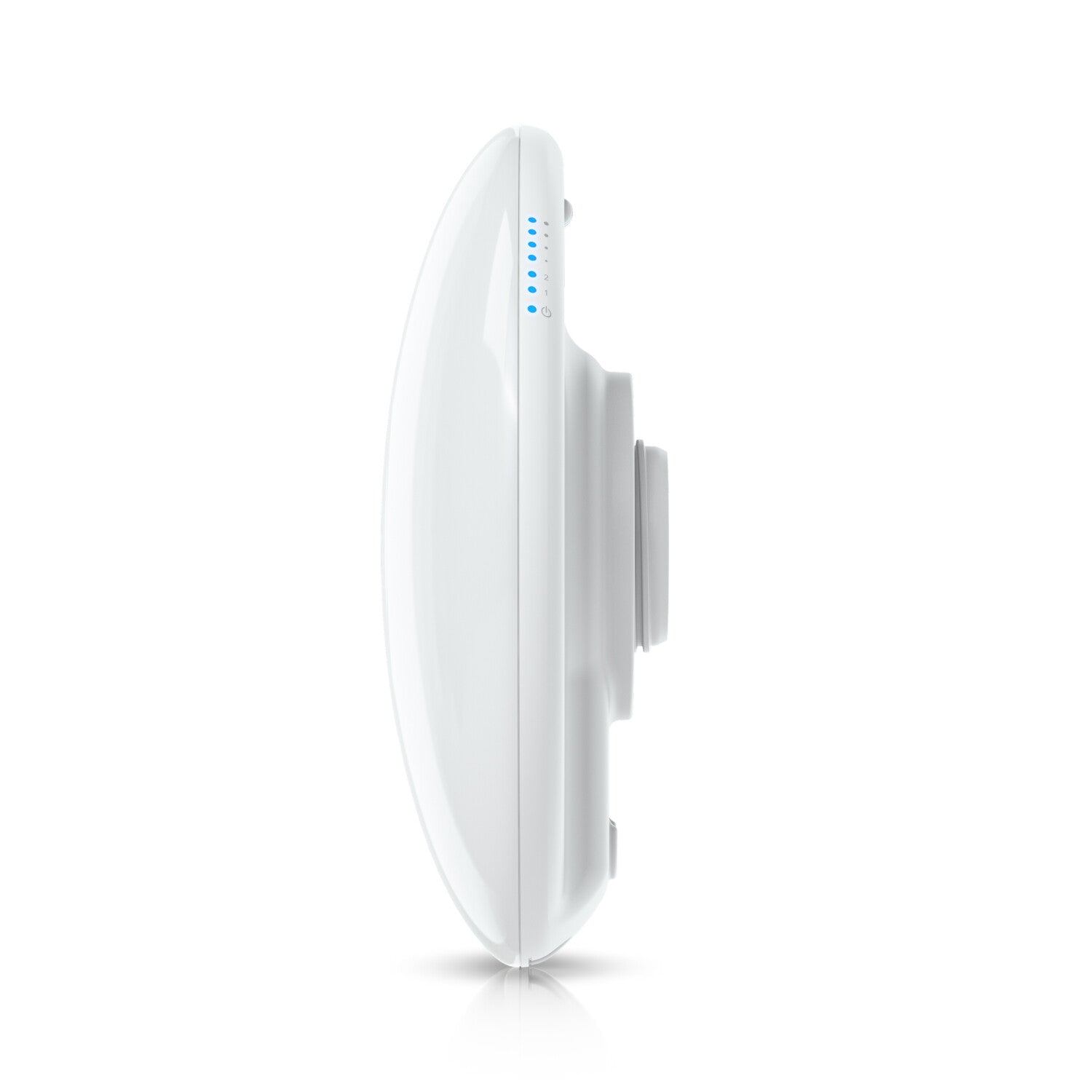

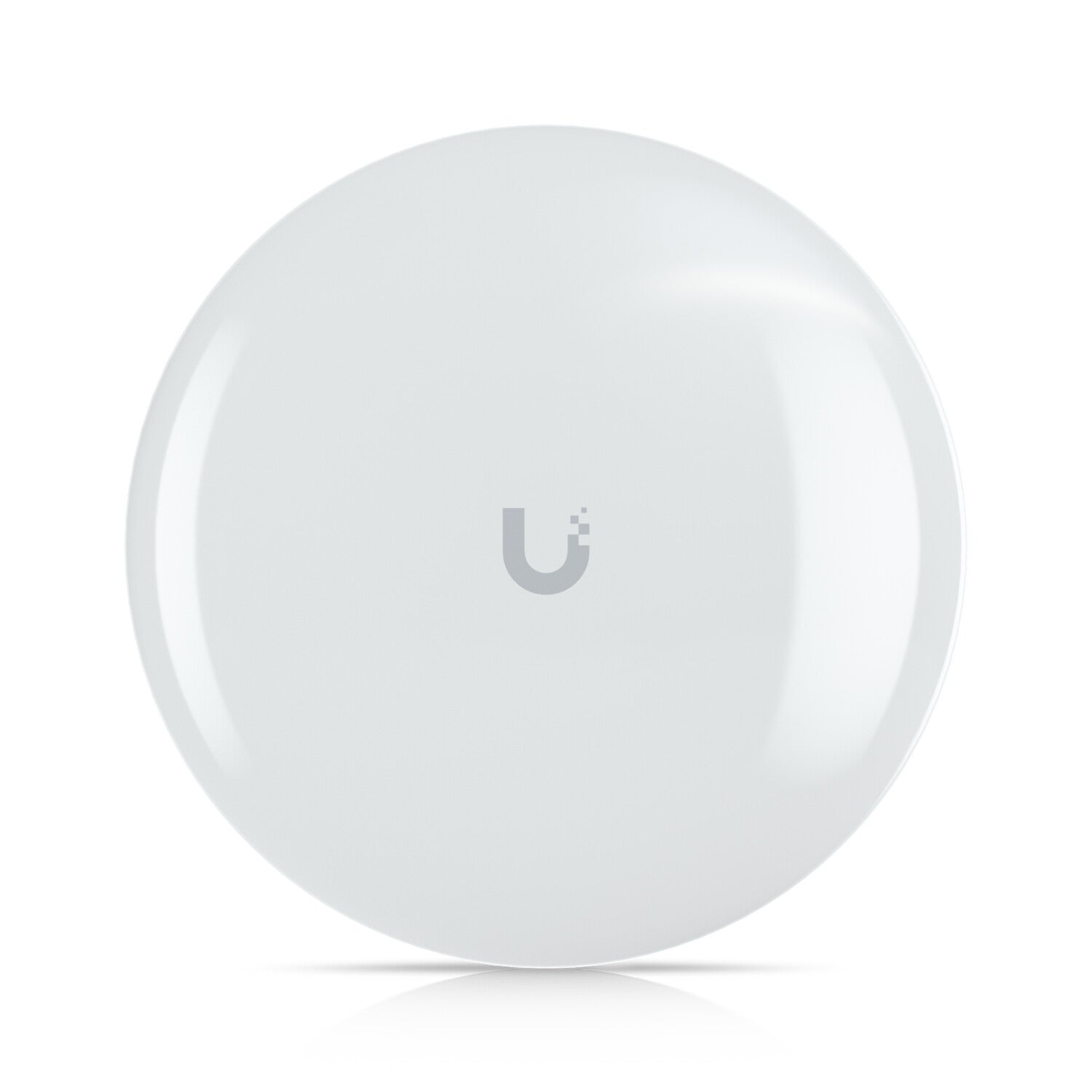

Device Bridge Pro, pole mount, 2x GbE LAN, PoE/PoE+, WiFi 5 GHz, 867 Mbps, UV-resistant polycarbonate, IPX6, white
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
| Data transmission |
|---|
| Maximum data transfer rate |
866.7 Mbit/s |
| Antenna |
|---|
| Antenna design |
Internal |
| Antenna type |
2x2 |
| Antenna gain level (max) |
19 dBi |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Frequency band |
5 GHz |
| Signal strength |
25 dBm |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Outdoor range |
5+ km |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
2 |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Security |
|---|
| Security algorithms |
WPA2-AES |
| Features |
|---|
| Product type |
Network bridge |
| Material |
Polycarbonate (PC), Stainless steel |
| Mounting type |
Pole |
| Product colour |
White |
| LED indicators |
LAN, Power, Signal strength |
| Power LED |
Yes |
| International Protection (IP) code |
IPX6 |
| Reset button |
Yes |
| Power |
|---|
| Power source type |
DC, PoE |
| DC input voltage |
42.5 - 57 V |
| Power consumption (max) |
9 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
48 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
189.5 mm |
| Depth |
64.3 mm |
| Height |
189.5 mm |
| Weight |
515 g |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging content |
|---|
| Mounting bracket(s) included |
Yes |
| Power supply included |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
