Ubiquiti Networks

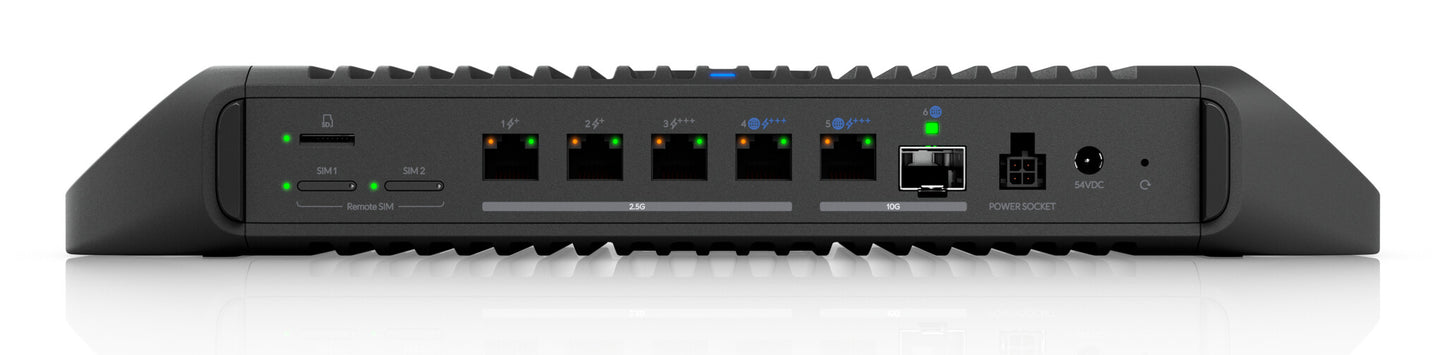

Ubiquiti UCG-Industrial gateway/controller 1000, 2500, 10000 Mbit/s

Ubiquiti UCG-Industrial gateway/controller 1000, 2500, 10000 Mbit/s

£548.86 GBP
£548.86 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UCG-INDUSTRIAL

Low stock: 1 left

  • 1000,2500,10000 Mbit/s Wi-Fi
  • Built-in processor 2200 MHz 3000 MB
  • Antenna type: Internal RP-SMA 5 dBi
  • Power over Ethernet (PoE) Quality of Service (QoS) support VLAN support
  • Rack/Desktop/Wall
  • Black
Cloud Gateway Industrial, 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M), 1 (PoE+++) (10G/5G/2.5G/1G/100M), 1 (10G/1G) SFP+, WiFi 7, 115 m², microSD storage

Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

Design
Product colour Black
Mounting type Rack/Desktop/Wall
LED indicators Status
Features
Antenna type Internal
Antenna connector type RP-SMA
Antenna gain level (max) 5 dBi
Antennas quantity 2
Performance
Control display unit No
Processor family ARM Cortex
Processor manufacturer ARM
Built-in processor Yes
Processor frequency 2200 MHz
Number of processors installed 1
Internal memory type DDR4
Internal memory 3000 MB
Network
Ethernet LAN data rates 1000,2500,10000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be
Wi-Fi Yes
WLAN data transfer rates supported 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s
Load balancing Yes
Data transfer rate 4.3 Gbit/s
Security
Network address translation (NAT) Yes
Firewall security Yes
VLAN support Yes
Ports & interfaces
SIM card slot Yes
Number of simultaneous SIM cards 2
SFP+ ports quantity 1
DC-in jack Yes
WAN connection Ethernet (RJ-45), SFP+
Ethernet LAN (RJ-45) ports 5
Management features
Multicast support Yes
Quality of Service (QoS) support Yes
Reset button Yes
Power
Power consumption (max) 28 W
Input voltage 100 - 240 V
Power supply 350 W
DC input voltage 50 - 57 V
Heat dissipation 85 BTU/h
Power over Ethernet (PoE) Yes
Electrostatic Discharge (ESD) protection Yes
Electrostatic Discharge (ESD) protection (air) 8 kV
Electrostatic Discharge (ESD) protection (contact) 4 kV
Electromagnetic (EMP) protection Yes
Electromagnetic (EMP) protection (air) 8 kV
Electromagnetic (EMP) protection (contact) 4 kV
Software
Compatible operating systems Android, iOS
Weight & dimensions
Height 43.7 mm
Depth 203.5 mm
Width 307.9 mm
Weight 2.4 kg
Packaging content
Manual Yes
AC adapter included Yes
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
