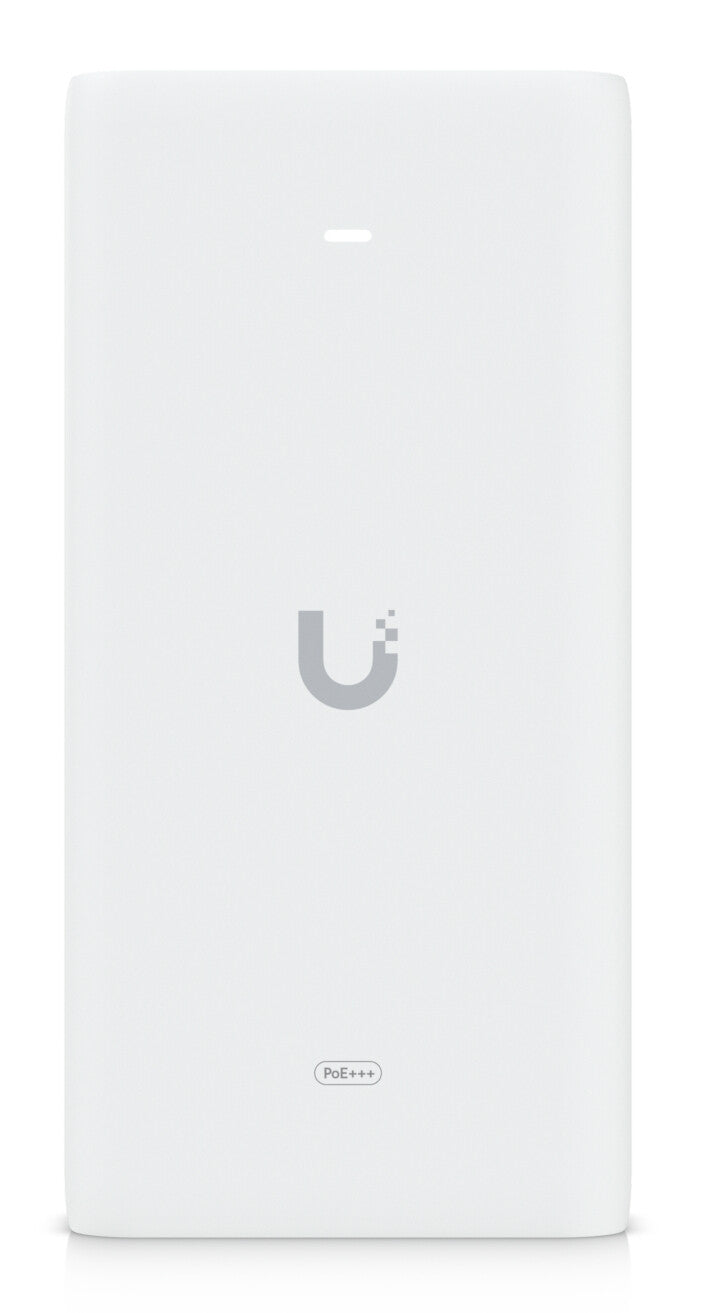

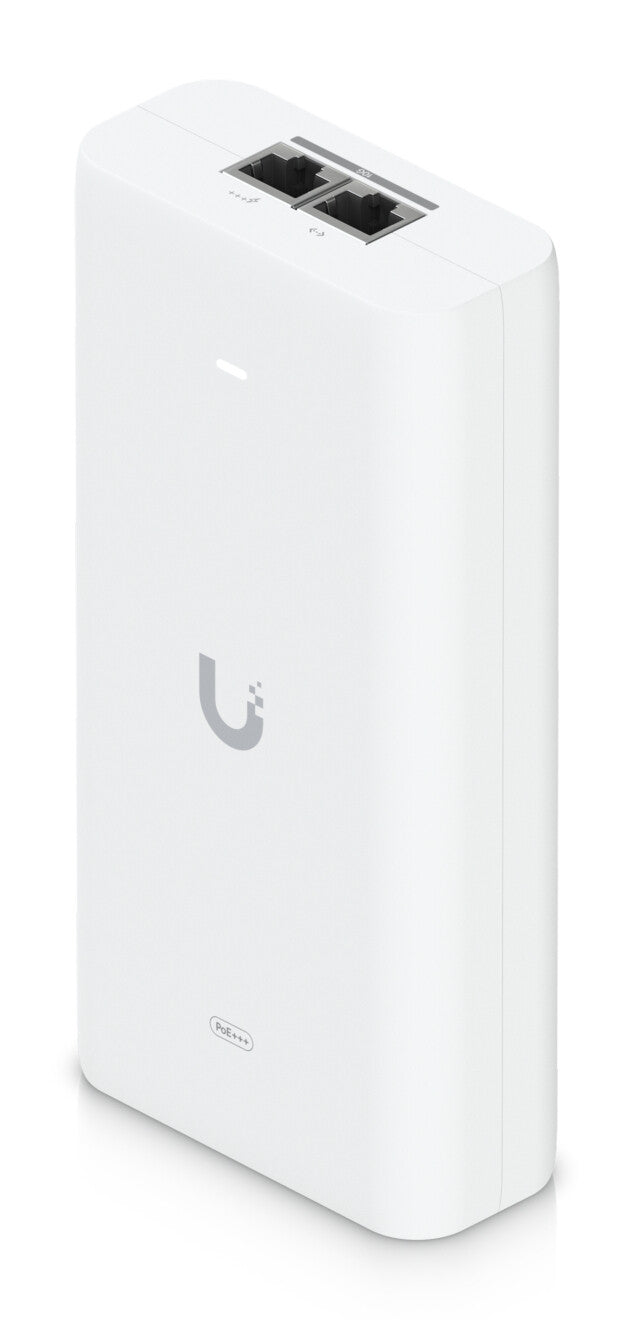

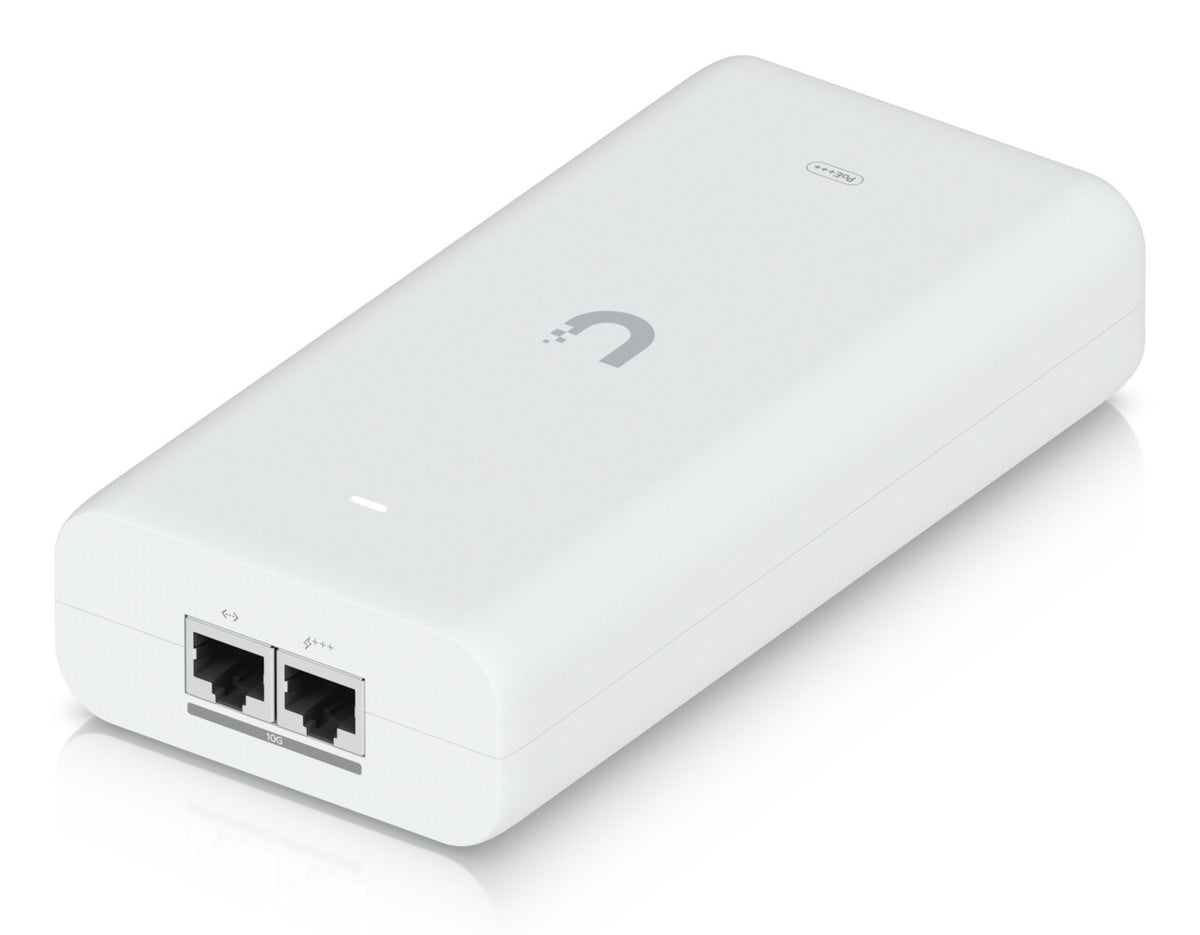

    Ubiquiti UACC-PoE+++-10G 10 Gigabit Ethernet 54 V

    Ubiquiti UACC-PoE+++-10G 10 Gigabit Ethernet 54 V

    £47.74 GBP
    £47.74 GBP
    Sale Sold out
    Tax included. Shipping calculated at checkout.

    UACC-POE+++-10G

    55 in stock

    • Delivers up to 90W of PoE+++
    • Surge, peak pulse, and overcurrent protection
    • Contains RJ45 data input, AC cable with earth ground, and PoE+++ output
    • LED indicator for status monitoring
    • Supports wall mount, DIN rail and floating mount
    10G PoE+++ Adapter (90W), 54V DC @ 1.67A, 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7")

    An adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

    Network
    Ethernet interface type 10 Gigabit Ethernet
    Ethernet LAN data rates 10,100,1000,10000 Mbit/s
    Power over Ethernet (PoE) Yes
    Power over Ethernet (PoE) type supported PoE+++
    Features
    Product colour White
    Wall mountable Yes
    Surge protection Yes
    LED indicators Status
    Power protection features Over current, Peak pulse, Surge protection
    Ports & interfaces
    Ethernet LAN (RJ-45) ports 2
    Power
    Power over Ethernet (PoE) voltage 54 V
    AC adapter input voltage 100 - 240 V
    AC adapter frequency 50/60 Hz
    Input current 1.5 A
    Output current 1.67 A
    Inrush current 120 A
    Efficiency 88%
    Switching frequency 65 kHz
    Total Power over Ethernet (PoE) budget 90 W
    Line regulation 2%
    Load regulation 5%
    Response time 1 ns
    Operational conditions
    Operating temperature (T-T) 32 - 104 °F
    Operating relative humidity (H-H) 10 - 95%
    Storage temperature (T-T) -30 - 70 °C
    Weight & dimensions
    Width 71 mm
    Depth 42 mm
    Height 164.5 mm
    Weight 372 g
    Packaging content
    Number of products included 1 pc(s)
    Technical details
    Compliance certificates CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, National Defense Authorization Act (NDAA), RoHS, UKCA, UL
