Ubiquiti Networks

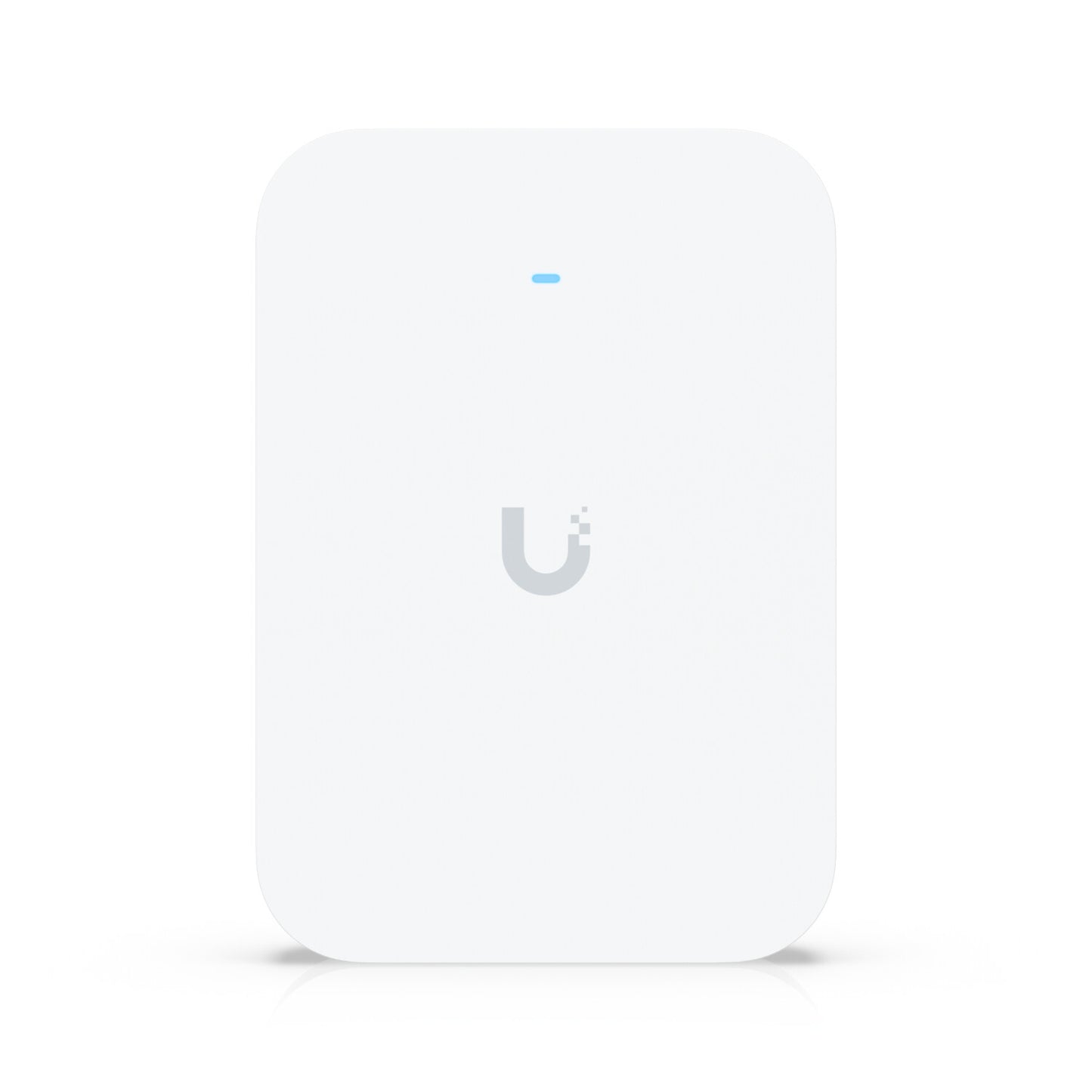

Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
Regular price
£257.90 GBP
Regular price
Sale price
£257.90 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:U7-PRO-XG-WALL
15 in stock
- 2.4 GHz 688 Mbit/s
- 5 GHz 4300 Mbit/s
- 6 GHz 5800 Mbit/s
- Maximum data transfer rate: 5800 Mbit/s
- IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
- PPSK
- Power over Ethernet (PoE)
- Internal
U7 Pro XG Wall
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 5800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Frequency band | 2.4, 5, 6 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Coverage area | 140 m² |
| Number of users | 300 user(s) |
| MIMO | Yes |
| Spatial streams | 6 |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Hotspot 2.0 |
| Fast roaming | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless meshing | Yes |
| Band steering | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Maximum Tx power (6 GHz) | 24 dBmW |
| Security | |
|---|---|
| Security algorithms | PPSK |
| Management features | |
|---|---|
| Access point management | Wi-Fi schedule |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 42.5 - 57 V |
| Power consumption (max) | 22 W |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Housing material | Metal, Polycarbonate (PC) |
| Reset button | Yes |
| LED indicators | Status |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions | |
|---|---|
| Width | 155 mm |
| Depth | 108 mm |
| Height | 33.5 mm |
| Weight | 505 g |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 40 °C |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
