• Ubiquiti U7 Pro XG 5800 Mbit/s White wireless access point
1 5

Ubiquiti Networks

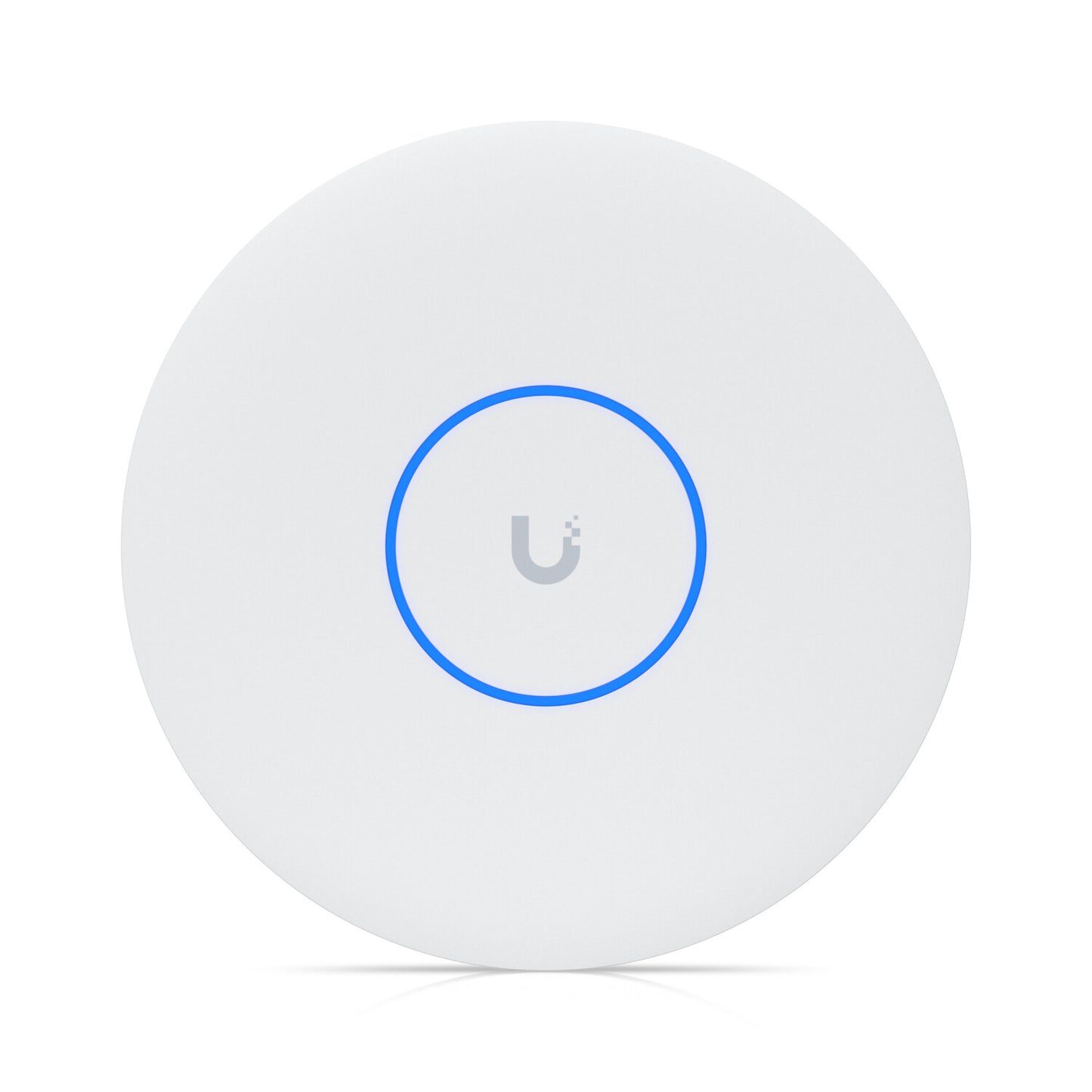

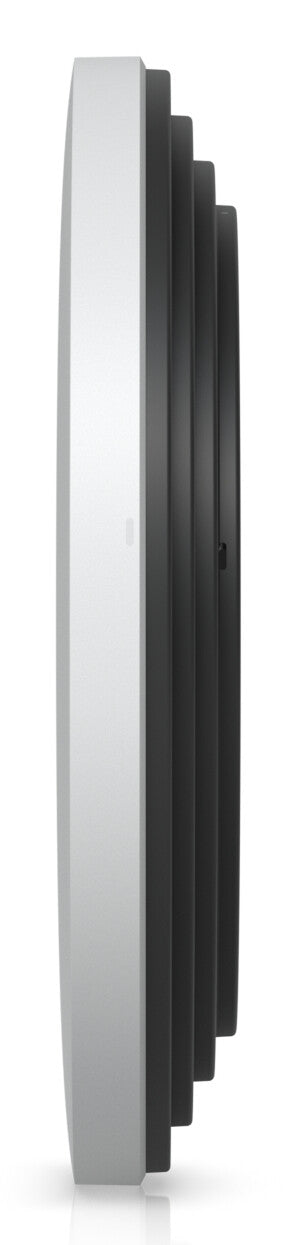

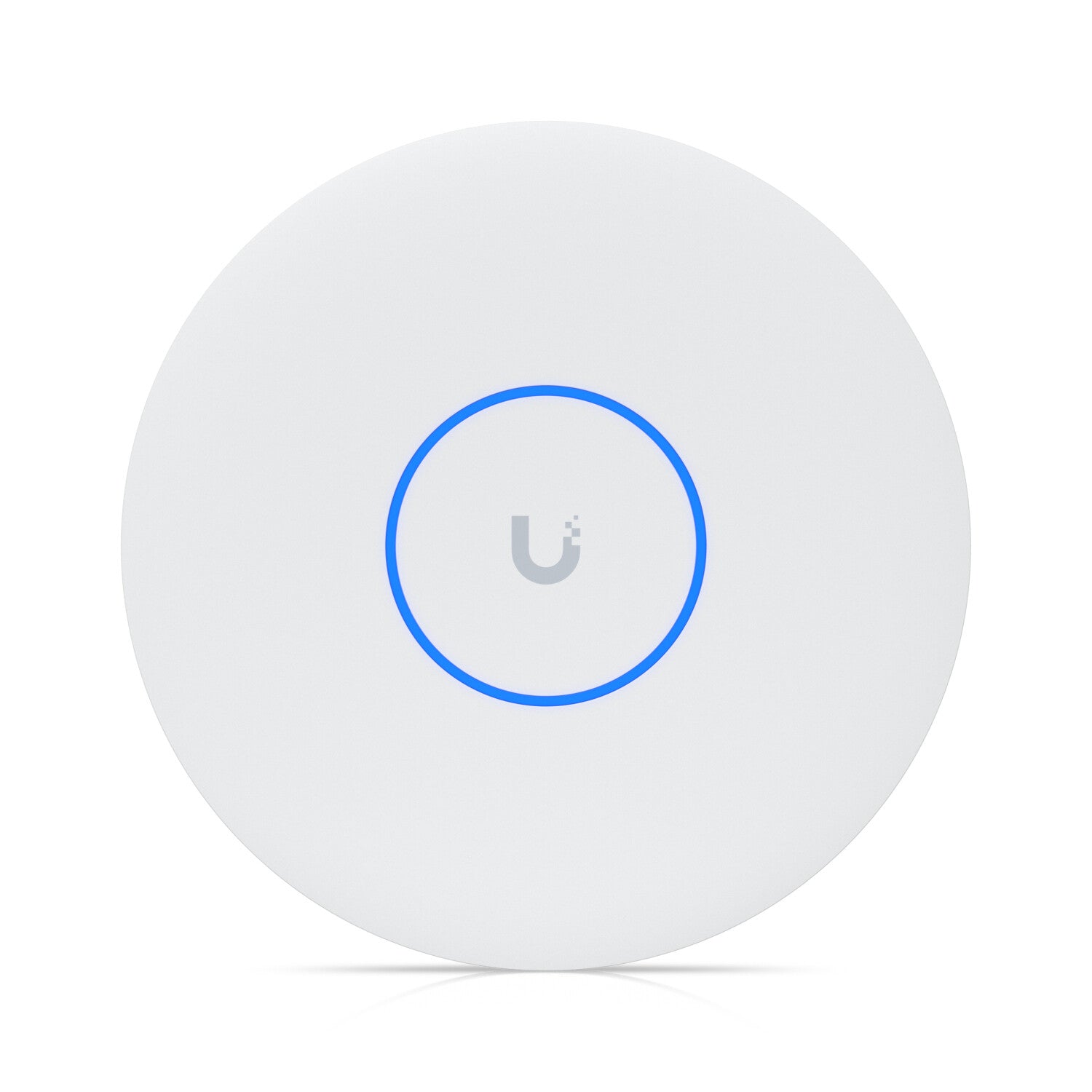

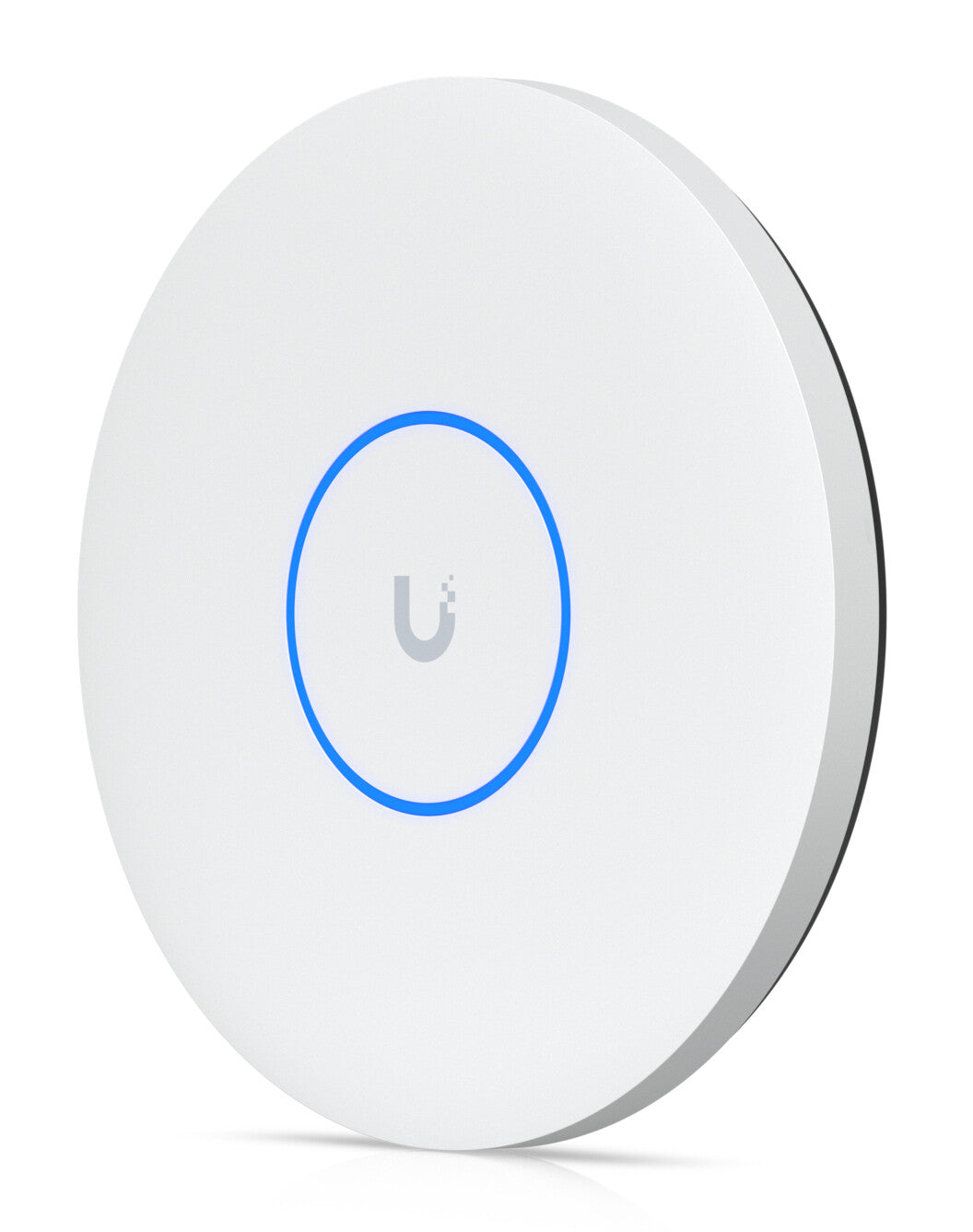

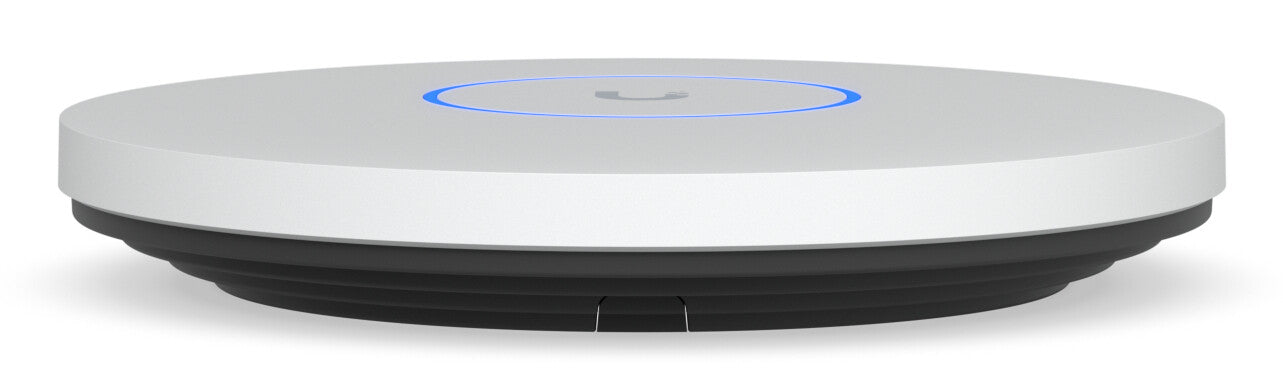

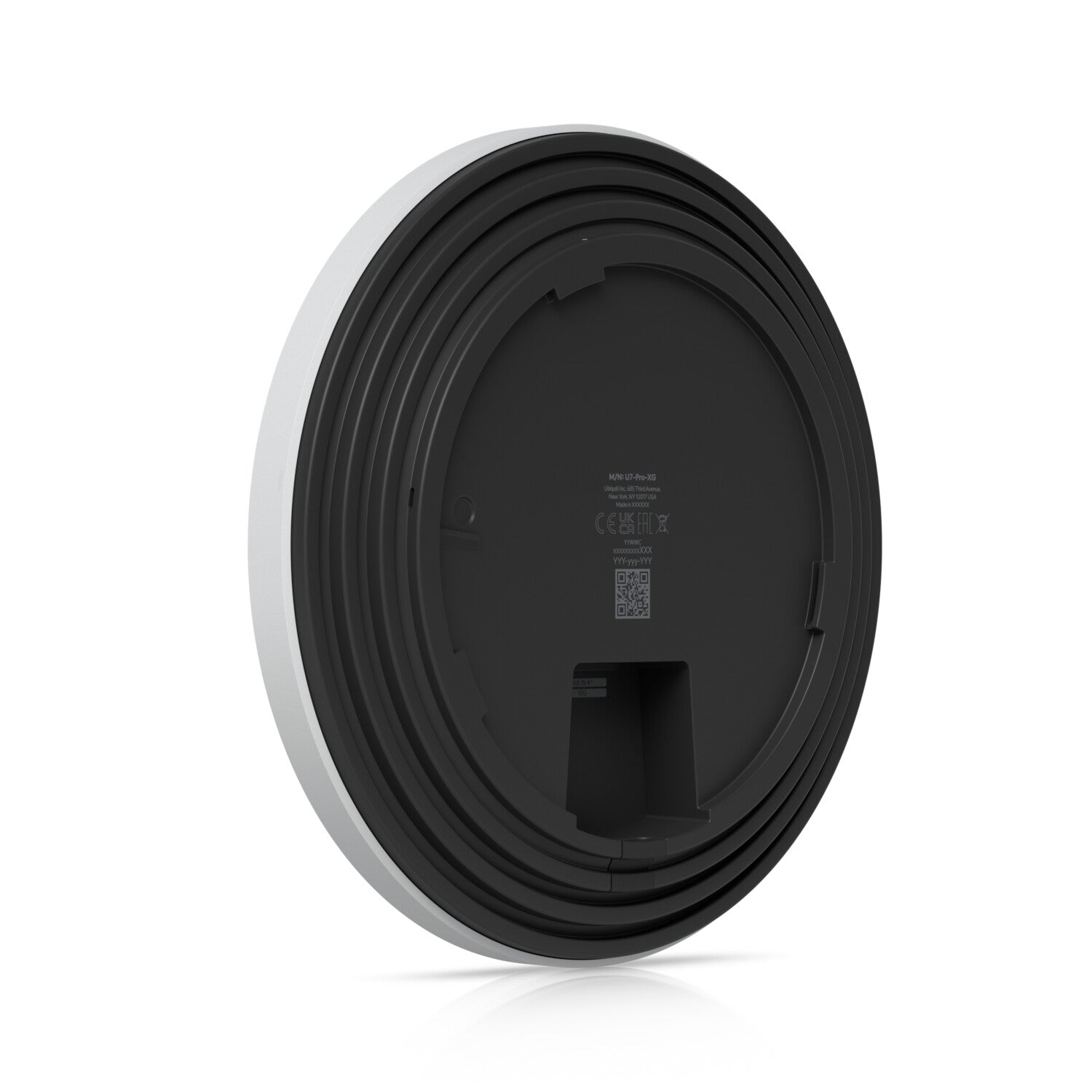

Ubiquiti U7 Pro XG 5800 Mbit/s White Power over Ethernet (PoE)

Ubiquiti U7 Pro XG 5800 Mbit/s White Power over Ethernet (PoE)

U7-PRO-XG

£197.84 GBP£164.87 GBP
£0.00 GBP £197.84 GBP£164.87 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

533 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 2.4 GHz 688 Mbit/s
  • 5 GHz 4300 Mbit/s
  • 6 GHz 5800 Mbit/s
  • Maximum data transfer rate: 5800 Mbit/s
  • IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
  • PPSK
  • Power over Ethernet (PoE)
  • Internal
WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 140 m² (1,500 ft²), 10/5/2.5/1 GbE, PoE+, 300+ clients, 206 x 32.5 mm, 750 g

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

Features
2.4 GHz Yes
6 GHz Yes
5 GHz Yes
Maximum data transfer rate 5800 Mbit/s
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Ethernet LAN data rates 1000,2500,5000,10000 Mbit/s
Frequency band 2.4, 5, 6 GHz
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Coverage area 140 m²
Number of users 300 user(s)
MIMO Yes
Spatial streams 6
MIMO type Multi User MIMO
Fit AP mode features Hotspot 2.0
Fast roaming Yes
VLAN support Yes
Rate limiting Yes
Wireless meshing Yes
Band steering Yes
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 26 dBmW
Maximum Tx power (6 GHz) 24 dBmW
Security
Security algorithms PPSK
Management features
Access point management Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet (PoE) Yes
Power consumption (max) 22 W
Design
Placement Ceiling, Wall
Product colour White
Housing material Metal, Polycarbonate (PC)
Reset button Yes
LED indicators Status
Antenna
Antenna type Internal
Antenna gain level (max) 6 dBi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Width 206 mm
Depth 32.5 mm
Height 206 mm
Weight 750 g
Packaging content
Mounting kit Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 40 °C
Logistics data
Quantity per pack 1 pc(s)
