Ubiquiti Networks

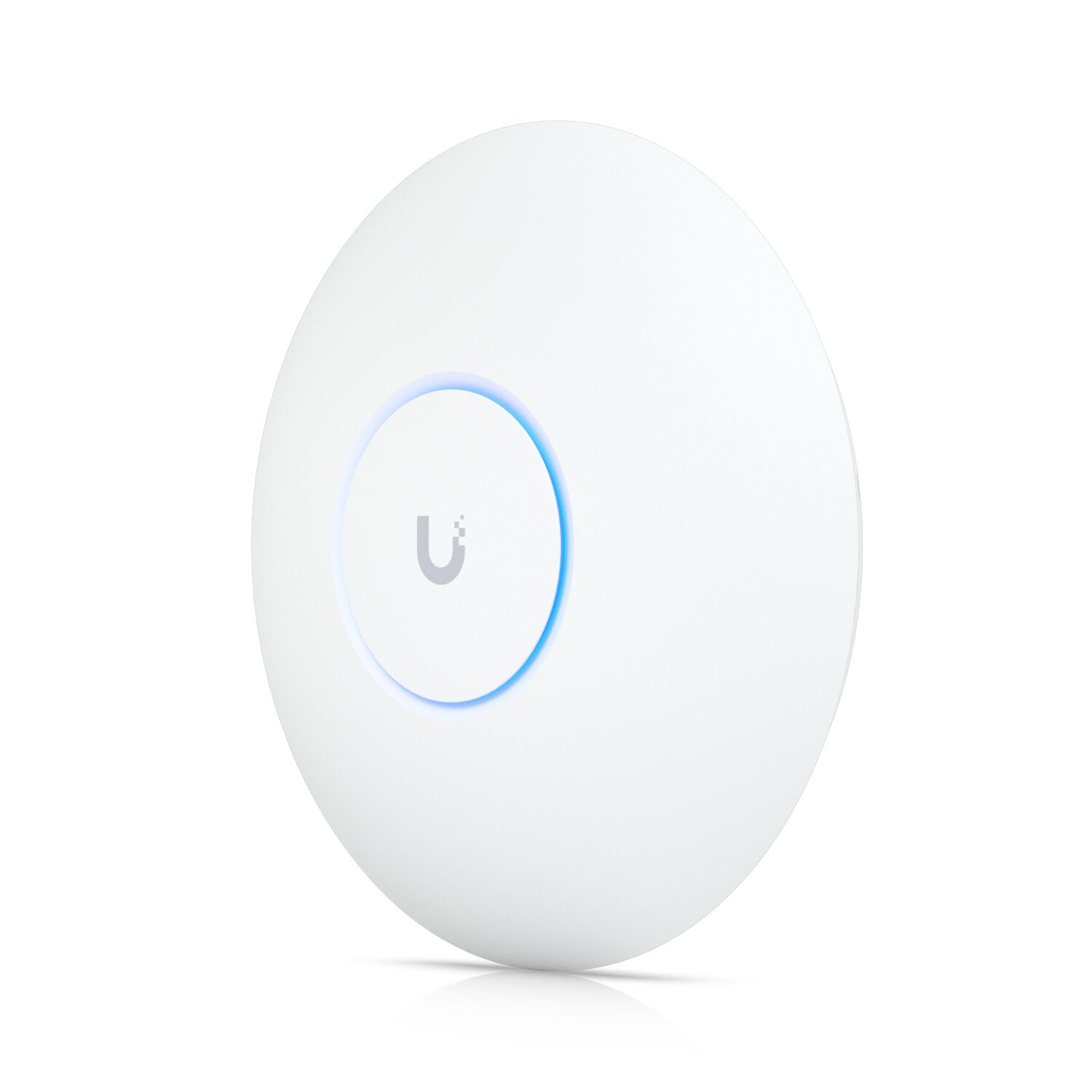

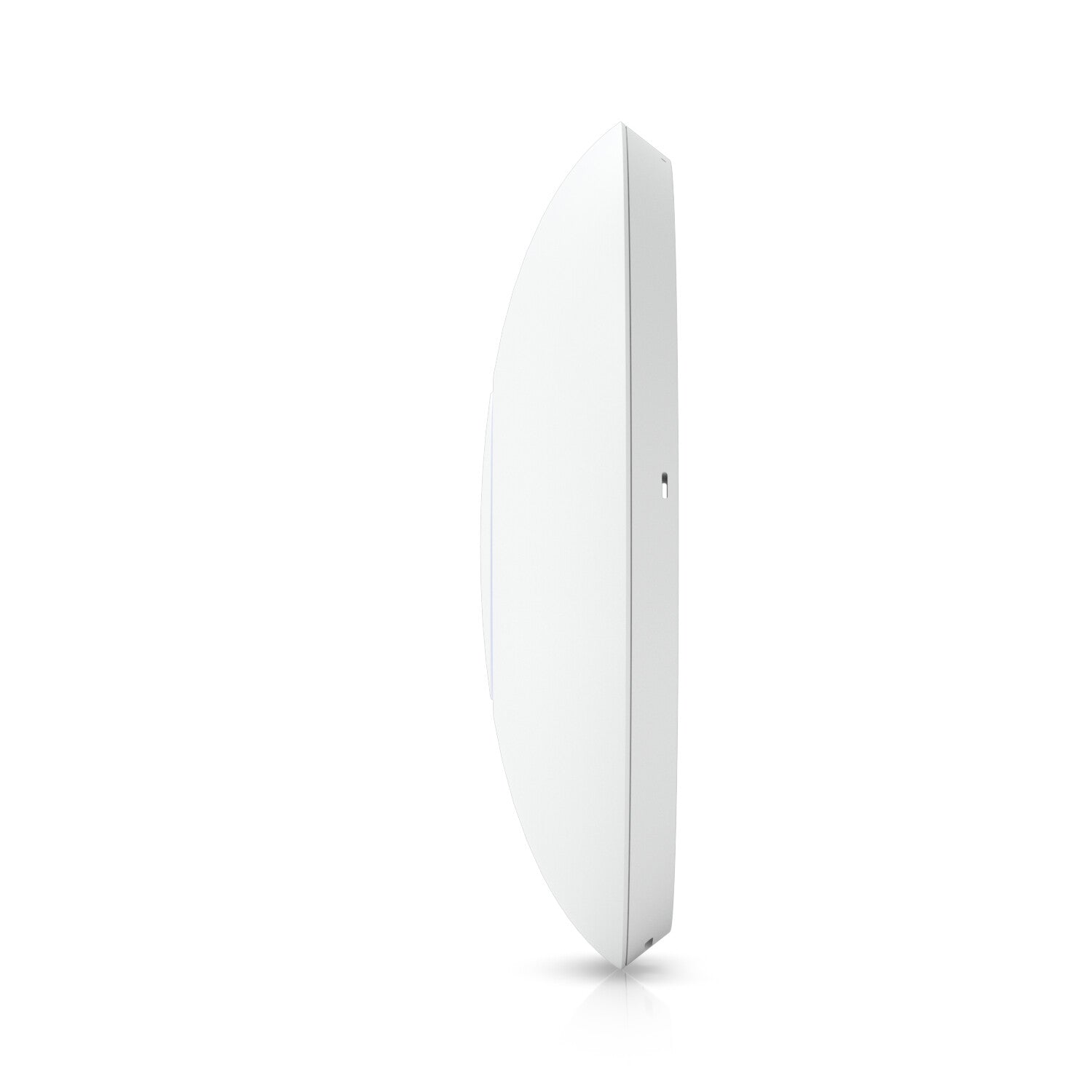

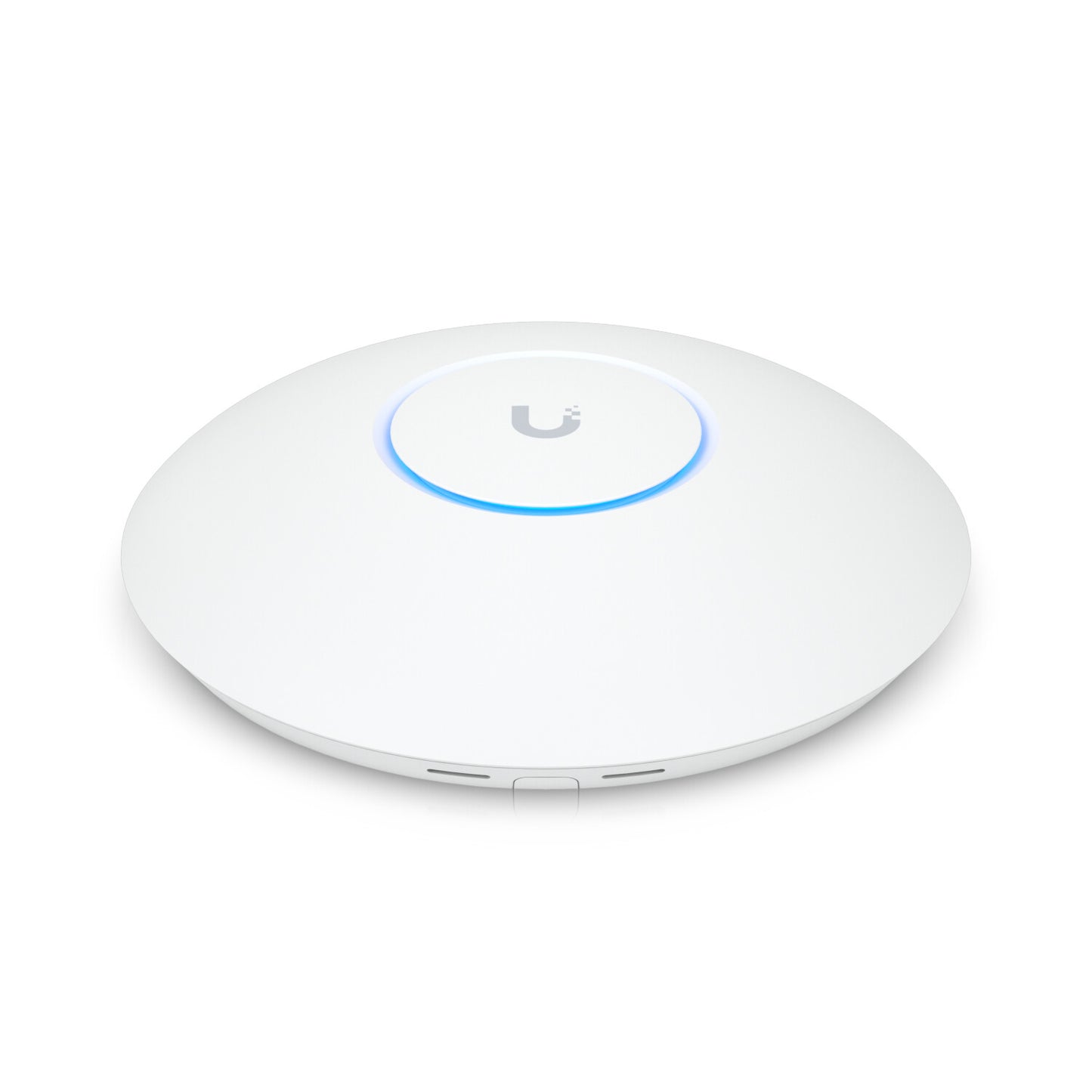

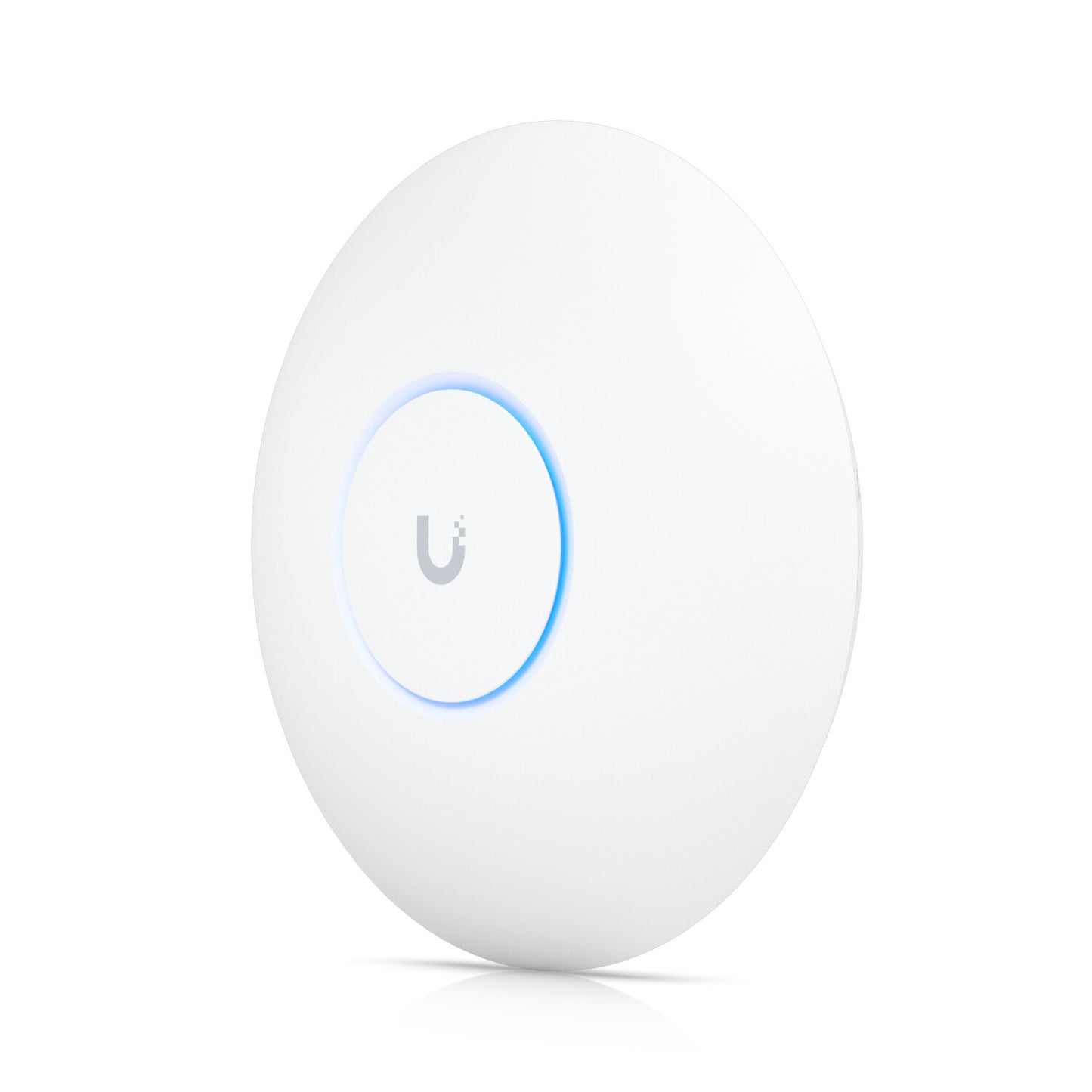

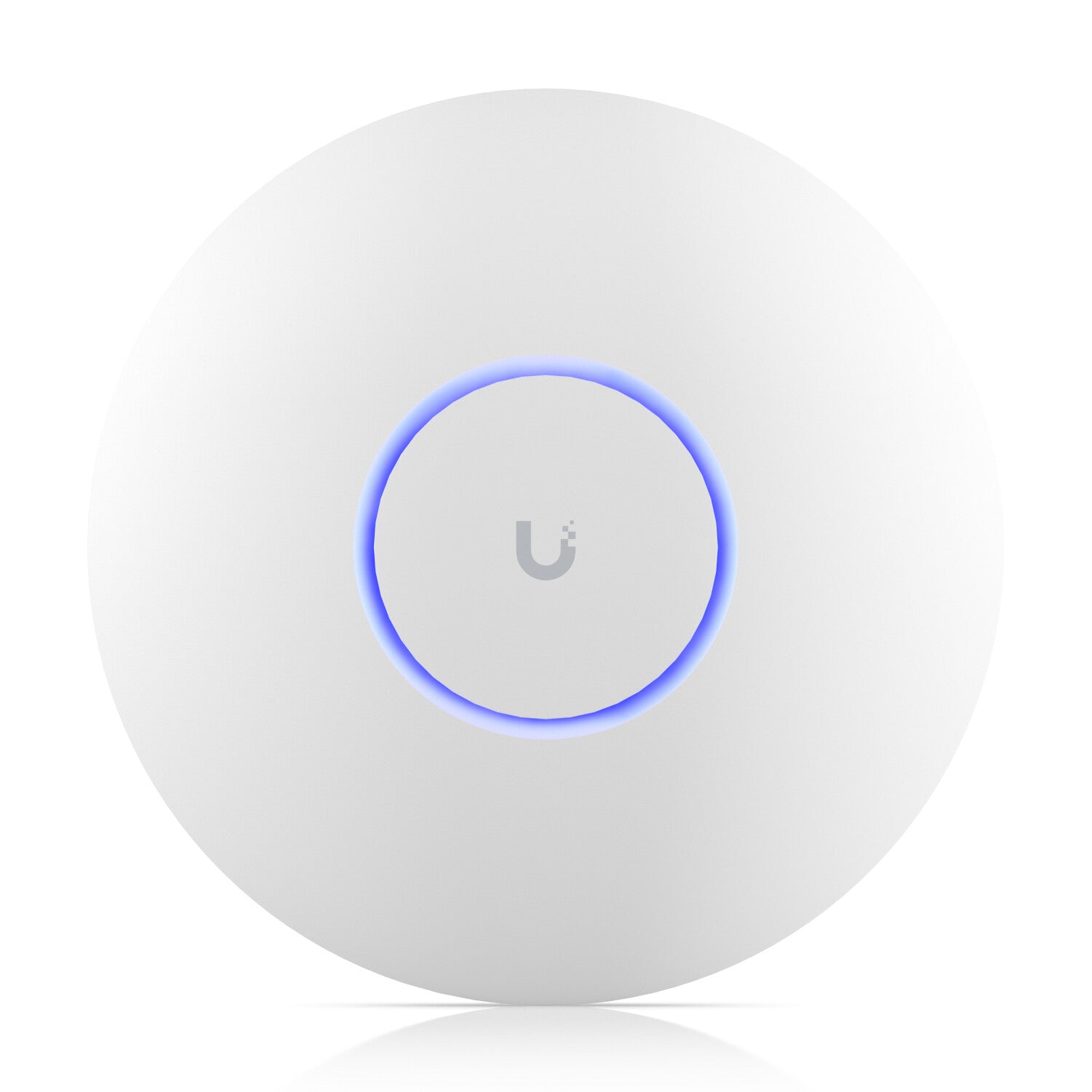

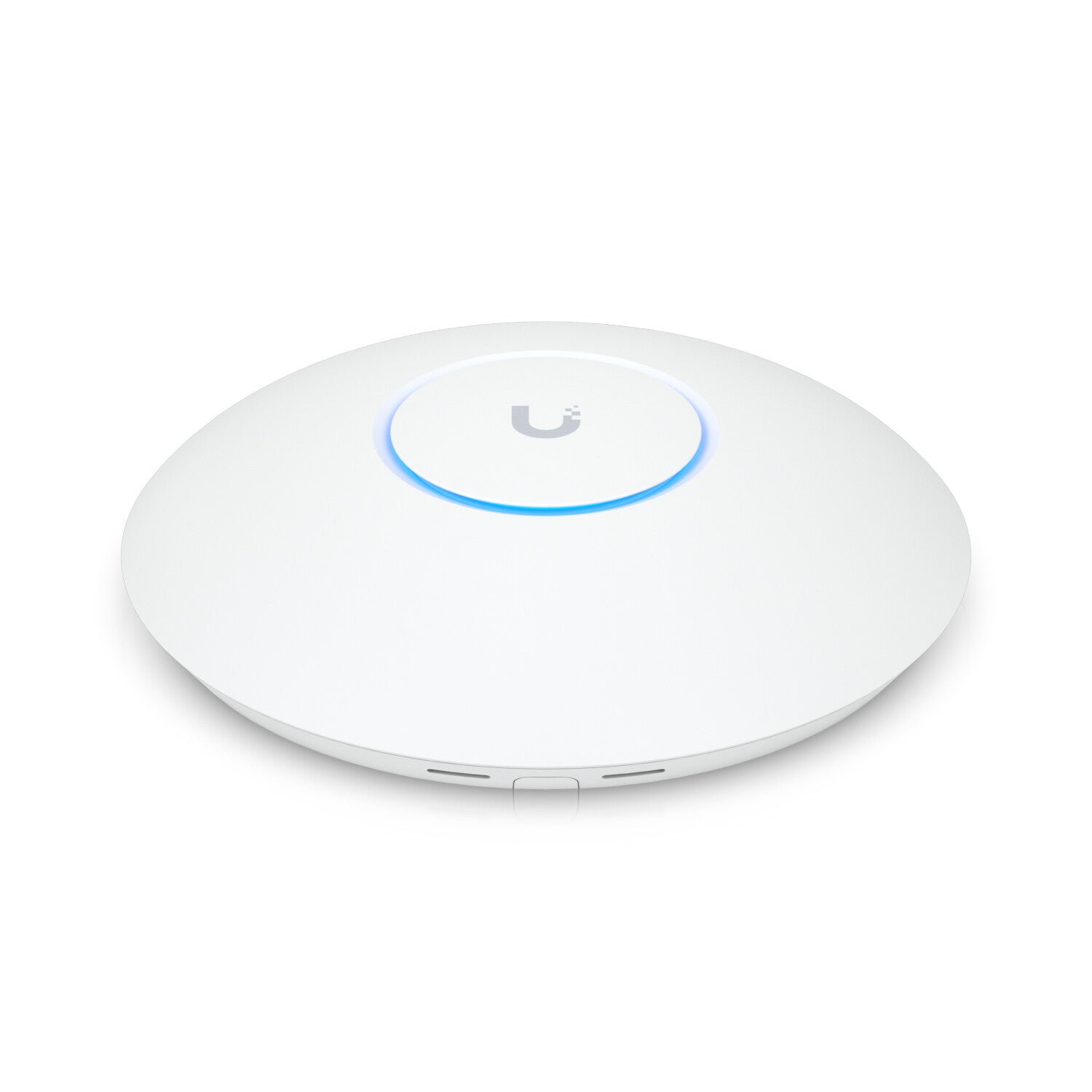

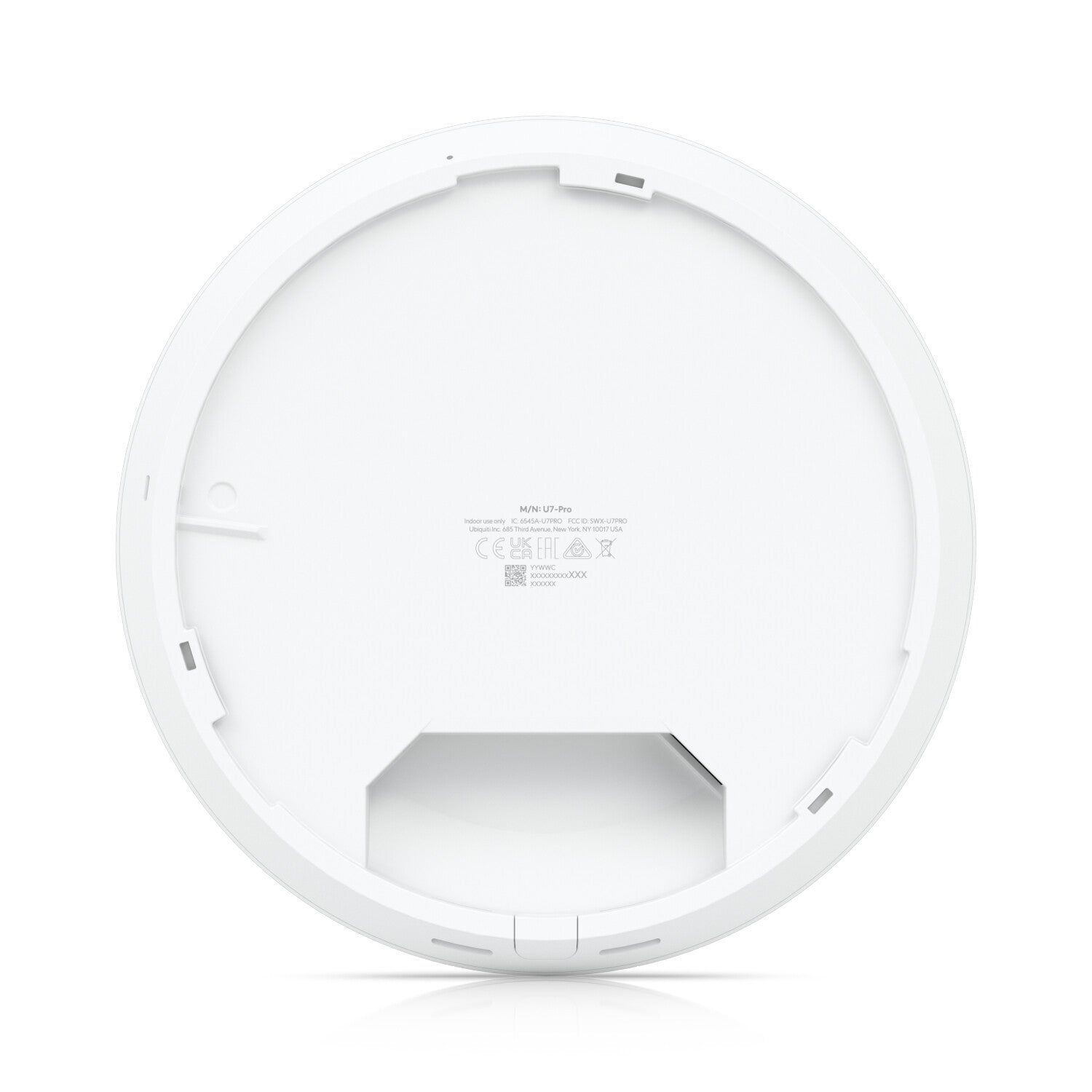

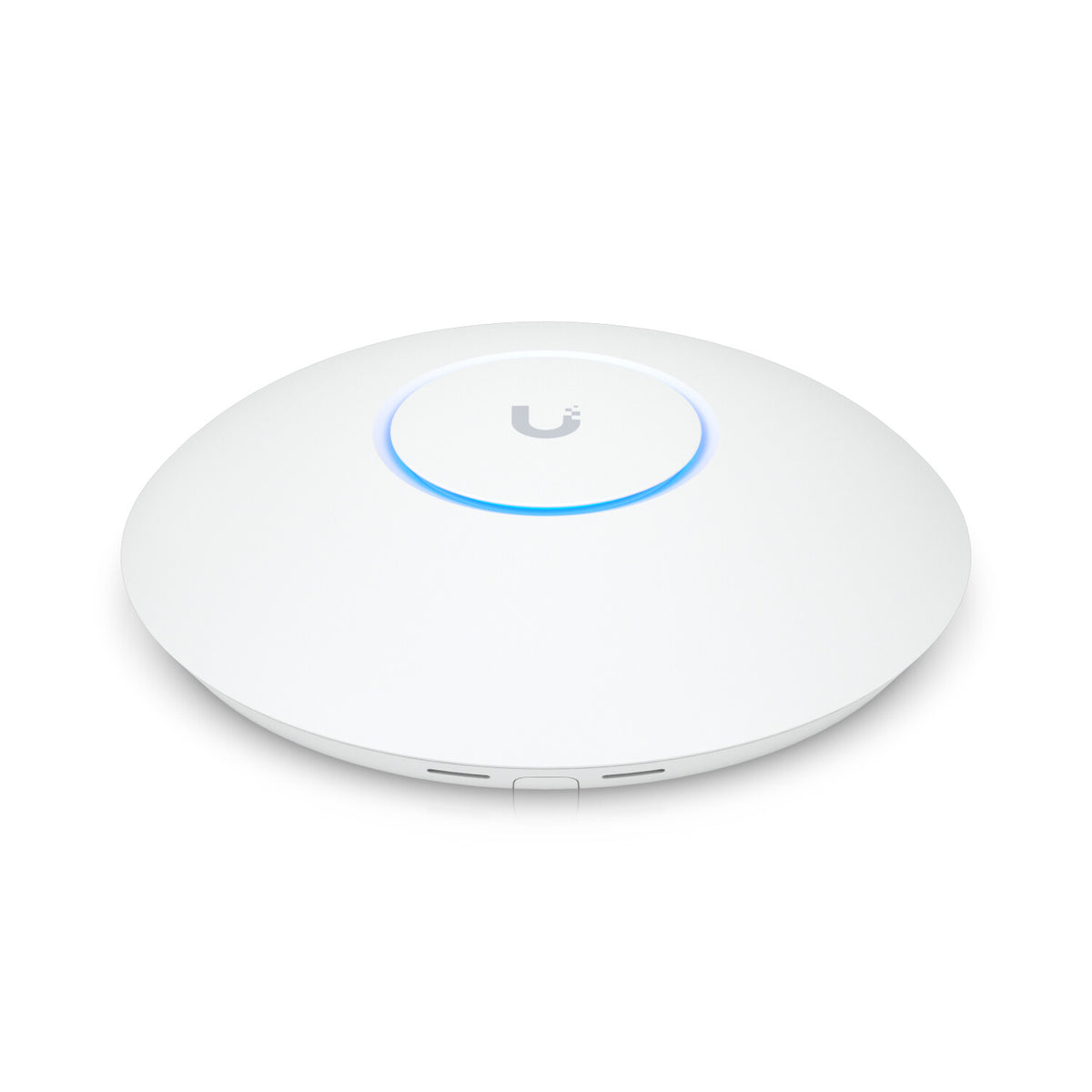

Ubiquiti U7 Pro 5700 Mbit/s White Power over Ethernet (PoE)

Ubiquiti U7 Pro 5700 Mbit/s White Power over Ethernet (PoE)

£815.04 GBP
£815.04 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

U7-PRO-5

26 in stock

  • WiFi 7 with 6 GHz support
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 140 m2 (1,500 ft2), 1/2.5 GbE RJ45, PoE+, 300+ clients, D 206 x 46 mm, 680 g, polycarbonate, metal

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features
2.4 GHz Yes
6 GHz Yes
5 GHz Yes
Maximum data transfer rate 5700 Mbit/s
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (6 GHz) 5700 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Ethernet LAN data rates 1000,2500 Mbit/s
Frequency band 2.4 - 6 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
MIMO Yes
Spatial streams 6
MIMO type Multi User MIMO
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Security
Security algorithms PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) Yes
DC voltage range 44 - 57 V
Power consumption (max) 21 W
Design
Placement Ceiling, Wall
Product colour White
Housing material Metal, Polycarbonate (PC)
Reset button Yes
LED indicators Yes
Antenna
Antenna type Internal
Antenna gain level (max) 5.8 dBi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Width 206 mm
Depth 206 mm
Height 46 mm
Weight 680 g
Packaging content
Mounting kit Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 40 °C
Logistics data
Quantity per pack 1 pc(s)
