Ubiquiti Networks

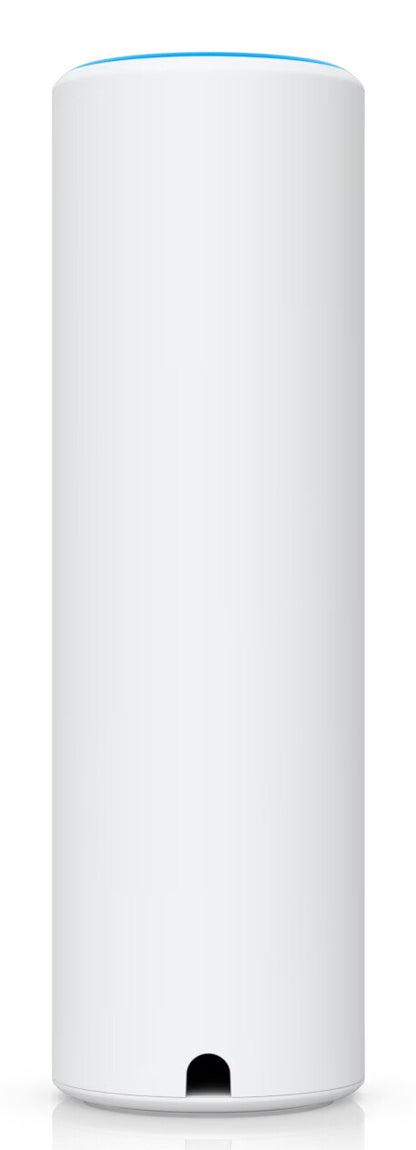

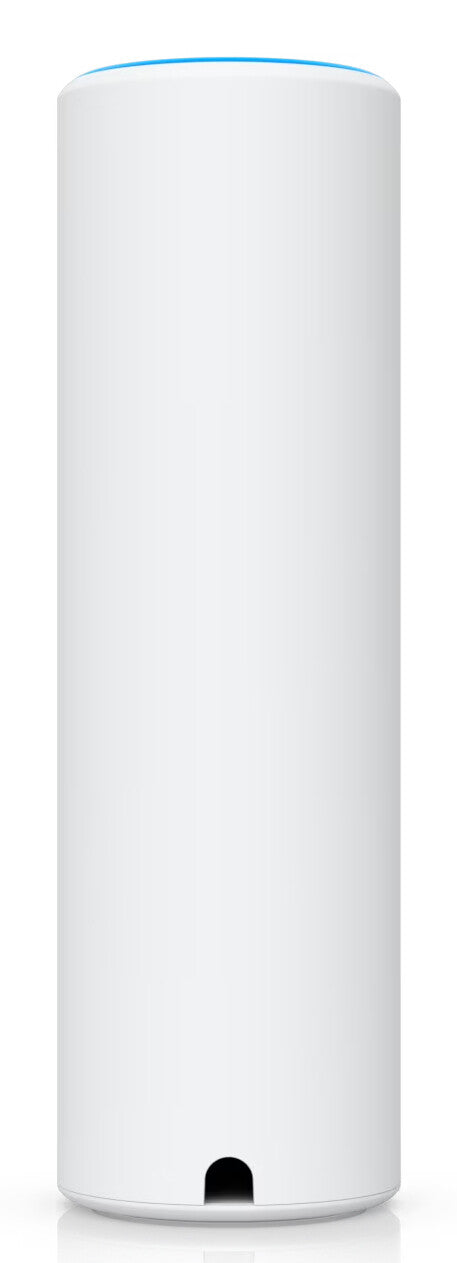

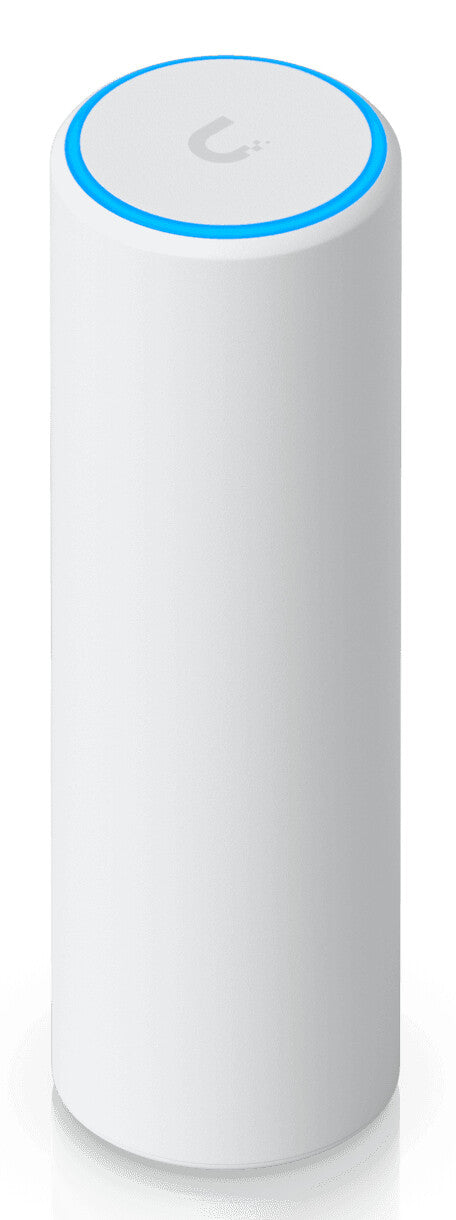

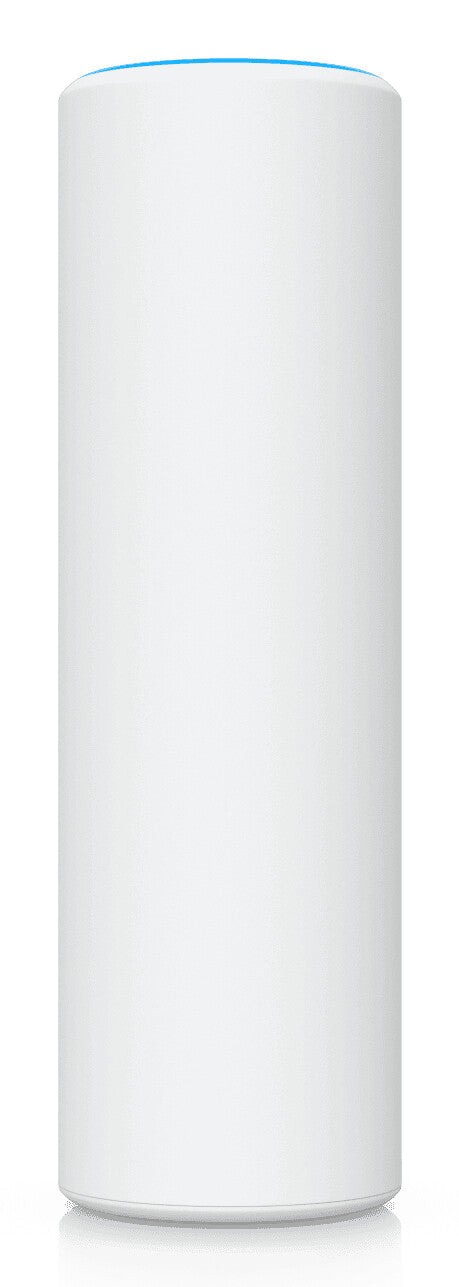

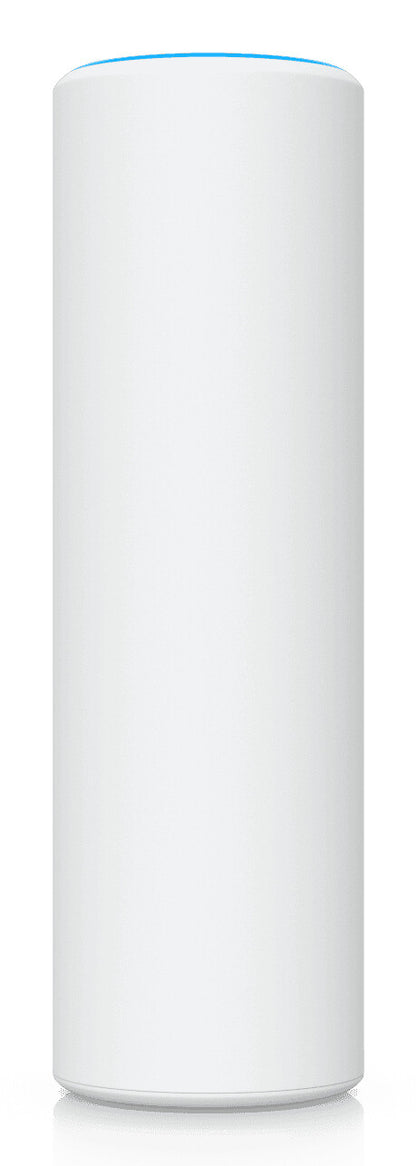

Ubiquiti U7 Mesh 5000 Mbit/s White Power over Ethernet (PoE)
Ubiquiti U7 Mesh 5000 Mbit/s White Power over Ethernet (PoE)
SKU:U7-MESH
Regular price
£242.58 GBP£202.15 GBP
Regular price
£0.00 GBP
Sale price
£242.58 GBP£202.15 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
100 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2.4 GHz 688 Mbit/s
- 5 GHz 4300 Mbit/s
- Maximum data transfer rate: 5000 Mbit/s
- IEEE 802.11v, IEEE 802.11r, IEEE 802.11k
- PPSK
- Power over Ethernet (PoE)
- Internal
Indoor/Outdoor, Wi-Fi 7, IPX6, PoE
Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Number of simultaneously connected devices (max) | 200 |
| Networking standards | IEEE 802.11v, IEEE 802.11r, IEEE 802.11k |
| Coverage area | 140 m² |
| MIMO | Yes |
| Spatial streams | 4 |
| MIMO type | Multi User MIMO |
| Fast roaming | Yes |
| Wireless meshing | Yes |
| Band steering | Yes |
| Security | |
|---|---|
| Security algorithms | PPSK |
| Ports & interfaces | |
|---|---|

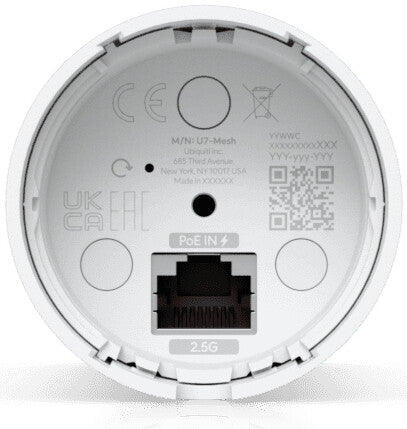

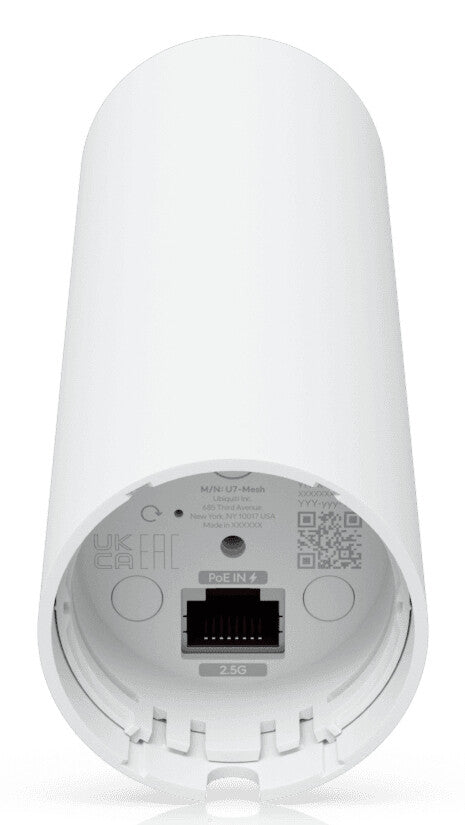

| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 42.5 - 57 V |
| Power consumption (max) | 13 W |
| Design | |
|---|---|
| Placement | Pole, Table, Wall |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| International Protection (IP) code | IPX6 |
| Reset button | Yes |
| LED indicators | Status |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 10 dBi |
| Technical details | |
|---|---|
| Compliance certificates | National Defense Authorization Act (NDAA), CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions | |
|---|---|
| Width | 48.5 mm |
| Depth | 48.5 mm |
| Height | 159.5 mm |
| Weight | 313 g |
| Packaging content | |
|---|---|
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
