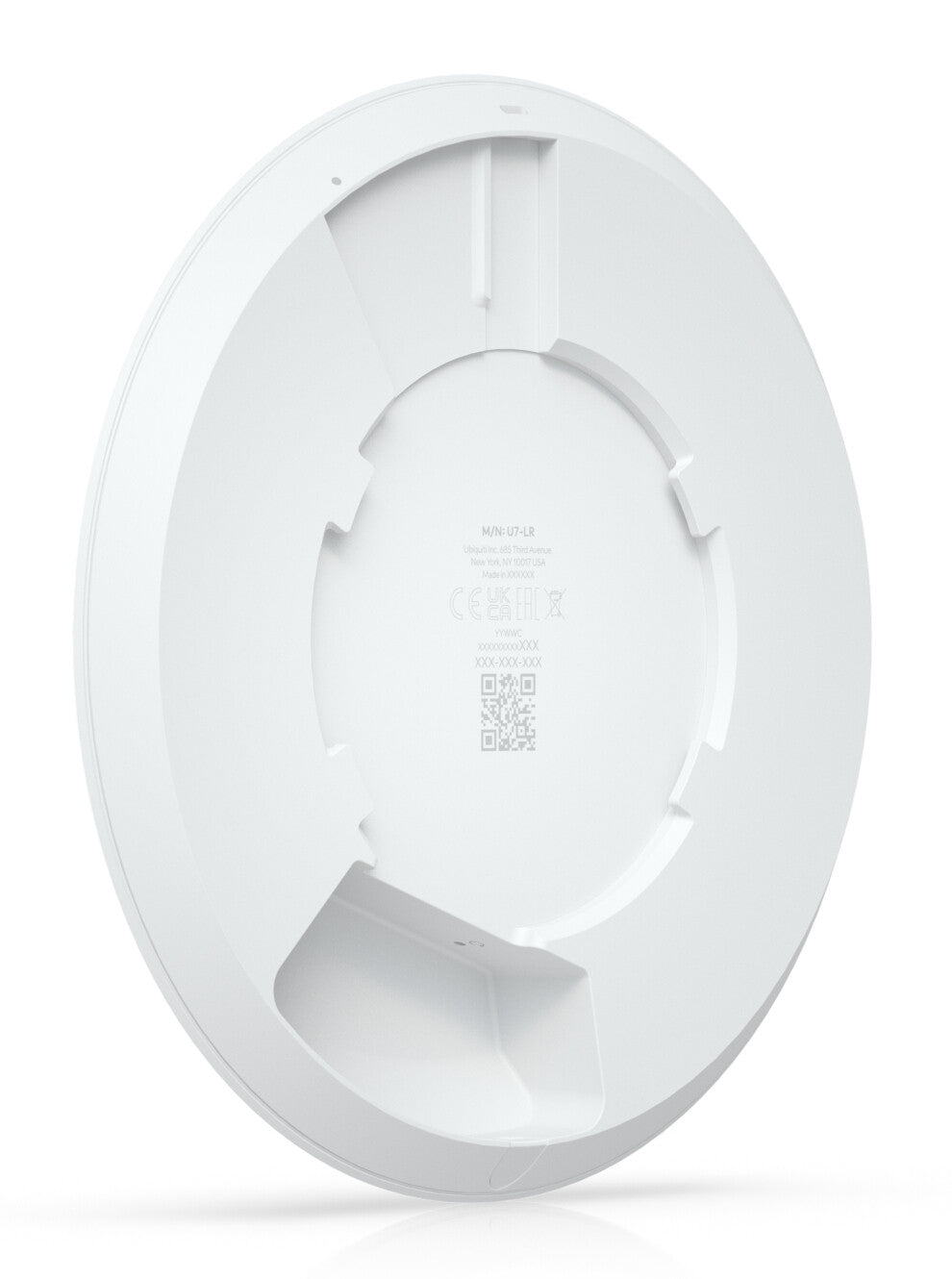

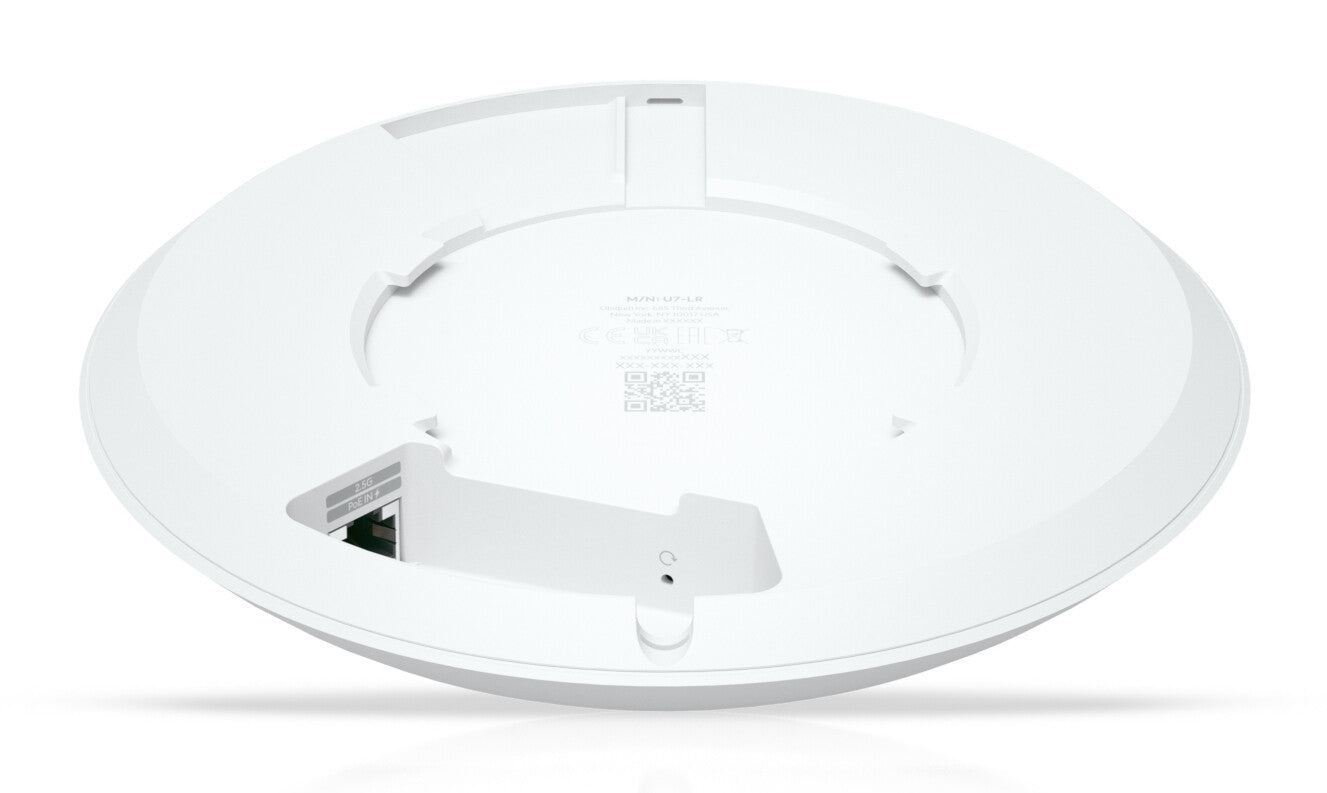

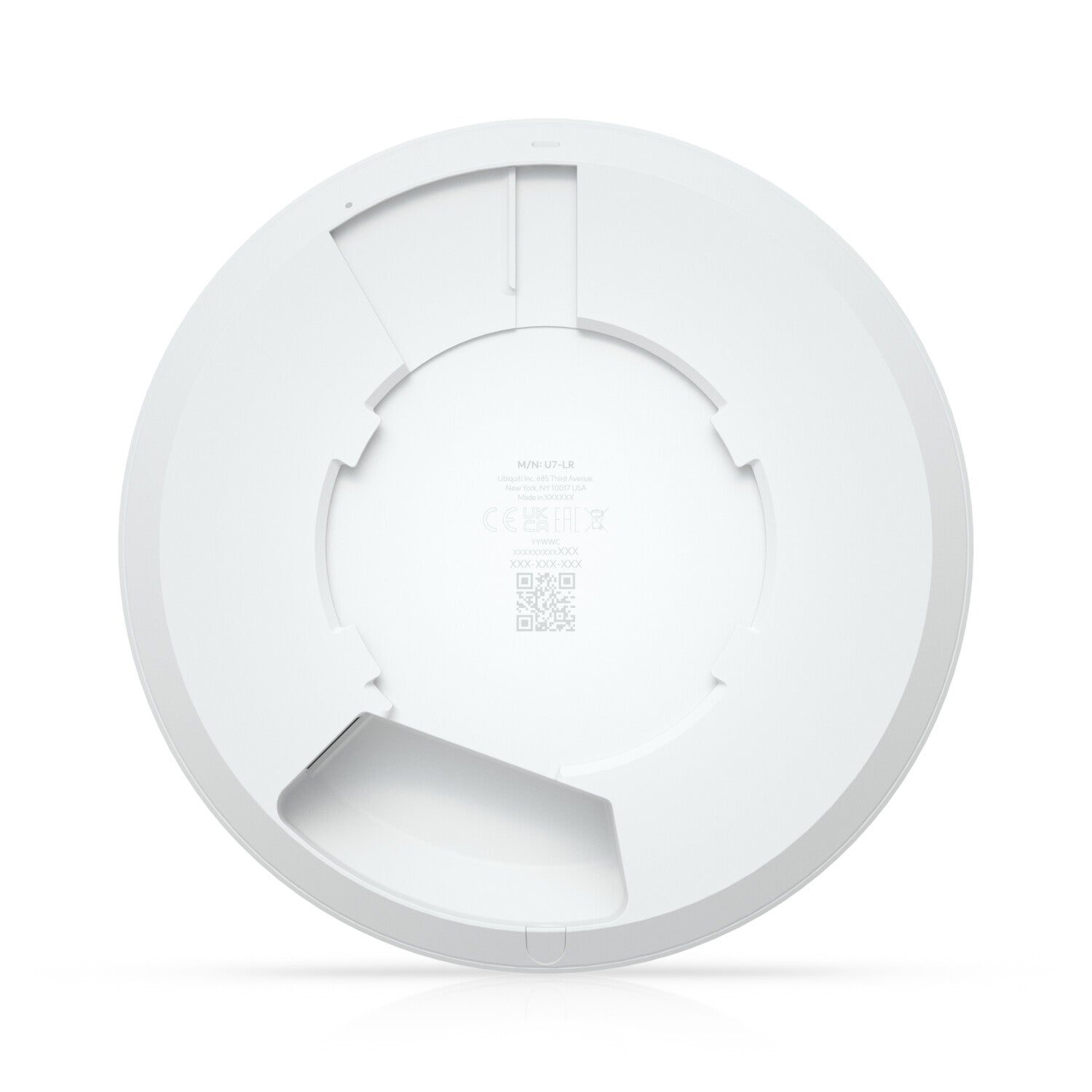

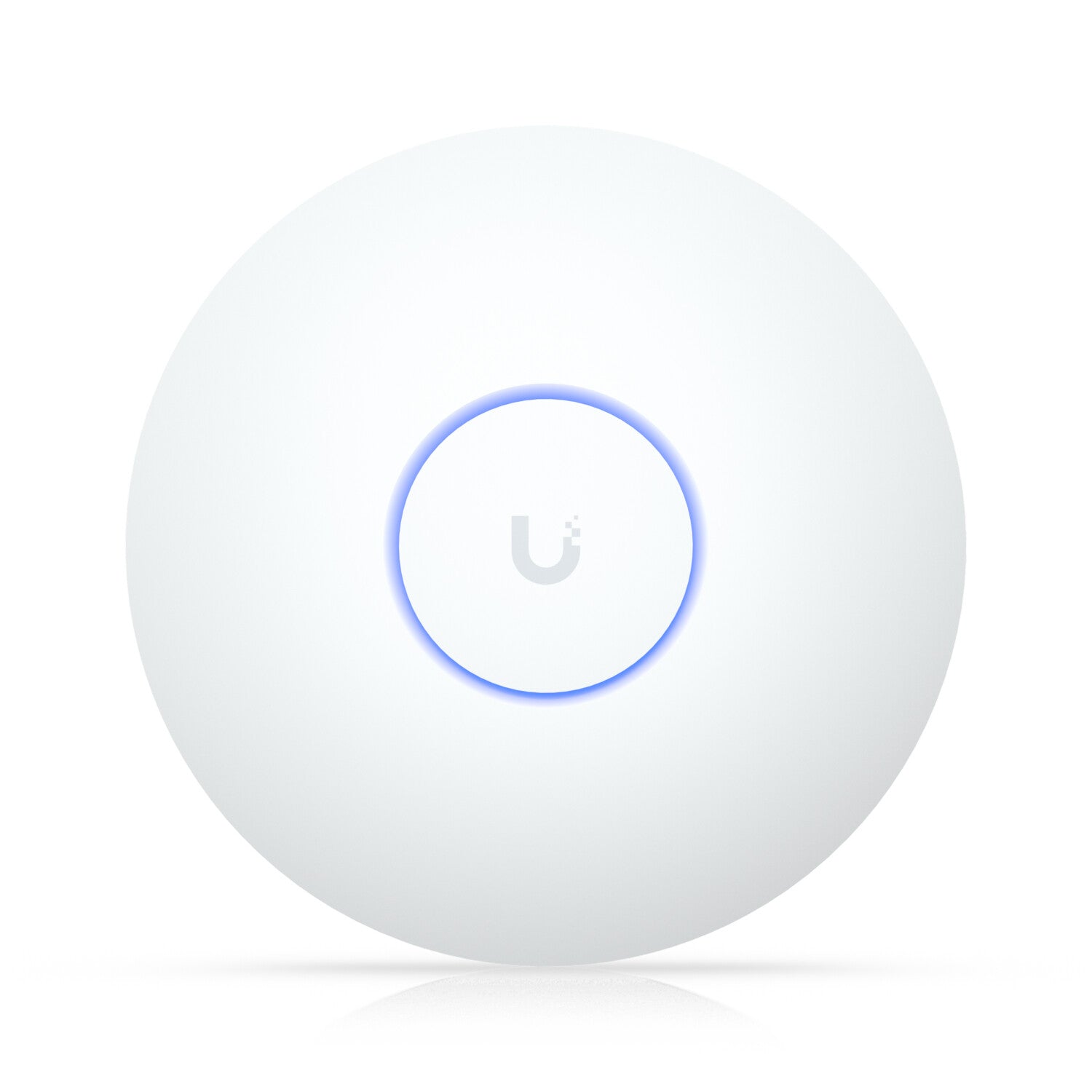

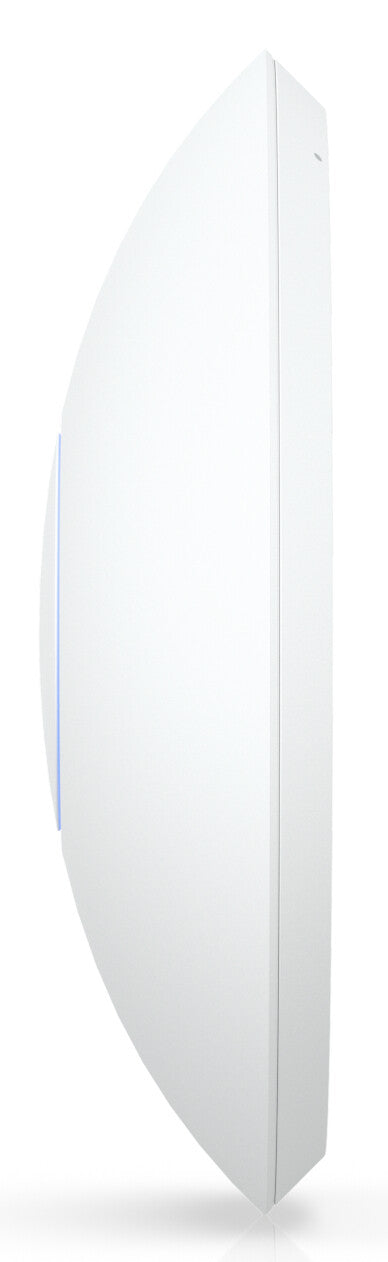

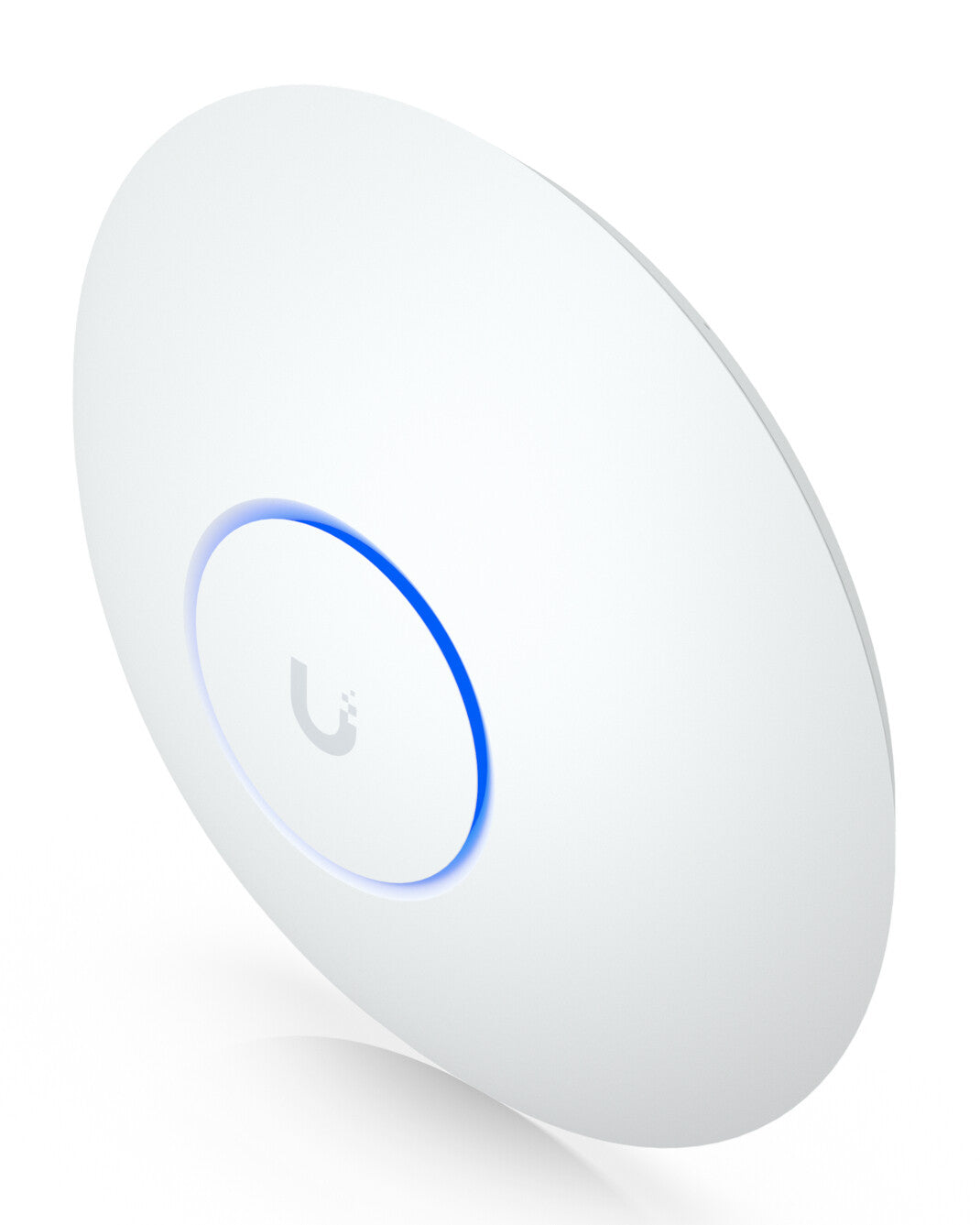

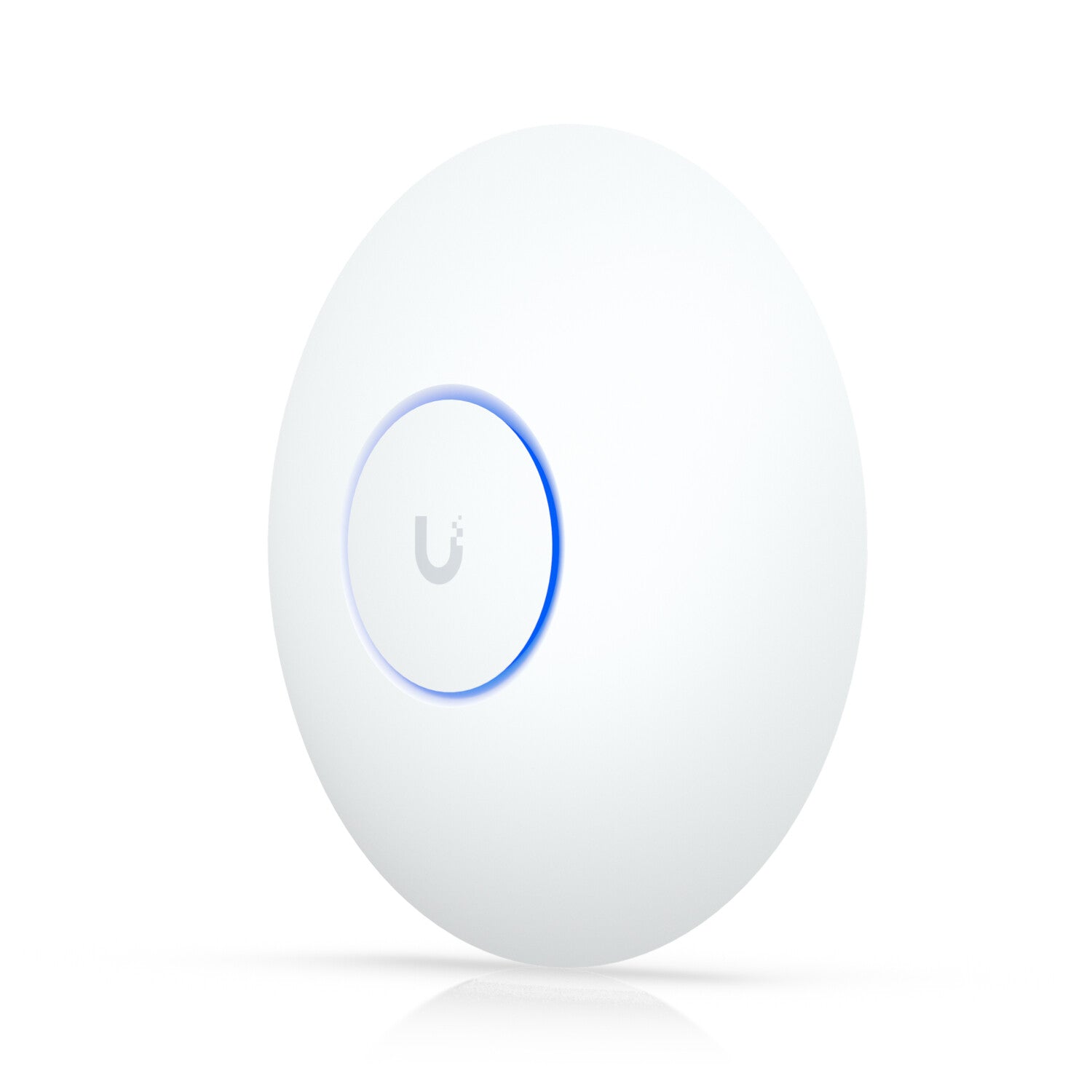

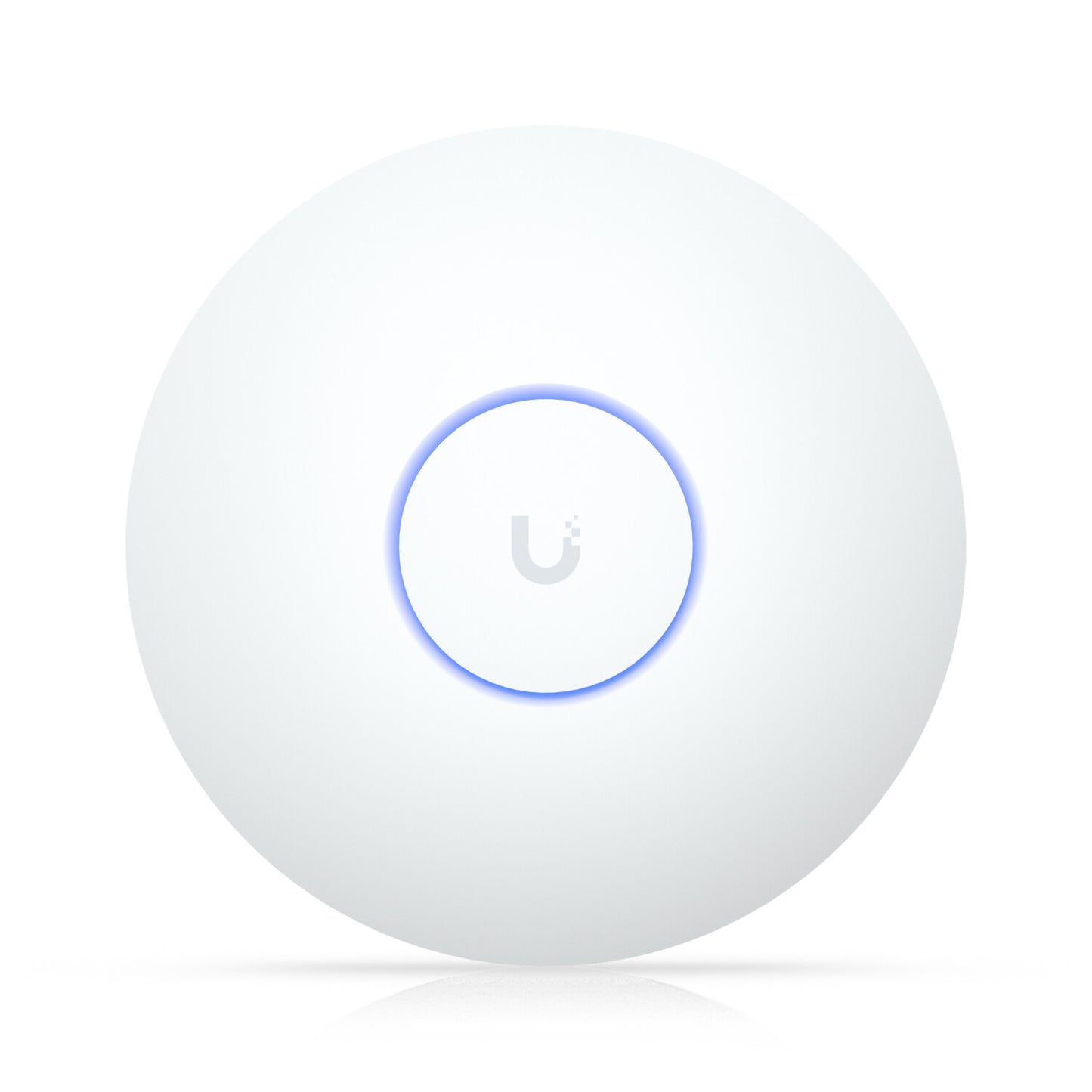

Ubiquiti U7 Long-Range 7300 Mbit/s White Power over Ethernet (PoE)

Ubiquiti U7 Long-Range 7300 Mbit/s White Power over Ethernet (PoE)

£142.81 GBP
£142.81 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

U7-LR

3103 in stock

  • 2.4 GHz 688 Mbit/s
  • 5 GHz 4300 Mbit/s
  • Maximum data transfer rate: 7300 Mbit/s
  • IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
  • PPSK, TLS
  • Power over Ethernet (PoE)
  • Internal
WiFi 7, 2.4/5 GHz, 5 Spatial Streams, 160 m² (1,750 ft²), 2.5 GbE RJ45, PoE, 300+ clients, 14W

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

Features
Maximum Tx power (5 GHz) 27 dBmW
Maximum Tx power (2.4 GHz) 26 dBmW
Band steering Yes
Wireless meshing Yes
Rate limiting Yes
VLAN support Yes
Fast roaming Yes
Fit AP mode features Hotspot 2.0
MIMO type Multi User MIMO
Spatial streams 5
MIMO Yes
Number of users 300 user(s)
Coverage area 160 m²
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Frequency band 2.4 - 5 GHz
Ethernet LAN data rates 1000,2500 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate 7300 Mbit/s
6 GHz No
5 GHz Yes
2.4 GHz Yes
Security
Remote Authentication Dial-In User Service (RADIUS) Yes
Security algorithms PPSK, TLS
Management features
Access point management Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 14 W
DC voltage range 42.5 - 57 V
Power over Ethernet (PoE) Yes
Design
LED indicators Yes
Reset button Yes
Housing material Aluminium, Polycarbonate (PC)
Product colour White
Placement Ceiling, Wall
Antenna
Antenna gain level (max) 6 dBi
Antenna type Internal
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Weight & dimensions
Weight 448 g
Height 43 mm
Depth 175.7 mm
Width 175.7 mm

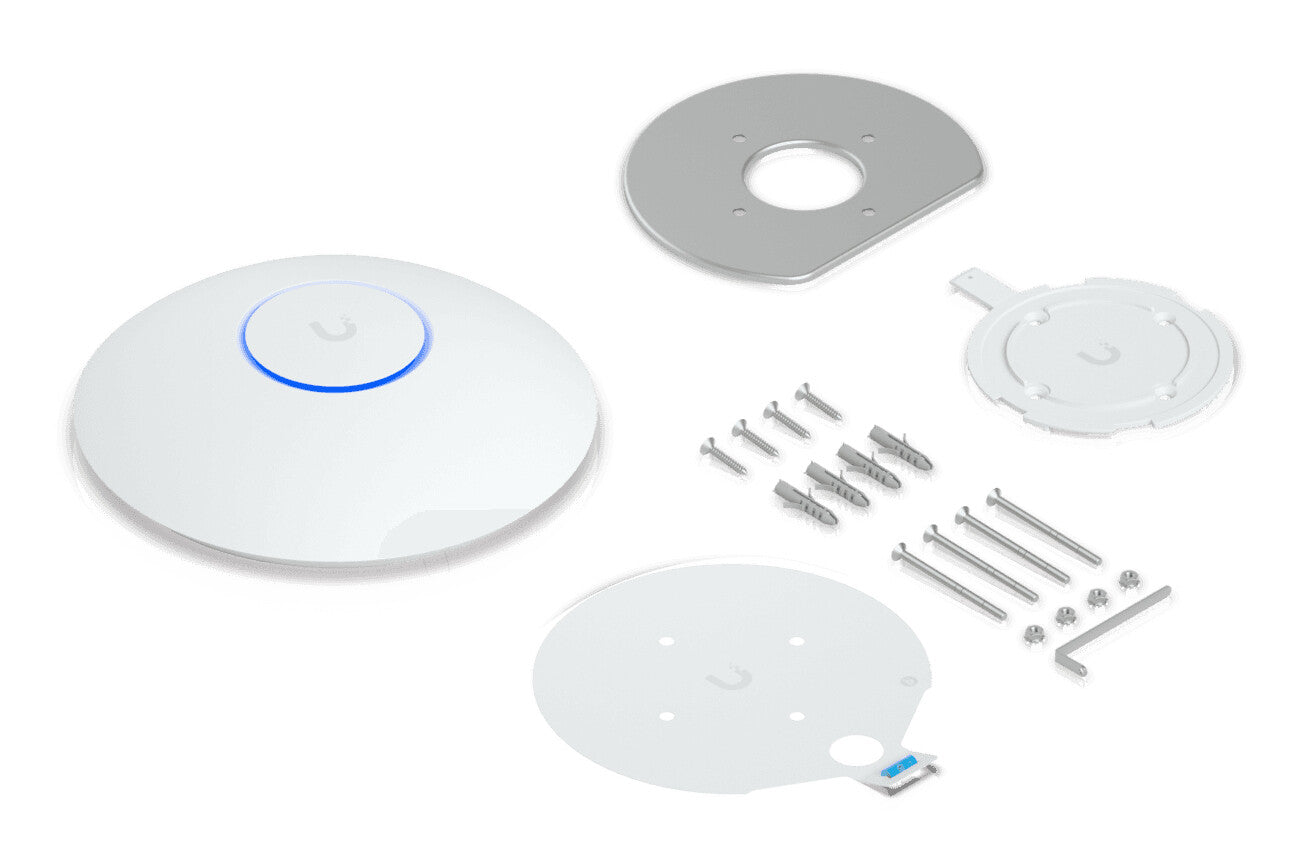

Packaging content
Mounting kit Yes
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Quantity per pack 1 pc(s)
