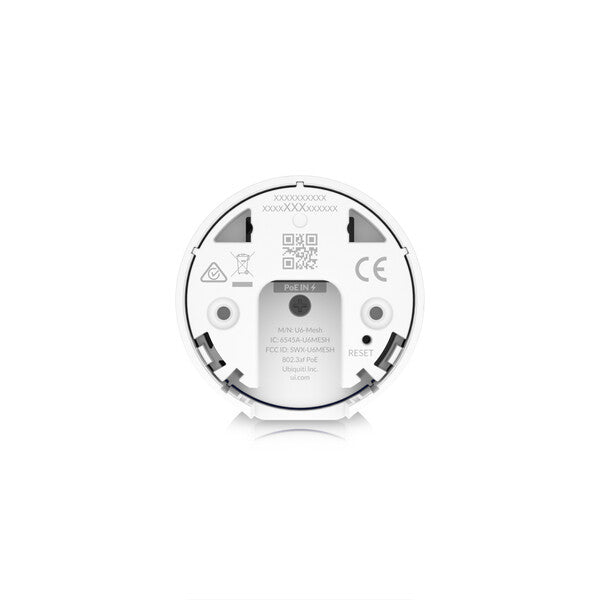

Ubiquiti U6-Mesh 4800 Mbit/s White Power over Ethernet (PoE)
Ubiquiti U6-Mesh 4800 Mbit/s White Power over Ethernet (PoE)
SKU:U6-MESH
1048 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 573.5 throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- Powered with 802.3af PoE (PoE adapter included)
Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 44 - 57 V |
| Input current | 0.32 A |
| Power consumption (max) | 11.4 W |
| Design | |
|---|---|
| Placement | Ceiling, Pole, Table, Wall |
| Product colour | White |
| Housing material | Aluminium, Plastic |
| International Protection (IP) code | IPX5 |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Weight & dimensions | |
|---|---|
| Width | 48.5 mm |
| Depth | 48.5 mm |
| Height | 159.5 mm |
| Weight | 400 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| PoE adapter included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
