Ubiquiti Networks

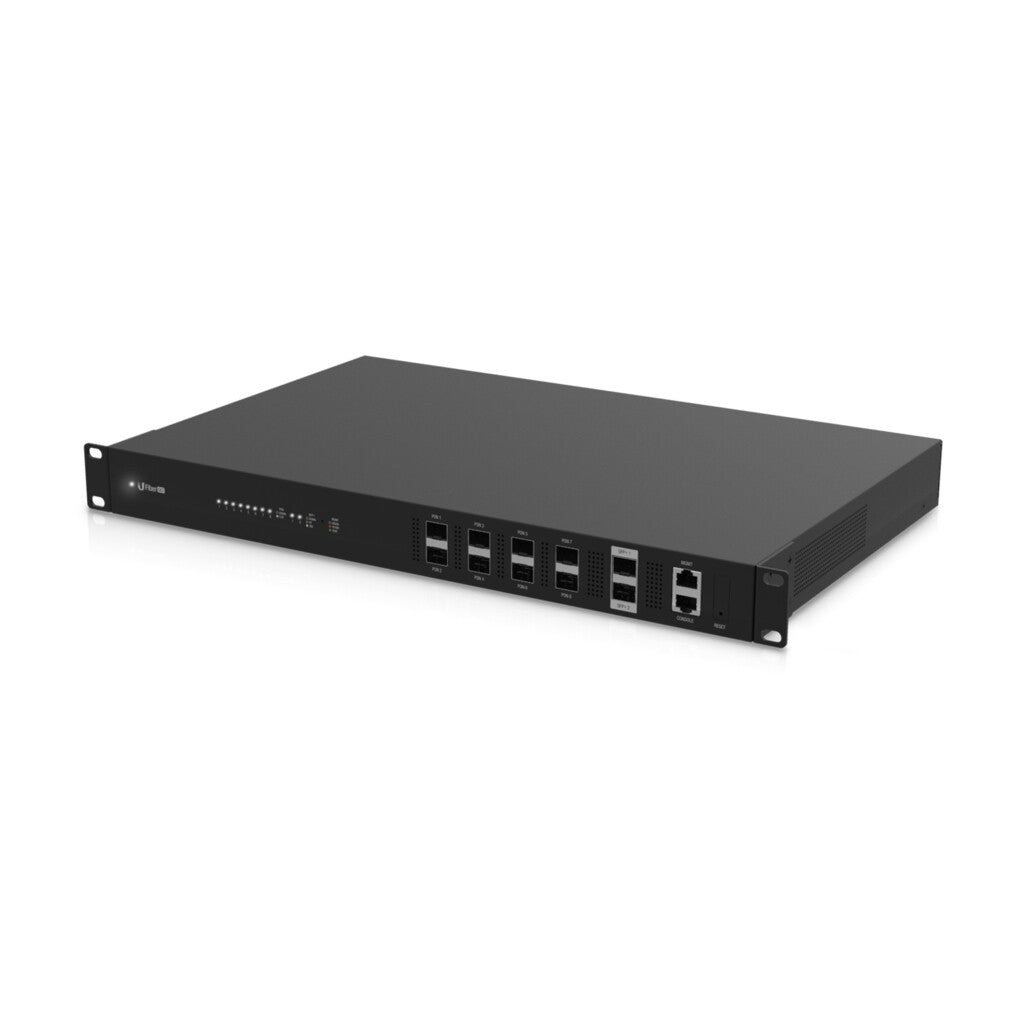

Ubiquiti U Fiber, OLT Managed 1U Black

Ubiquiti U Fiber, OLT Managed 1U Black

£1,253.71 GBP
£1,253.71 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UF-OLT

Low stock: 2 left

  • Managed Web-based management
  • Quality of Service (QoS) support
  • Console port: RJ-45
  • 10G support
  • 1U Rack mounting
  • Power supply included
U Fiber, OLT, MIPS 1004Kc 880 Mhz, 256 Mbyte DDR3, 256M Byte NAND, 8 x GPON OLT SFP, 2 x 1G/10G SFP+

Centralized Management

Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.

Client and Uplink Connectivity

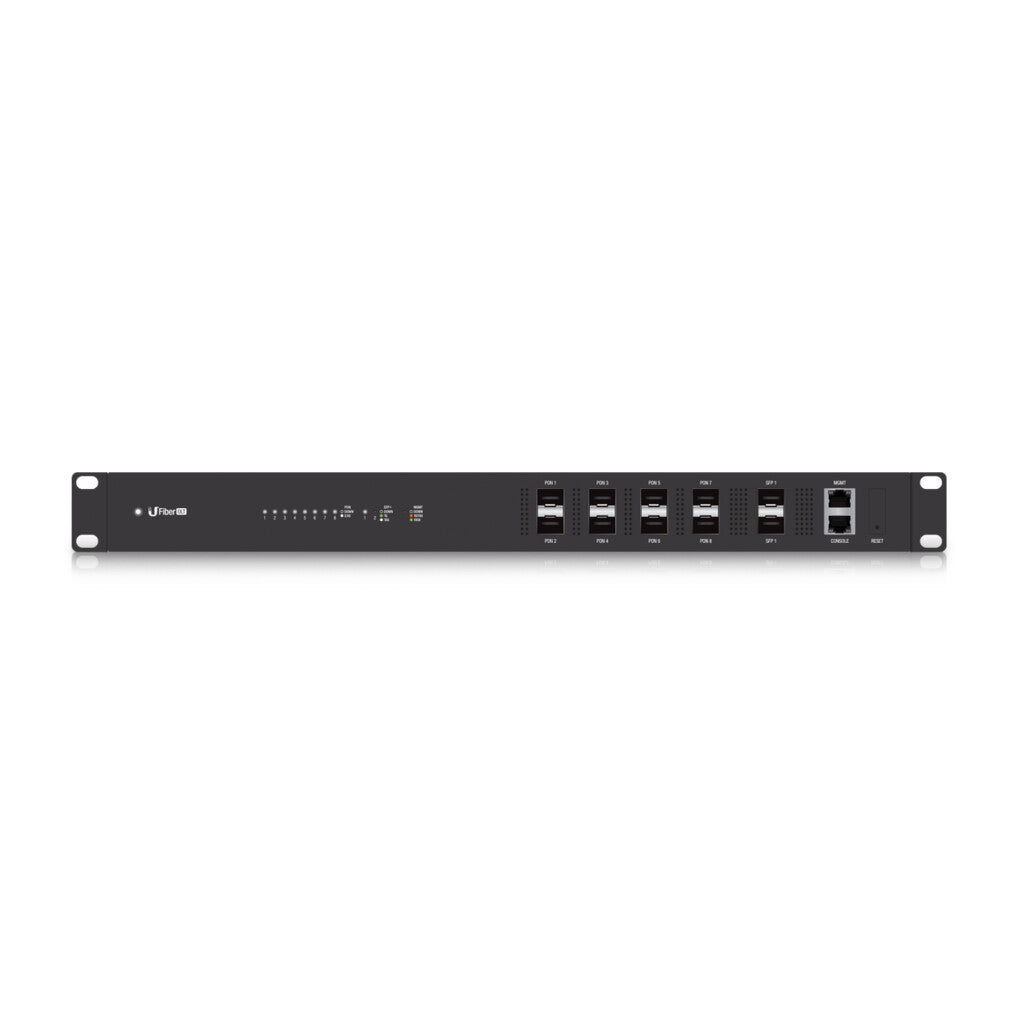

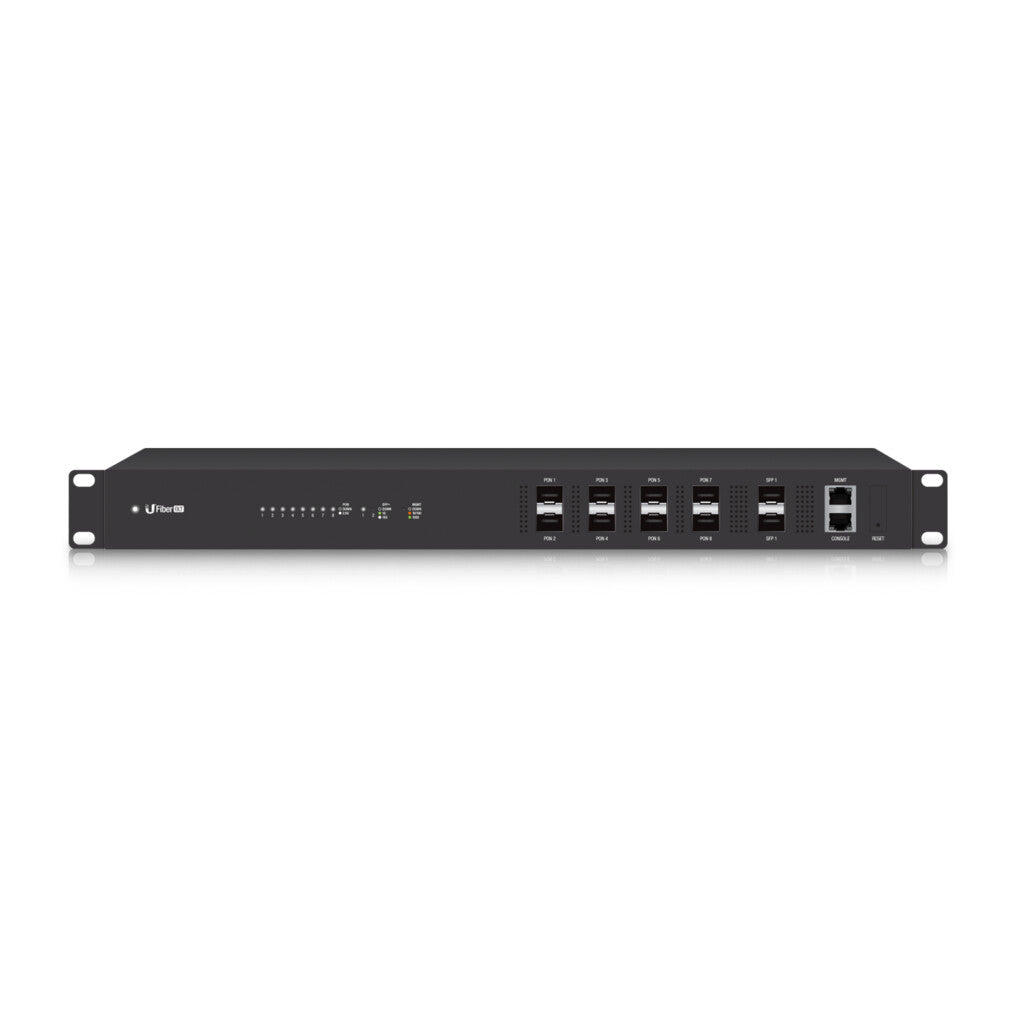

The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.

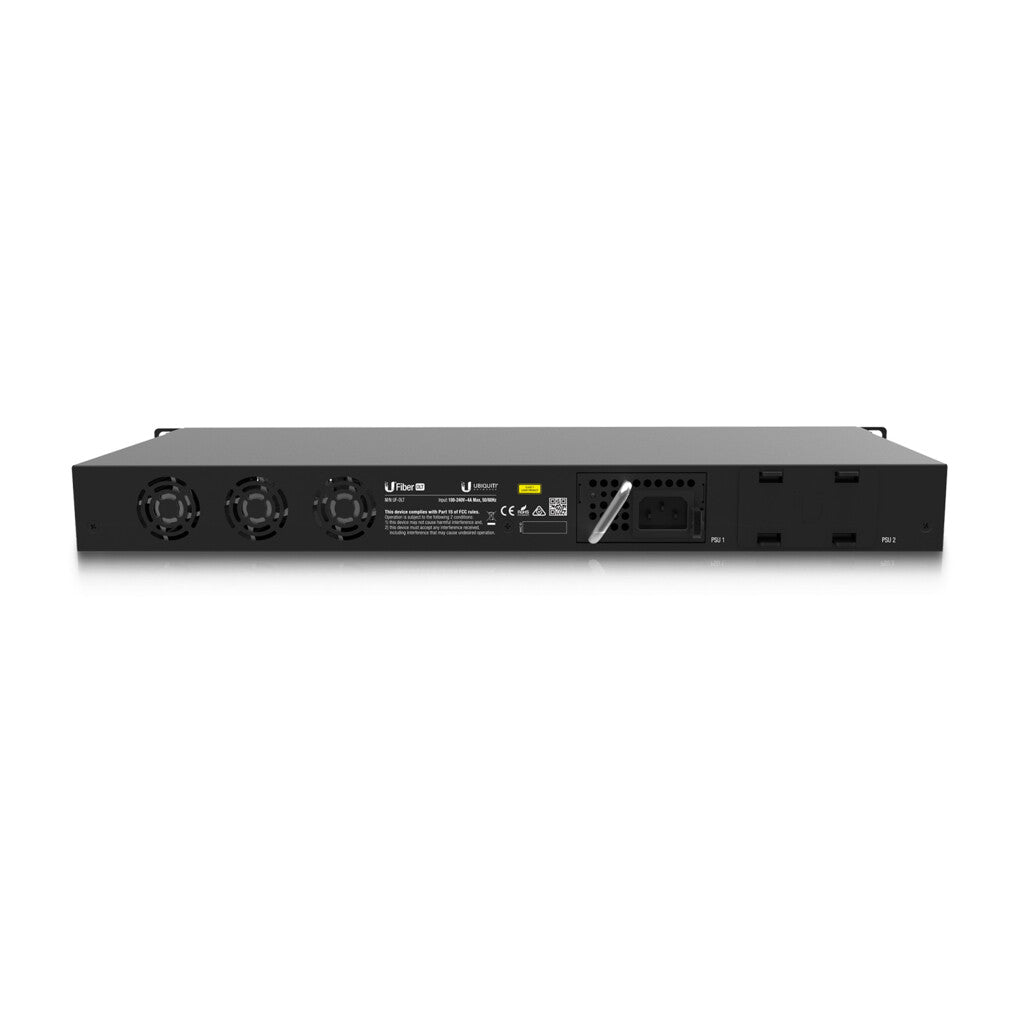

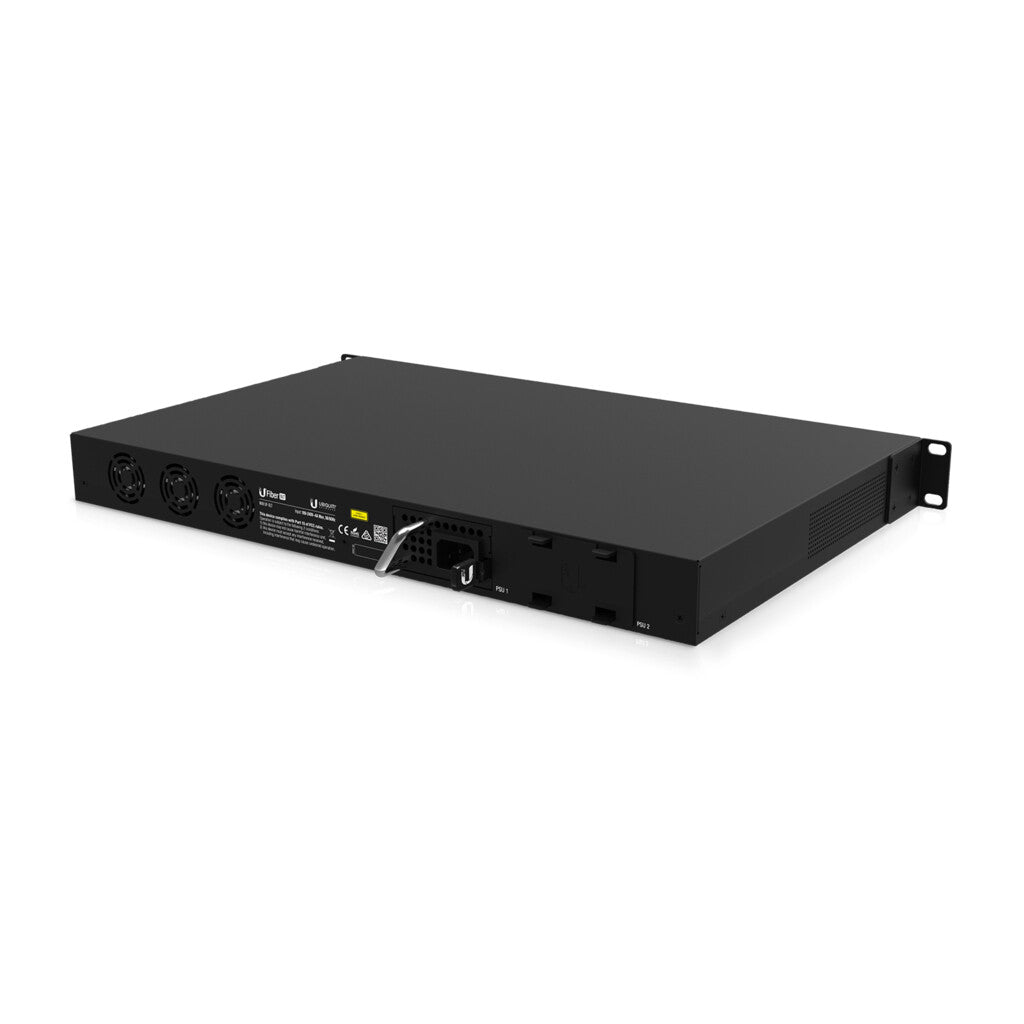

Power Versatility

Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

Rackmount Design

The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.

Management features
Switch type Managed
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type No
SFP module slots quantity 8
SFP+ module slots quantity 2
Console port RJ-45
Network
10G support Yes
Optical fiber
Wavelength 1490 nm
Design
Rack mounting Yes
Form factor 1U
Product colour Black
Reset button Yes
Certification CE, FCC, IC
Performance
Built-in processor Yes
Processor frequency 880 MHz
Memory type DDR3-SDRAM
Internal memory 512 MB
Power
Power supply included Yes
AC input voltage 100 - 240 V
Input voltage 25 V
Power consumption (max) 40 W
Operational conditions
Operating temperature (T-T) -10 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442.4 mm
Depth 285.6 mm
Height 43.7 mm
Weight 4.4 kg
Logistics data
Harmonized System (HS) code 85176990
