Ubiquiti Networks

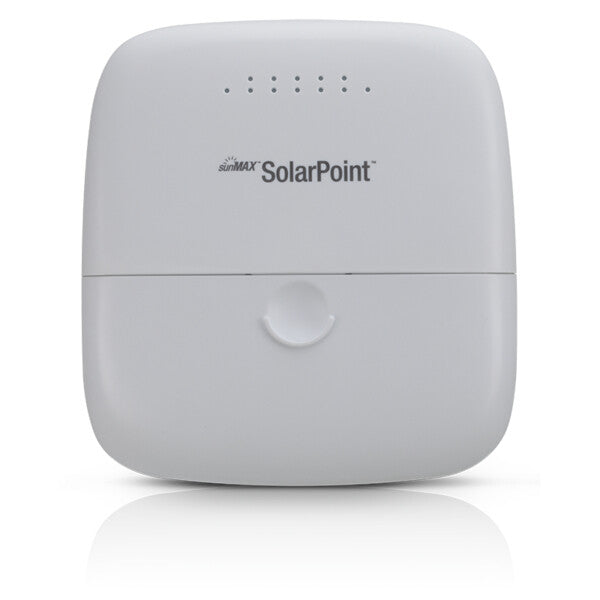

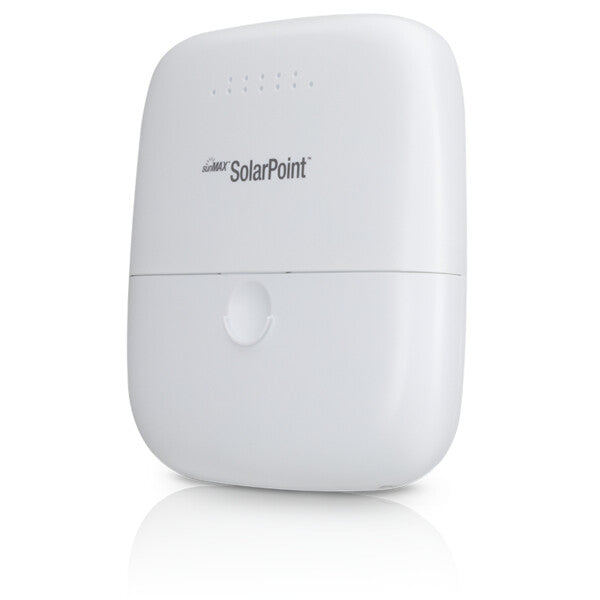

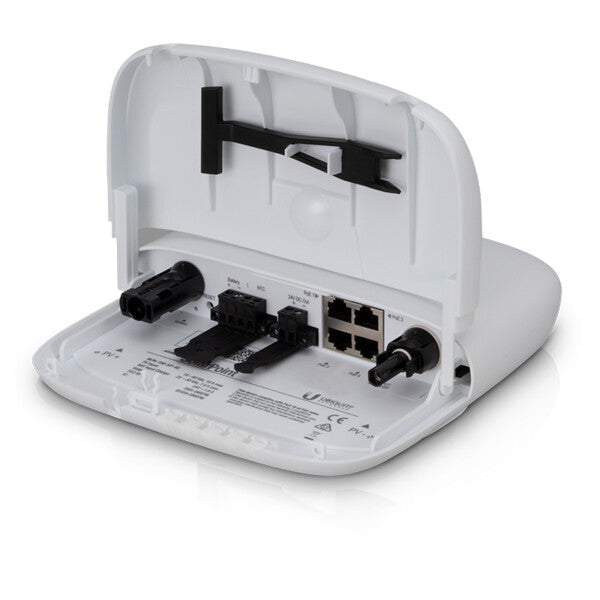

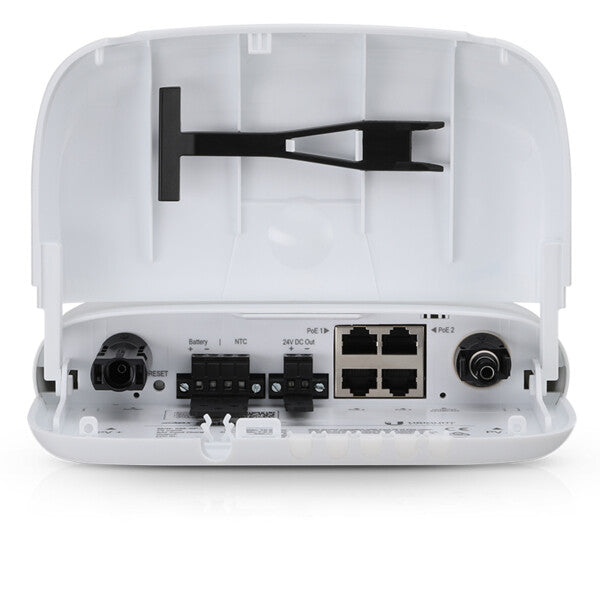

Ubiquiti SunMAX SolarPoint wireless router Fast Ethernet Single-band (2.4 GHz) White
Ubiquiti SunMAX SolarPoint wireless router Fast Ethernet Single-band (2.4 GHz) White
Regular price
£173.44 GBP
Regular price
Sale price
£173.44 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:SM-SP-40
Low stock: 6 left
- Indoor and Outdoor use
- PV Panel Input 10 – 60V
- 4-port 24V PoE output 10/100 switch
- 24V DC-Out Terminal
- Max output power 40W
- External 24V Battery Charging up to 7Amps (supports SLA, AGL, AGM)
SunMAX SolarPoint, (4) 10/100 RJ-45, Wi-Fi (2.4 GHz), IPx4, PoE 17W, DC 24W, 40W Max
SunMAX™ SolarPoint™ is a remote managed MPPT 24V 7A charge controller with a built-in 4 port 24V PoE 10/100Mbps switch and one DC output delivering up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Mobile network | |
|---|---|
| 4G | No |
| 3G | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | No |
| Design | |
|---|---|
| Product colour | White |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Power | |
|---|---|
| Power source type | DC |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 650 g |
| Height | 50 mm |
| Depth | 186 mm |
| Width | 202 mm |
