Ubiquiti Networks

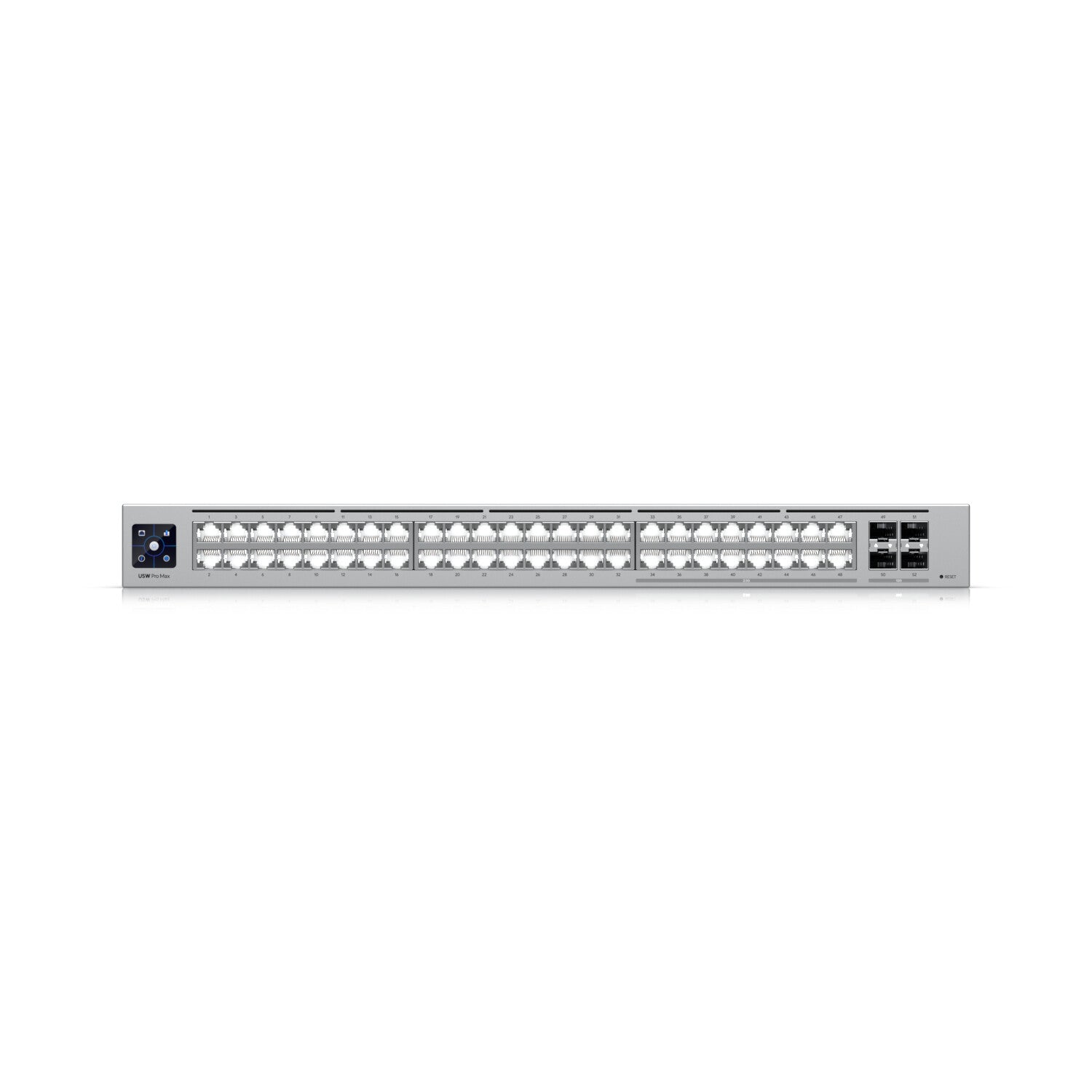

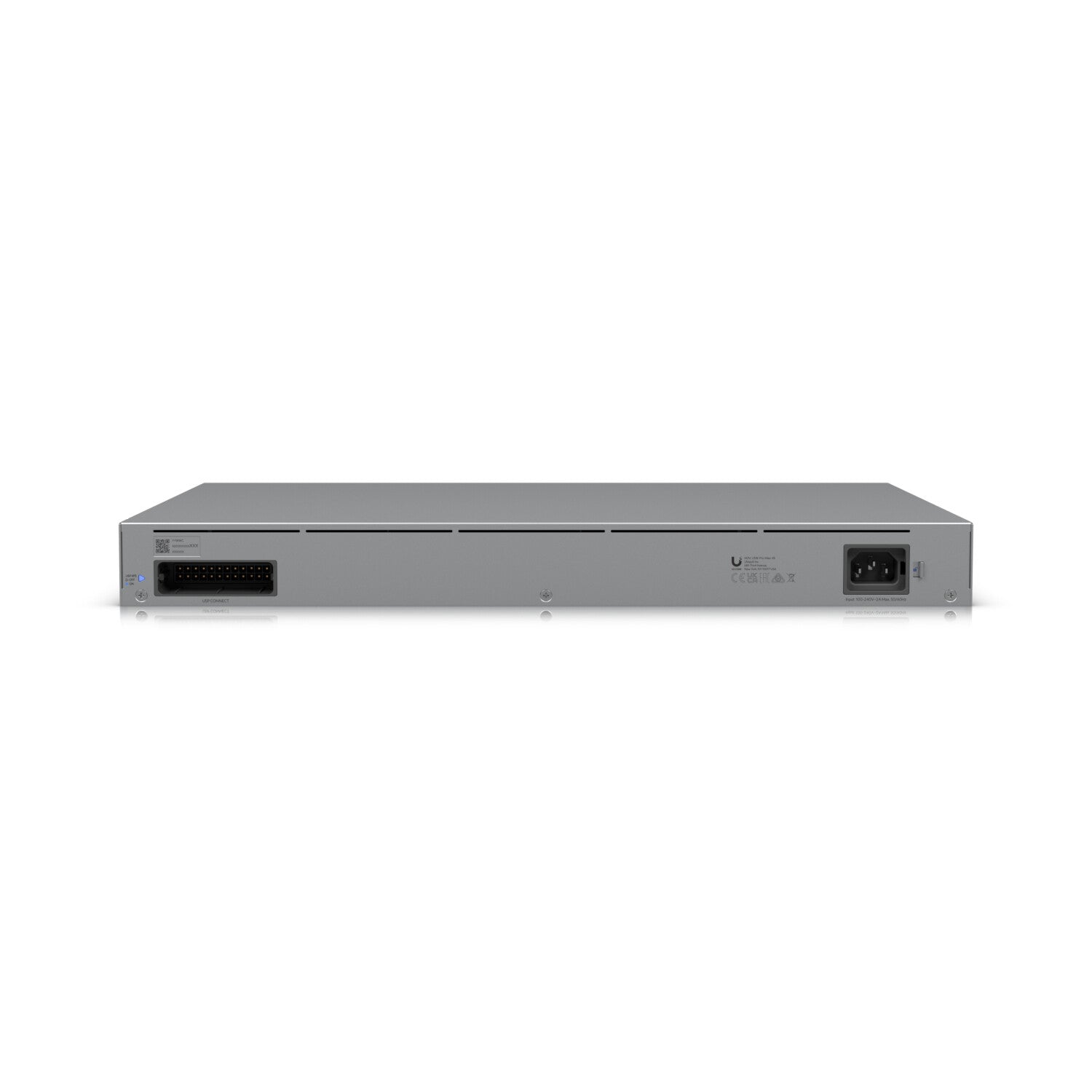

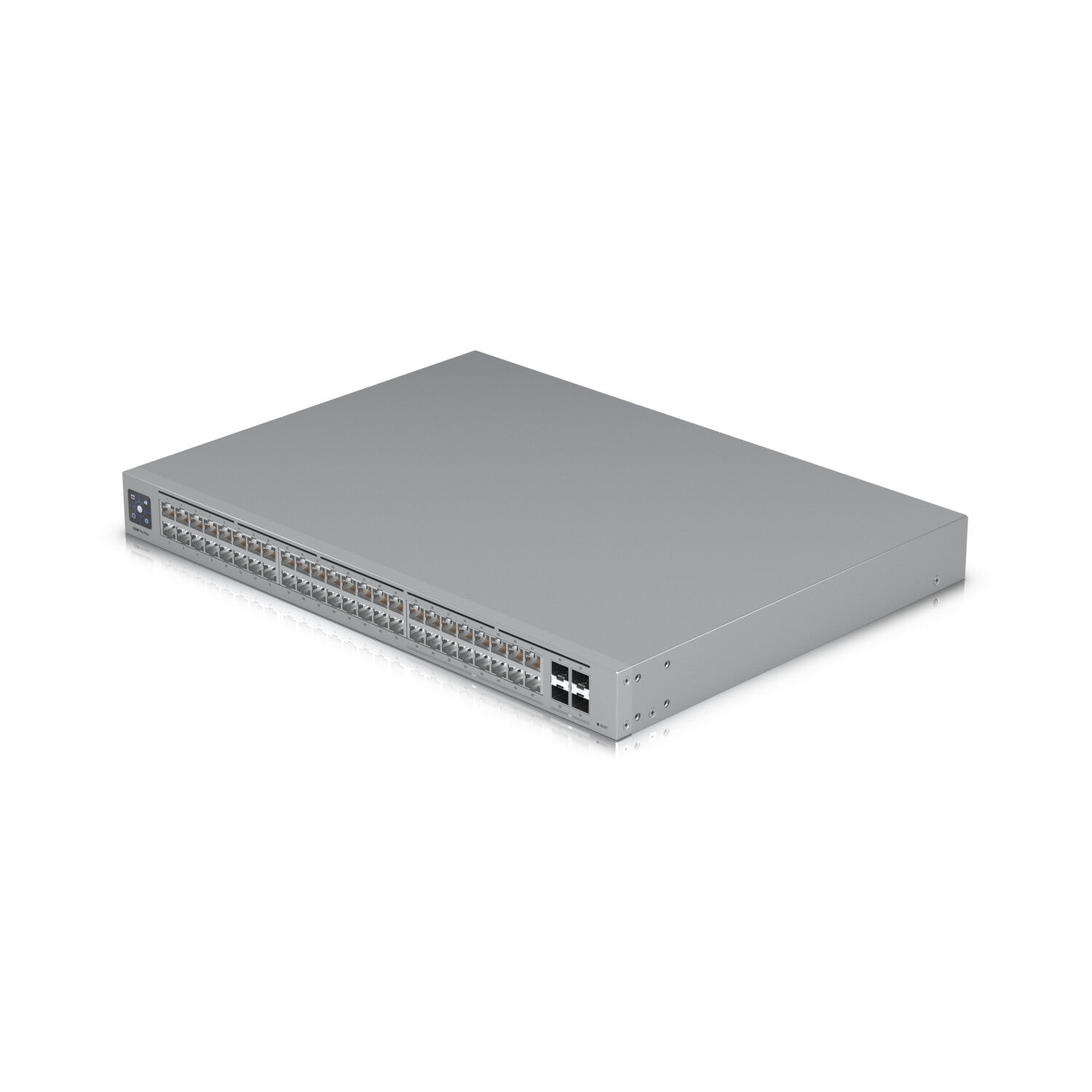

Ubiquiti Pro Max 48 L3 2.5G Ethernet (100/1000/2500) 1U Grey
Ubiquiti Pro Max 48 L3 2.5G Ethernet (100/1000/2500) 1U Grey
SKU:USW-PRO-MAX-48-EU
Regular price
£642.32 GBP£535.27 GBP
Regular price
£0.00 GBP
Sale price
£642.32 GBP£535.27 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
120 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- (16) 2.5 GbE RJ45 ports
- (32) GbE RJ45 ports
- (4) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
100W, 32 x GbE RJ45, 16 x 1/2.5 GbE RJ45, 4 x 10G SFP+, 224 Gbps, 1.3" LCM touchscreen, SGCC steel, 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")

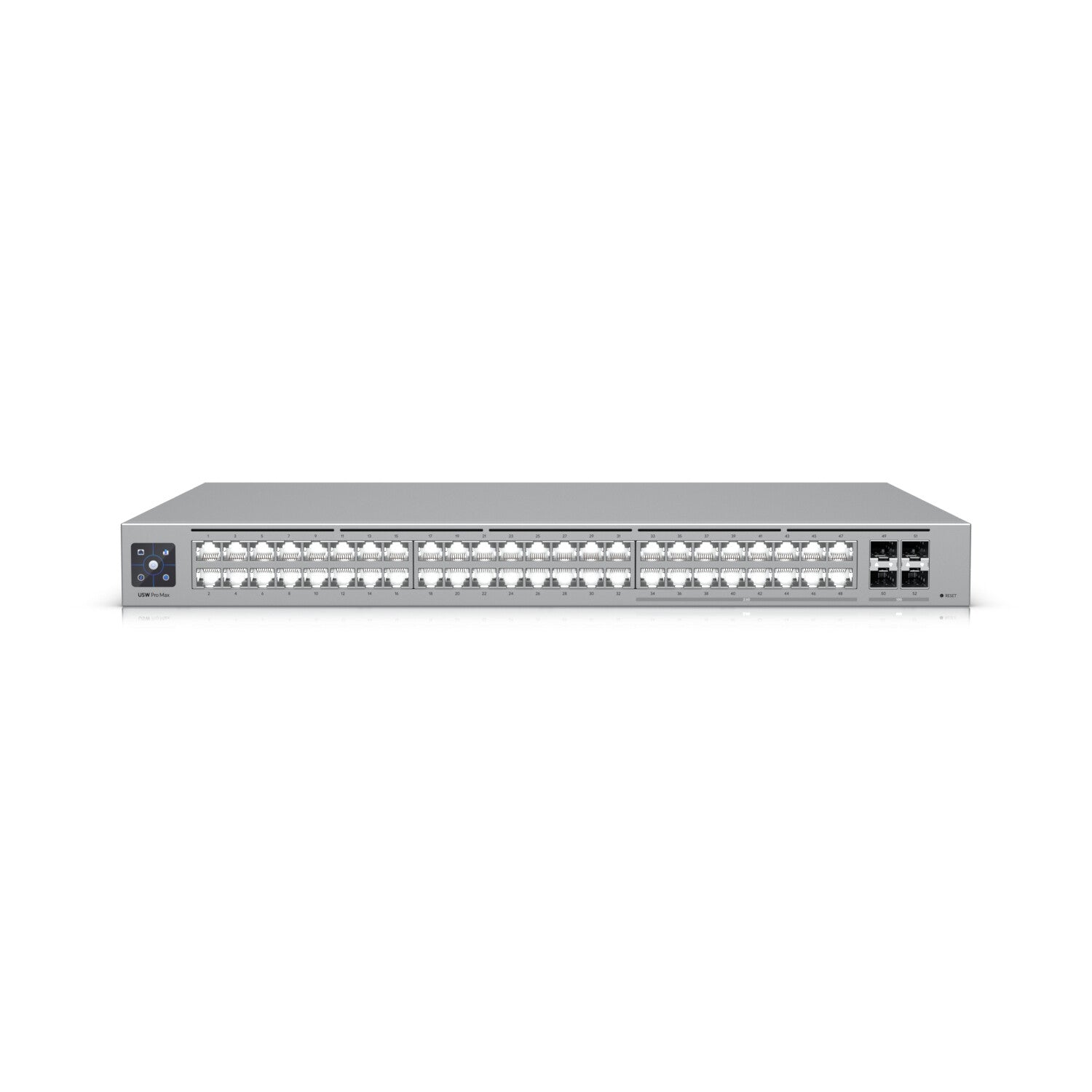

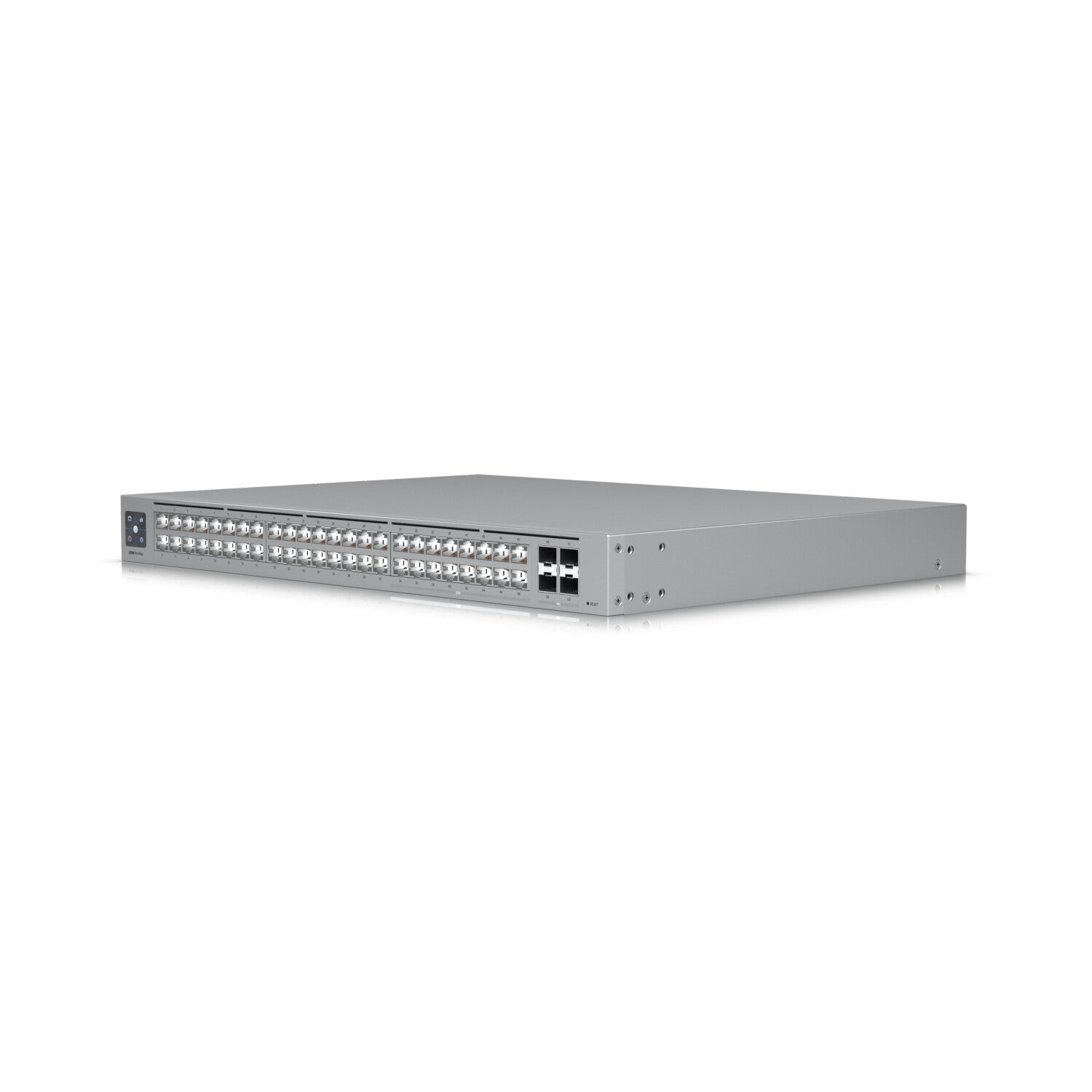

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
| Management features | |
|---|---|
| Switch layer | L3 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| 2.5G Ethernet (copper) ports quantity | 16 |
| SFP+ module slots quantity | 4 |
| Power connector | AC/DC |
| Network | |
|---|---|
| Networking standards | IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Data transmission | |
|---|---|
| Switching capacity | 224 Gbit/s |
| Throughput | 112 Gbit/s |
| Forwarding rate | 166.656 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| LED indicators | Link, Network, Speed, Status |
| Display type | LCM |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Power | |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 100 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 4.8 kg |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging data | |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
