Ubiquiti Networks

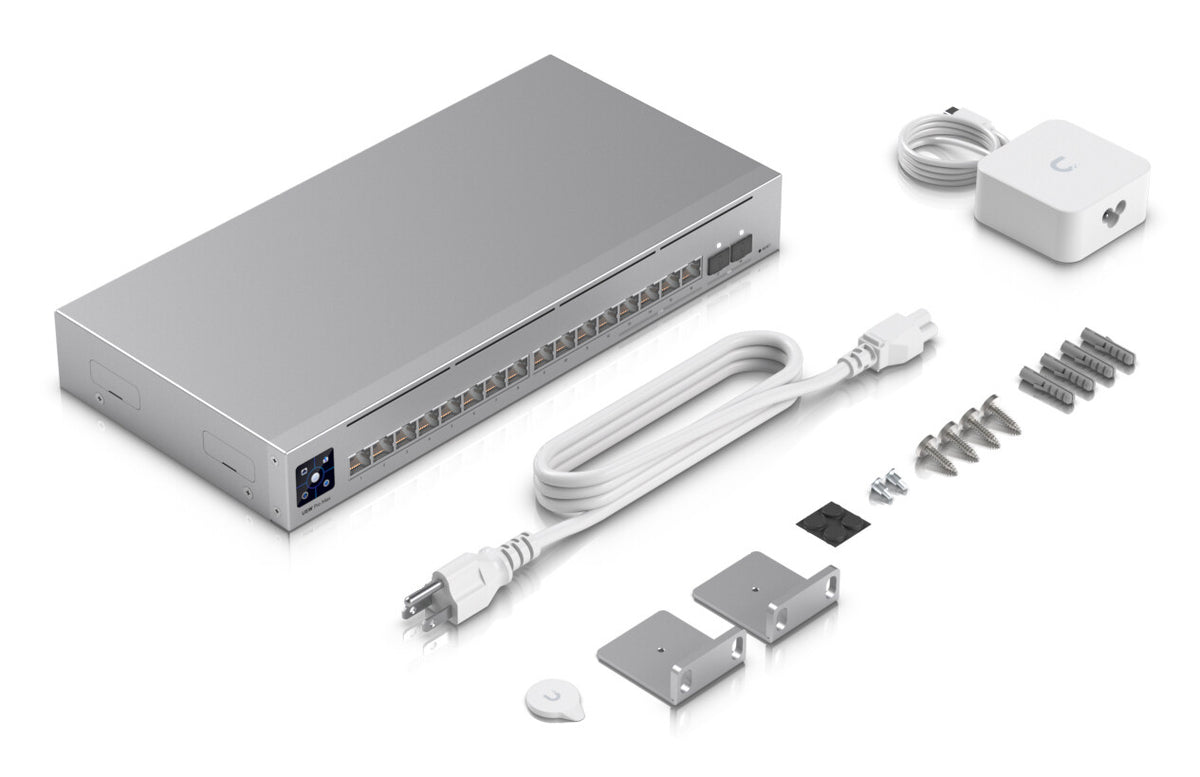

Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U Grey

Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U Grey

£242.23 GBP
£242.23 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-PRO-MAX-16-UK

95 in stock

  • L3
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 84 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included
50W, 4 x 2.5 GbE RJ45, 12 x GbE RJ45, 2 x 10G SFP+, Layer 3, SGCC steel

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

Management features
Quality of Service (QoS) support Yes
Switch layer L3
Ports & interfaces
Power connector AC/DC
SFP+ module slots quantity 2
2.5G Ethernet (copper) ports quantity 4
Gigabit Ethernet (copper) ports quantity 12
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity 16
Network
Number of VLANs 1000
Virtual LAN features Voice VLAN
VLAN support Yes
Rate limiting Yes
Flow control support Yes
IPv4 routes 512
Broadcast storm control Yes
Link aggregation Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1x
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames support Yes
Static route Yes
Forwarding rate 62 Mpps
Throughput 42 Gbit/s
Switching capacity 84 Gbit/s
MAC address table 16000 entries
Security
Loop protection Yes
Authentication type IEEE 802.1x
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Design
Display type LCM
LED indicators Link, Network, Speed, Status
Reset button Yes
Housing material SGCC
Product colour Grey
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Fanless Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Power
Power consumption (max) 25 W
Input voltage 4.8 - 5.2 V
Input current 5 A
Redundant power supply (RPS) support Yes
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 85.3 BTU/h
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 40 °C
Weight & dimensions
Weight 1.95 kg
Height 43.7 mm
Depth 160 mm
Width 325.1 mm
Packaging data
Rack mount kit Yes
Cables included Power
View full details
